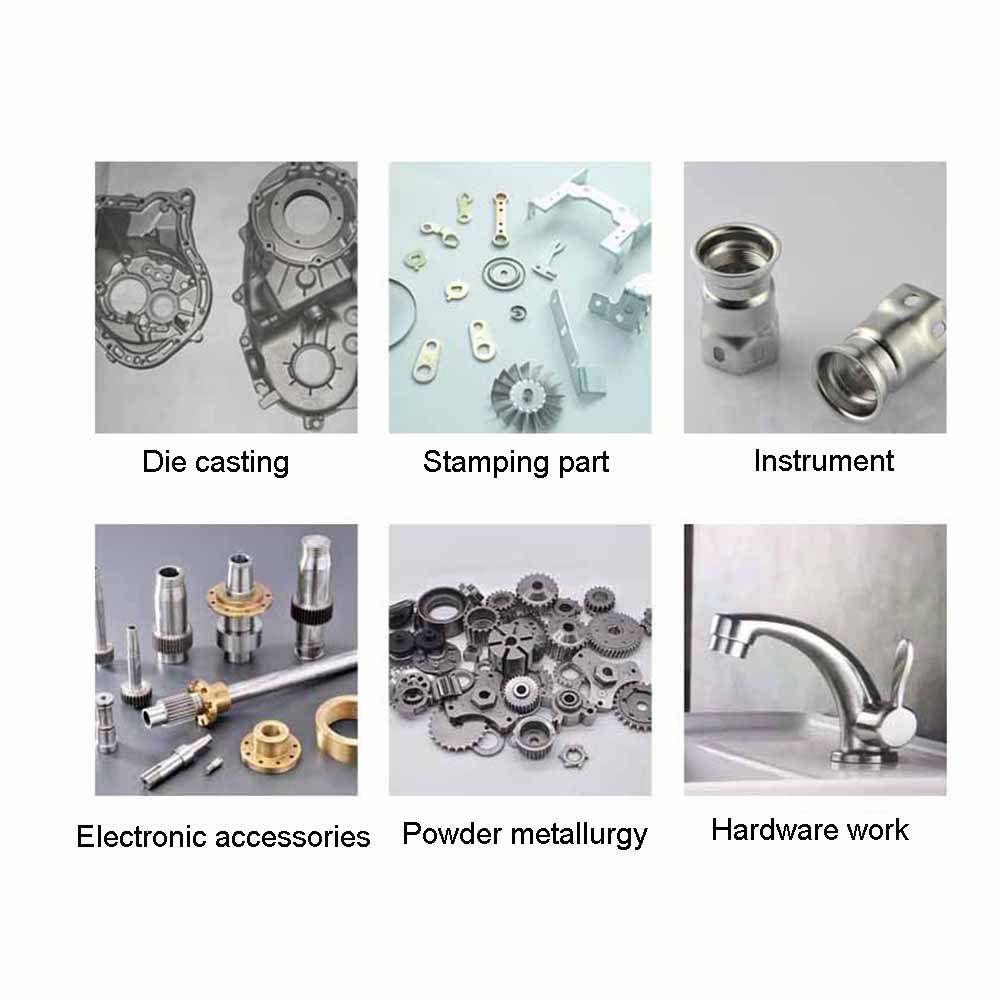

Mainly applicable to hardware parts, standard parts, instruments, meters, clocks, bicycles, sewing machines, hydraulic parts, bearings, auto parts, electrical parts, plastics, ceramics, non-ferrous metal parts and other industries of all kinds of product parts deburring, rust removal, rough polishing, polishing, fine polishing, bright polishing, especially for the opposite parts of the surface finishing processing has its special superior function. After finishing the parts, not only do not break the original shape and position accuracy, but also improve the surface quality, widely used in a large number of small parts finishing.

Working principle：:

Vibration grinding machine, the grinding process is a vibration grinding process, the need to deburring and polishing of the workpiece, into the pre-prepared abrasive, abrasive container. Relying on the regular vibration of the container, the workpiece and the abrasive produce relative motion, and grind each other, the burr protrating on the surface and surrounding of the workpiece is ground off, and at the same time, the acute Angle chamfering and surface polishing. When the vibration shaft rotates at a high speed, the eccentric block generates centrifugal force and tipping moment, and makes the container vibrate regularly through the action of the spring. Because the lower part of the container is a ring shape, the force and amplitude of each point are different, and the abrasive and workpiece in the container revolve around the 'core column in the container, and roll around the center of the ring. Because the abrasive and the workpiece produce relative motion when moving, the abrasive can grind the workpiece evenly.
　

Parameters:

Volume: 95L

Voltage: 220V

Power: 1100W

Speed: 1440RPM

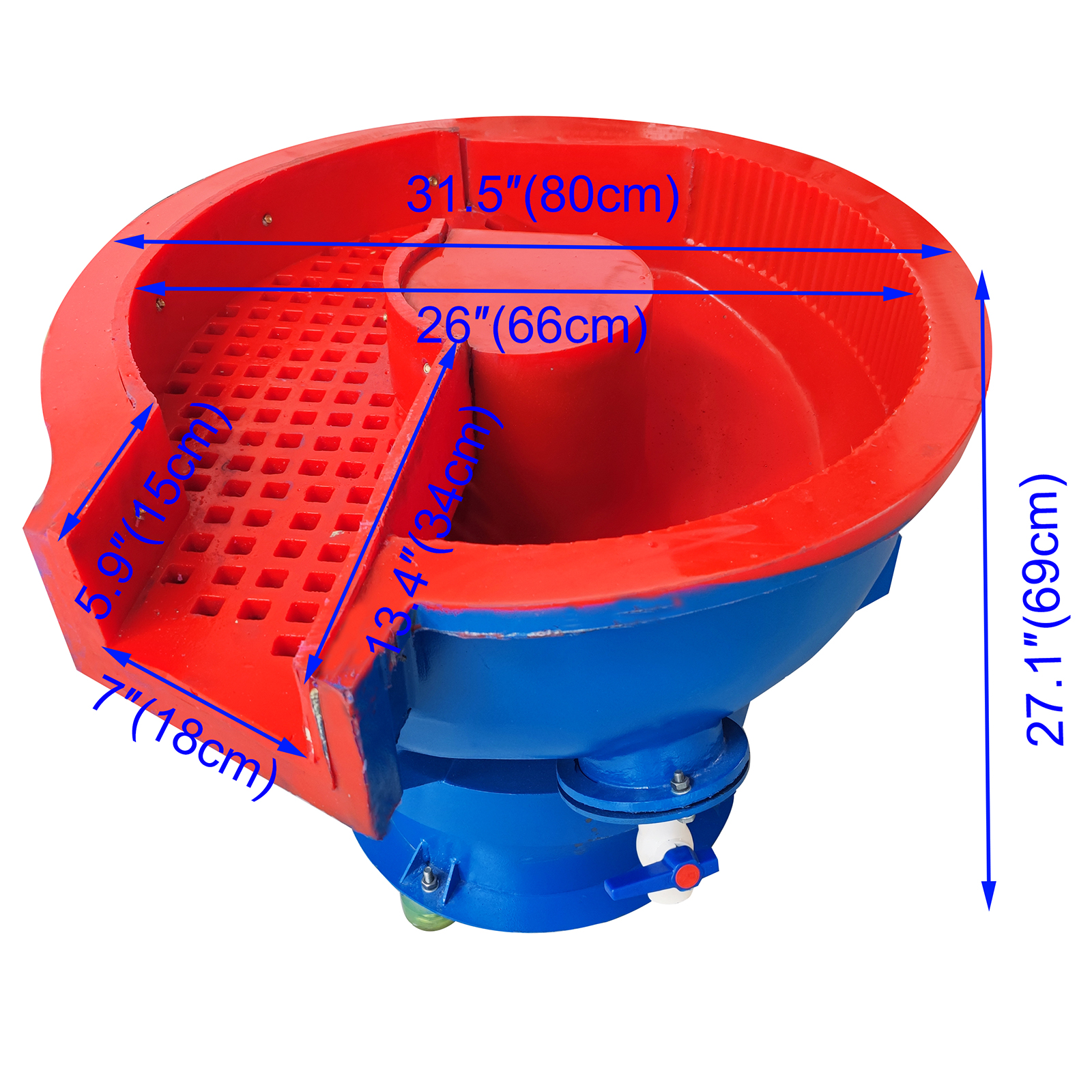

Inside diameter: 26 inch (66cm)

Outer diameter: 31.5inch (80cm)

1. High efficiency pure copper motor, strong vibration, stable performance.

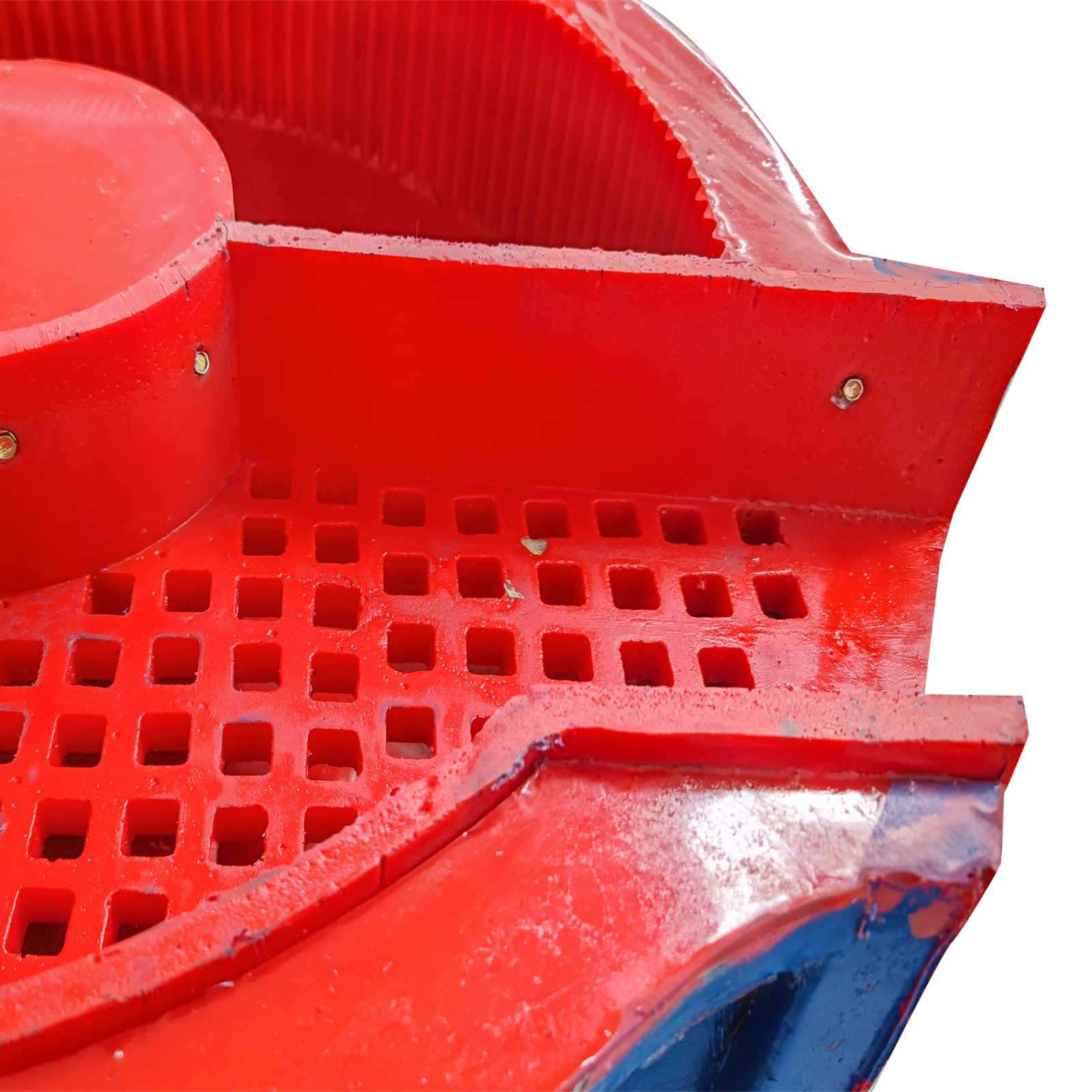

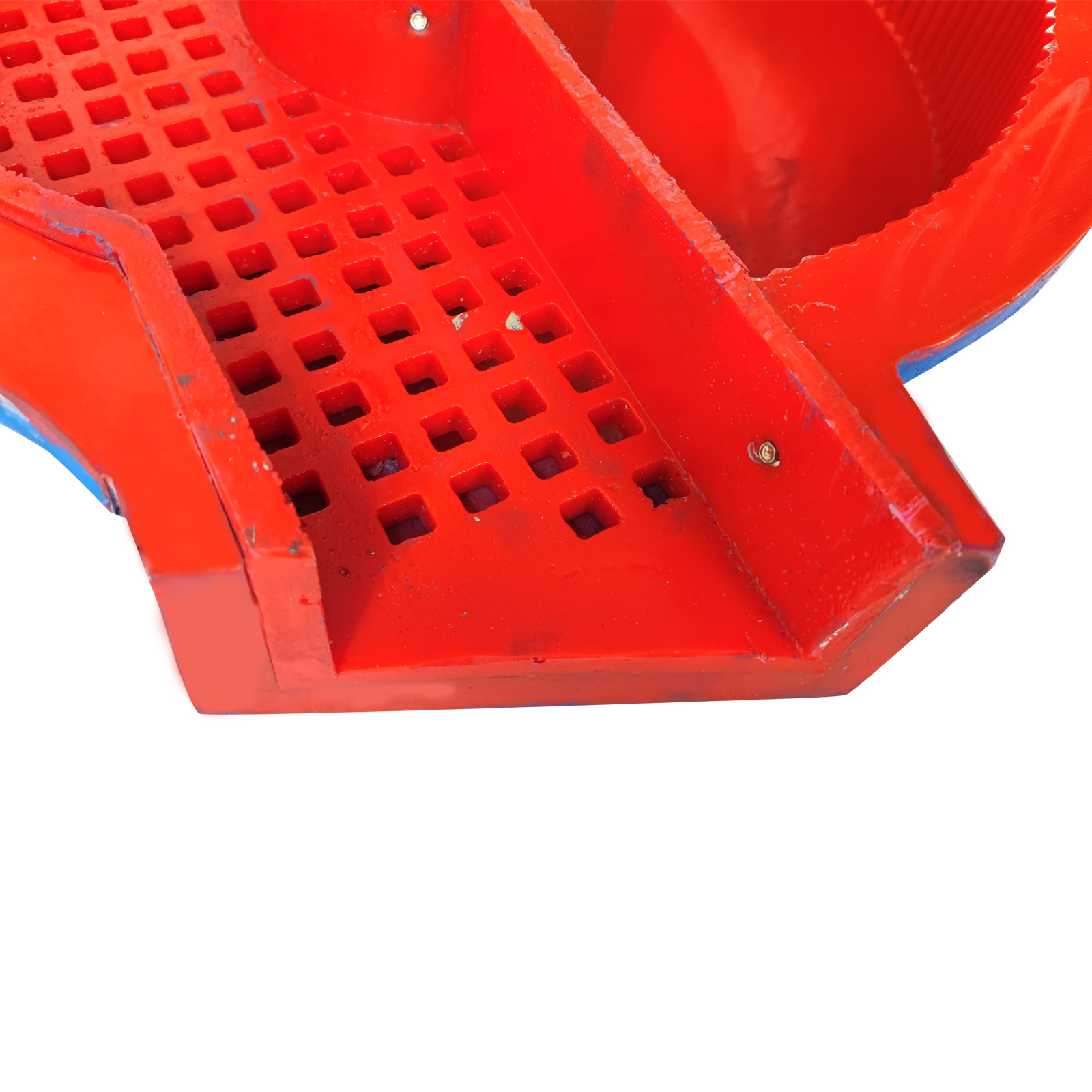

2. Polyurethane inner liner, one-time casting molding, more wear resistance and corrosion resistance.

3. The machine shell is made of thickened plate, which is strong and durable.
　

Note:This machine has no plug and needs to be connected to the air switch for use by the

customer

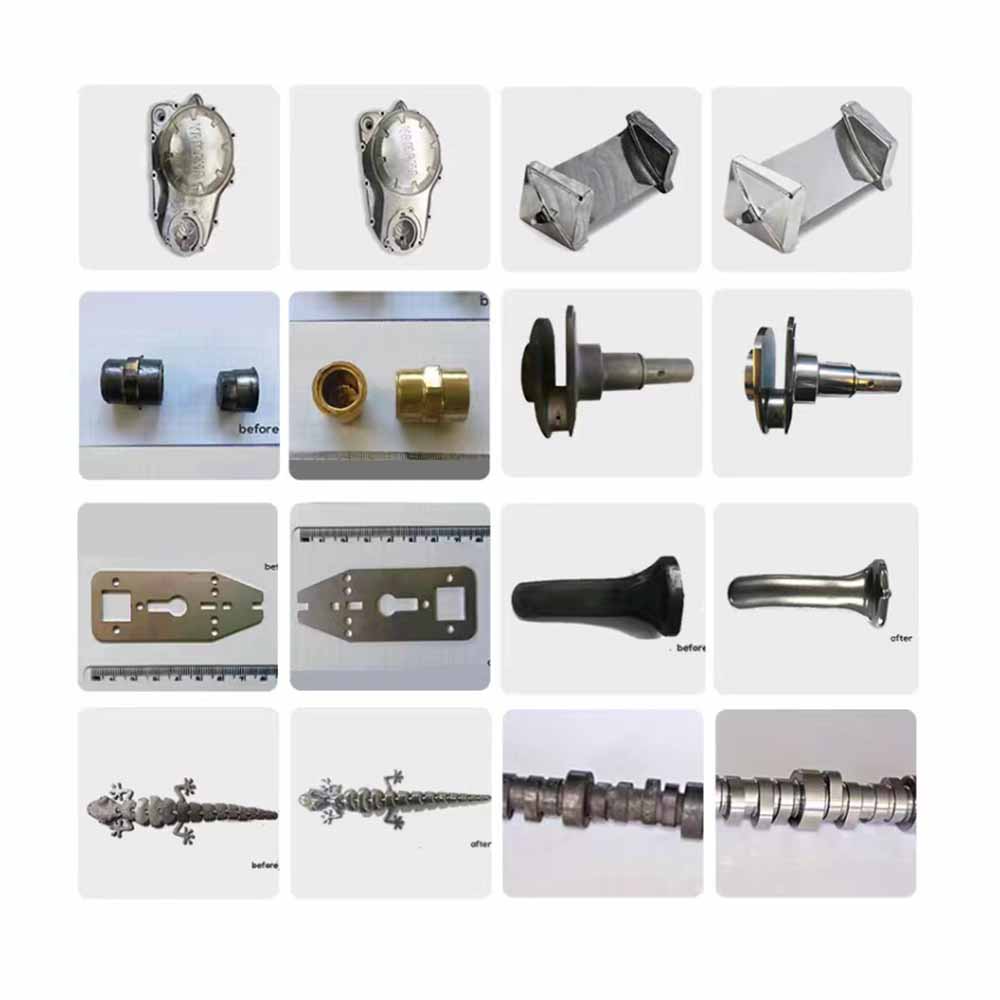

Use effect:

Item included:

You can make order with no worry. .
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
