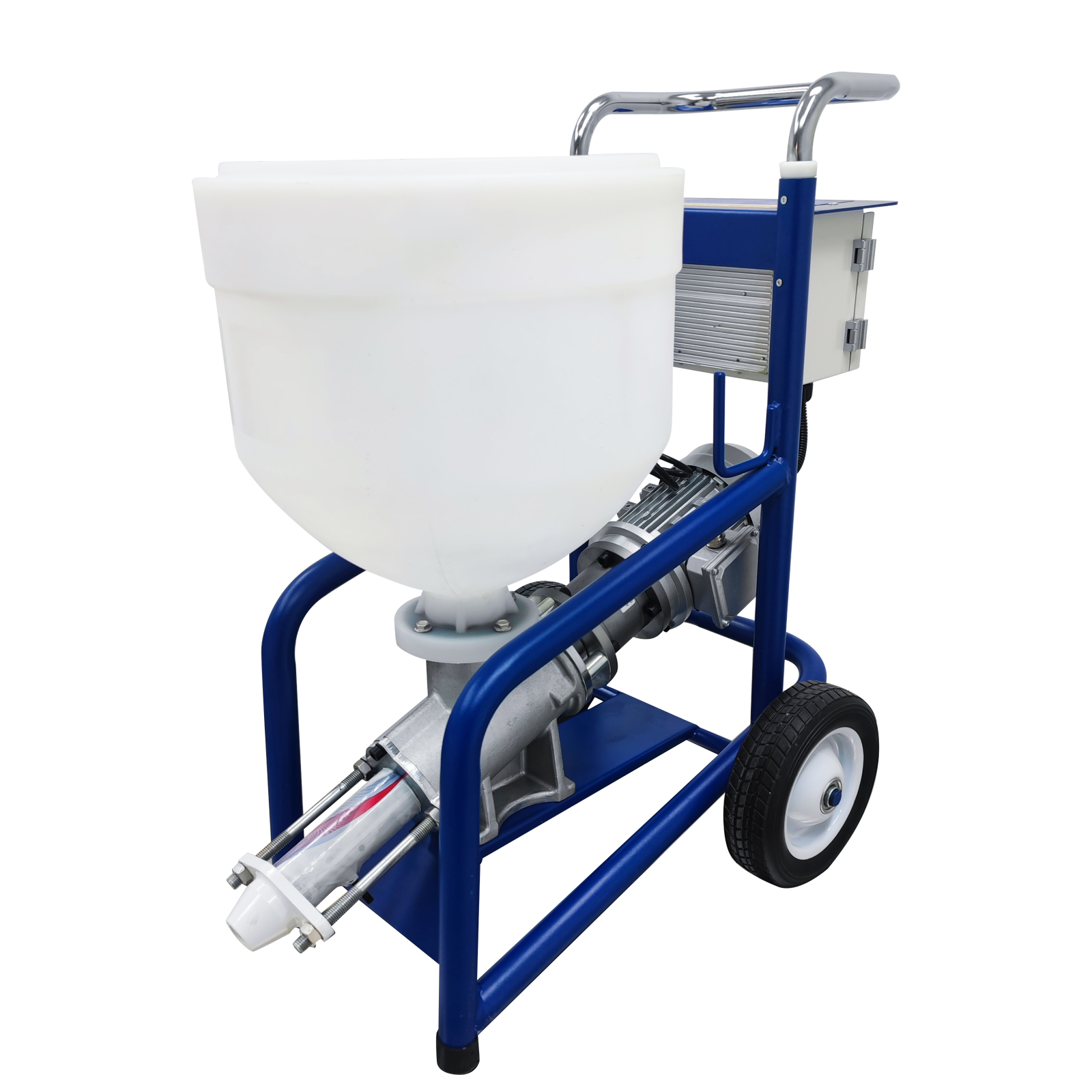

T3 Putty Cement Grouting Spraying 220V

Multifunctional mortar spraying machine is suitable for real stone paint, sand in water, putty, caulking plaster, small day seed latex paint, leveling mortar, bonding mortar, diatom mud bomb coating, waterproof and fireproof and other materials. Different materials lead to different service life of the wearing parts of the machine, please know in advance.

Product parameter:

properties: DC brushless

Motor power: 1800W

Rated voltage: 220V

Minimum flow rate: 0.6L/min

Maximum flow rate: 12L/min

Maximum adjustable pressure: 12 KG

Randomly configured nozzles: 4, 6, 8

Random distribution pipe: 5 meters

Maximum conveying height: 5M

Burst pressure of feed pipe: 90KG

Hopper capacity: 28L

Operation Way:

1. Do not use this sprayer for the spraying of oily materials.
2. Connect the air pressure sensor to check whether there is air leakage at the connection part of the gas pipe (this machine is pneumatic induction control, air leakage will affect the sensitivity of the switch.
3. Before starting each time, please inject the mixed cooked rubber powder (or diluted real stone paint) into the hopper first. Start the cooked rubber powder or real stone paint from the other end of the high-pressure pipe can flow out. (Before this operation, please remove the nozzle to prevent the residual old material in the material tube from blocking the nozzle.
4. Plug in the power, switch to the automatic position, motor control the switch, and confirm that the switch indicates the automatic state.
5. After turning on the air source switch, slowly adjust the potentiometer switch clockwise, and reconfirm that the material pipe and the connecting parts are intact without leakage, then pour the normal use of real stone paint. When used, the speed should not be too fast, and the corresponding nozzle discharge amount is good enough for normal use, otherwise it will reduce the service life of the rubber sleeve screw.

Features:

1. Wide range of application, a variety of materials spraying, a machine can be done.

2. Rubber tires, easy to move.

3. Large flow spraying, save time and cost.

4. Spray effect is good.

5. Open hopper, more convenient feeding.

Details:

Item Number:

1* T3 Putty Cement Grouting Spraying 220V (033297)

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
