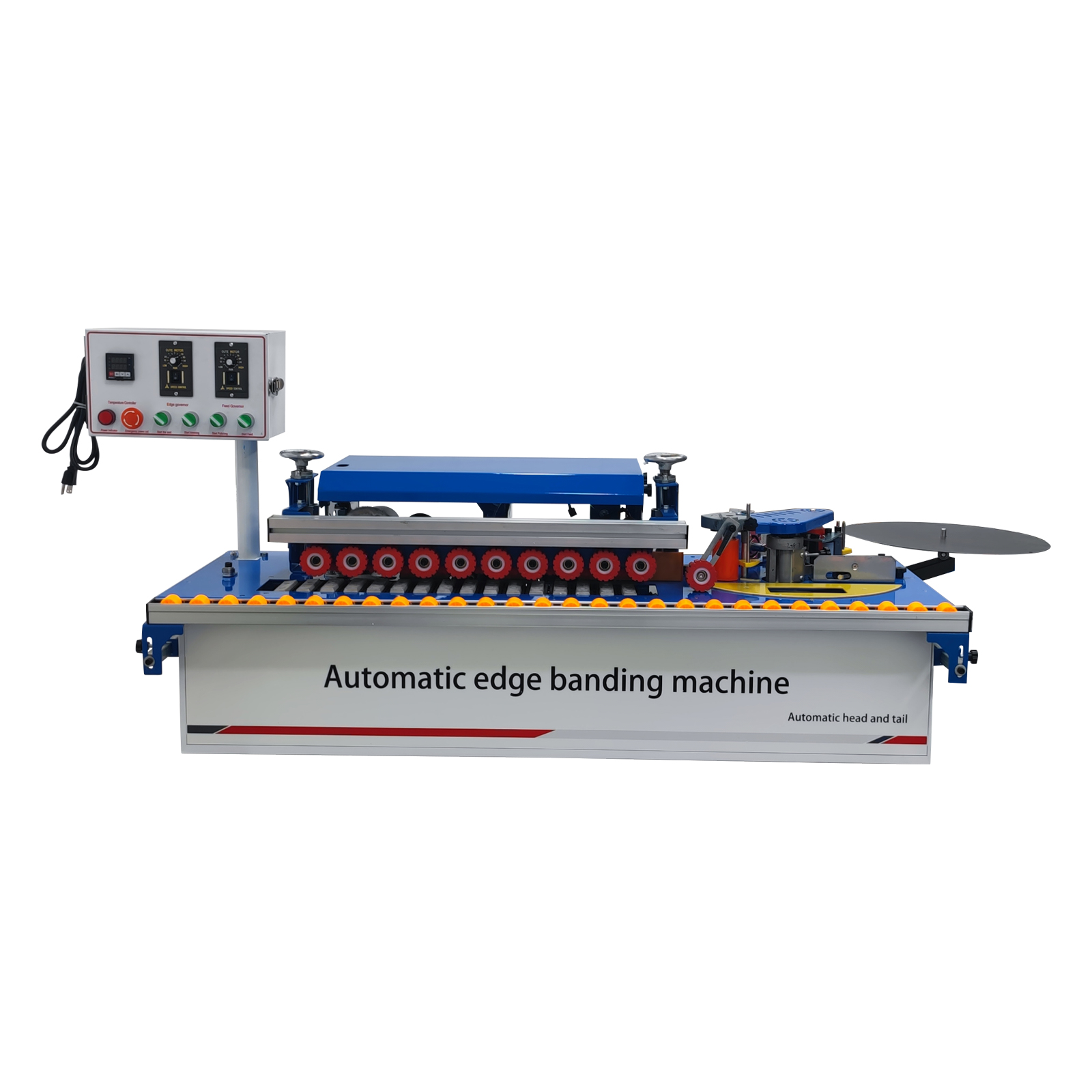

Automatic Edge Banding Machine 110V

The multi-function sealing and repairing machine is mainly used for sealing the edge of the plate section. It has compact structure, reasonable layout, beautiful appearance, with straight edge sealing, double-sided gluing, automatic tape breaking, pneumatic head, automatic plate feeding, upper and lower trimming, double-sided polishing and other functions.

Voltage: 110V

Edge speed: 0-6m/min

Conveying speed: 0-15m/min

Self-propelled motor power: 60W

Conveyor motor power: 25W

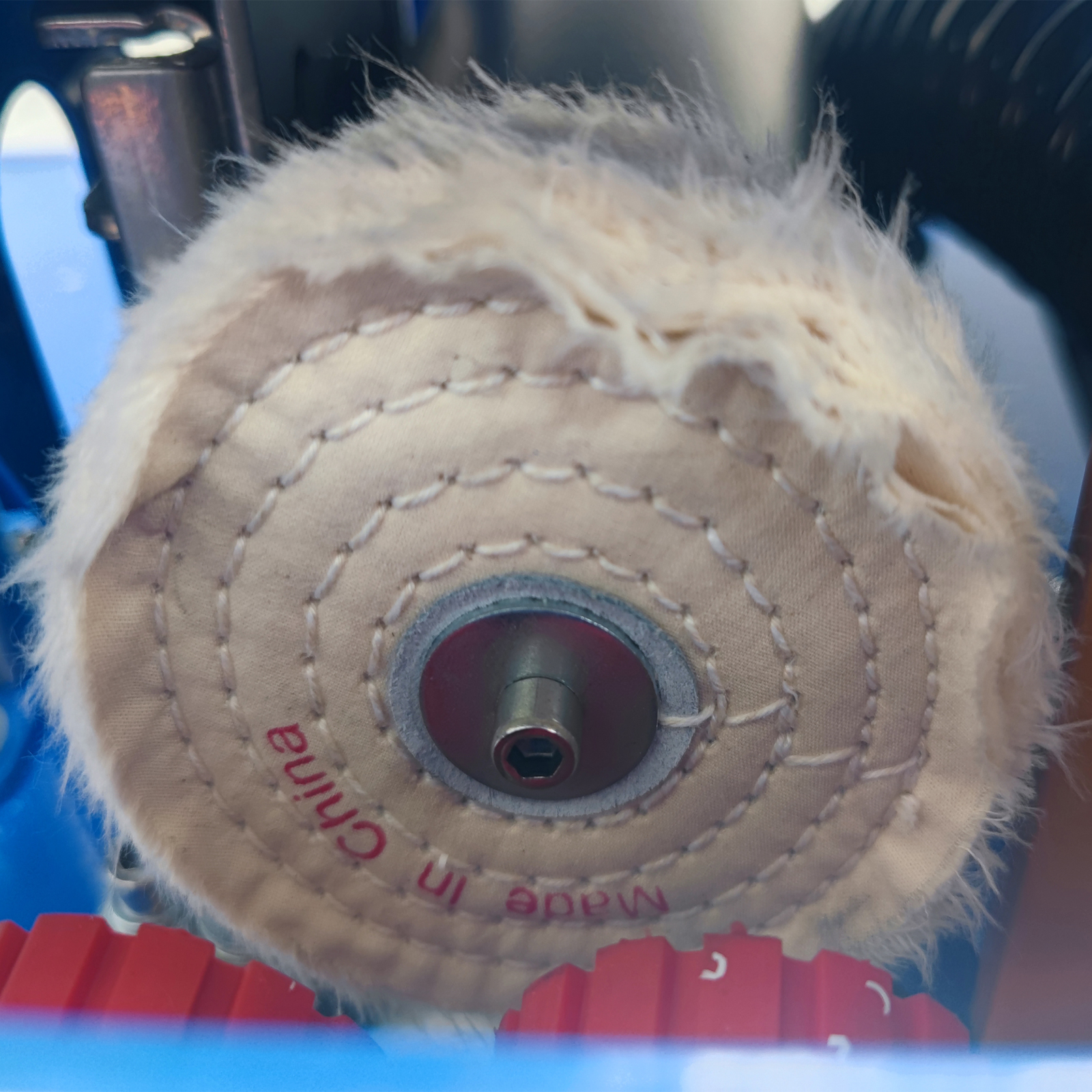

Polishing motor power: 400W

Edge cutting machine power: 800W

Edge thickness: 0.8-1.5 millimeters

Edge height: 12-40mm

Heating time: 5-15min

Adhesive volume: 1000ml

Trimming method: Double-sided trimming

Adhesion method: Double-sided adhesive coating

Control mode: Intelligent temperature control

Disconnection mode: Automatic strip breaking

2. Multi-functional microcomputer sealing machine through the special structural design, can make the plate with the edge sealing machine tape at the same time, to ensure that the paste is more uniform, more firm, the edge sealing effect is more perfect. The special design of the glue pot increases the volume of the glue pot and greatly reduces the preheating time, which can ensure sufficient melting amount.

3. Manual feeding coupled with manual control and motorized roller pressure mode can accurately and quickly carry out the edge sealing process, each part of the work design is strict and orderly, no degumming overflow phenomenon.

Scope of use：

Suitable for side sealing: flexible melamine-impregnated paper, wood veneer, plastic and other furniture edge sealing materials, the rubber surface must be smooth.

Plastic side sealing tape: must be coated with hot melt adhesive when heated without deformation. Plastic side tape, coated surface must be pre-coated with back adhesive (can make the back side tape and hot melt adhesive adhesive activator).

Suitable for hot melt adhesives: medium and low temperature hot melt adhesives with melting point below 120℃-170℃.

Suitable for the workpiece frame: can be bonded with hot melt wood, flower board, medium fiber board, particle board and other plate frame.
