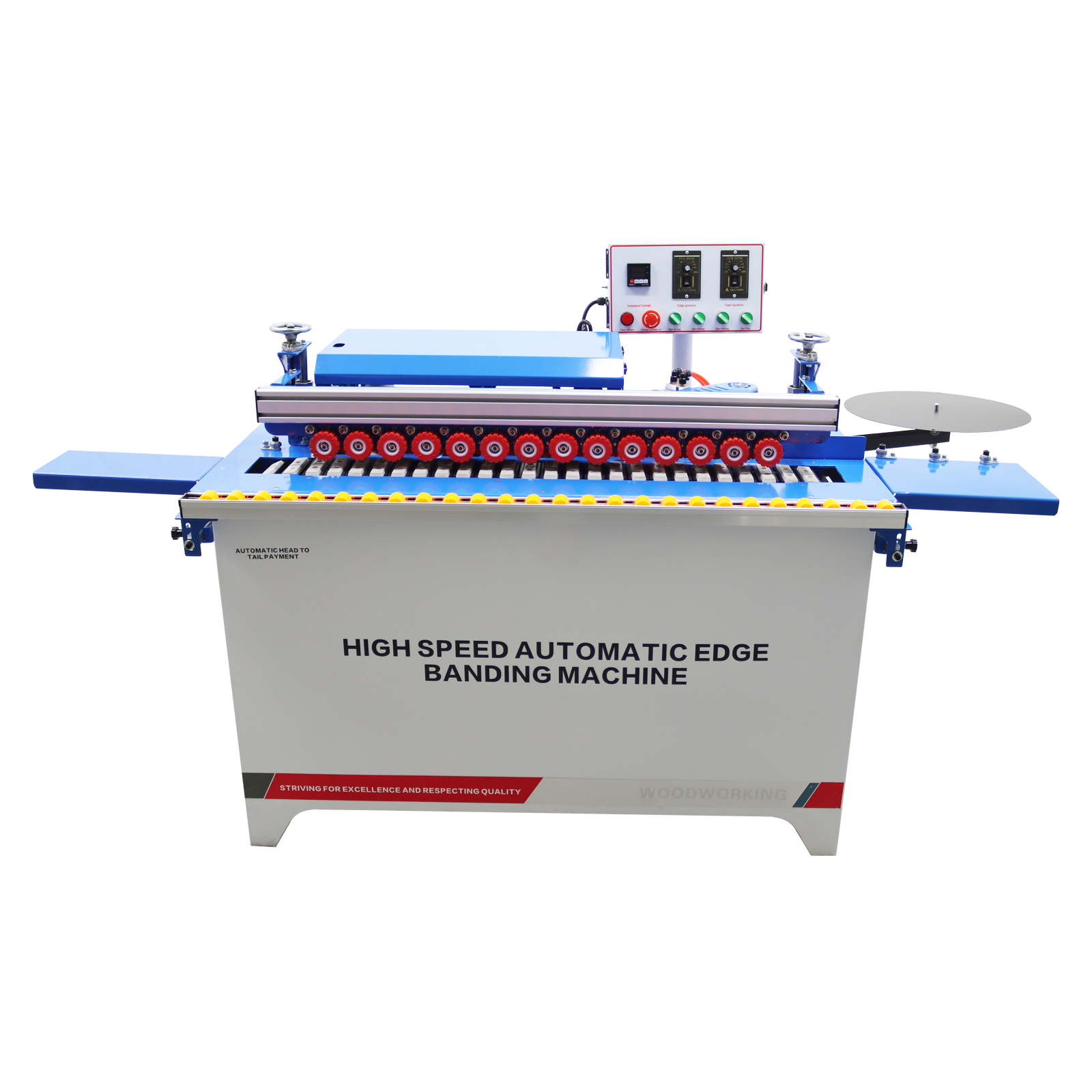

Straight Line Automatic
Edge Banding Machine 110V |
|
|
|
|
|
|
|

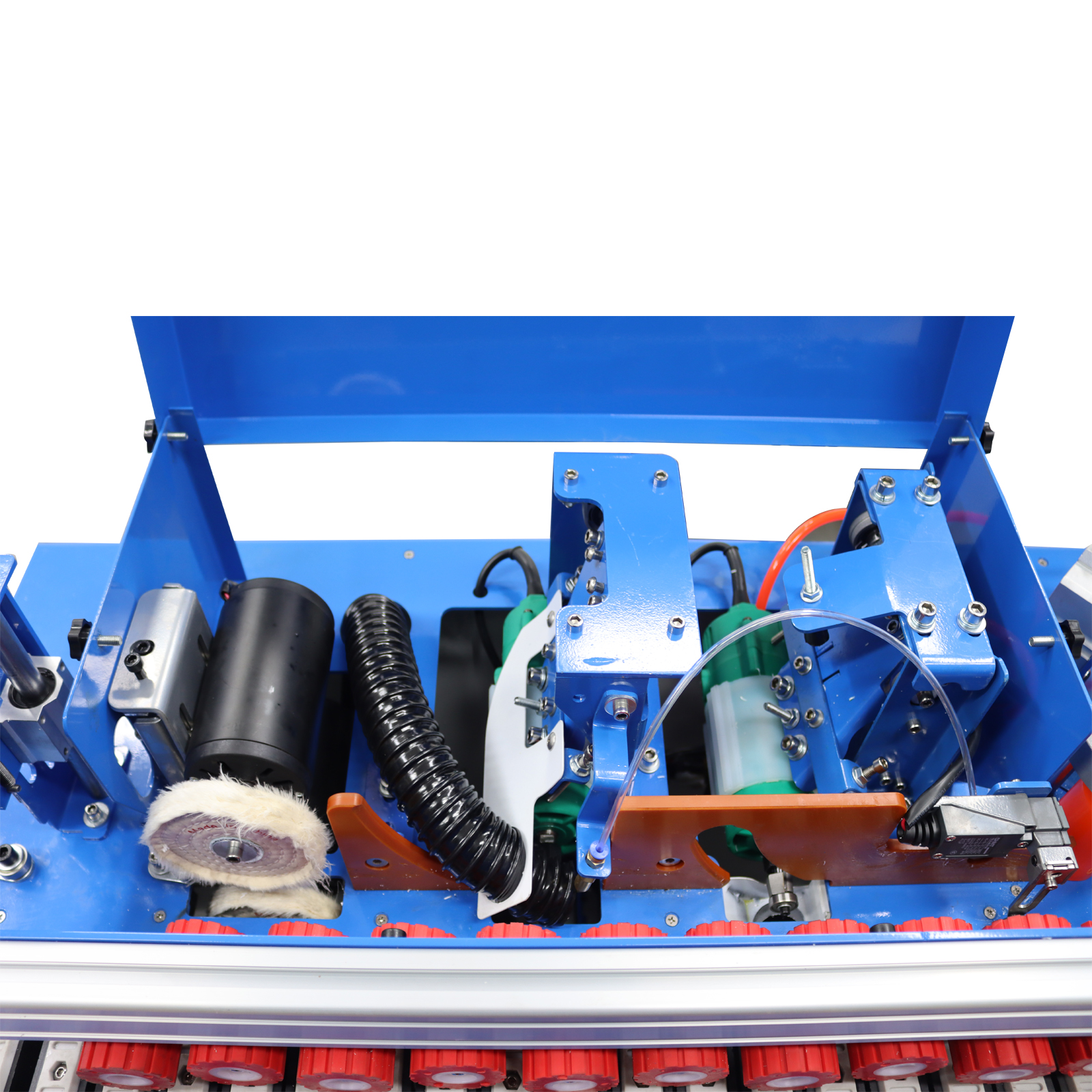

The multi-function sealing and repairing machine is mainly used for
sealing the edge of the plate section. It has compact structure,
reasonable layout, beautiful appearance, with straight edge sealing,
double-sided gluing, automatic tape breaking, pneumatic head, automatic
plate feeding, upper and lower trimming, double-sided polishing and
other functions.
|
|
Product parameter: |
|
Voltage: 110V
Edge speed: 0-6m/min
Self-propelled motor power: 60W
Conveyor motor power: 25W
Polishing motor power: 400W
Edge cutting machine power: 800W
Edge thickness: 0.8-1.5 millimeters
Edge height: 12-40mm
Heating time: 5-15min
Adhesive volume: 600ml
Trimming method: Double-sided trimming
Adhesion method: Double-sided adhesive coating
Control mode: Intelligent temperature control
Disconnection mode: Automatic strip breaking |
 |
|
Features： |
|
The limit rod at the entrance of the belt: easy to
adjust, and can quickly fix the sealing belt. |
 |
|
|

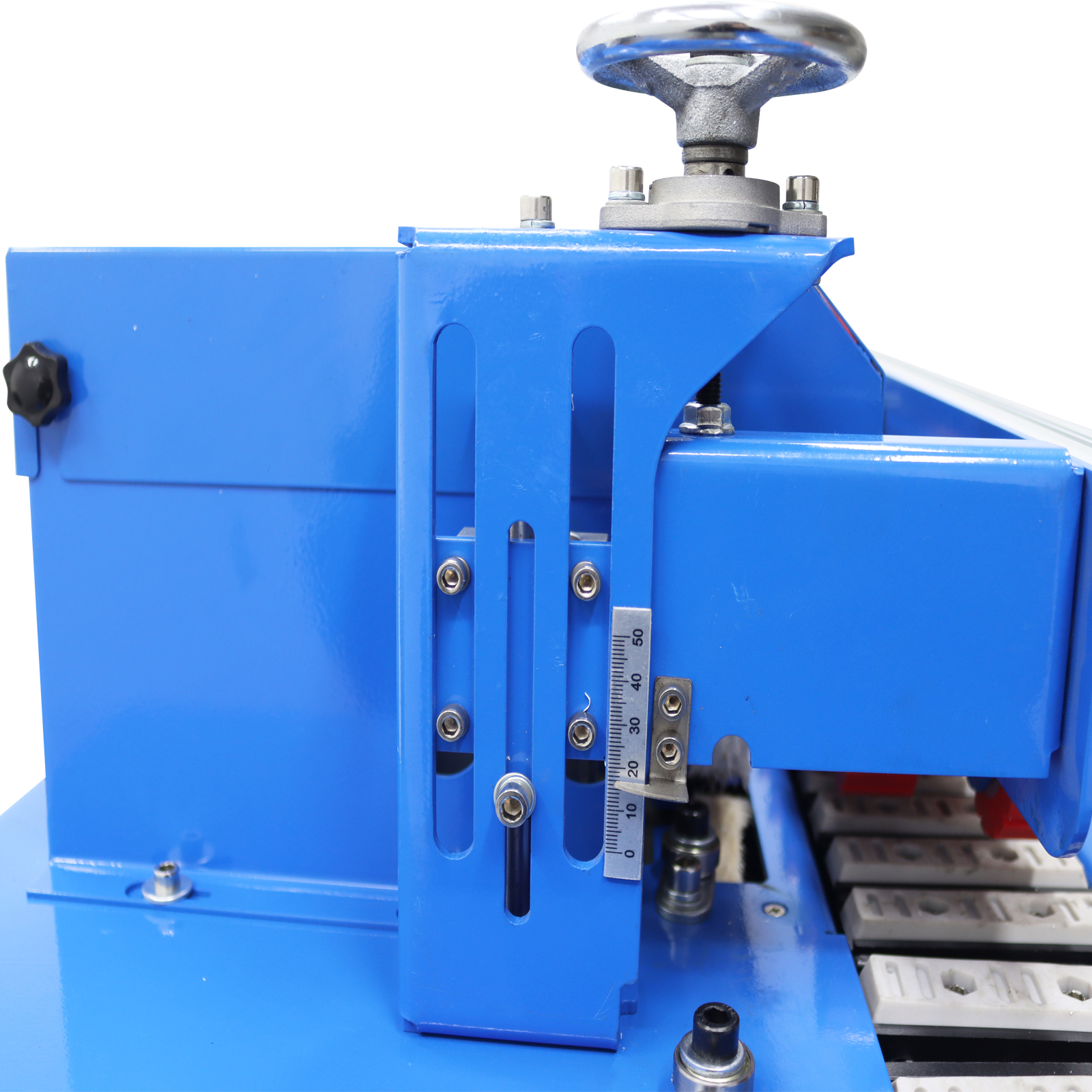

Import and export press scale: accurately adjust according to demand to
improve work efficiency. |
|

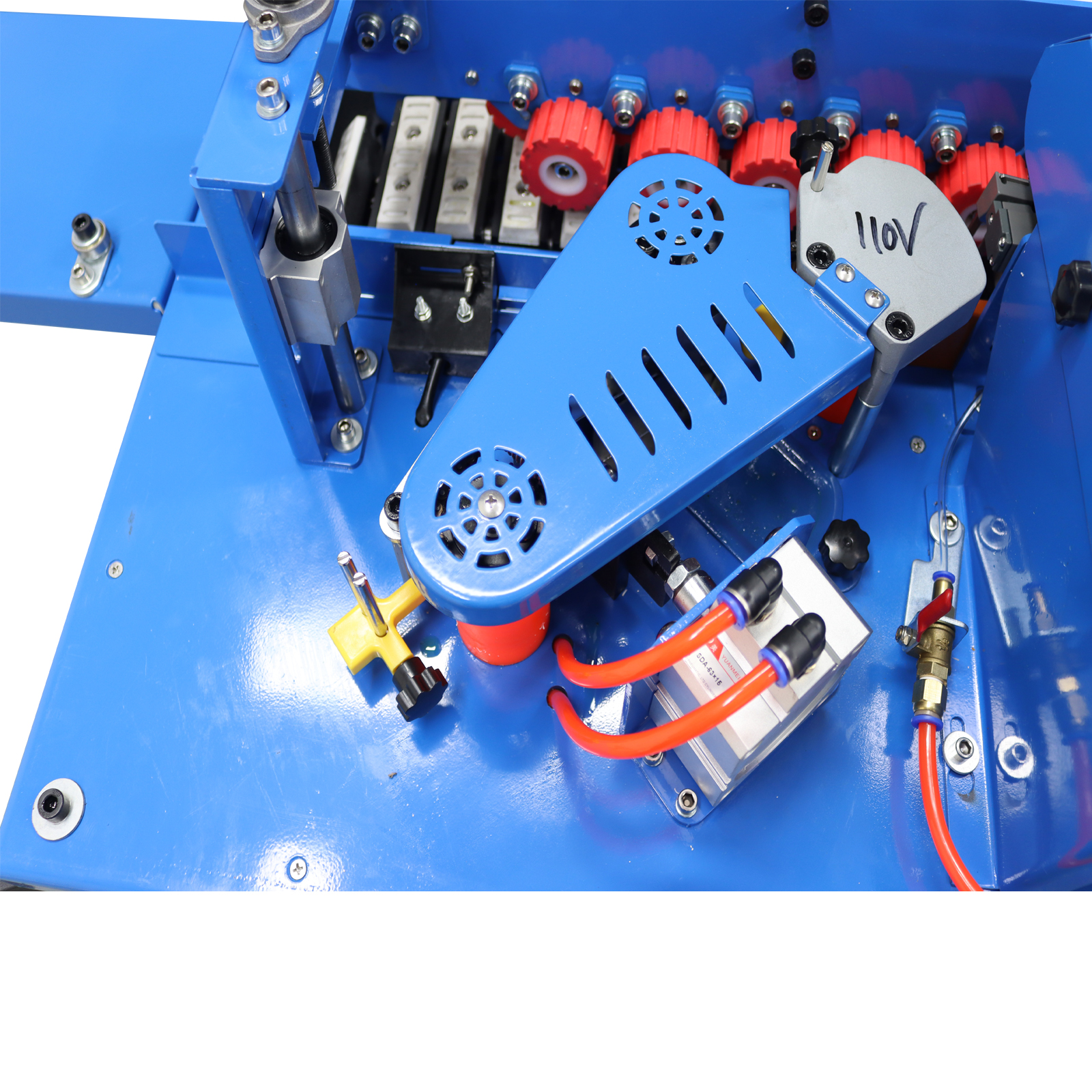

Cylinder: high strength, corrosion resistance, long service life.
|
 |
|
|

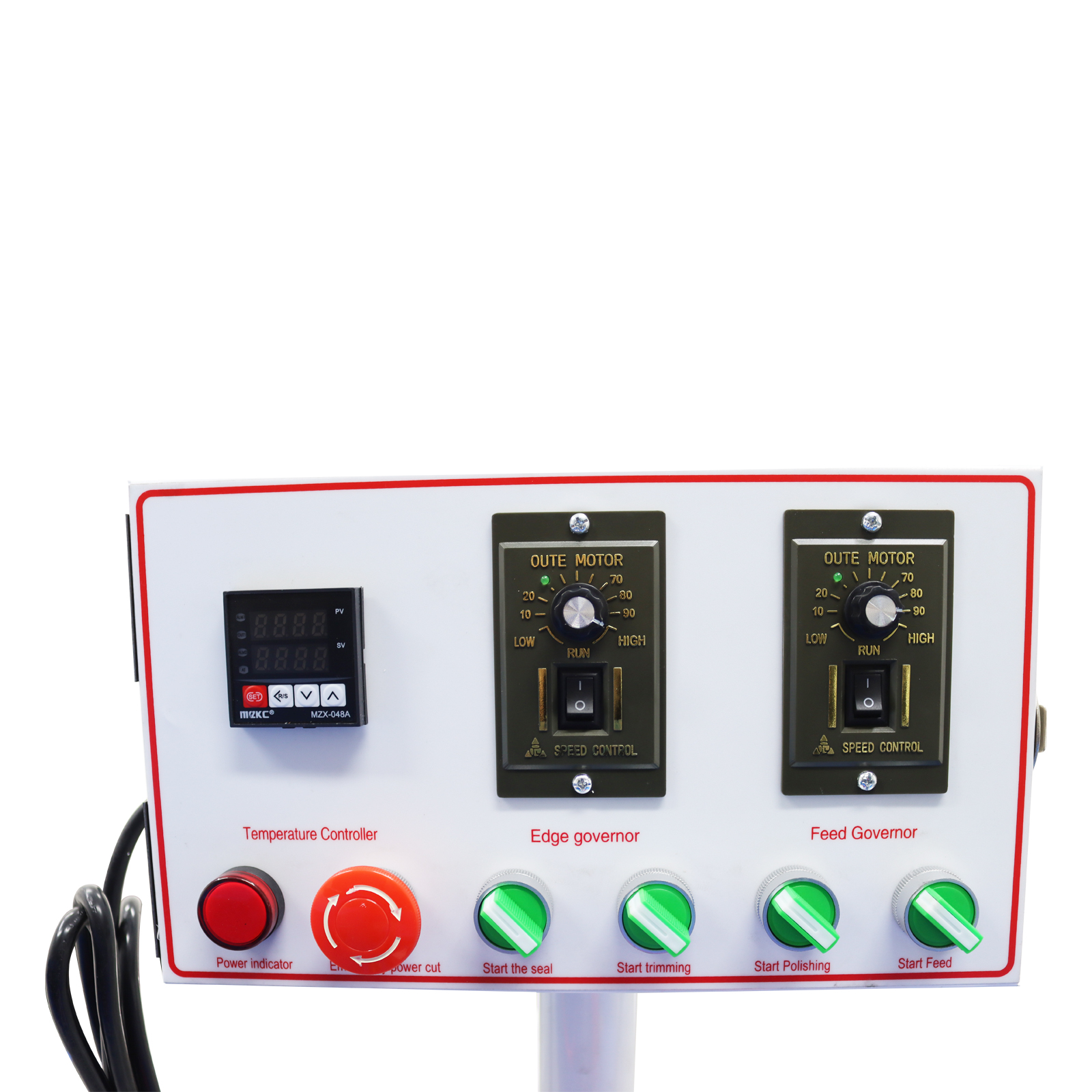

Intelligent control panel: independent control, timely adjustment,
improve work efficiency. |
|

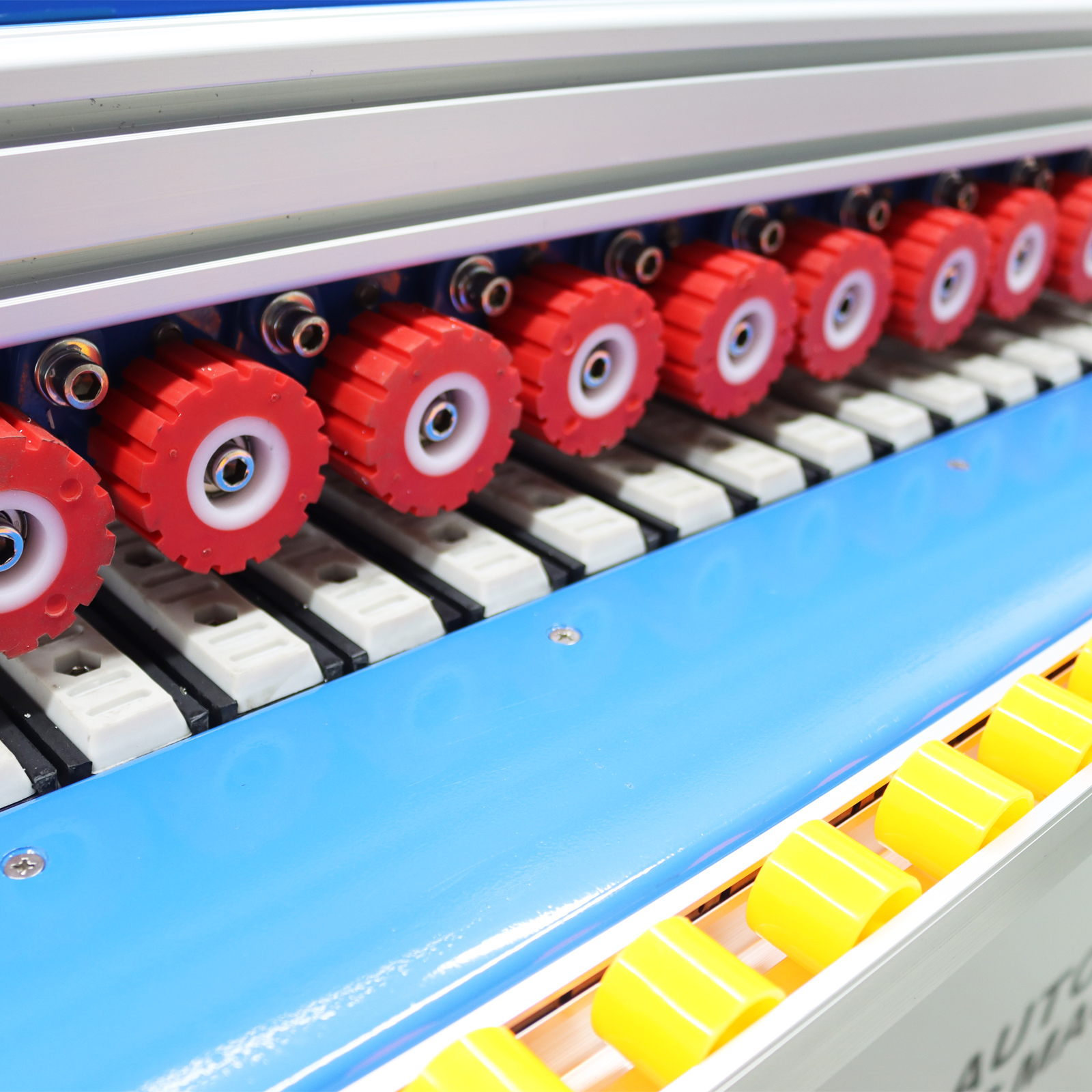

Double row baroclinic wheel design: no deviation in transmission. |
 |
 |
Automatic head and tail, more convenient to use. |
|
Suitable for a variety of plates. |
 |
|
Scope of use： |
|
Suitable for side sealing: flexible melamine-impregnated paper, wood
veneer, plastic and other furniture edge sealing materials, the rubber
surface must be smooth.
Plastic side sealing tape: must be coated with hot melt adhesive to
prevent deformation when heated.. Plastic side tape, coated surface must be
pre-coated with back adhesive (can make the back side tape and hot melt
adhesive adhesive activator).
Suitable for hot melt adhesives: medium and low temperature hot melt
adhesives with melting point below 120℃-170℃.
Suitable for the workpiece frame: can be bonded with hot melt wood,
flower board, medium fiber board, particle board and other plate frame.
|
|
Item Number(033312):
1* Straight Line Automatic Edge Banding
Machine 110V
|
|
|
You can make order
with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
