110V Continuous
Sealing Machine FR-880 Horizontal Digital Display |
|
|
 |
|
Product Overview |
A sealing machine is a type of automated
assembly-line product packaging system, commonly used in the packaging
industry for food, and a wide variety of other products.
FR series continuous film sealing machines finish continuous carrying,
sealing and printing in one operation. Suitable for small-bag packaging,
this continuous band sealer uses an electronic constant temperature
control system and a stepless speed adjusting transmission mechanism.
This machine can handle various types of plastics and includes an
embosser to print your expiration date, etc, save labor and improve
efficiency.
It can seal plastic film in various kinds of materials such as
polyethylene, polypropylene & polyolefine, etc.
The machine offers vertical or horizontal configuration. Horizontally
model is usually used for dry food while vertical model is used from
liquid sealing. This sealing machine Fr-880 is brand new with top
quality. Durable and reliable, it's the best choice for you. |
|
Product Parameters |
| Model: |
FR-880LW Horizontal
Digital Display |
| Machine power:
|
500W |
| Motor power:
|
85W |
| Power supply:
|
110V/60HZ |
| Conveyor table
load: |
≤5kg |
| Machine net
weight: |
23kg |
| Sealing speed:
|
≤12m/min |
| Sealing width:
|
6-12mm |
| temperature
control range: |
0-300℃ |
| Printing
method: |
steel stamp |
| Sealing
thickness: |
0.03-0.8mm |

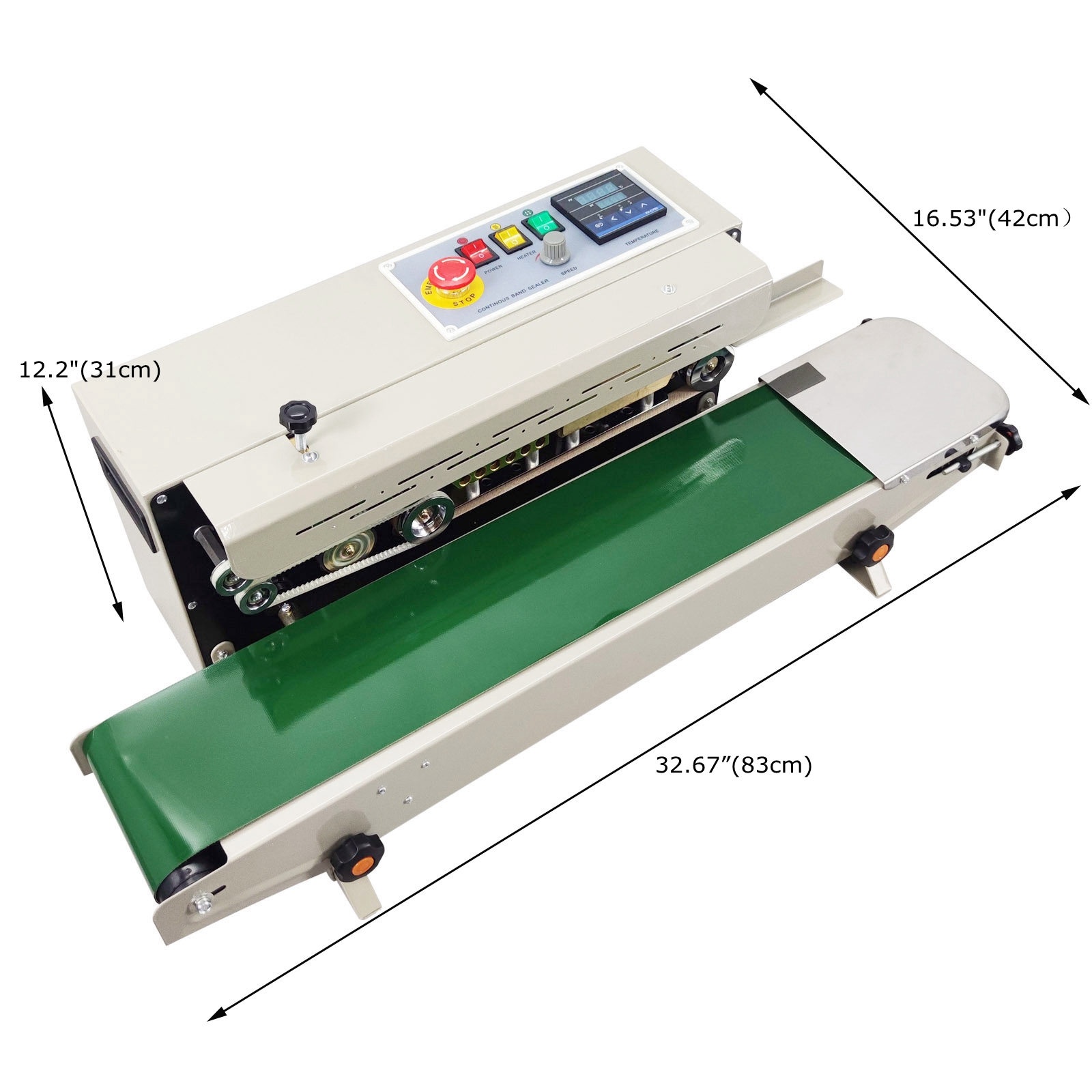

| Dimension
(L*W*H): |
830*420*310mm |
| Application: |
It is suitable for plastics,
composite bags, kraft paper, fresh-keeping bags, tea bags,
aluminum foil bags, shrink films, and food packaging in various
industries. Widely used in food, medicine, chemical industry,
agriculture, lubricating oil and other industries. |
|
 |

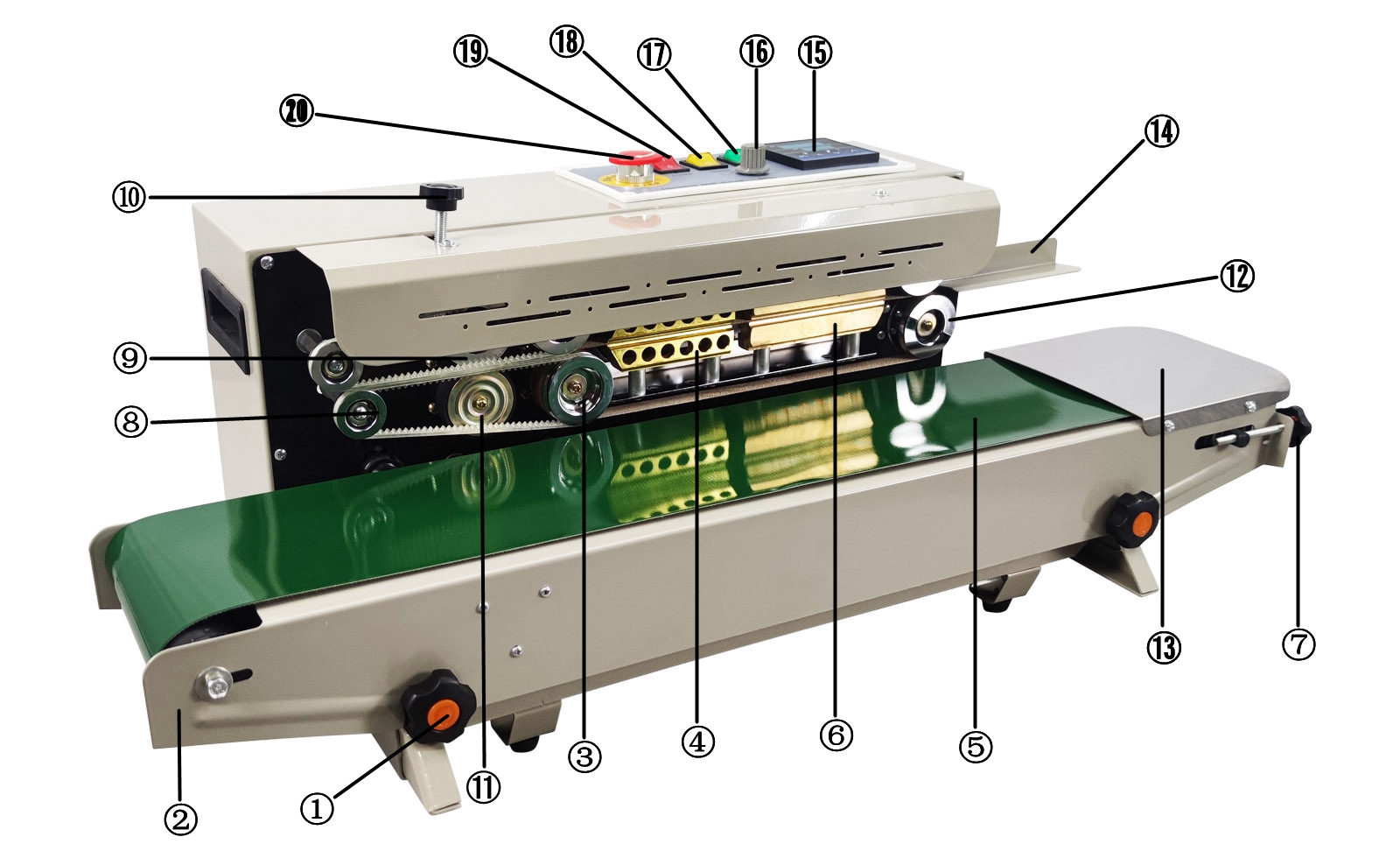

①Transverse Adjustment Of Conveyor
②Conveying table
③Driving wheel
④Cooling block
⑤Conveyor belt
⑥Heating block
⑦Conveyor Belt Adjusting Knob
⑧Guide wheel
⑨Embossing wheel
⑩Pressure Adjustment Button For Printing Wheel |
⑪ Rubber
wheel
⑫Passive wheel
⑬Commodity shelf
⑭Sealing width positioning frame
⑮Digital display temperature controller
⑯Speed adjustment
⑰Fan switch
⑱Heating switch
⑲Power switch
⑳Emergency stop |
|
|
Product Features & Advantages |
1.Equipped with emergency stop switch, in case of
emergency, it can be shut down quickly
2.Upgrade the digital display temperature controller, clear and clear
3.Thicker body, real materials, quality assurance
4.Turbine worm gear motor, strong power and stable performance, matched
with 85w copper core motor
5.A variety of lines, a variety of choices, this machine comes standard
with embossing wheel and printing wheel
6.Meet the requirements of different sealing widths (can be adjusted
manually)
7.Stainless steel storage table, upgraded arc design, beautiful
appearance, safe to use |
|
Product Presentation & Details |
 |
1. Stainless Steel Inlet
6-12MM adjustable feed inlet, forged from stainless steel material,
stable and more wear-resistant
2. Thicken Conveyor Belt
It adopts thick and wear-resistant conveyor belt, which is more durable
than ordinary conveyor belts for long-term continuous work and more
wear-resistant.
3. Strengthen Transportation
It adopts automatic conveying device, thickening active conveying wheel,
passive wheel, and running more smoothly.
4. Concave Armrest
There are recessed handrails on both sides of the fuselage to facilitate
the movement of the machine, and the smooth edges do not hurt hands.
5. Adjustable Conveyor Table
The distance between the upper and lower front and rear of the conveyor
table can be adjusted, and the parameters can be adjusted according to
actual needs to improve the working efficiency of the product.
6. Hollow Heat Dissipation
The back side of the fuselage adopts a hollow design, which effectively
ventilates and dissipates heat and extends the service life. |
  |
|
  |
|
 |
 |
|
|
Item Included (070944) |
|
|
1*FR-880 Continuous Sealing Machine |
|
You can make
order with no worries.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
|
