| Stainless Steel Commercial Home LPG Gas Grill Griddle Camp Countertop Flat Cooking Griddle Grill 2800Pa |
| The gas griddle is a core piece of equipment in commercial kitchens. It uses gas for heating and is suitable for cooking scenarios such as steak grilling, hand-held pancake frying, and teppanyaki. It combines high efficiency, flexibility, and safety. |
 |

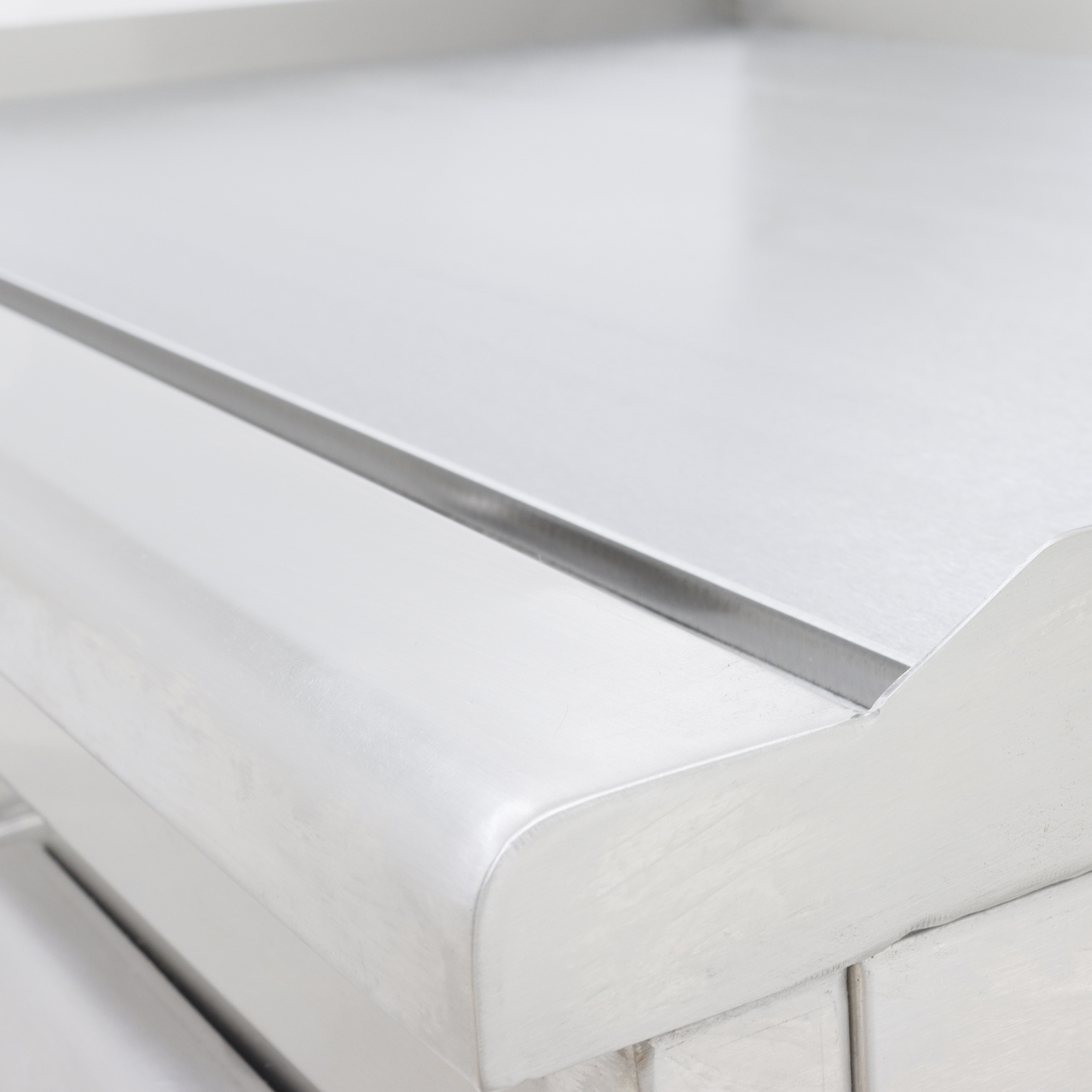

Oven Body and Heating Area
The oven body is made of stainless steel, which is corrosion-resistant and easy to clean.
The oven surface is flat and smooth, enabling uniform heating to meet the cooking needs of various ingredients (such as steaks, hand-held pancakes and teppanyaki ingredients.
|
 |
 |

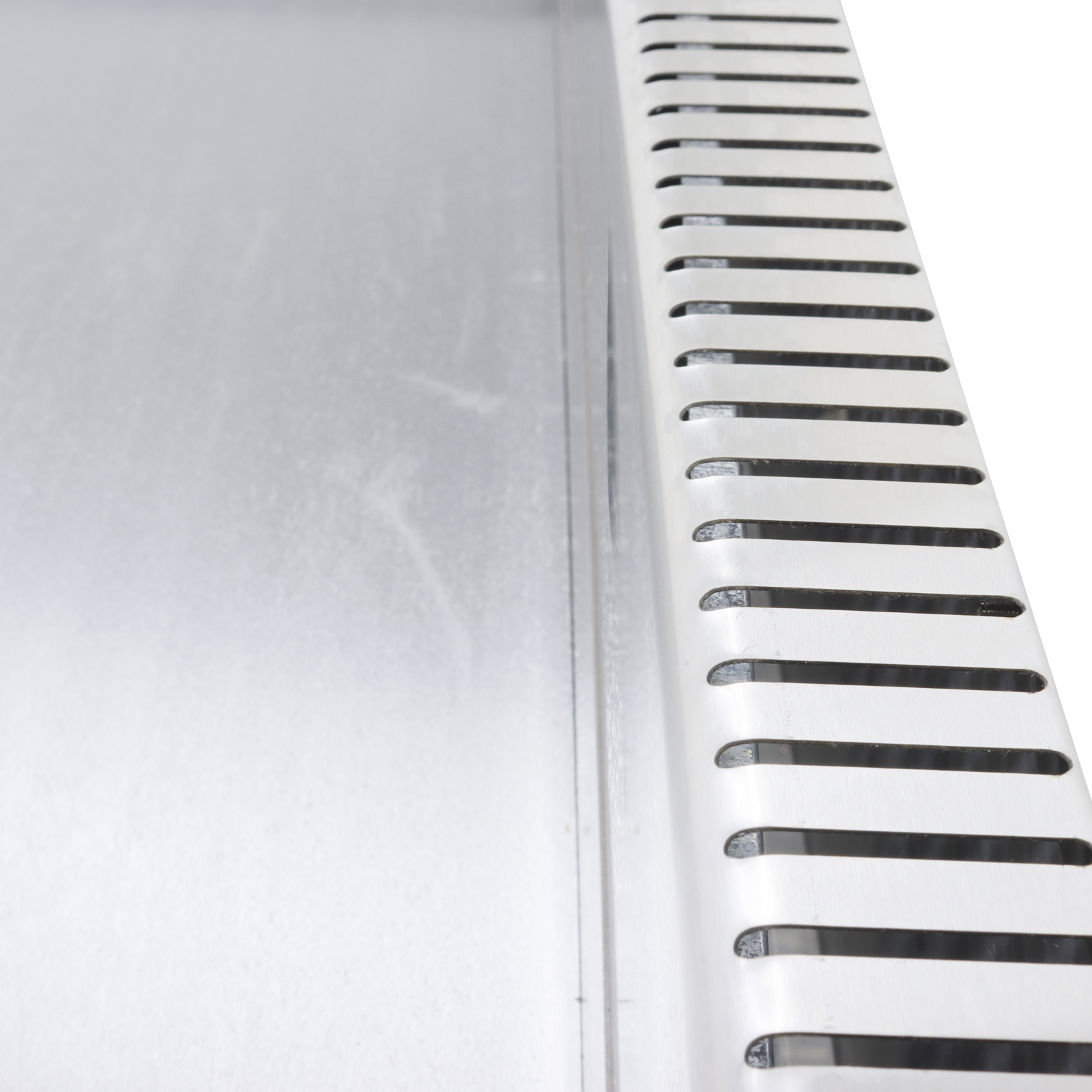

Through-Hole Layout
On one side, long strip-shaped through holes are densely arranged with regular hole patterns and uniform spacing. The hollowed structure fulfills functions such as heat dissipation, ventilation, and dust prevention: air can circulate smoothly, reducing the risk of internal heat accumulation; at the same time, the through-hole design also facilitates the transfer of heat from internal components of the equipment to the outside, ensuring the stable operation of the equipment. |

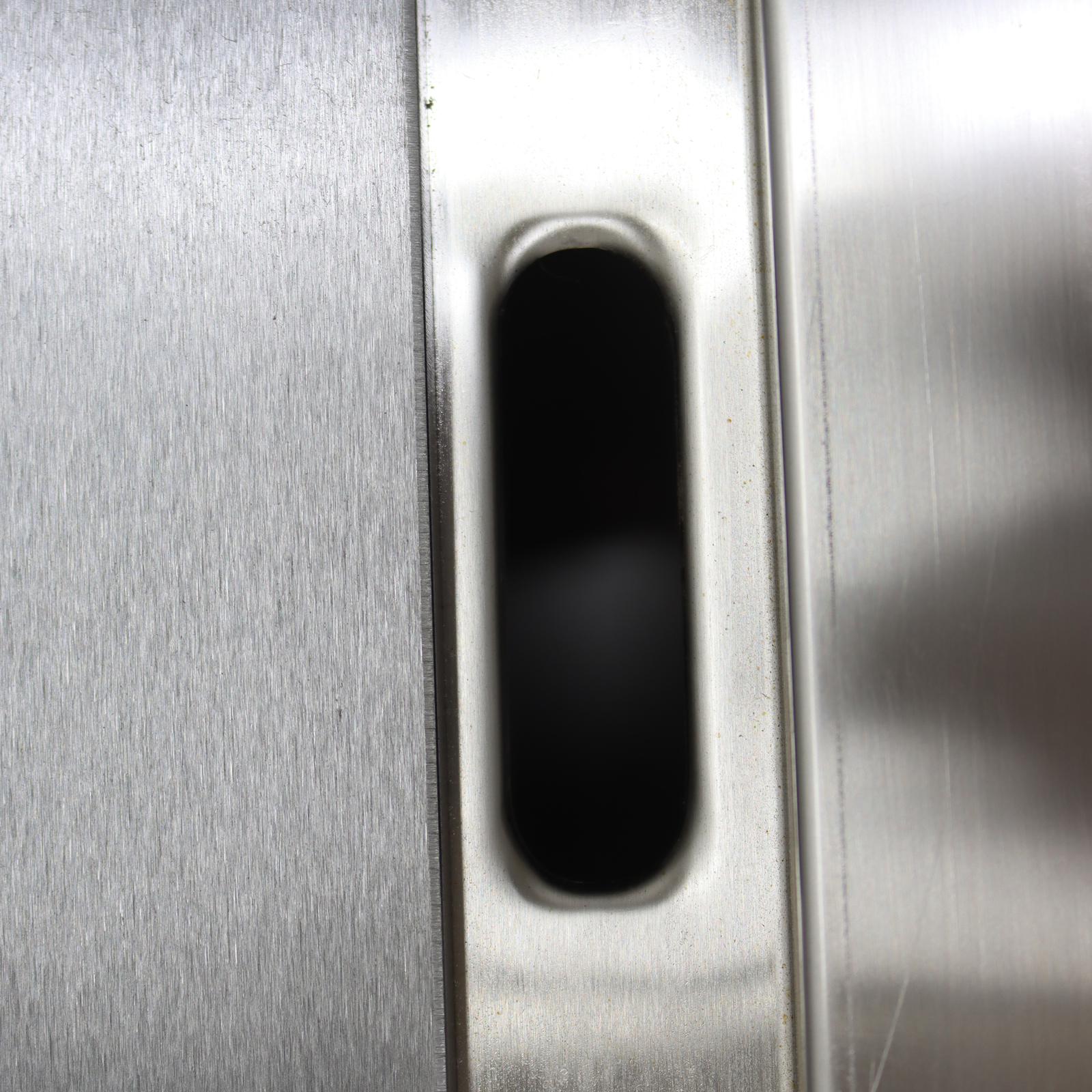

Waste Oil Collection Port
The waste oil collection port is an oval opening embedded in the main body of the griddle. Made of stainless steel, it features both corrosion resistance and easy cleaning. This design facilitates the drainage of oil to the collection area via gravity or pipes. Meanwhile, the size of the opening is tailored to meet the needs of oil flow and subsequent cleaning. |
 |
 |
Low-pressure valve & gas pipe |

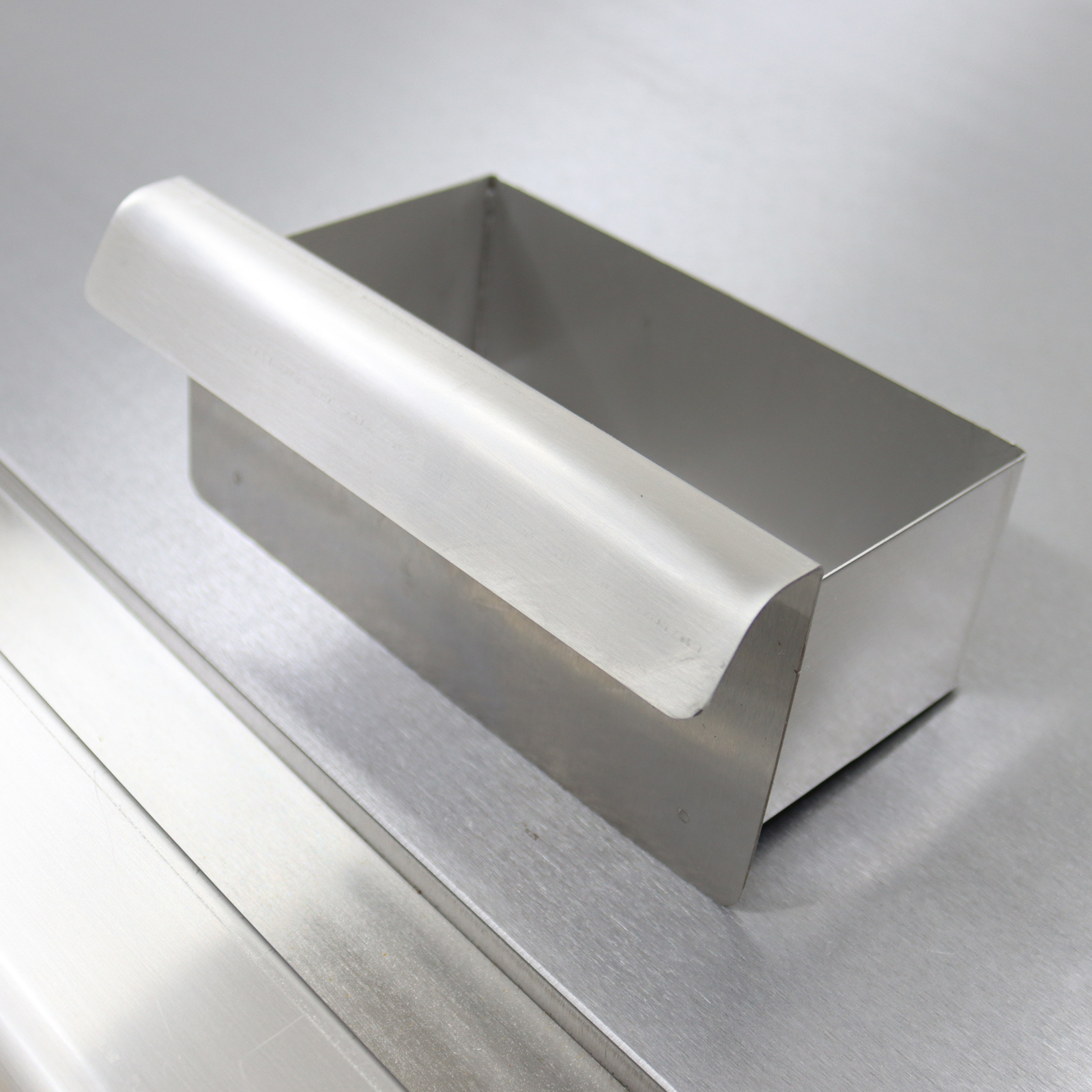

Waste Oil Collection Box
This stainless steel waste oil collection box is a rectangular metal container. It is entirely made of stainless steel, with a silver-gray metallic luster on the surface, and features both corrosion resistance and easy cleaning properties.
In terms of structural details:
1-The main body of the container is a regular rectangular prism with a spacious internal space, which is used to hold the waste oil generated during the operation of the gas griddle.
2-One side is equipped with an arc-shaped handle with smooth and rounded edges. This design not only makes it convenient for operators to grip and carry the container but also prevents collision damage.
3-The welding process between the bottom and the sides of the container is exquisite, resulting in a sturdy overall structure. It can effectively bear the weight of the waste oil while maintaining structural stability.
|
 |
 |

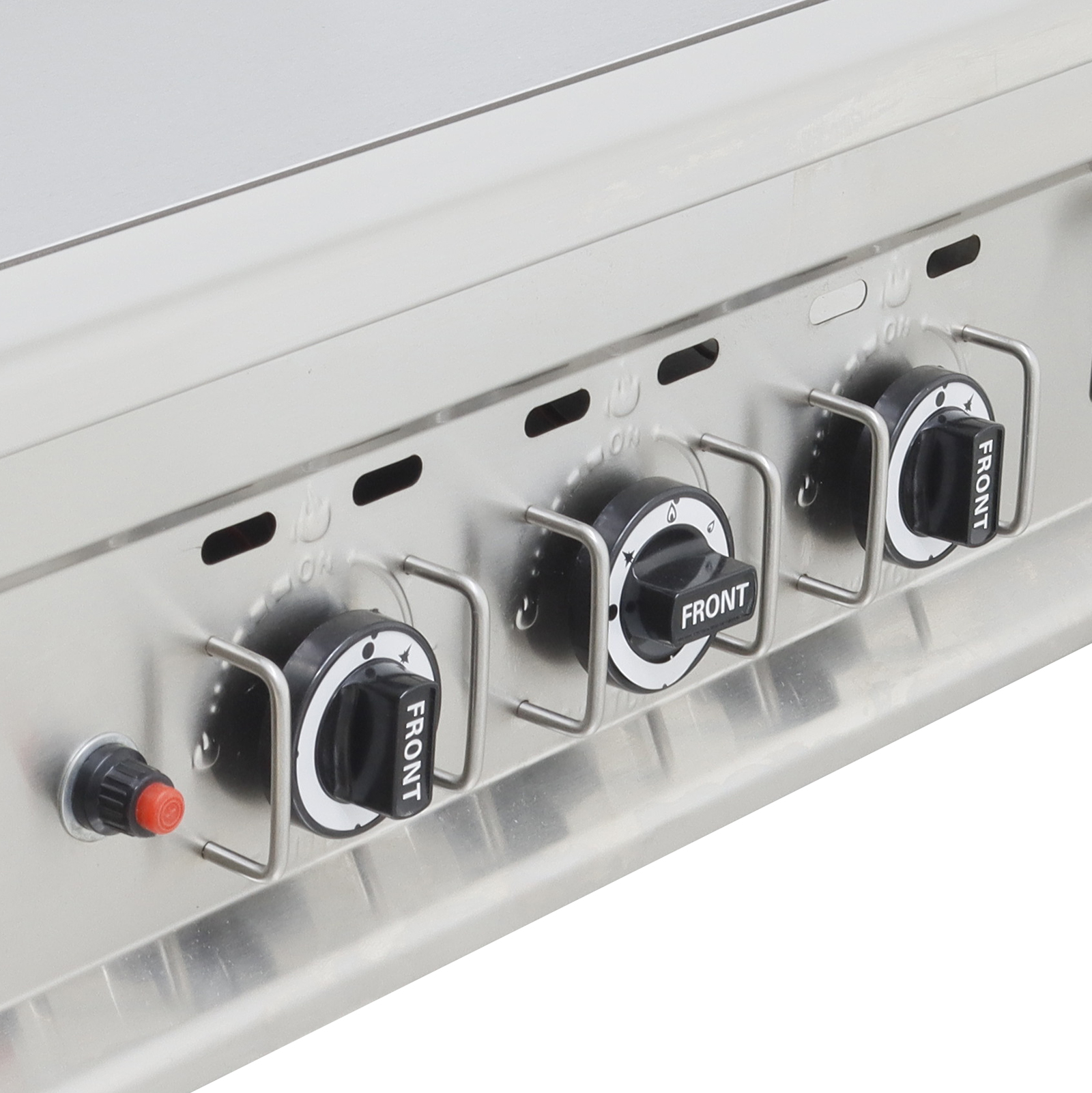

Control Panel
It is equipped with 3 knobs, which are used to adjust the heat power of the heating area to meet different temperature requirements.
Red Button: Electronic Igniter
The red button functions as an electronic igniter. Before use, it is necessary to install a battery (required battery specification: 10*44MM; battery is not included with this product). |

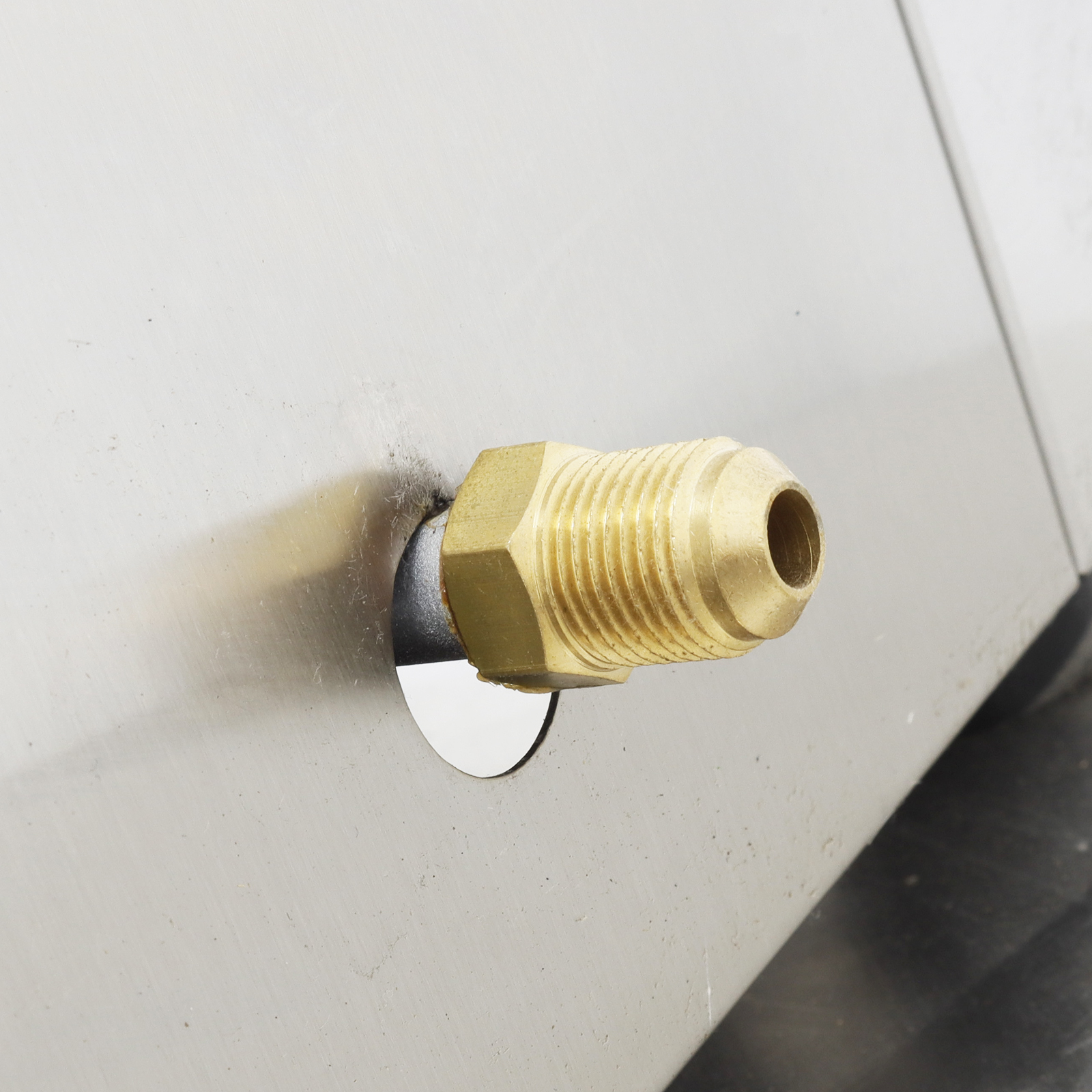

Gas Inlet of Gas Griddle
The gas inlet adopts a threaded connection design, with clear and neat external thread structures. This design facilitates precise connection with components such as gas pipelines and valves, ensuring airtightness and connection stability. |
 |
The machine has attractive design, reasonable structure, easy operation, high efficiency and uniform heat, and is the best choice for the diet place. 8MM thick polished steel plate for superior heat distribution, fast recovery and energy efficient operation.

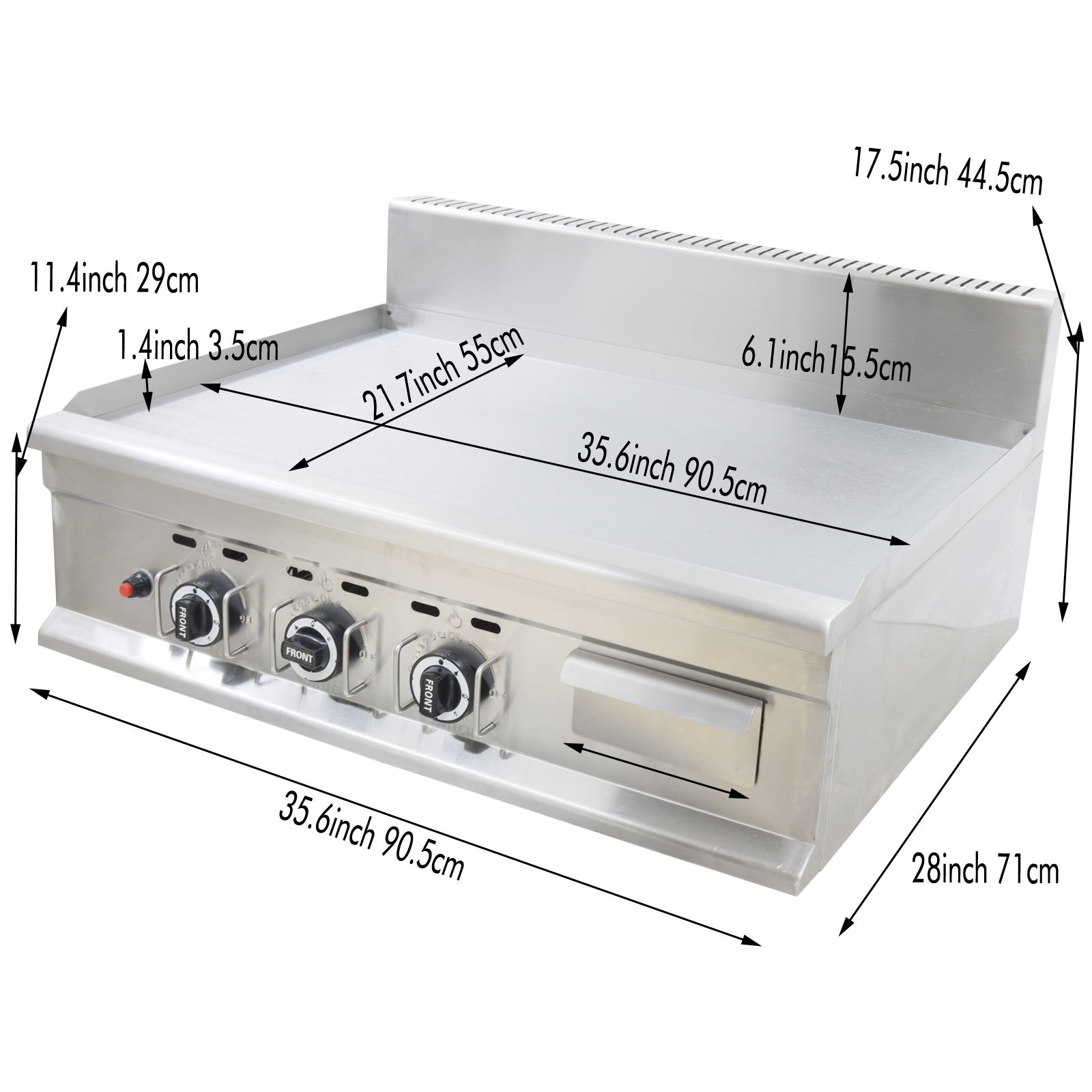

Hotplate size: 35.6"*21.7"(905*550mm)
Temperature: 50?C-300?C/122?F-572?F
Material :Stainless steel
Air rate:18+/-1m3/min
Used Gas:LPG
Gas pipe：59.1inch(1.5M)
Pressure:2800 Pa |
How to Use
Pre-use Preparation
Confirm that the gas valve is open, then check the cleanliness of the griddle surface to ensure there are no oil stains or foreign objects.
Ignition Operation
Press the red button (electronic igniter), and adjust the control knob to ignite the griddle.
Cooking Process
Place the ingredients on the griddle for cooking. During the process, adjust the knob at any time to regulate the heat power according to cooking needs.
Shutdown and Cleaning
After cooking, turn off the gas valve.
Wait until the griddle surface cools down completely, and then wipe off oil stains with a soft cloth.
Conduct regular deep cleaning on parts like the control knobs and griddle surface (e.g., using a dedicated kitchen cleaning agent for better results). |
Item included:Stainless Steel Commercial Home LPG Gas Grill Griddle Camp Countertop Flat Cooking Griddle Grill 2800Pa *1
Item Number: 134109 |
