110V Desktop four
head magnetic
pump filling machine |
|
|
|
This machine is
beautiful, intelligent, and has a high pass rate. Suitable for filling
in industries such as cosmetics, beverages, food, etc.
The design of this machine is novel and unique, making operation and
adjustment very convenient. The operator only needs to place the bottle
on the conveyor belt, and when the bottle moves forward, the cursor will
automatically fill after detecting the bottle.
It can be used for both single machine production and online production. |
![http://topseller365.com/data/prd/160/187/01.jpg](http://topseller365.com/data/prd/160/187/01.jpg) |
Product parameter: |
![http://topseller365.com/data/prd/160/187/22.jpg](http://topseller365.com/data/prd/160/187/22.jpg) |
Voltage: |
110V/60Hz |
Material: |
The
surface is stainless steel |
Conveyor width:
|
3.93in(10cm) |
Conveyor belt length: |
50IN(127CM) |
Bottle height: |
1.97-7.87in(5-20cm) |
Filling volume: |
4*(5-1000ml) |
Output speed: |
4-30bottles/min (Depends on
the customer's filling volume) |
Suitable bottle diameter: |
0.78-4.72in(2-12cm) |
Precision: |
±1% |
Package: |
Export wooden case |
|
Feature: |
![http://topseller365.com/data/prd/160/187/127.jpg](http://topseller365.com/data/prd/160/187/127.jpg)
|
Four head synchronous
canning, anti dripping and anti drawing. |

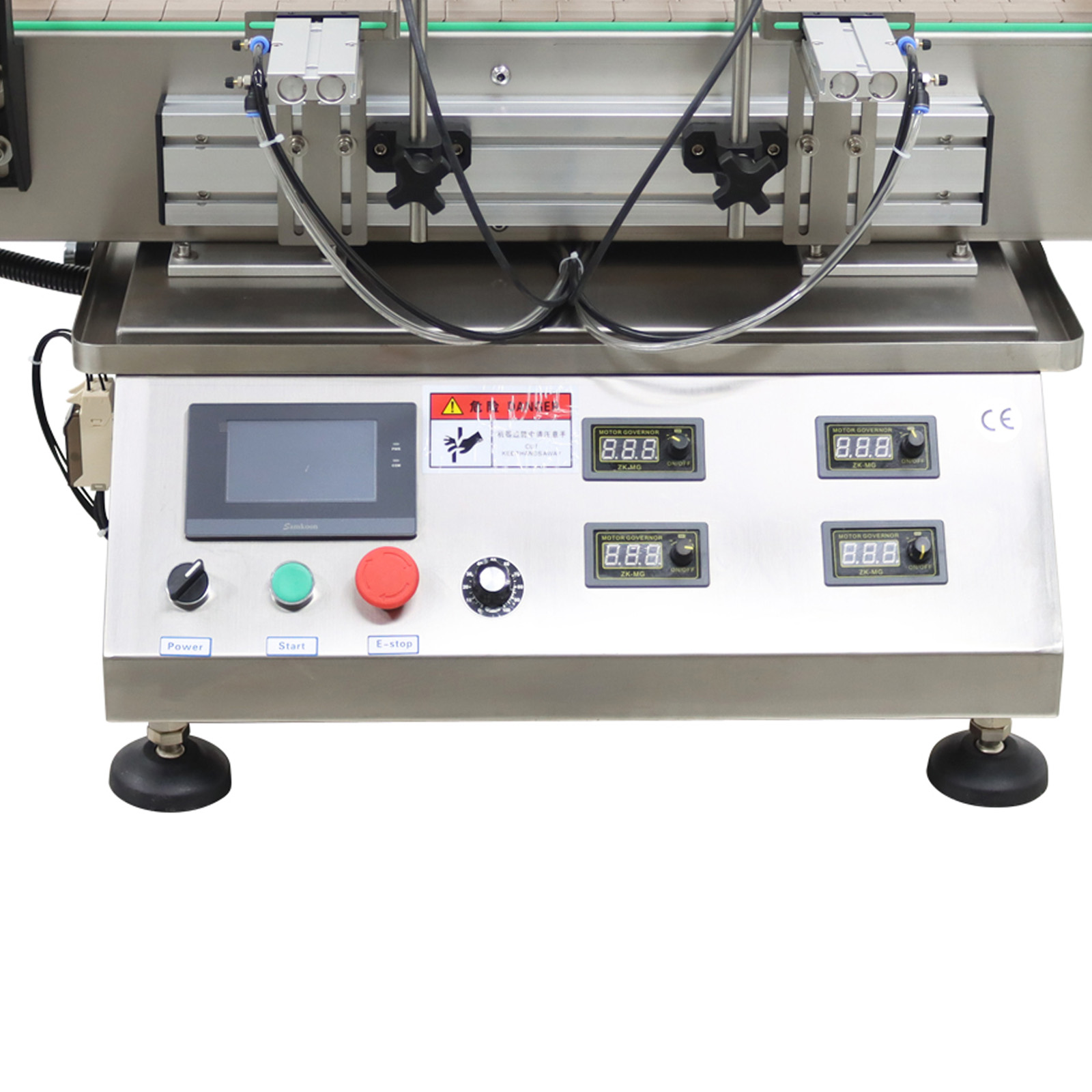

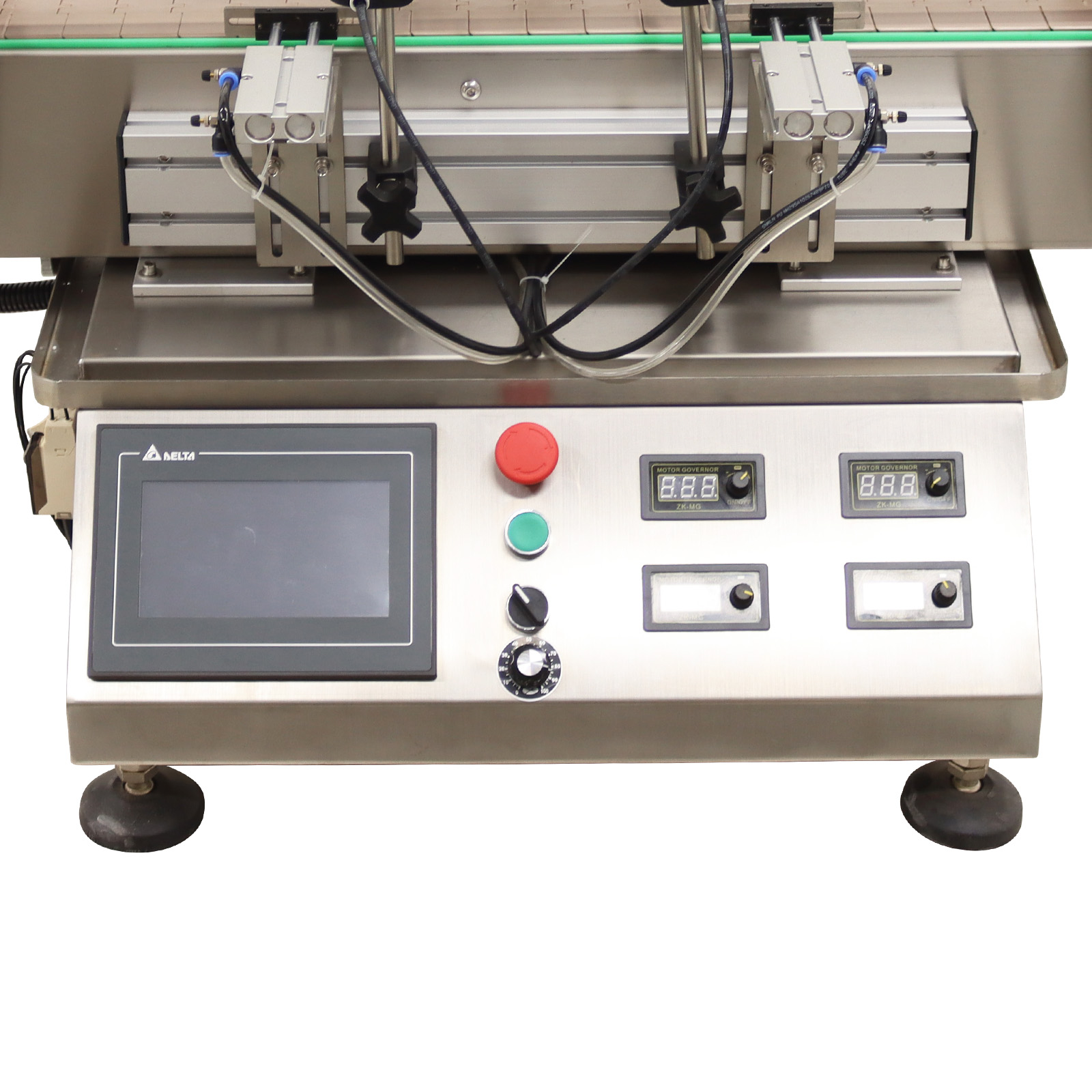

Intelligent touch operation panel, intuitive data, simple operation, and
can adjust parameters at any time as required. |
![http://topseller365.com/data/prd/160/187/126.jpg](http://topseller365.com/data/prd/160/187/126.jpg) |
![http://topseller365.com/data/prd/160/187/115.jpg](http://topseller365.com/data/prd/160/187/115.jpg) |
This machine adopts high-quality motor with stable performance. |
Fiber optic sensors, customers can adjust according to their needs. |
![http://topseller365.com/data/prd/160/187/114.jpg](http://topseller365.com/data/prd/160/187/114.jpg) |
![http://topseller365.com/data/prd/160/187/26.jpg](http://topseller365.com/data/prd/160/187/26.jpg) |
Customers can adjust the height of the adjustable guardrail according to
their own needs. |
The height of the filling nozzle of this machine can be adjusted by
rotating the adjusting handwheel, which can adjust the height of the
filling nozzle according to the height of the bottle. |
![http://topseller365.com/data/prd/160/187/21.jpg](http://topseller365.com/data/prd/160/187/21.jpg) |
![http://topseller365.com/data/prd/160/187/117.jpg](http://topseller365.com/data/prd/160/187/117.jpg) |
The barometer and the air inlet, the air inlet is connected with the air
compressor, easy to operate, stable performance. |
This
machine is matched with high-quality conveyor belts, making it more
durable and aesthetically pleasing. |
![http://topseller365.com/data/prd/160/187/118.jpg](http://topseller365.com/data/prd/160/187/118.jpg) |
![http://topseller365.com/data/prd/160/187/120.jpg](http://topseller365.com/data/prd/160/187/120.jpg) |
The cylinder adjustment valve can adjust the speed of the positioning
steel plate. |
|
Product analysis: |
![http://topseller365.com/data/prd/160/187/27.jpg](http://topseller365.com/data/prd/160/187/27.jpg) |
1. Fiber Amplifier
2. Power
3. Start switch
4. Emergency stop
5. Touch
screen
6. Conveyor belt speed regulator
7. 1 # Governor
8. 2#
Governor
9. 3 #
Governor
10. 4#
Governor
11. Blocking cylinder
12. Blocking cylinder steel sheet
13. Bottle entry photoeye
14. Positioning cylinder
15. Positioning cylinder steel plate
16. Bottle discharge eye
17. Filling nozzle
18. Filling nozzle position adjustment handwheel
19. Protective
fence distance adjustment knob
20. Protective
fence
21. Conveyor belt motor
22. Conveyor
|
Product
safety precautions: |
To ensure safe production, please read the
following precautions carefully:
1. Use the power supply that meets the requirements of the machine.
2. After turning off the power switch, there is still voltage in some
circuits in the electrical control of the machine. When servicing the
control circuit, be sure to unplug the power cord.
3. When the machine has problems, press the emergency stop button
directly to suspend all work. |
Details: |
![http://topseller365.com/data/prd/160/187/28.jpg](http://topseller365.com/data/prd/160/187/28.jpg) |
![http://topseller365.com/data/prd/160/187/29.jpg](http://topseller365.com/data/prd/160/187/29.jpg) |
![http://topseller365.com/data/prd/160/187/30.jpg](http://topseller365.com/data/prd/160/187/30.jpg) |
Package
Include
(160187): |
![http://topseller365.com/data/prd/160/187/07.jpg](http://topseller365.com/data/prd/160/187/07.jpg) |
Advantages:
|
1. The machine is efficient and convenient to use;
2. This machine can be completed independently by one person, saving
manpower and material costs.
3. This machine has wide applicability and stable performance;
4. This machine is equipped with intelligent touch control screen, which
is more convenient to set data parameters;
5.This machine can be used as a production line consisting of a labeling
machine, a coding and labeling machine, and a capping machine, or it can
be used separately. (We have all the above machines).
6.The components of each adjustment position are precisely matched, and
the height, width and width of the components can be easily adjusted
without the use of professional tools. The machine operation is simple
and simple.
|
Product display: |
![http://topseller365.com/data/prd/160/187/02.jpg](http://topseller365.com/data/prd/160/187/02.jpg) |
![http://topseller365.com/data/prd/160/187/03.jpg](http://topseller365.com/data/prd/160/187/03.jpg) |
![http://topseller365.com/data/prd/160/187/16.jpg](http://topseller365.com/data/prd/160/187/16.jpg) |
![http://topseller365.com/data/prd/160/187/04.jpg](http://topseller365.com/data/prd/160/187/04.jpg) |
Item include:Desktop
four head magnetic pump filling machine*1 |
Item Number: 160187 |
|
You can make order
with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
