Peanut picking machine

    The peanut picker is used to separate the vines and fruits after peanut harvest. It can be flexibly moved and used in the field, with clean fruit picking, low shell breakage rate, and minimal loss. It can be used for both dry and wet stems, with high work efficiency and clean threshing.

The peanut picking device is based on the traditional full-feed picking device to reduce the crushing rate of peanuts and reduce energy consumption. Compared with the traditional fruit picking device, the biggest difference is the half-feeding mode, which has less power consumption, high reliability and high cleaning rate, and is more suitable for homework.

http://topseller365.com/data/prd/239/904/25.jpg

Product parameter:
http://topseller365.com/data/prd/239/904/4.jpg
Voltage: 220V
Power: 3KW
Material: cast iron
Import size: 13*6.3in(33*16cm)
Machine size: 20.86*15.9*38.78IN(53*40.5*98.5CM)
Purification rate: 97%
Production: 100-150KG/h
Product Analysis:

http://topseller365.com/data/prd/239/904/5.jpg

Feature:

http://topseller365.com/data/prd/239/904/15.jpg

The whole machine is made of thickened board, which is more durable and not easily deformed.

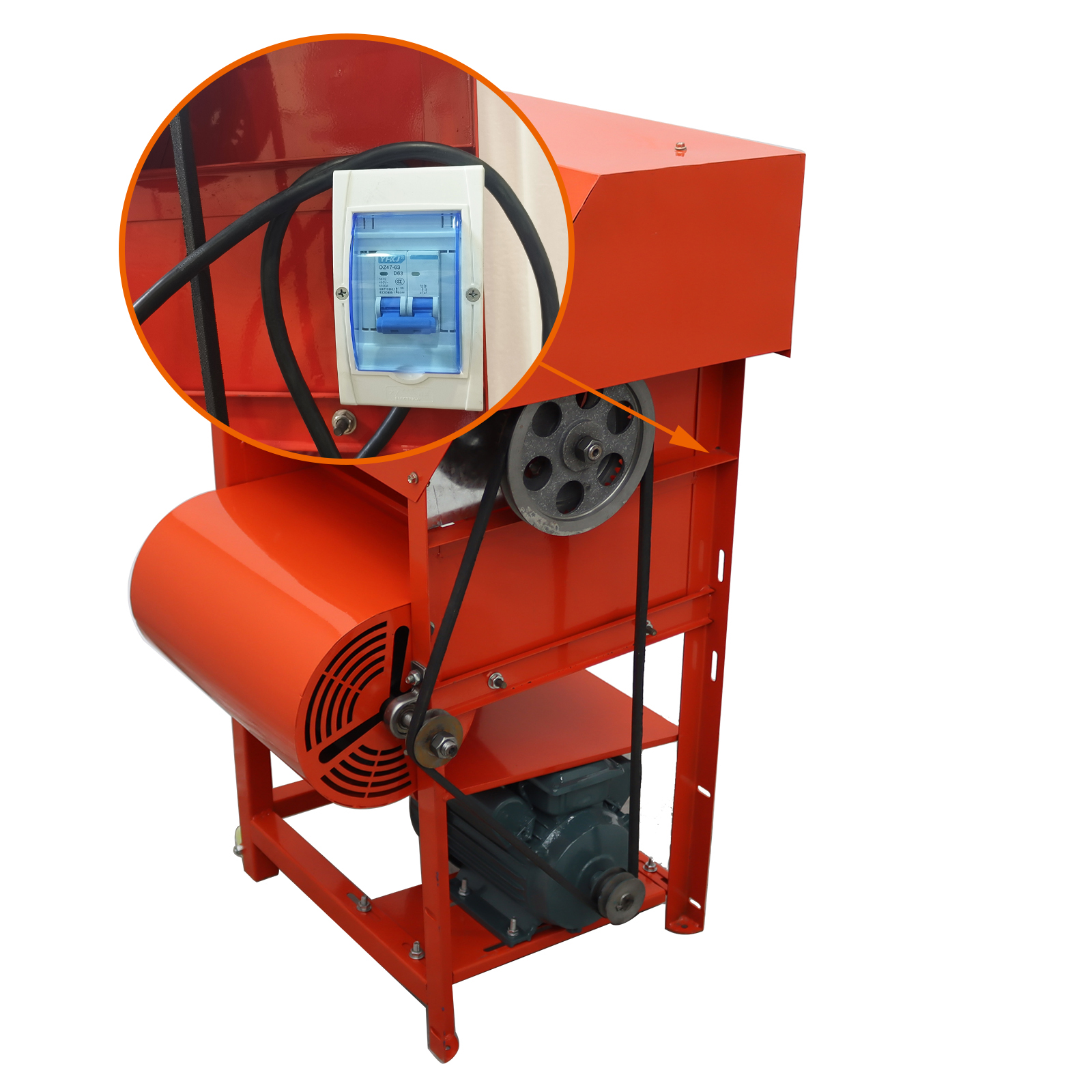

This machine is equipped with an air switch, which is safer and more reliable.

http://topseller365.com/data/prd/239/904/19.jpg
http://topseller365.com/data/prd/239/904/18.jpg This machine adopts high-quality motor with stable performance.
This machine is equipped with 2 pulleys for easy movement.

http://topseller365.com/data/prd/239/904/20.jpg
http://topseller365.com/data/prd/239/904/23.jpg This machine is equipped with an extended fan, which has stronger wind power and can blow away impurities.
This machine is equipped with a vibrating filter screen, which can remove sand and gravel impurities and shake off some of the soil from peanuts. http://topseller365.com/data/prd/239/904/113.jpg
http://topseller365.com/data/prd/239/904/24.jpg The roller equipped with this machine is not easy to damage the fruit and has a low damage rate.
Product safety precautions:

. When feeding peanut seedlings, the fruiting part of the peanuts must be filled into the feeding port first, and the feeding should be uniform;

2. It is strictly prohibited to feed hard objects such as stones, wooden blocks, and metal objects into the machine during homework to avoid damaging the machine and causing personal accidents;

3. It is strictly prohibited to reach into the feeding port, fan port, and discharge port during homework;

4. During homework, the operator should tie the cuffs tightly, and female comrades should wear work hats;

5. If abnormal sounds are heard or faults are found during homework, the machine must be stopped for inspection, and faults must be eliminated in a timely manner. It is strictly prohibited to operate the machine with defects;

6. It is strictly prohibited for the fruit picker to work under overload; Professional personnel should inspect, adjust, and maintain the equipment after the end of each day's work. For example, adding lubricating grease, repairing welding, etc;

7. When the fruit picking machine is blocked by the drum, the feeding amount, the humidity of the peanut seedlings, the tightness of the motor triangle belt, and the power supply voltage should be checked;

When the peanut picker cannot pick the peanuts completely, adjust the gap between the rolling teeth and the bottom of the sieve. A large gap between the rolling teeth and the bottom of the screen can easily cause incomplete removal; When there are many impurities in the peanut fruit and the peanut small fruit is sucked out, the suction port should be adjusted appropriately. Lower the air intake when there is a lot of debris; When peanuts are sucked out, adjust the suction port.


Details:
http://topseller365.com/data/prd/239/904/21.jpg http://topseller365.com/data/prd/239/904/111.jpg

http://topseller365.com/data/prd/239/904/112.jpg

http://topseller365.com/data/prd/239/904/114.jpg
Product display:
http://topseller365.com/data/prd/239/904/13.jpg

http://topseller365.com/data/prd/239/904/2.jpg

http://topseller365.com/data/prd/239/904/6.jpg
Item include:Peanut picking machine*1
Item Number: 239904

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
