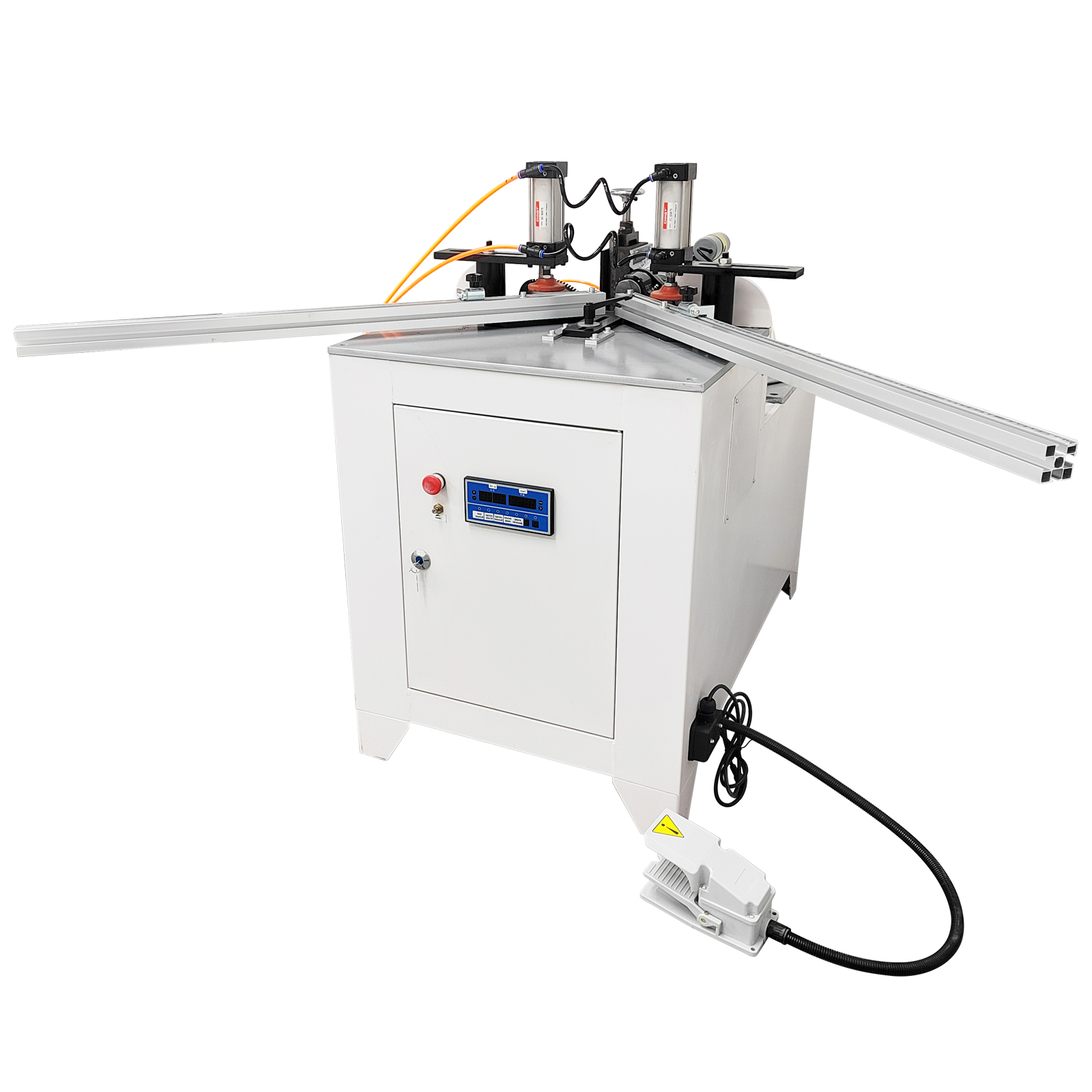

45° Cutting Angle Punch For Woodworking |
|
|
|
|
|
|
 |
|
Description |
|
The 45 ° corner cutting and punching integrated machine can complete the
corner cutting and punching action in
one go, making the operation more convenient and efficient. The 45
degree drilling machine is equipped with a pure
copper 1.5 kW motor, an all aluminum integrated motor tray, linear
square rail bearing inserts, high-quality adjustable drill
bags, precise digital feed counters, and a waterproof and fireproof
thickened tabletop.
The 45 degree angle cutting machine adopts a pure copper motor with high
speed, and the saw blade adopts an 8-inch
alloy saw blade controlled by a pneumatic system, which has good
processing effect, stable and smooth cutting speed.
Suitable scope: Wood, aluminum, PVC vacuum formed door frames, photo
frames, and all processes that require
corner cutting and punching work.
Note: The saw blade provided
with the machine is suitable for wood. If you need to cut other
materials, please replace
the corresponding saw blade yourself.
|
|
Parameter |
 |
|
Rated voltage |
220V |
| Motor
power |
1.5kw |
| Number
of spindles |
2 |
|
Maximum drilling depth |
5-40mm |
|
Maximum sawing thickness |
45mm |
|
Drilling thickness |
5-50mm |
| Two
hole adjustable center |
18-90mm |
| Air
pressure |
0.6-0.8Mpa |
|
|
Detail |
 |
 |

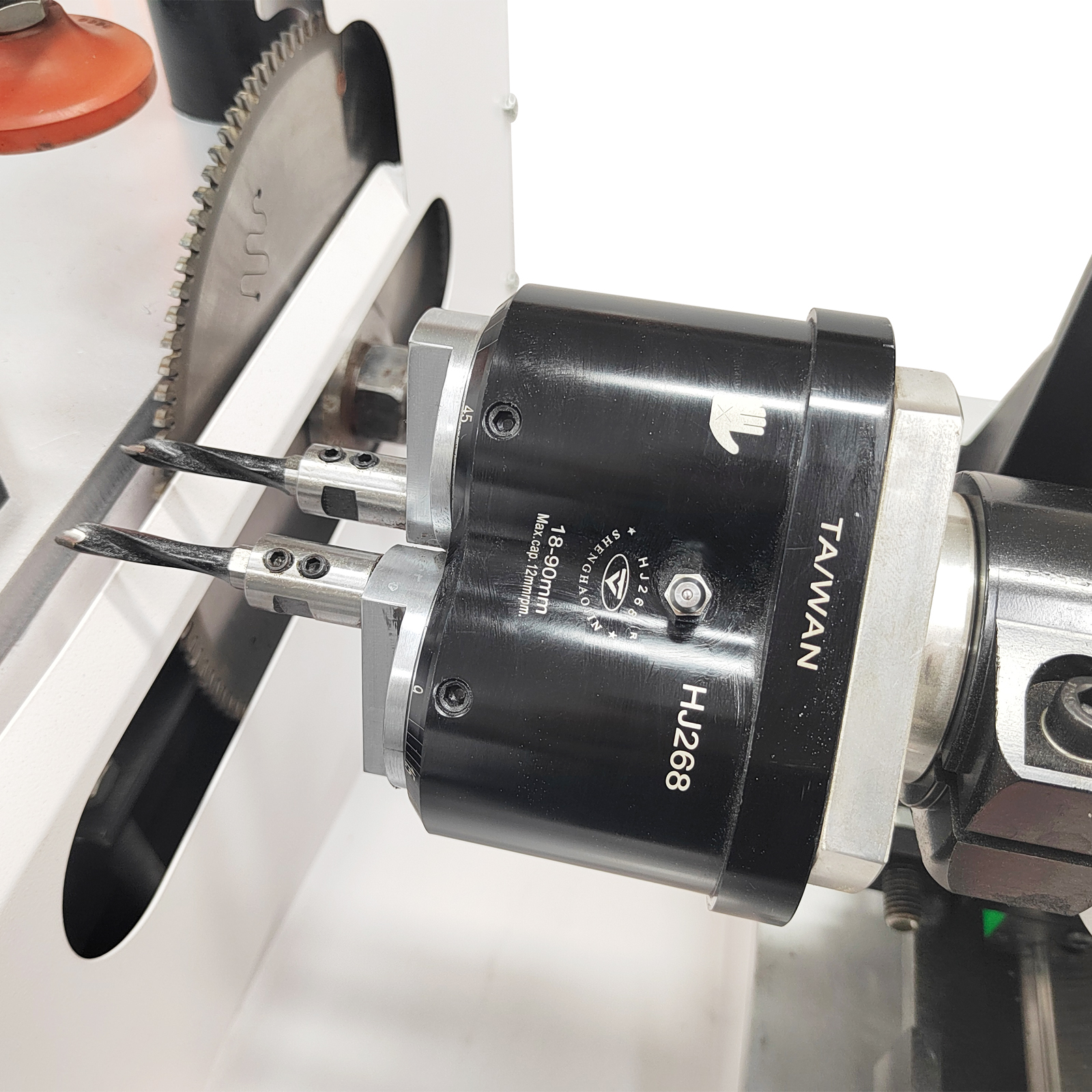

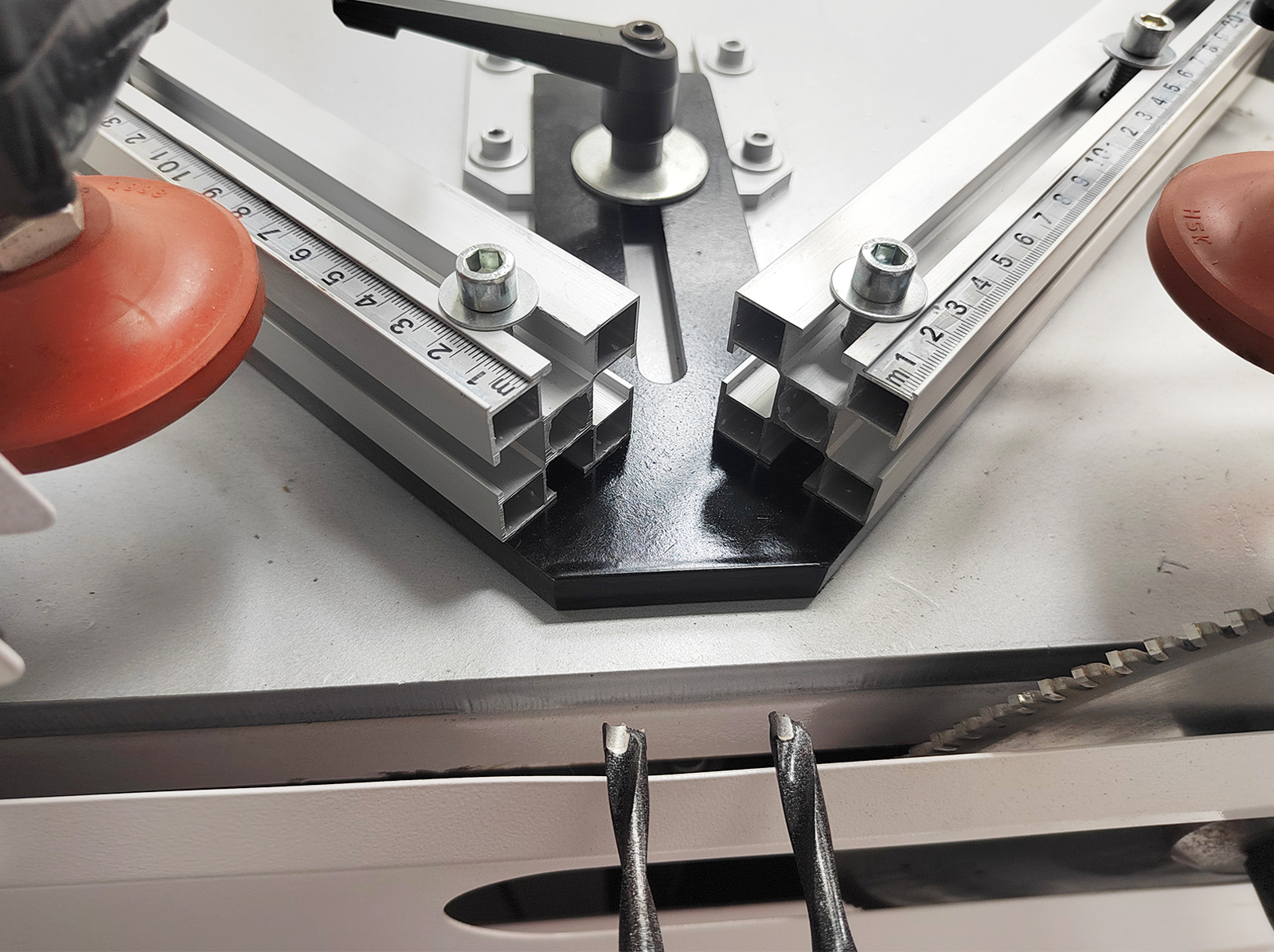

High quality drill kit, two φ8mm drill bits are
complimentary, if you need other
specifications of drill bits, please prepare
yourself. |

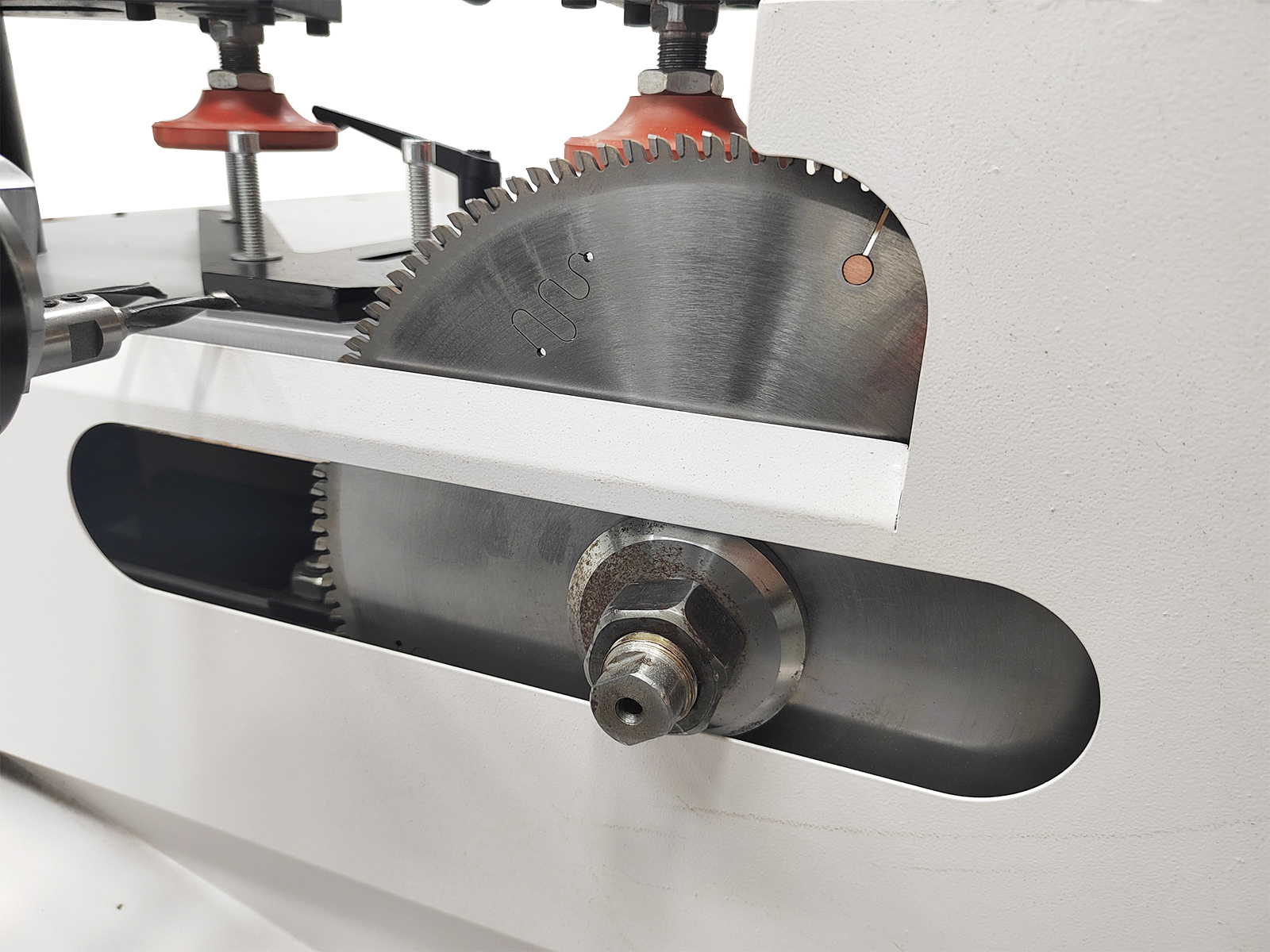

The saw blade adopts an 8-inch alloy saw
blade controlled by a pneumatic system,
which has good processing effect. |
 |
 |
Two 1-meter-long rulers were gifted for more
accurate positioning. |

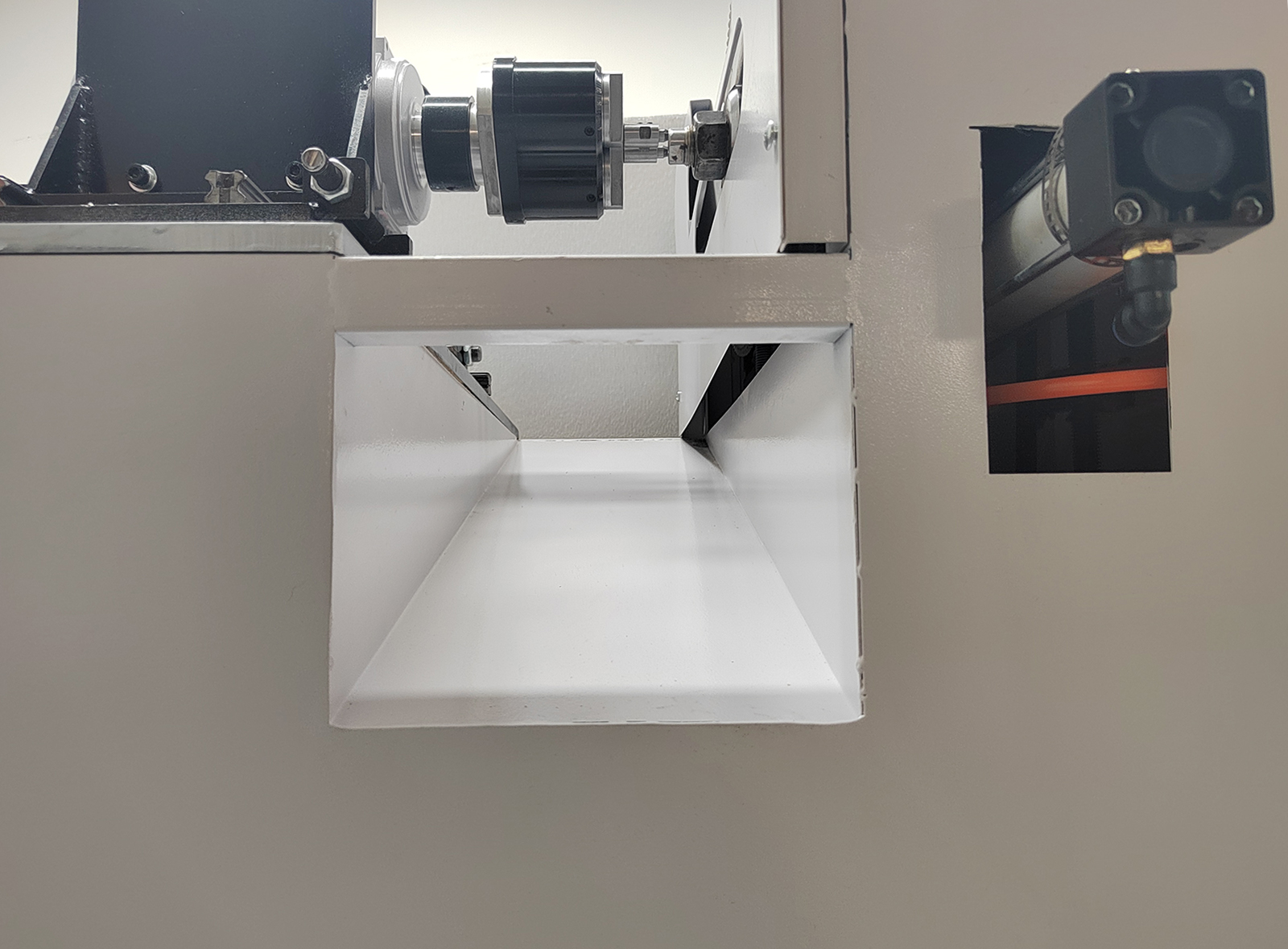

Unique design of sawdust outlet, cut wood
easily discharged. |
 |
 |

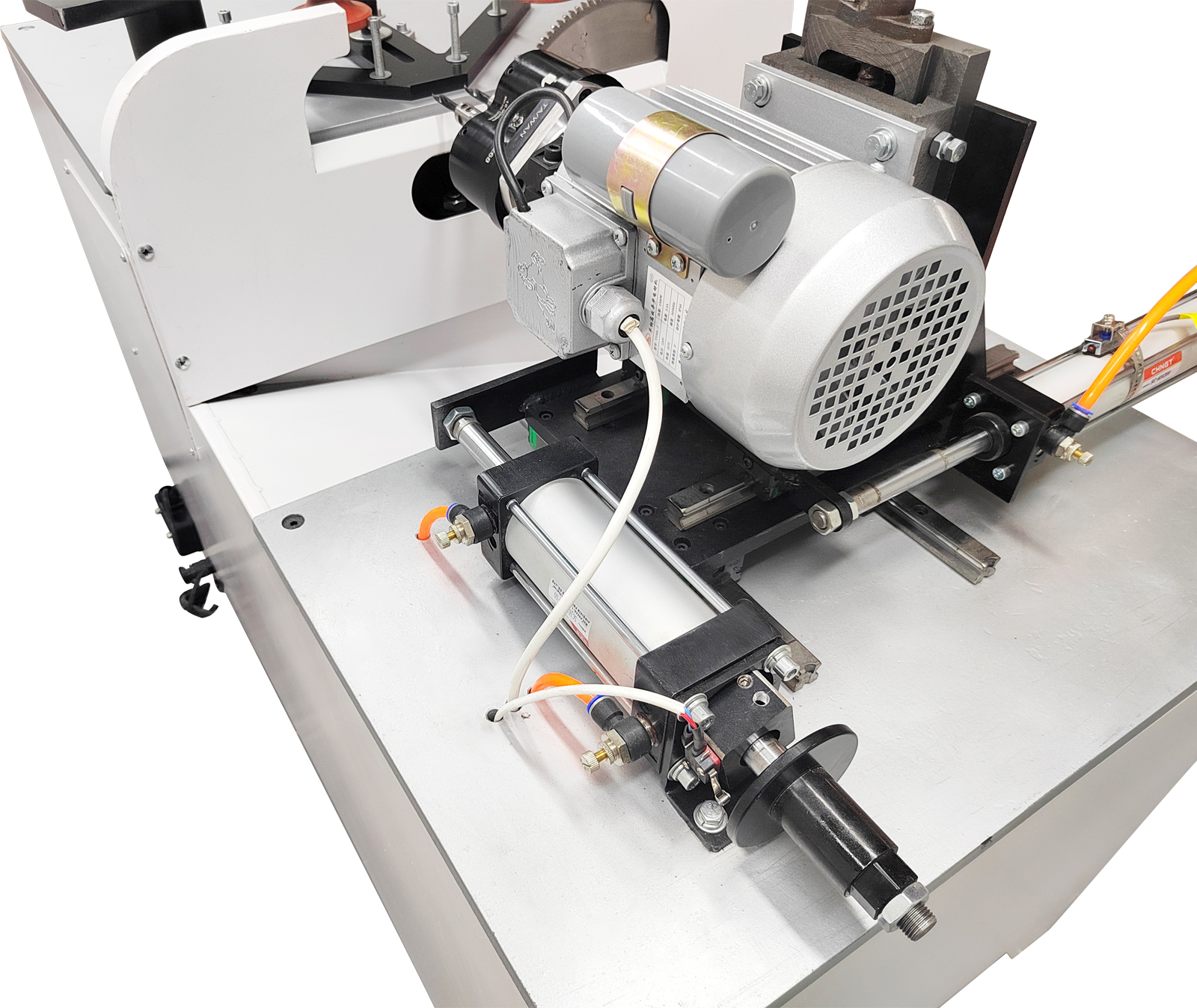

The drill depth is easily adjusted by the
cylinder tail bolt. |

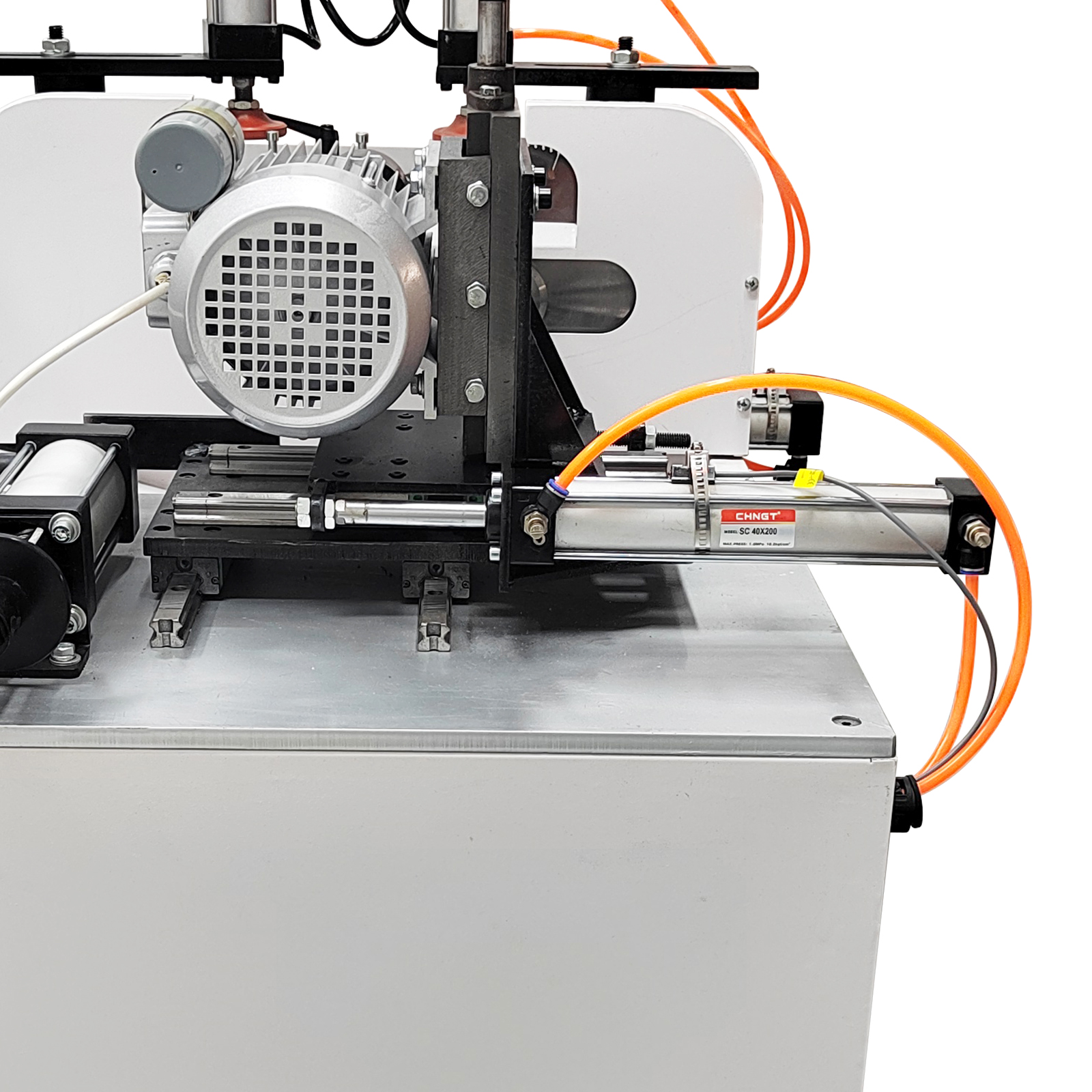

The distance the bit moves from side to side
can be adjusted by the stroke switch on the
cylinder. |
|
Precautions
For Use |
1.Before operation, check
whether the power cable is properly
connected, whether the protective device and the pressing
device are complete, and whether the components are normal.
2.The operating position should be bright and without shadow.
3.The drill should be centered, balanced and sharp.
4.This machine is mainly used for wood punching processing
(thin aluminum can also be), and the selection of materials
can not have nails, screws and other tools damaged or blunt
foreign bodies.
5.Hands should not touch the rotating parts of the machine
tool during operation, and the wood chips should not be
removed during operation. The power supply must be cut off
before adjusting or removing the wood chips, and can only be
carried out after the machine tool stops working.
6.Stop the machine immediately if anything abnormal is found. |
 |

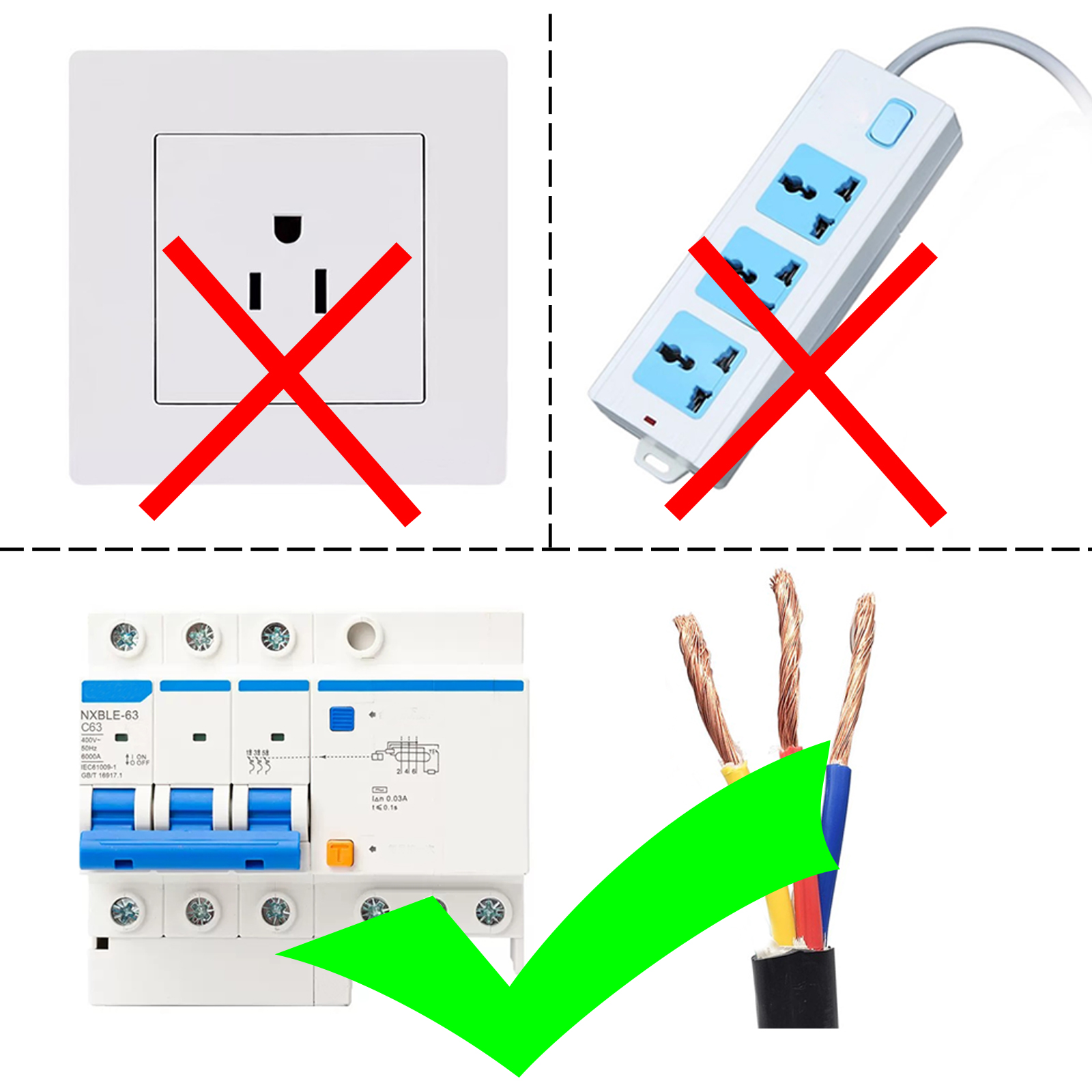

The machine does not come with a
plug, please connect the power
cord to the air switch before use. |
|
Item Number: 45° Cutting Angle Punch For
Woodworking 027354 |
|
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us
with low cost. |
|
