machine（220V）

multiple functions of grinding and polishing. Its main function is to polish the surface of parts and

components, deeply polish metal welds, etc. It can complete the whole process from blank to semi-machining

and even finishing at one time. It is a widely used emerging processing technology.It is characterized by high

speed, high efficiency, safety and economy.

Dial gauge handwheel

Alloy housing, accurate reading, precise

adjustment of grinding height

Strong permanent magnetic chuck
　

Suction: >100 N / CM

Strong magnetic force, fine magnetic

pole gap, uniform magnetic force,

mechanical switch, simple operation
　

Adjustable locking handle
　

Which fixes the sliding table limit of the

entire machine. When using the above belt sander,

the lower sliding table needs to move the entire

sliding table assembly backward. After moving it,

avoid sliding, so this screw is used to lock the

position.
　

Miniature hydraulic lever and belt tensioning

device
　

Install the belt, depress the tensioning lever,

and the belt is tensioned. The small hydraulic

support rods are made of high-strength

materials and have excellent characteristics

 such as withstanding heavy pressure,

corrosion resistance, fatigue resistance,

and simple operation. They can maintain the

stability of the mechanical equipment.
　

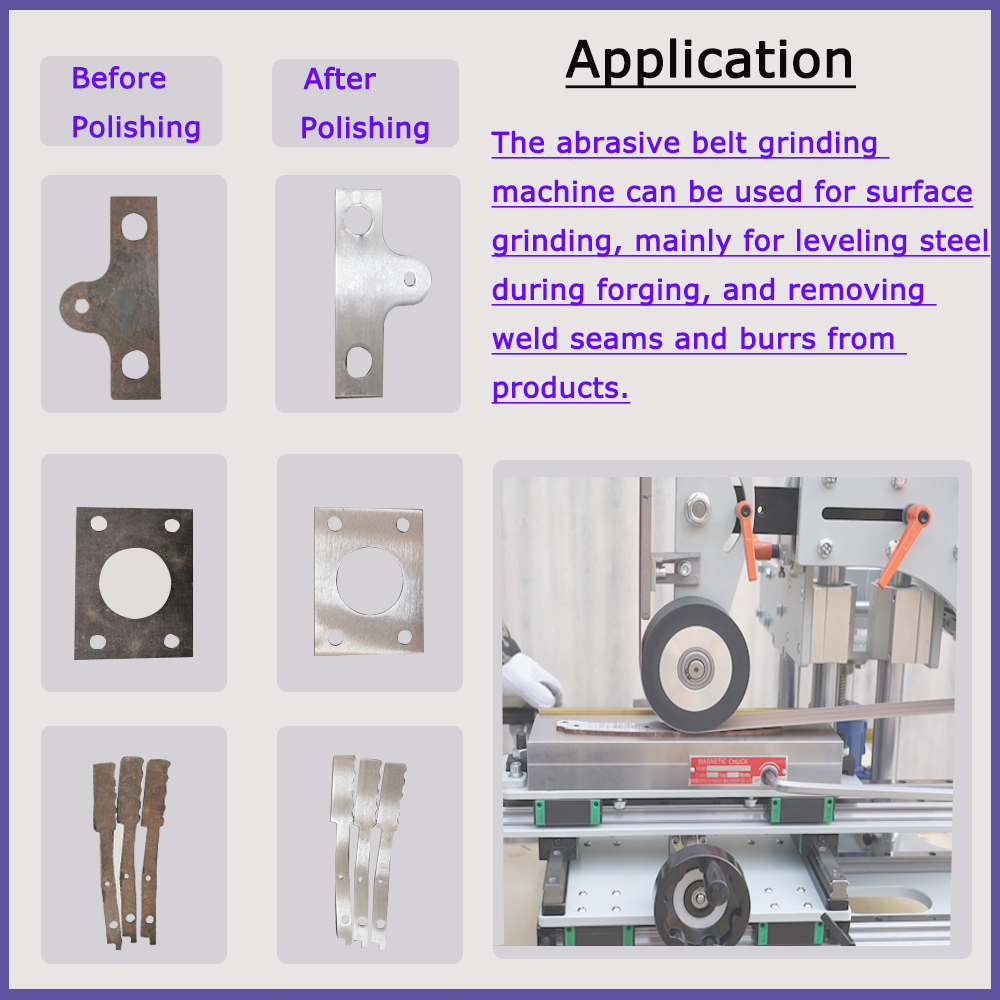

Flat grinder can be used for leveling forged workpieces.

2.Adjustable workbench

The workbench can place components during the polishing process, which helps to increase stability. By

loosening the red handle and adjusting the workbench arm, the position of the workbench can be adjusted,

and it can also be easily disassembled.

3. Safety protective cover

The grinding wheel cover provides protective measures for the polishing process, avoiding accidental

breakage of the sand belt and causing injury.

4. Front grip handle

Turn off the power, press down on the front handle, lower the driven wheel, and you can install and remove

the sand belt. It also helps with the movement of machines.

5.Variable frequency governor

Equipped with a variable frequency speed controller, press the green switch to start the speed controller,

and  turn the upper right knob to adjust the speed of the sand belt. This frequency converter can also be set

to reverse, but safety precautions should be taken when using it.

6.Pure copper motor

Using pure copper motor, strong power, durable, strong grinding efficiency.

7.Equipped with three selected sand belts

Has heat and water resistance, suitable for dry grinding, can add coolant, good grinding effect.Three

1800mm sand belts,60 mesh, 120 mesh, and 240 mesh respectively.
