●The linear vibrating screen has the advantages of small volume, light weight, simple structure, convenient installation, easy operation and maintenance.

●The linear vibrating screen has low energy consumption and high efficiency.

●The linear vibrating screen offers high screening accuracy.

●The linear vibrating screen has reasonable parameters and stable performance.

●We also provide other sizes of screen, and if you need, please contact us.

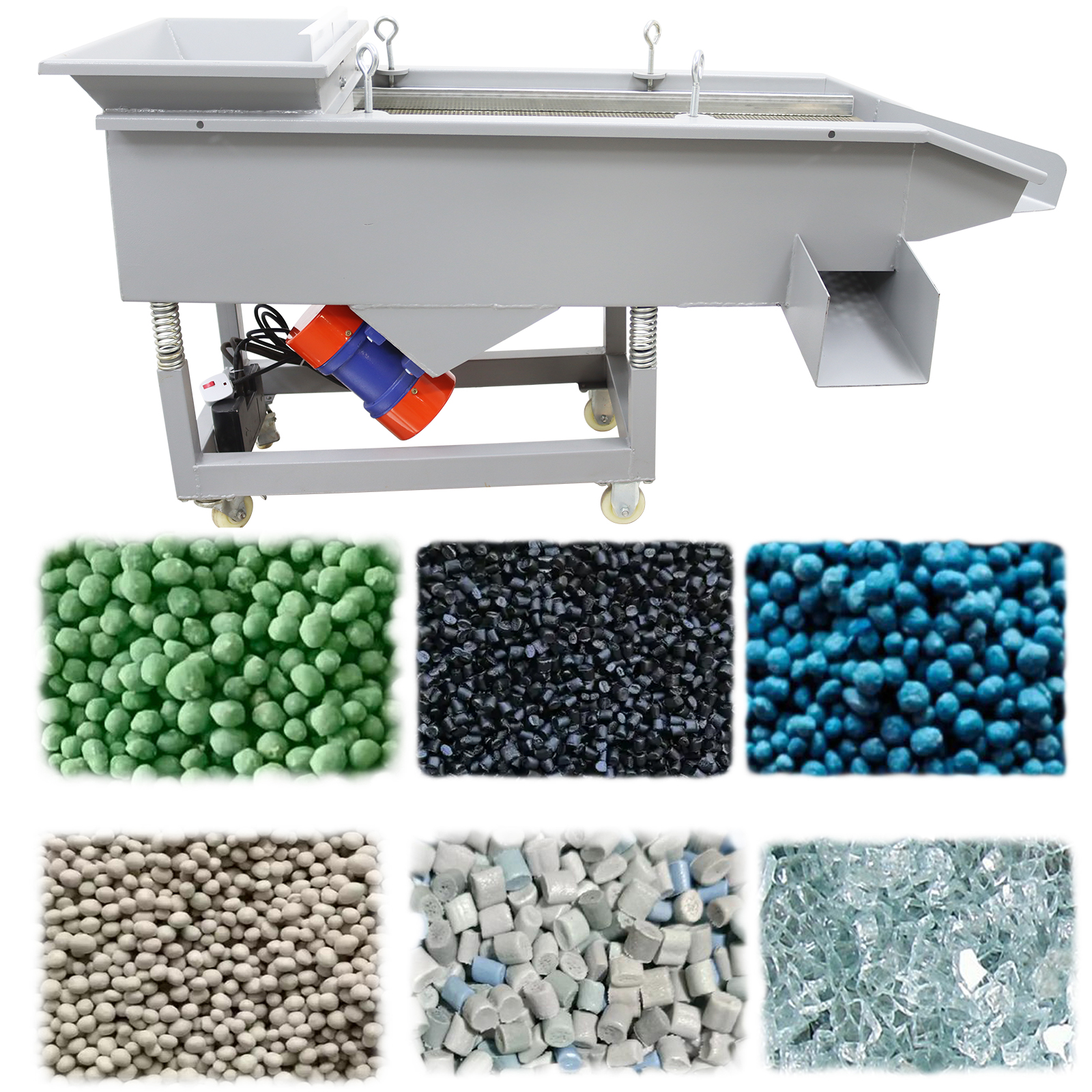

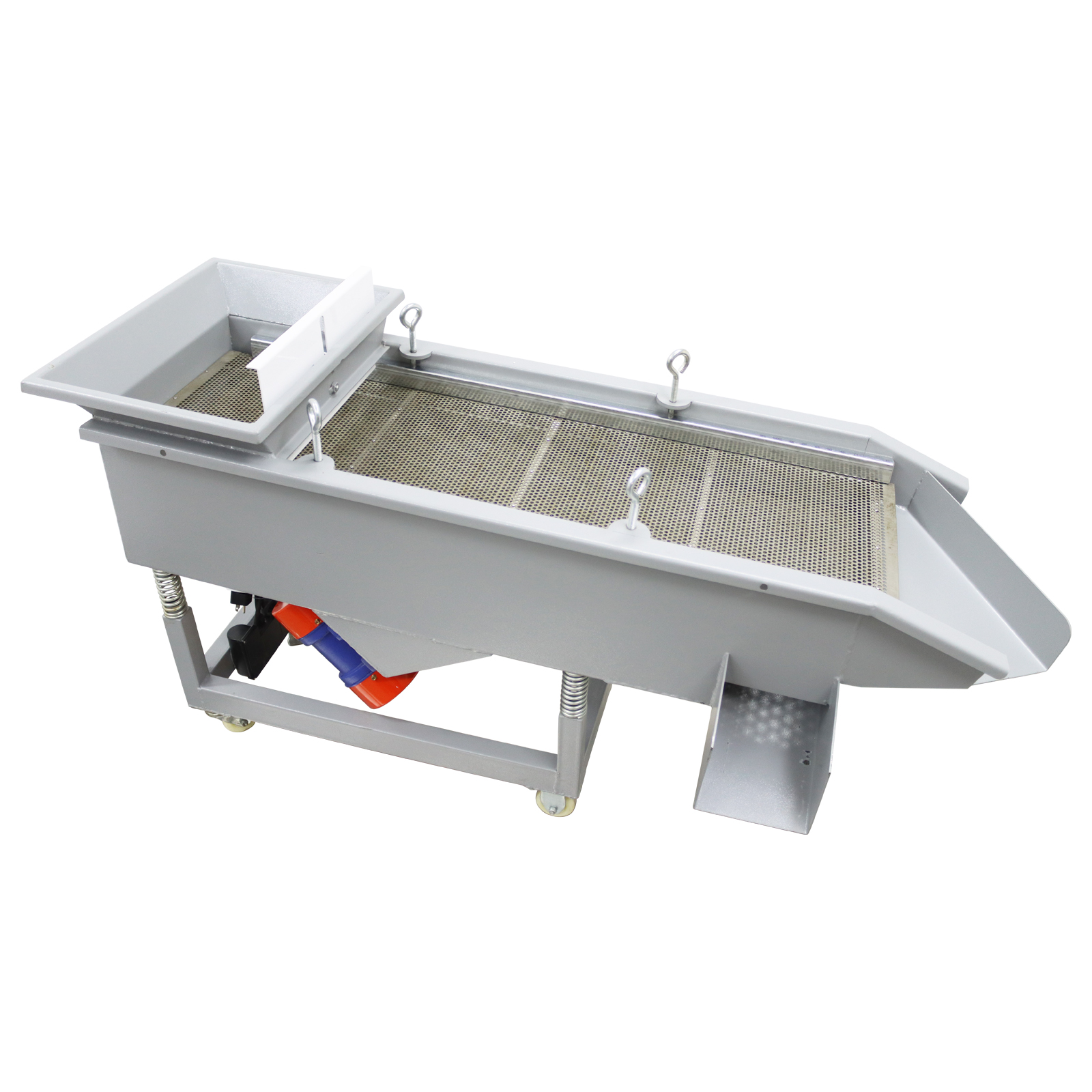

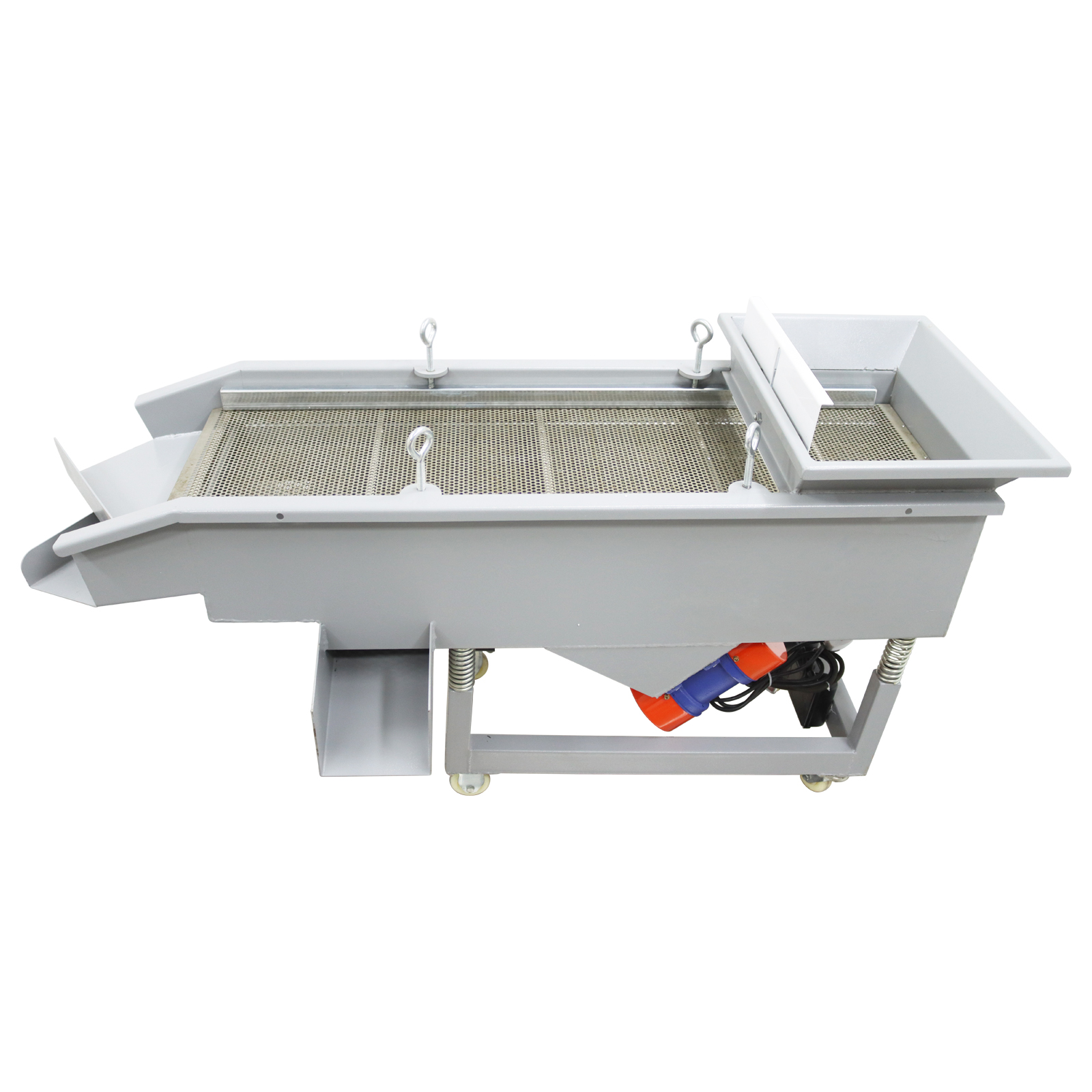

The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper can vibrate in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and is sifted through the screen to complete the screening operation. This machine is composed of a sieve box, a vibration motor, a vibration damping system and a base plate. The sieve box is composed of a sieve frame, a sieve plate and a lining plate. This sieve machine adopts the high-performance and long-life vibration motor. The vibration damping system comprises a rubber spring, a clamp, a support base and the like. The base plate consists of a silo and a bottom board.

Parameter:

●Before use, check all parts and accessories to ensure that the installation is correct before turning on the power.

●The vibrating parts of the machine shall not be connected with or in contact with any object outside the machine while the machine is in operation.

●When the material is fed, it should be fed in the direction of the whole width of the screen at the feed inlet to ensure the even distribution of the material on the screen surface.

●When the material falls, there should be no big impact, so as to avoid the damage to the screen.

●No remaining material shall be found on the screen surface before starting or stopping the machine.

●If there is abnormal sound during the operation of the equipment, it should be immediately shut down to check,and then troubleshooting can be conducted.

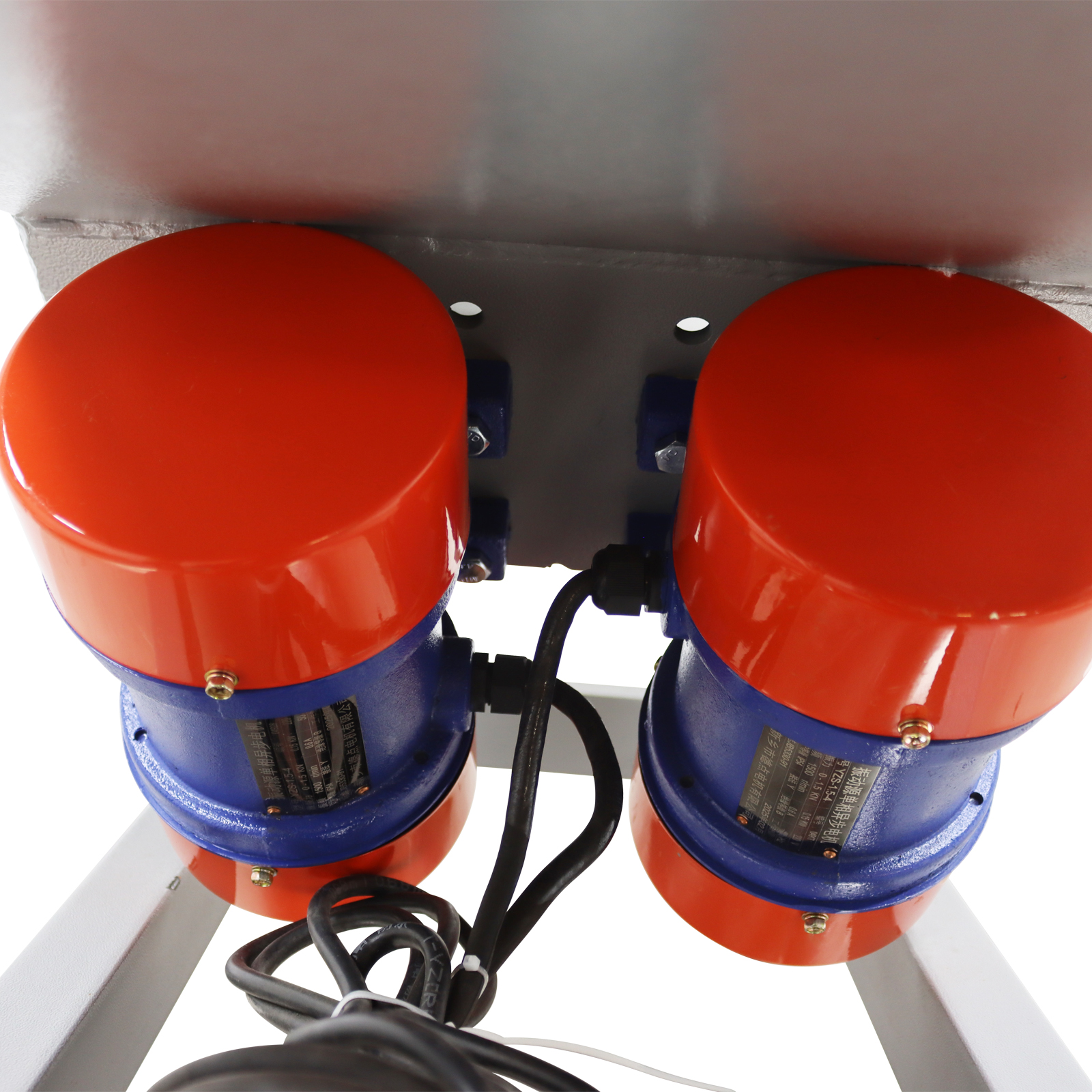

The dual motor material propulsion technology enables faster discharge, improves fine screening efficiency, and allows continuous operation for 8-9 hours.

    02

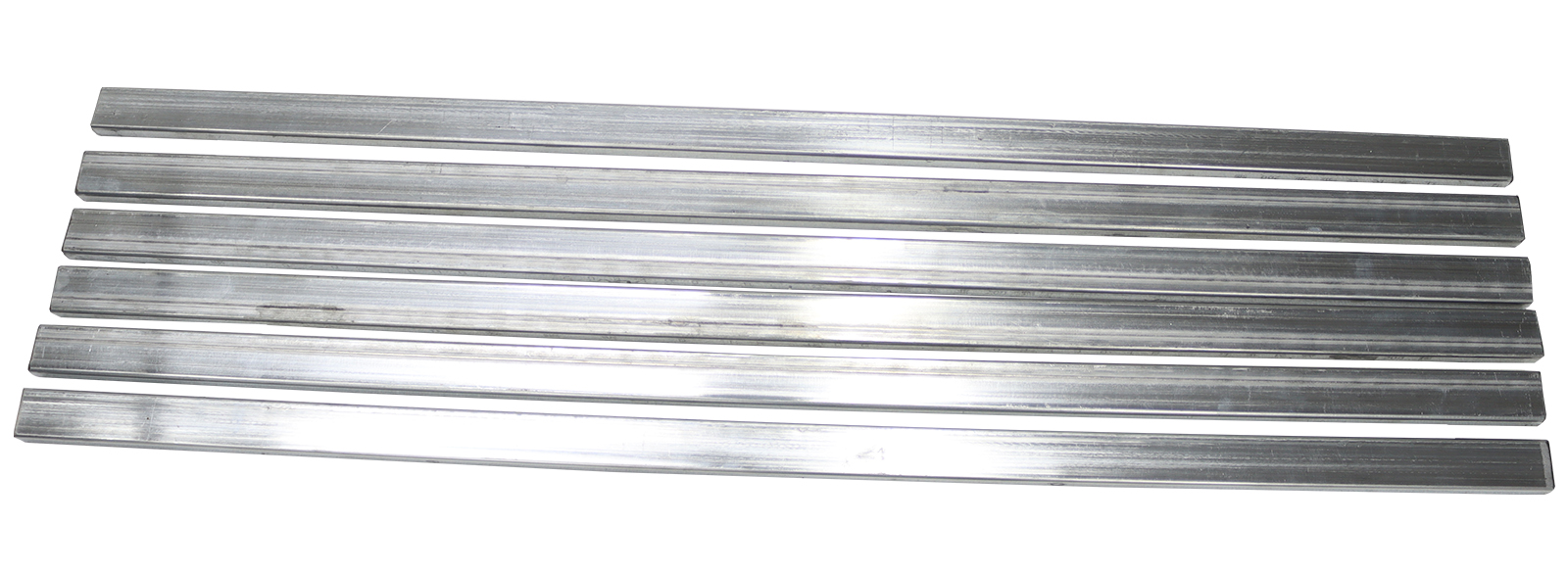

The machine is equipped with 6 stainless steel pressure strips, placed on both sides of the screen.

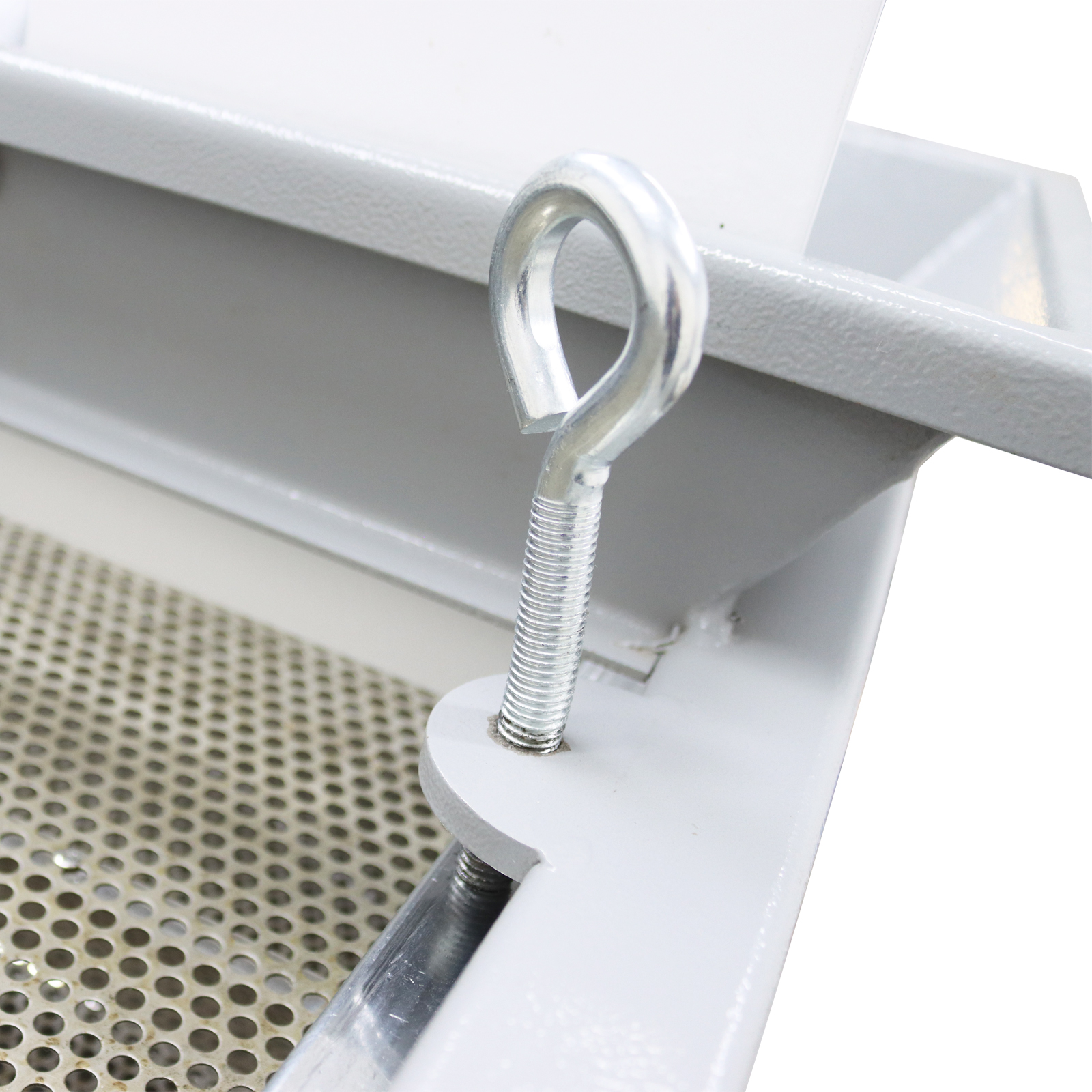

Tighten the fixing bolts during use to secure the screen and pressure strip.

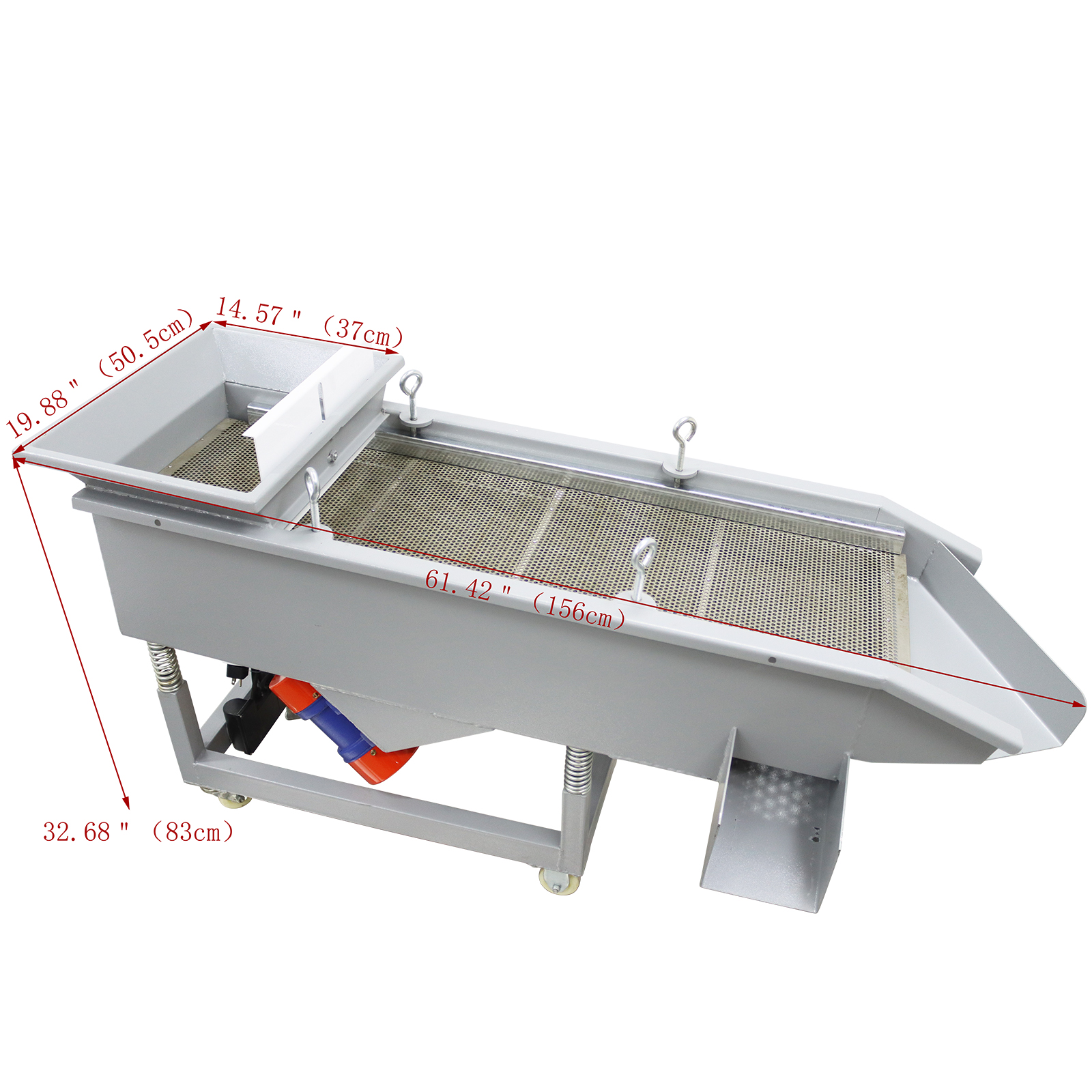

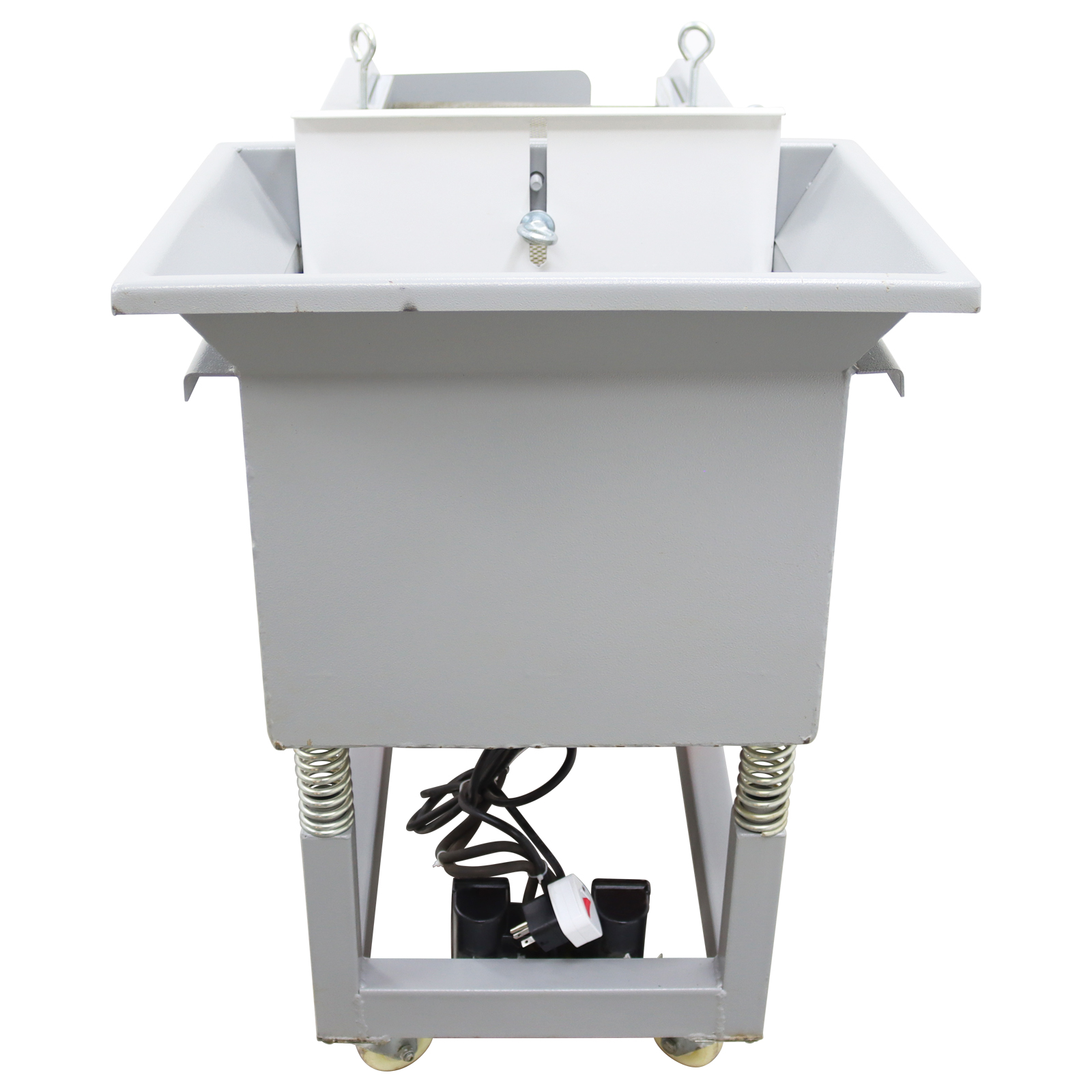

Size of feed port:19.88*14.57"(50.5*37cm)

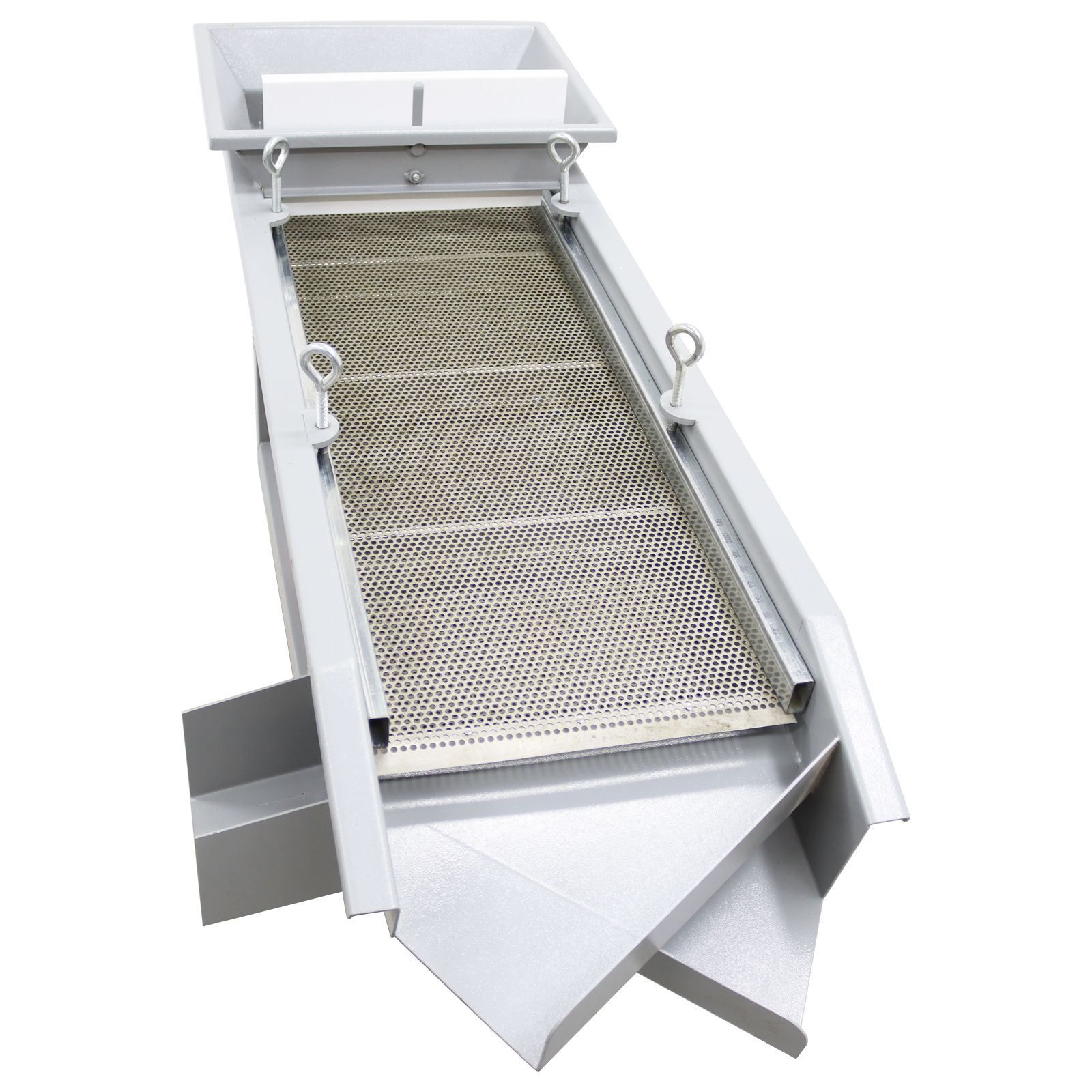

Fix the screen with stainless steel countersunk screws, easy to install.

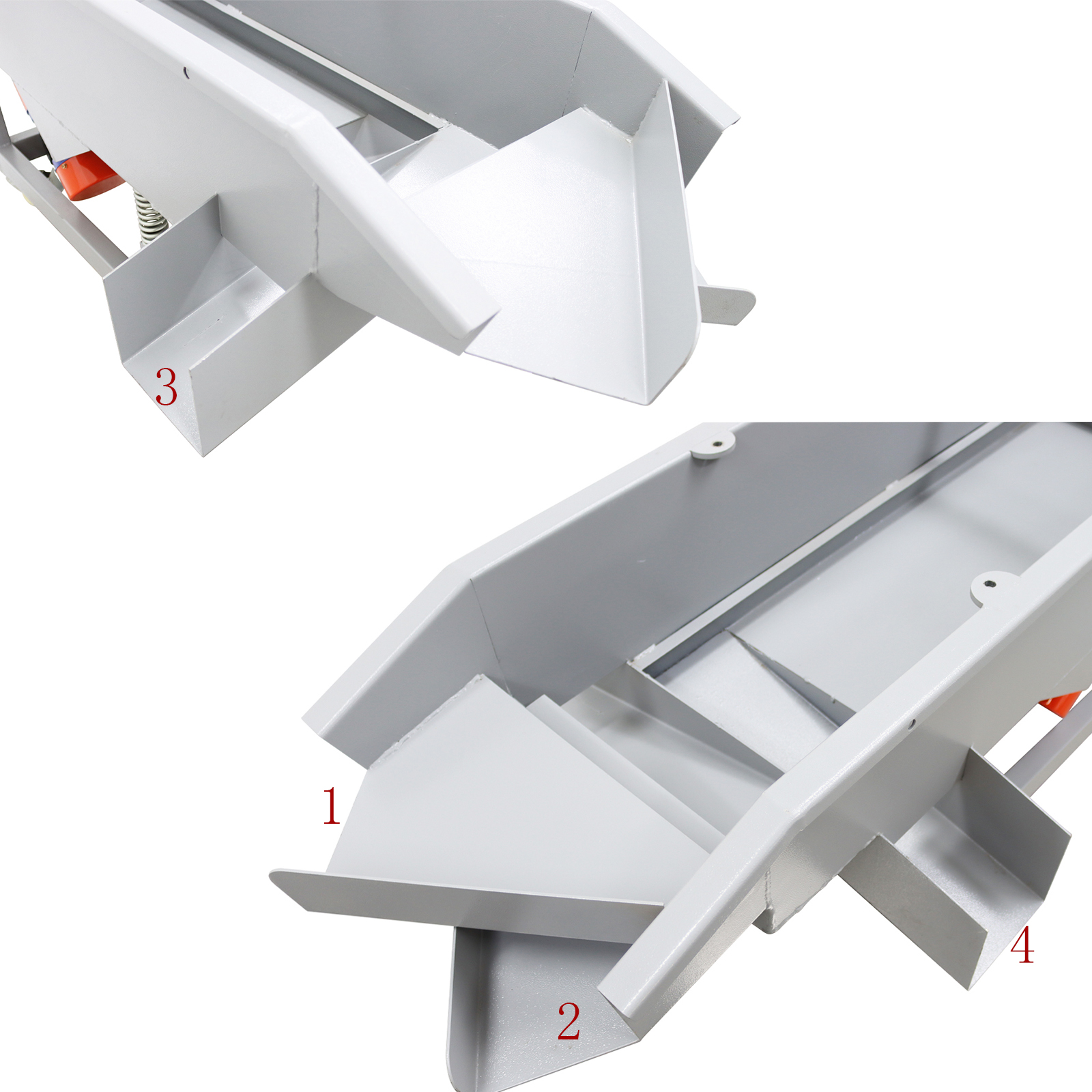

Four discharge ports for screening and grading.

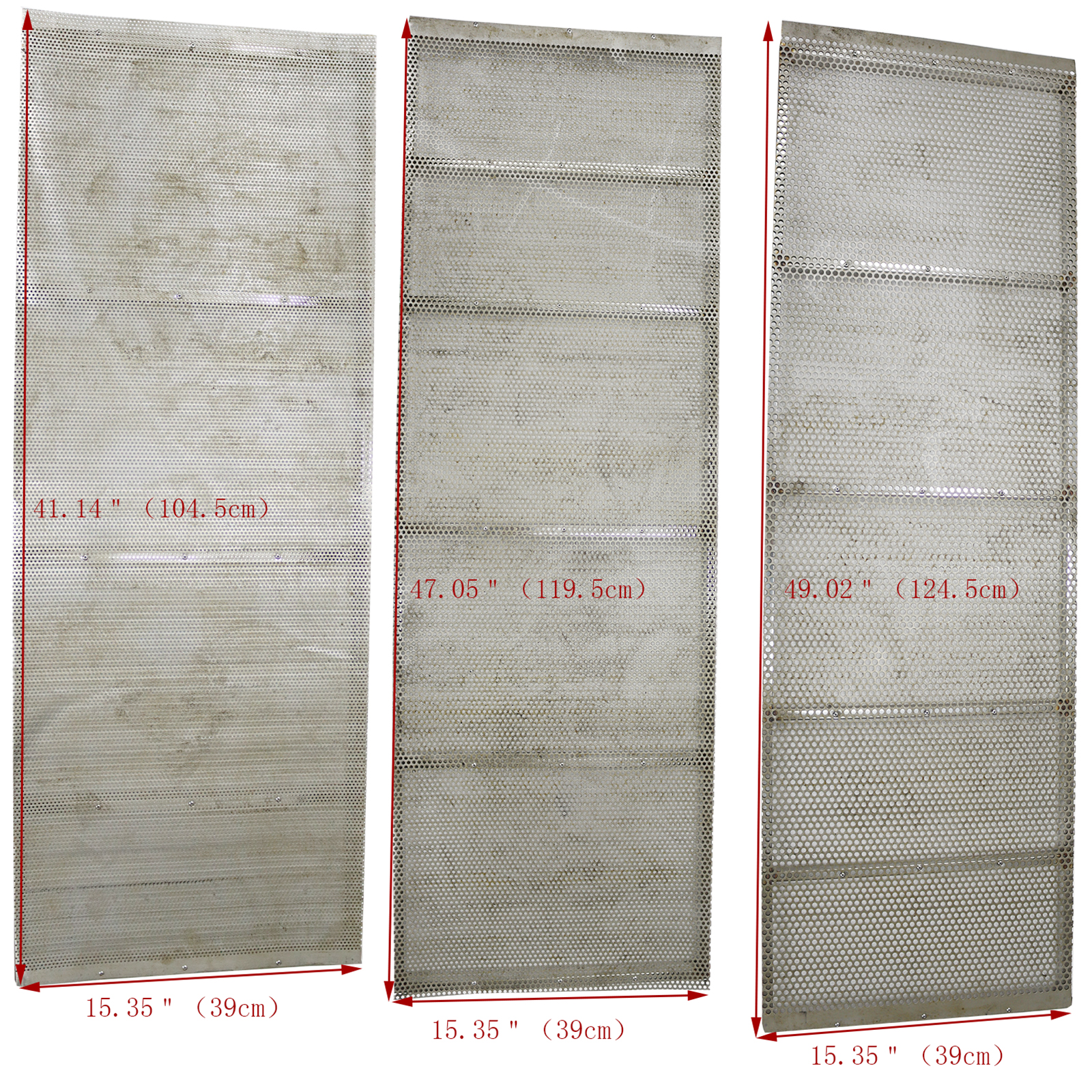

Each sieve is provided with a screen and two stainless steel pressure strips, and when in use, the screen is secured by the pressure strips.

Top screen mesh:6mm

Middle layer screen mesh：4mm

Bottom screen mesh:2mm

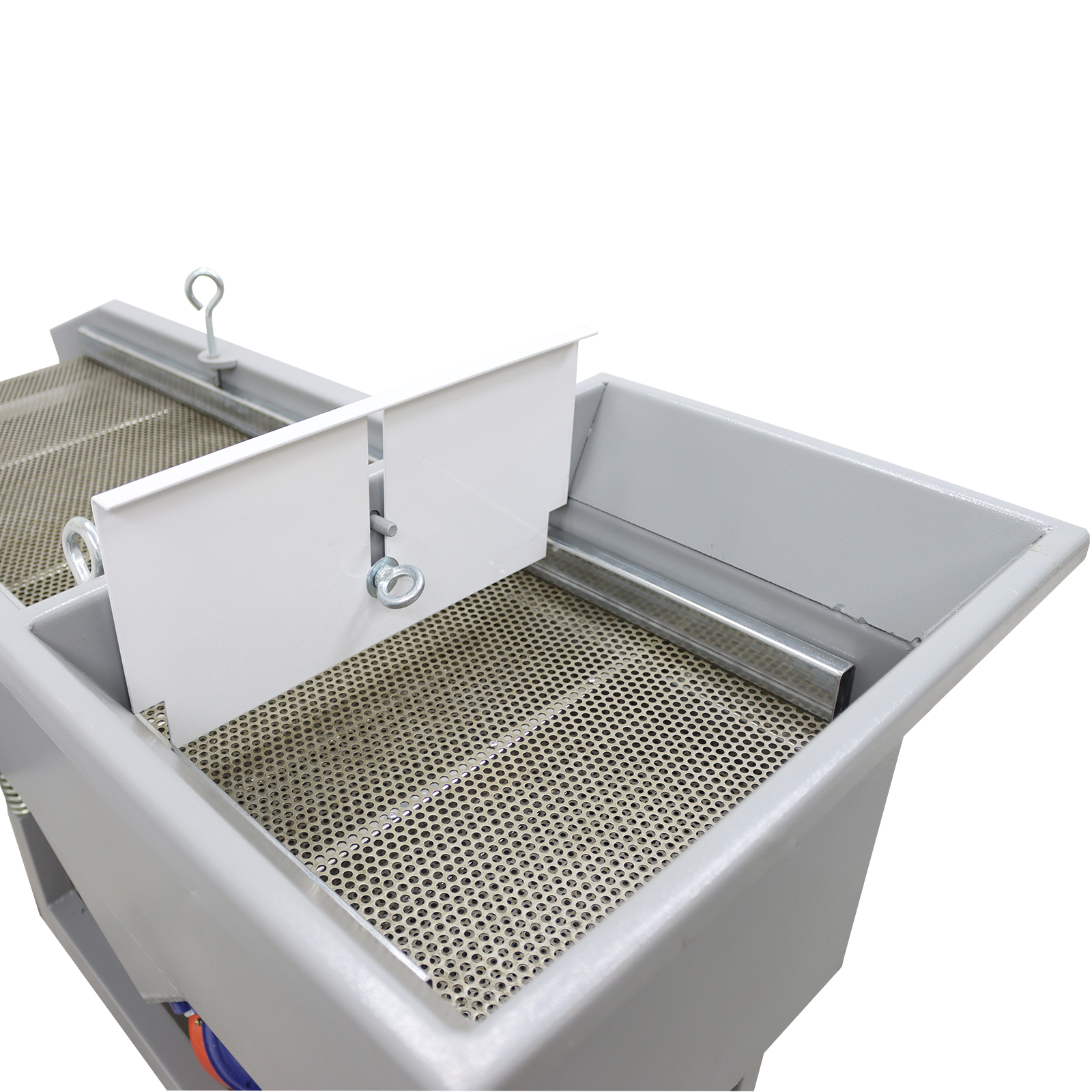

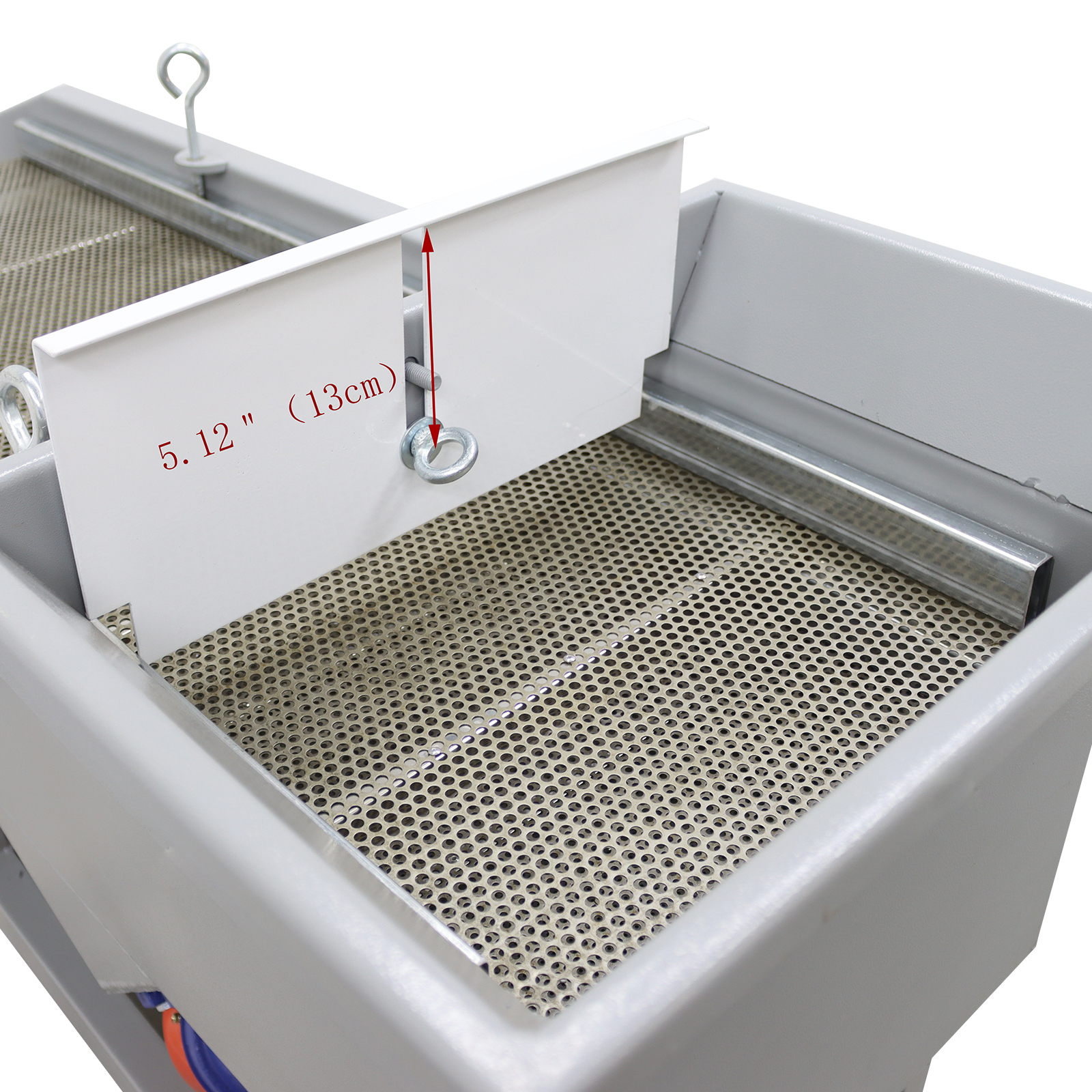

The machine is equipped with high-quality stainless steel baffles that can adjust the discharge speed.

They are all made of stainless steel, with sharp edges, please pay attention to safety during installation.

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
