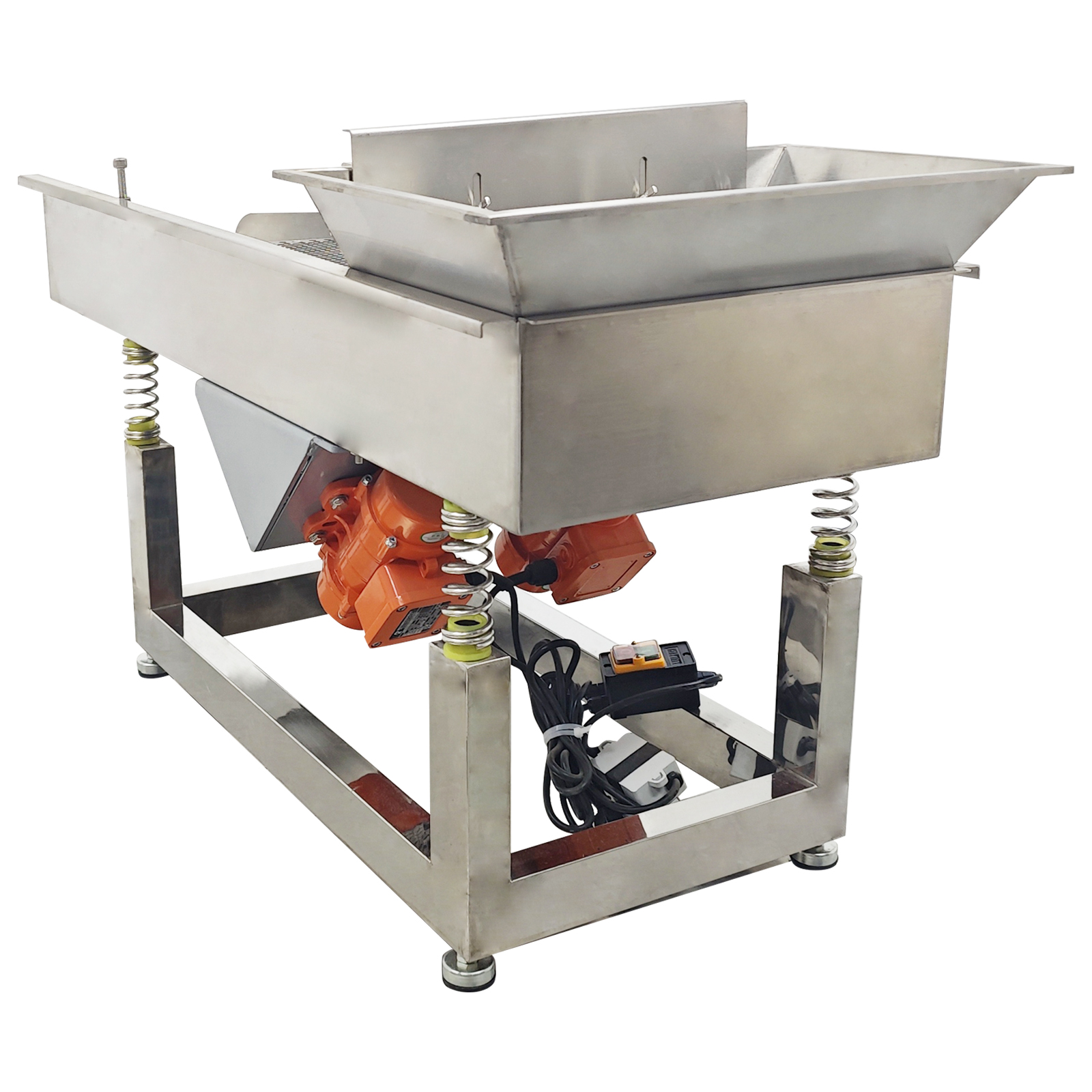

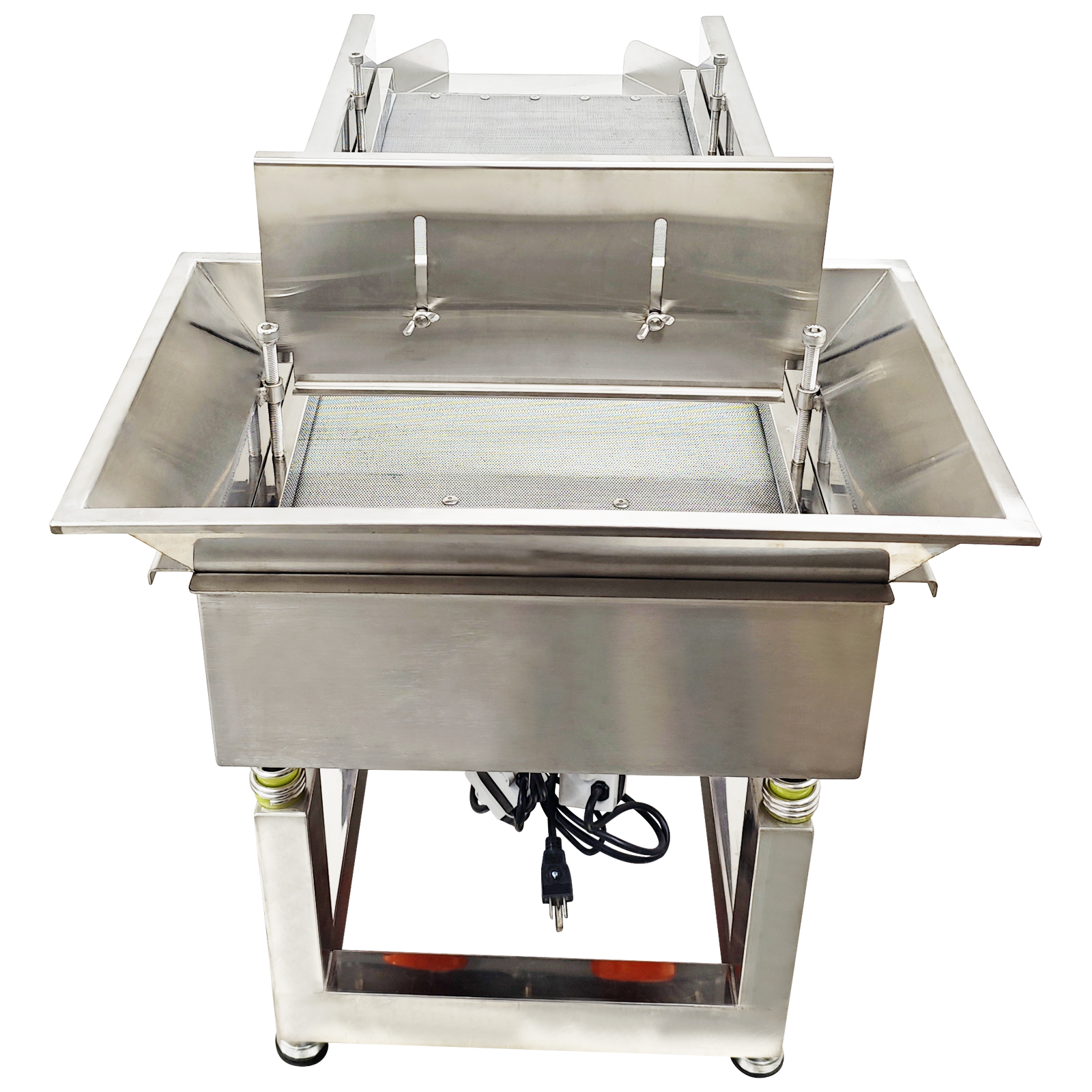

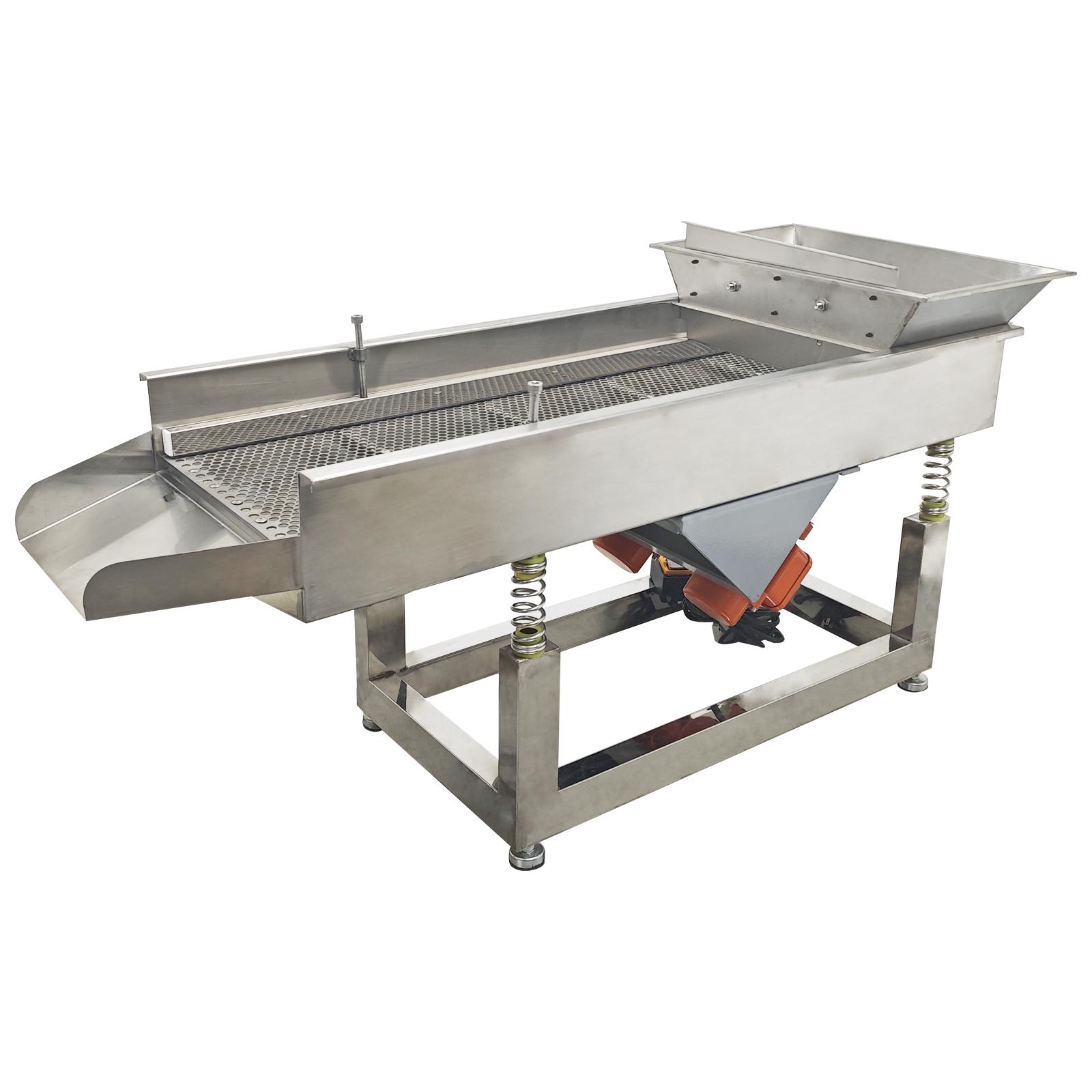

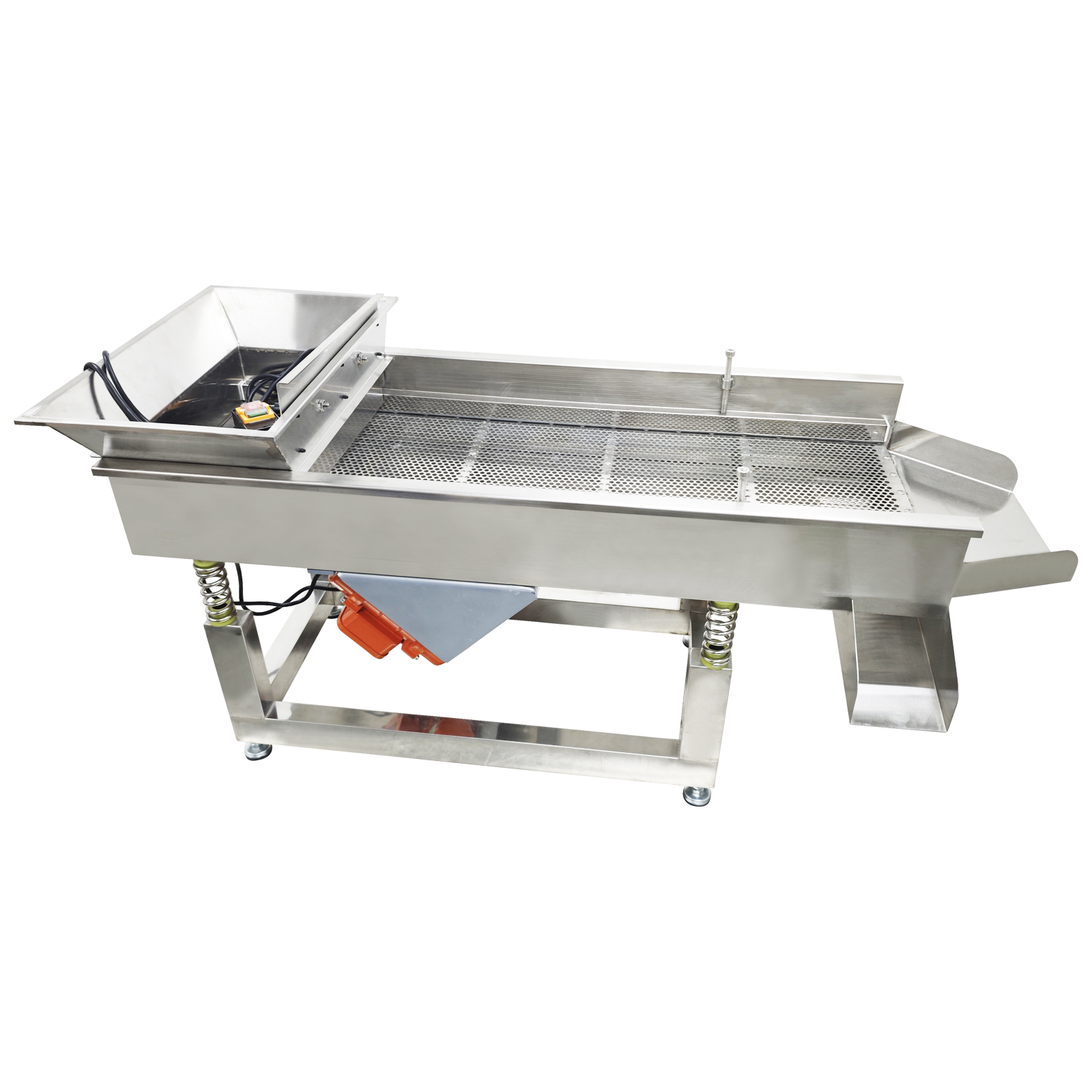

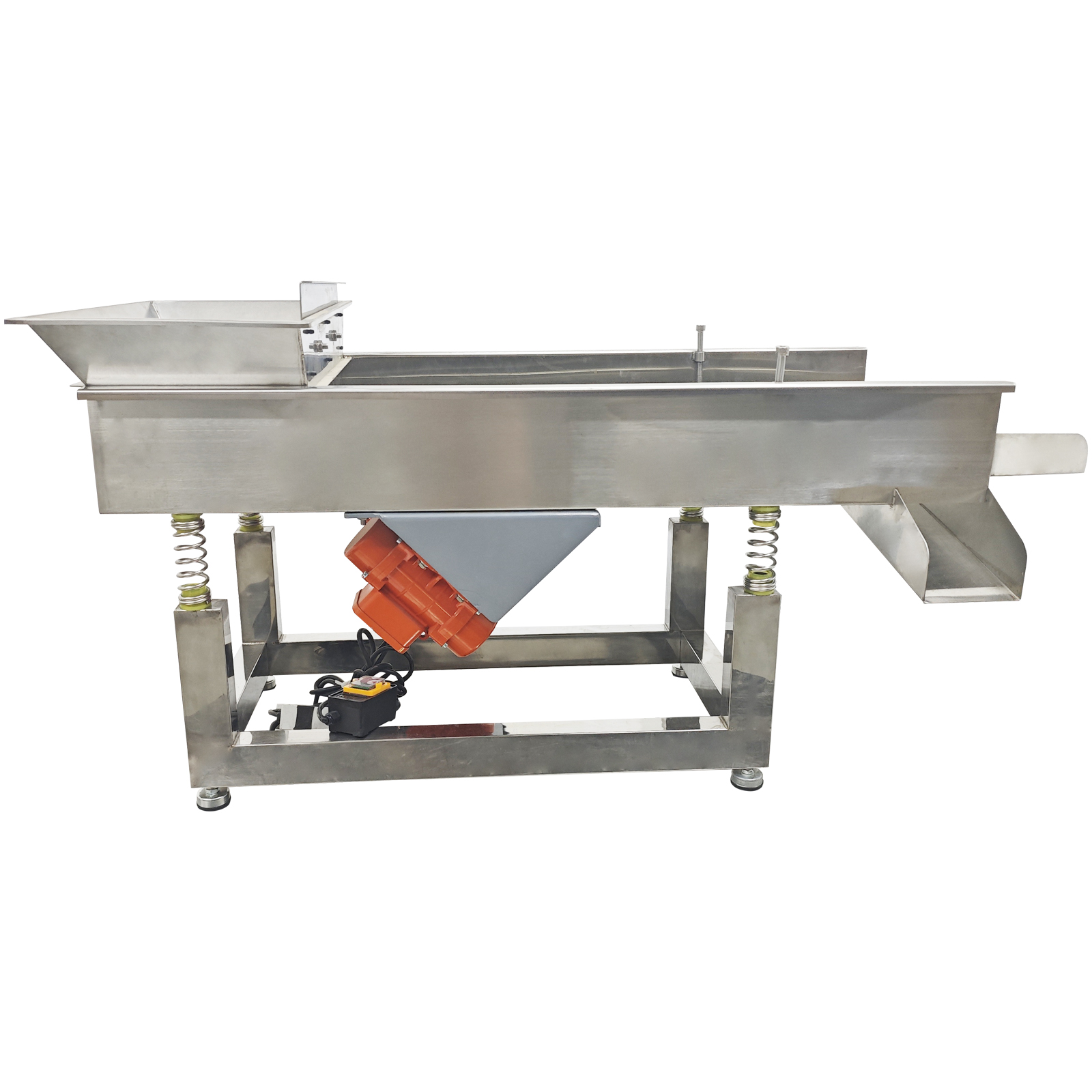

| The linear vibrating screen is
specially designed for large output. It can accurately screen and
classify materials and improve working efficiency.
 |
|
Introduction: |
| The new high-efficiency screening
equipment has a screen moving trajectory that is approximately straight.
This sieve machine has simple structure, large screening capacity, low
energy consumption and easy maintenance. It is widely used in mining,
coal, electric power, metallurgy, building materials, fire resistance
and other industries for large block materials and medium and small
granular materials.
●The linear vibrating screen has the
advantages of small volume, light weight, simple structure, convenient
installation, easy operation and maintenance.
●The
linear vibrating screen has low energy consumption and high efficiency.
●The
screening accuracy of linear vibrating screen is high.
●The
linear vibrating screen has reasonable parameters and stable
performance.
●We
also provide other sizes of screen, and if you need, please contact us.
 |
|
Working principle: |
|
The screen box relies on the
vibrating motor to rotate in the opposite direction simultaneously so
that the whole screen machine supported on the damper can vibrate in a
straight line. After the material falls into the screen box from the
feeding end, it quickly moves, loosens and is sifted through the screen

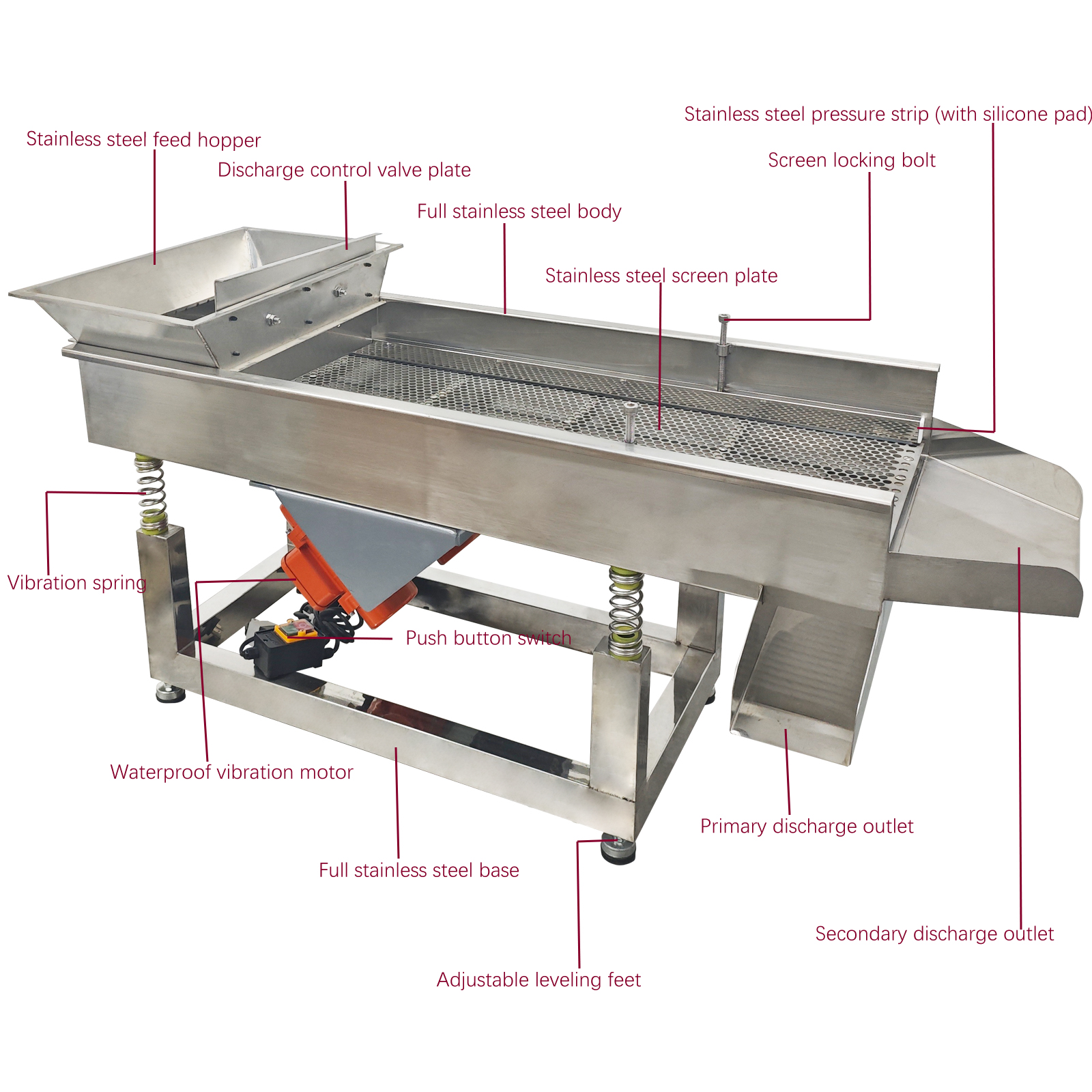

to complete the screening operation. This machine is composed of a sieve
box, a vibration motor and a base plate. The sieve box is composed of a
sieve frame, a sieve plate and a lining plate. This sieve machine adopts
the high-performance and long-life vibration motor. By adjusting the
height of the baffle, the sinking speed of the material can be
controlled. The vibration damping system comprises a rubber spring, a
clamp, a support base and the like. The base plate consists of a silo
and a bottom board.
 |
|
Product information |
|
Parameter:
| Material |
High quality stainless steel |
| Voltage |
110V |
| Power |
120W*2 |

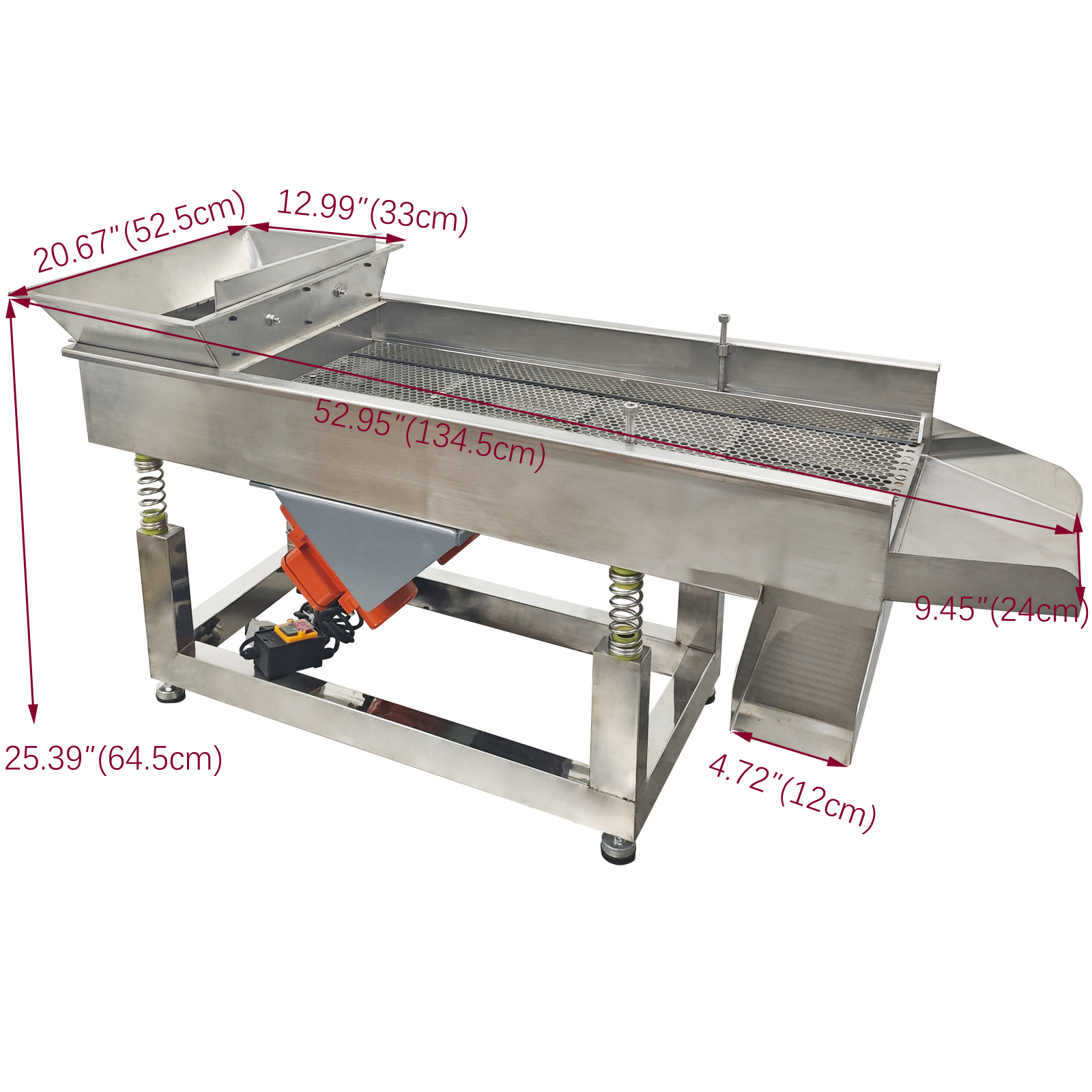

| Machine size |
52.95*20.67*25.39"（134.5*52.5*64.5cm） |
| Size of feed port |
20.67*12.99"（52.5*33cm） |
| Mesh size |
8mm |
| Mesh shape |
Round Hole |
|
 |
|
Use Maintenance |
|
●Before
use, check all parts and accessories to ensure that the installation is
correct before power.
●The
vibrating parts of the machine shall not be connected with or in contact
with any object outside the machine while the machine is in operation.
●When the material
is fed, it should be fed in the direction of the whole width of the
screen at the feed inlet to ensure the even distribution of the material
on the screen surface.
●When the material
falls, there should be no big impact, so as to avoid the damage to the
scree.
●No remaining
material shall be found on the screen surface before starting or
stopping the machine.
●If there is
abnormal sound during the operation of the equipment, it should be
immediately shut down to check,and then troubleshooting can be
conducted.
 |
|
Details: |
 |

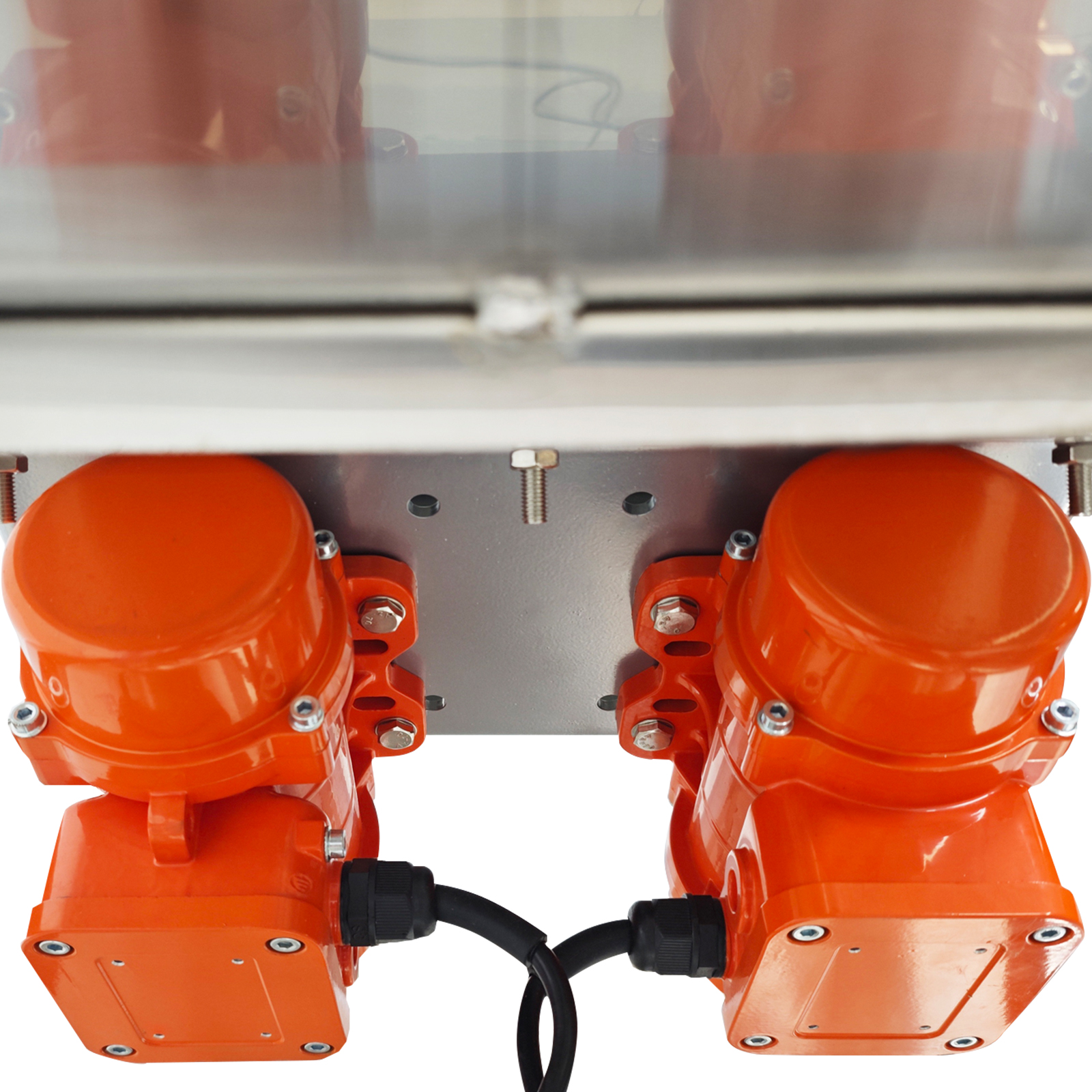

Dual motor material propulsion
technology, faster discharge, more fine screening, can work continuously
for 8-9 hours. |
|
The stainless steel pressure strip
contains silicon rubber shock absorption seal strip.
Silicone seal to prevent material
leakage. With a certain degree of flexibility, reduce the friction when
working, less noise.
Tighten the fixing bolts during use
to secure the screen and pressure strip.
|
 |
|
 |
Size of feed port:20.67*12.99"（52.5*33cm）
About 44.1LBS (20 kg) materials can be put into the
machine at one time.
|
| The bottom feet screws are adjustable, and you
need to level the 4 feet before use. |
 |

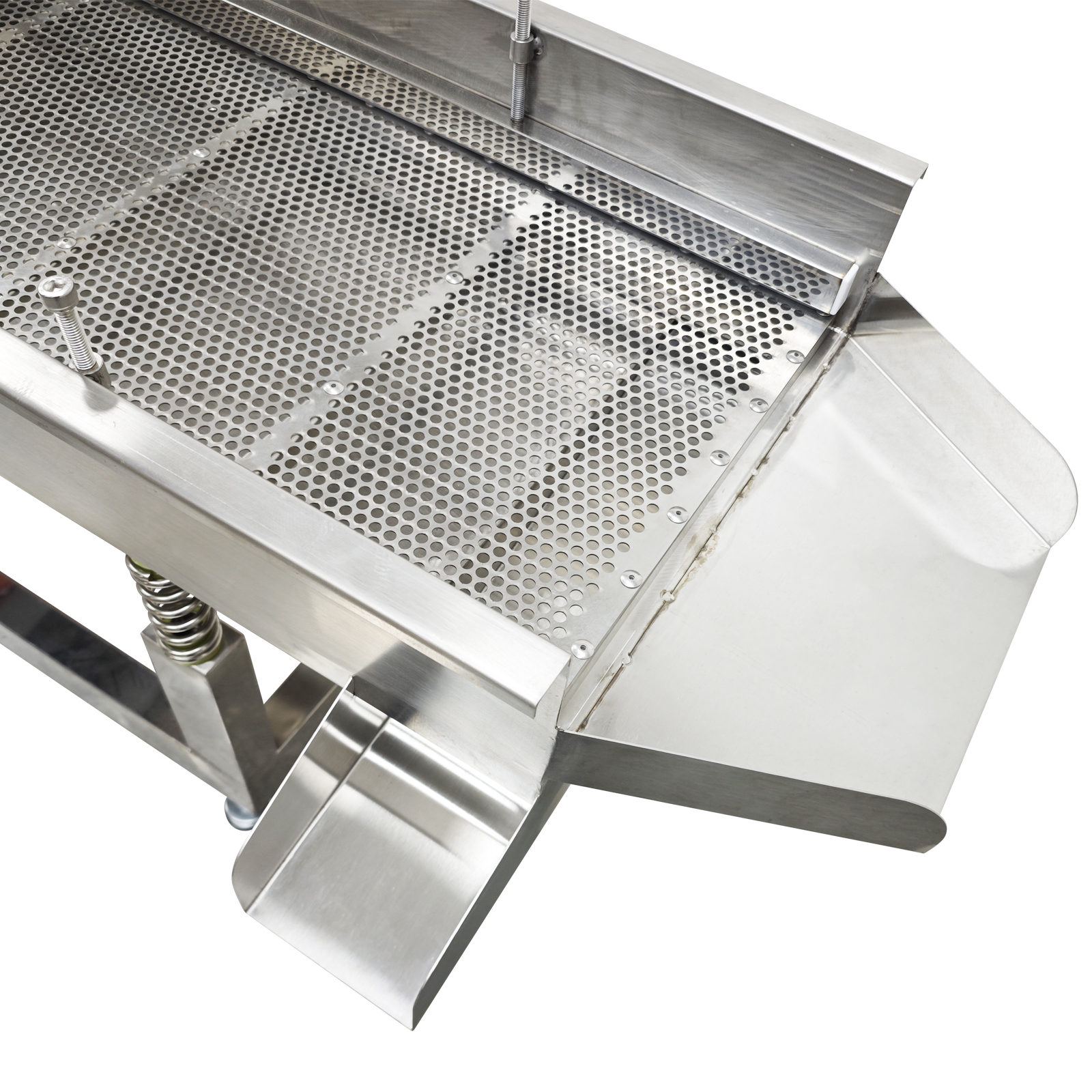

| Two-stage outlet, the
classification of materials can be automatically excluded, saving time
and labor. Size of first stage discharge
port:4.72"(12cm).
Size of secondary discharge port:9.45"(24cm).
|
 |
|

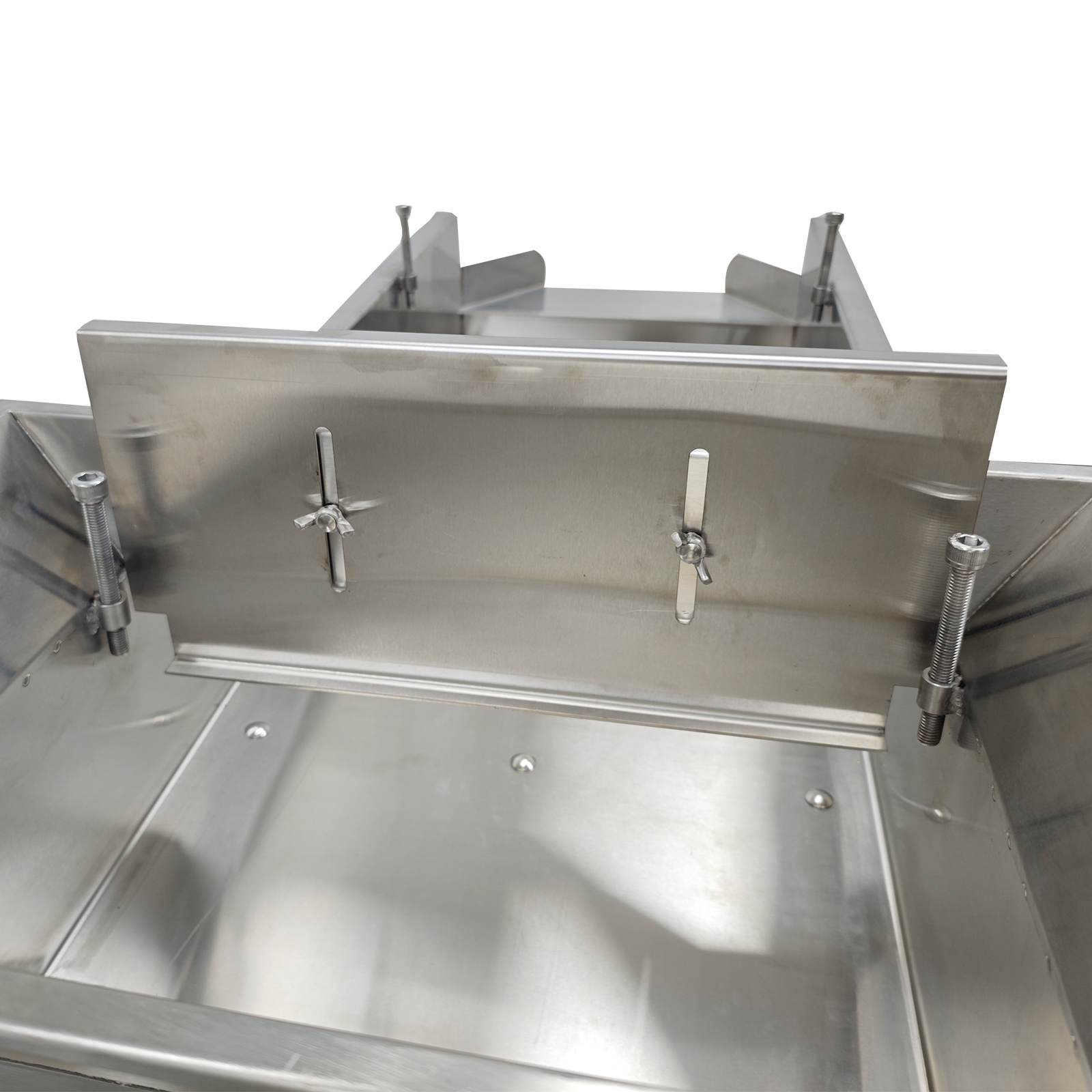

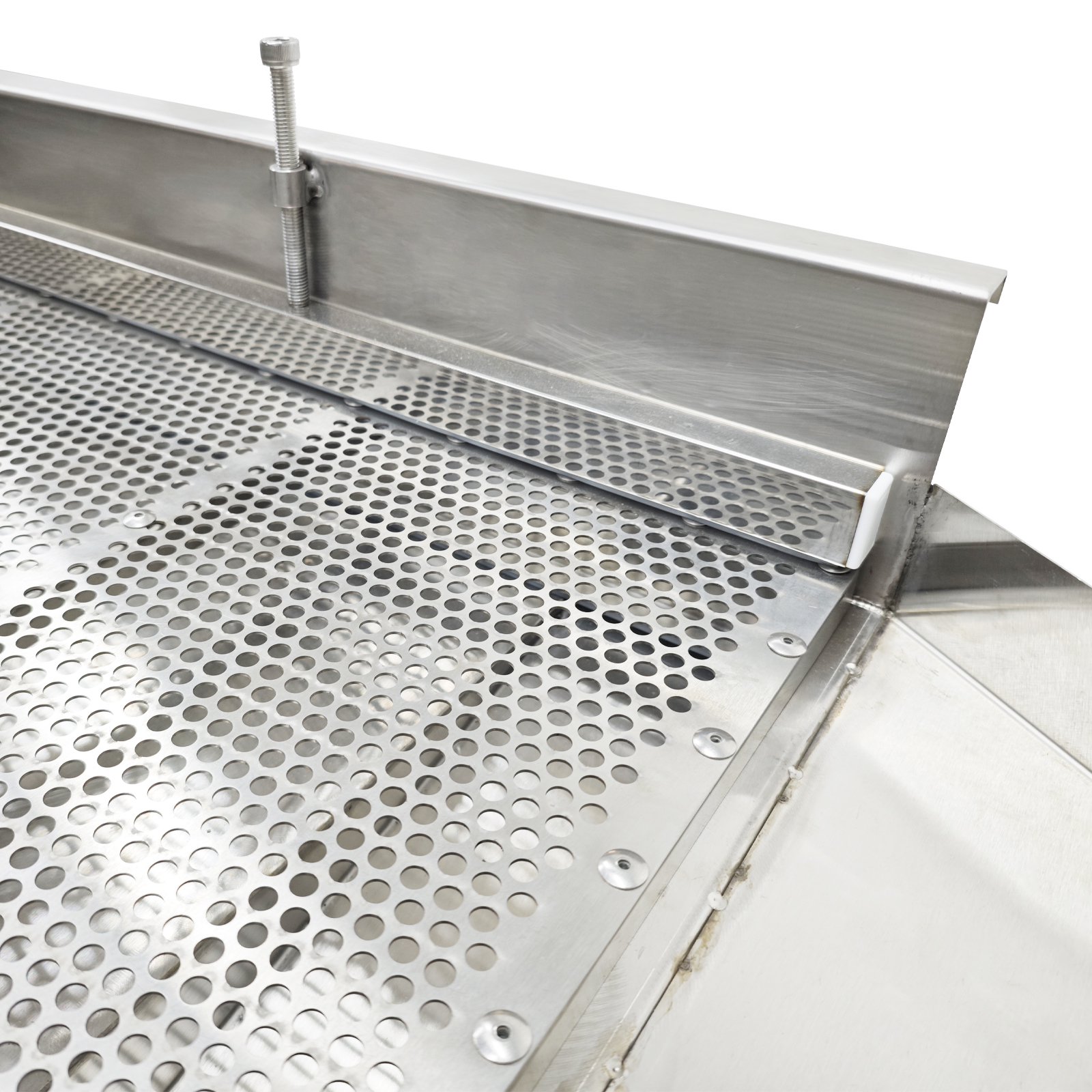

The machine is equipped with
high-quality stainless steel baffles that can adjust the discharge
speed.Without installing the baffle plate, the sinking speed of the
material cannot be adjusted.
Aperture length 2.95"(7.5cm) |
| Equipped with high-quality
stainless steel spring |
|
| Linear vibrating screen is widely
used in chemical industry, plastics, metallurgy, glass, building
materials, fertilizer, ceramics and other industries.we also provide
other sizes of screen mesh, if you need, please contact us. |
|
|
|
