Electric PVC Belt Climbing Conveyor |
|
|
|
|
|
|
 |
Climbing conveyor is a large inclination conveying
equipment, with the general belt
conveyor
simple structure, reliable operation, easy maintenance and other
advantages, with large
inclination conveying, compact structure, less land and so
on. |
|

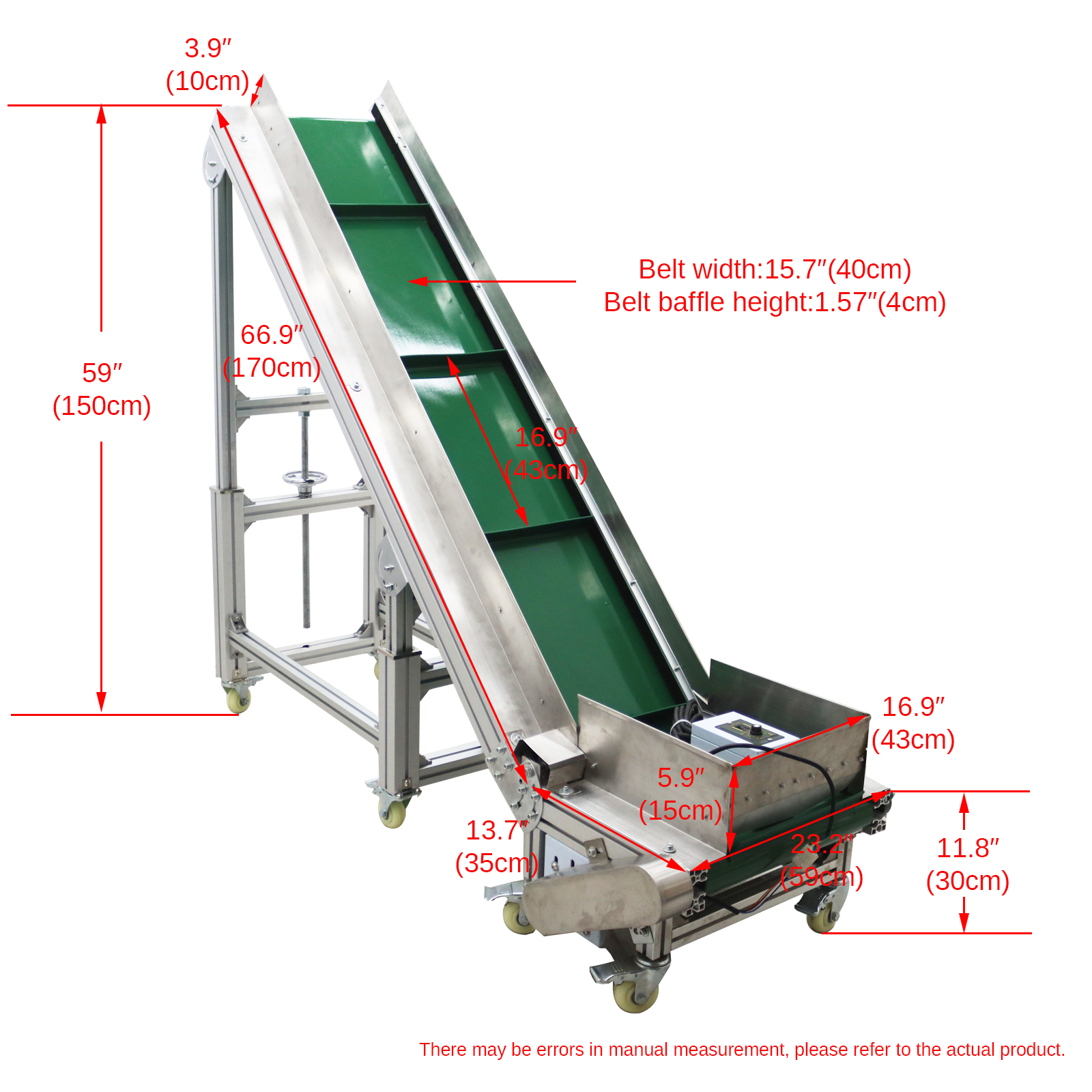

Parameter |
|
Motor Power |
250W |
|
Rated voltage |
110V/60Hz |
|
Length |
78.7inch(200cm) |
|
Available Width |
15.7inch(40cm) |
|
Height(highest) |
59inch(150cm) |
|
Height(minimum) |
11.8inch(30cm) |
|
Speed |
Adjustable from 2 to 10 meters per minute |
|
Slope length |
66.9inch(170cm) |
|
Platform length |
11.8inch(30cm) |
|
Material |
Aluminum +PVC |
|
Usage |
Packing,shipping etc. |
|
|
|
Detail |
 |
 |
|
Speed regulator
Adjustable 2 to
10 meters per minute,speed can be
adjusted
at any time. |
PVC belt
PVC conveyor belt is
wear-resistant, elastic and not
easy to
deform.It is approximately 16.9 inches apart
and has a 1.5 inch
high baffle for easy lifting and
transportation. |
 |
 |
|
High quality motor
250W High
quality motor, stable operation, long
service life. |
Guardrail
Guardrail is installed
around the belt to protect the
material from
falling. |
 |
 |
|
Vientiane caster
Vientiane
castors with brakes, easy to move. |
Hairbrush
The brush installed on
both sides of the belt prevents
the
material from falling and prevents dust from
entering the
machine. |
|
Notice:
The machine can not run for a long time at a low speed, long time
running at low speed will heat up and
affect the service life of the motor, the recommended speed is more than
5 m/min.
The adjustable handwheel on the support leg is only used for the
horizontal adjustment during installation,
and is not suitable for the adjustment of the overall height of the
machine.
|
 |
|
Accessories List |
Host machine ×1
Support legs ×2
Crossbeams ×2
Side guardrails ×2
Feed guardrail ×1
Speed governor ×1
Installation screws (a set / several) |
|
|
|
Item Number: Electric PVC Belt Climbing
Conveyor 230495 |
|
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us
with low cost. |
