Aluminum dent pulling
machine car auto repair machine 220V |
|
|
|
|
|
|
|
This welding machine can weld studs of various
materials of M3-M6. It hasmany advantages such assimple operation, short
welding time, little heat impact on the base material, no damage to the
basematerial surface, good welding quality, firmness, beautiful
appearance, and energy saving. lt is the most ideal equipment especially
in the maintenance of aluminum car bodies. |
|
 |
|
Product parameter: |
Voltage：220V
Instantaneous current：11000A
Rated power：1.5KW
Screw size：M3/4/5/6
Capacitance：12mF |
 |
|
Product analysis: |
 |
|
Operation method: |
1.First select the appropriate welding tip
according to the size of the stud, adjust the positioning screwin the
welding tip, then insert it into the gun head of the welding torch, and
tighten it carefully with awrench. Then insert the stud to observe, the
stud should be 5-8mm higher than the three supportrods of the welding
torch. Then connect the 220V power supply, and makethe welding machine
reliable grounding. Turn on the power switch, the digital meter displays
thewelding voltage, adjust the "voltage adjustment" knob to the
appropriate voltage according to the sizeof the stud used. The
specifications and voltage matching can be fine-tuned as follows:
| M3 |
M4 |
M5 |
M6 |
| 45V |
70V |
100V |
130V |
|
|
2. Remove oil and rust on the
workpiece to avoid spark splashing or weak welding due to poor contact.
3. The stud is installed in the gun mouth. Make the welding gun
perpendicular to the base material and exerts a slight pressure.
4. Press the micro switch on the handle of the torch, and the welding
will be completed after a "pop".
5. Adjust different voltages and observe the welding effect, subject to
the firmness of the welding and the welding place is well connected and
flat.
6. Adjust the voltage according to the above experiment results and then
welding.
7. The larger the output voltage, the larger the diameter of the welded
stud.
8. As for the repairing of sheet metal, after welding, screw the pulling
ring on the stud, and use a pulling tools with a thermal spray gun to
heat the damaged part and flatten the sheet metal. |
 |
|
Features: |
|

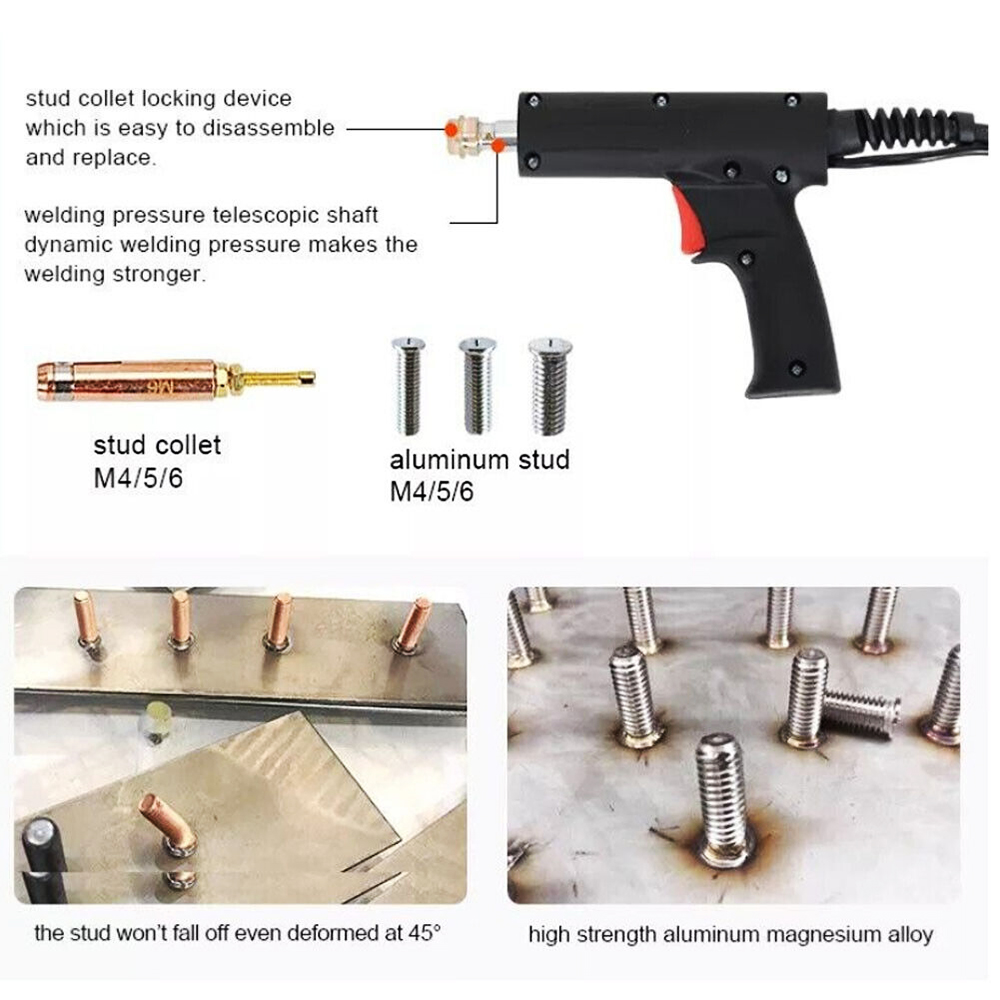

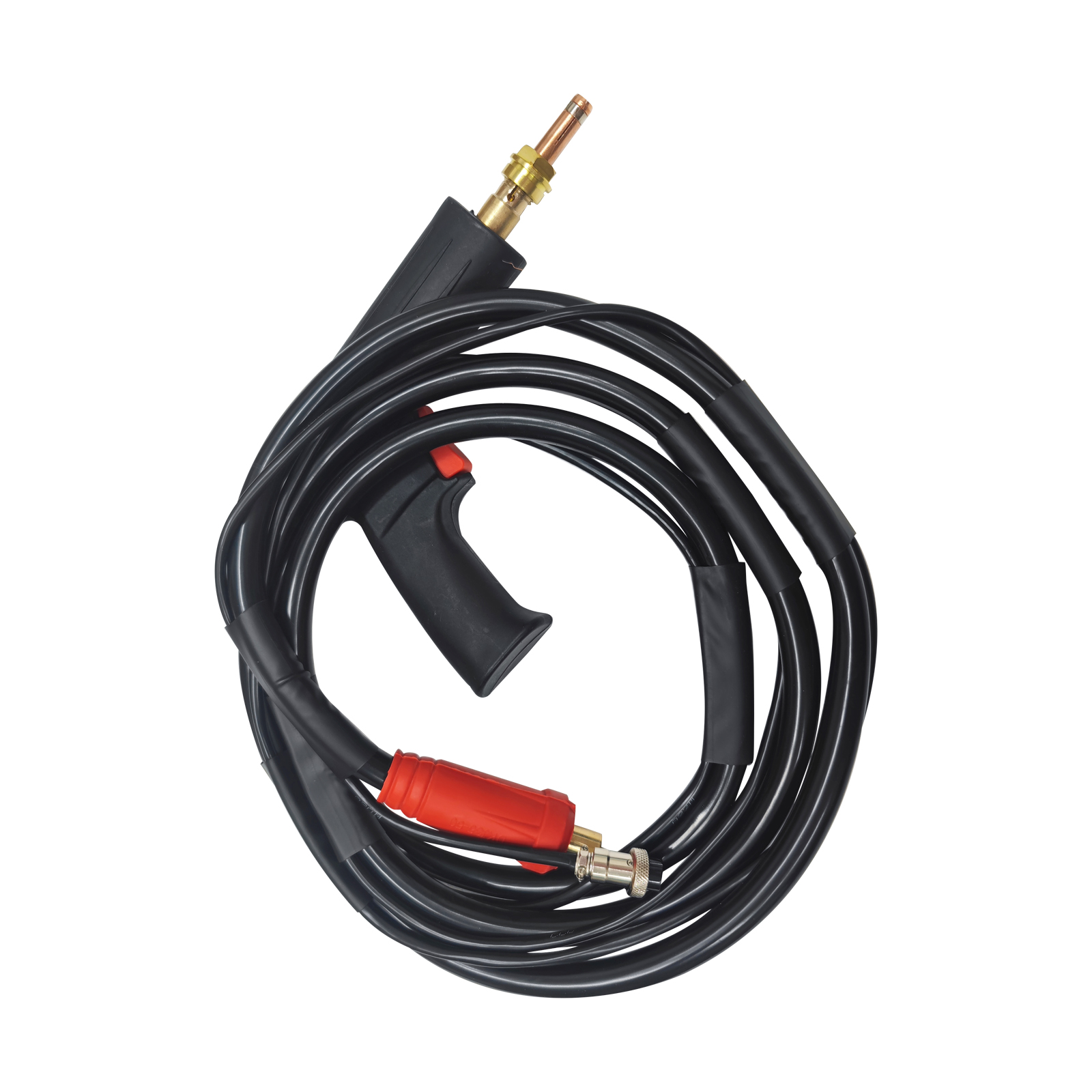

1. Adjustable pressure welding gun: Different types of studs require
varying welding forces, so the welding gun must have adjustable
pressure.

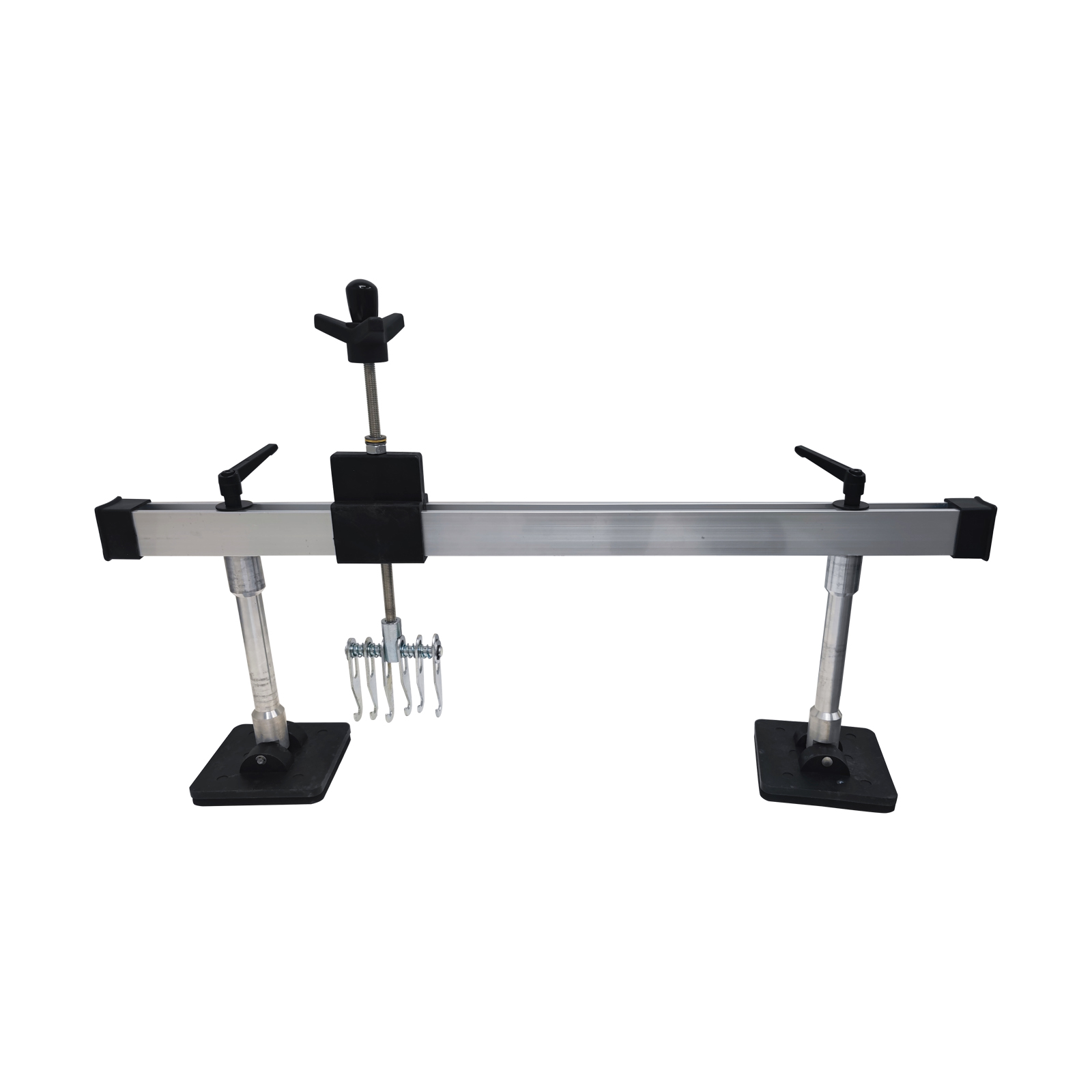

2. Pull frame aluminum material: more durable.

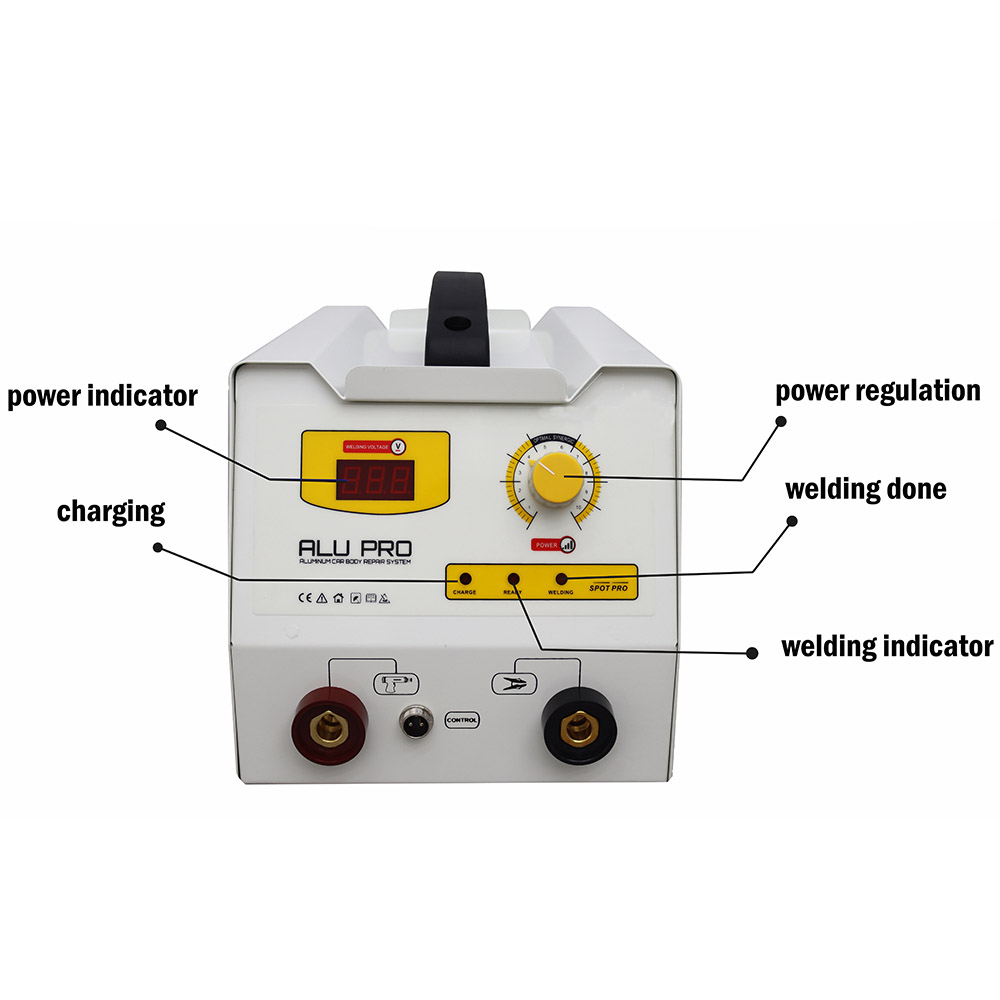

3. Current knob adjustment: knob adjustment is faster and more
convenient than button adjustment.
4. All copper transformer.
5. Professional workbench: The use of high-strength galvanized plate,
tools more convenient storage.
6. Cable 50m2 oxygen-free copper: discharge current is faster than
double lap iron.
7. Intelligent matching welding mode: fast arcing, deep melting pool,
solid welding.
8.12mF Large capacity capacitor.
|
|
Details: |
 |
 |
 |
|
 |
|

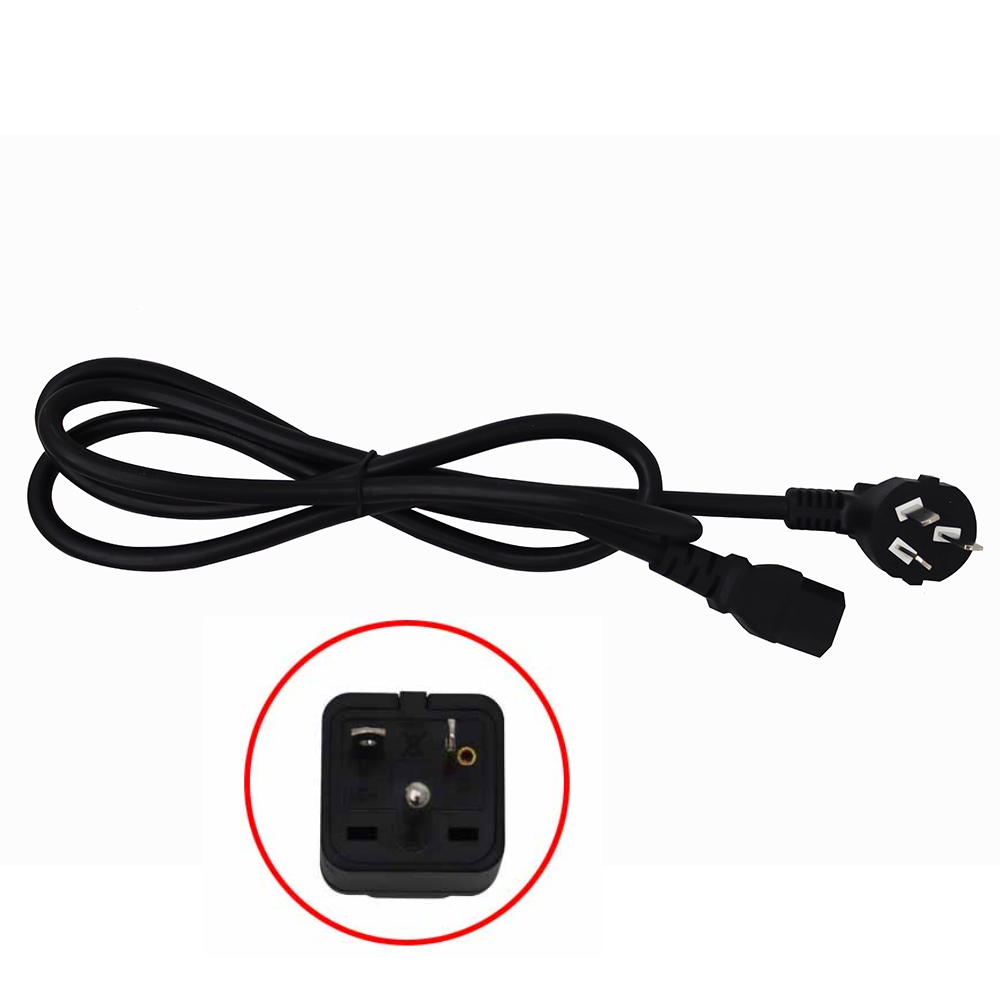

Different places have different Receptacles. Please note
this plug and consult your electrician before purchase.
|
|
Matters needing attention: |
1. Ensure that the product is connected to the
grounding wire and the grounding power cord in good condition.
2. lt is necessary to prevent the operator from contacting the metal
parts to be welded without protection or wearing wet clothes.
3. Avoid touching the place to be welded.
4. Do not do spot welding in a very humid place or on a wet floor.
5. Do not use frayed and cut cables for welding. Check whether the cable
has insulation defects, exposed copper wires, loose connections, leakage
and other unsafe factors.
6. When replacing the electric wire, please turn off the machine first.
7. Before all inspection and maintenance, turn off the machine and cut
off the power plug directly. |
|

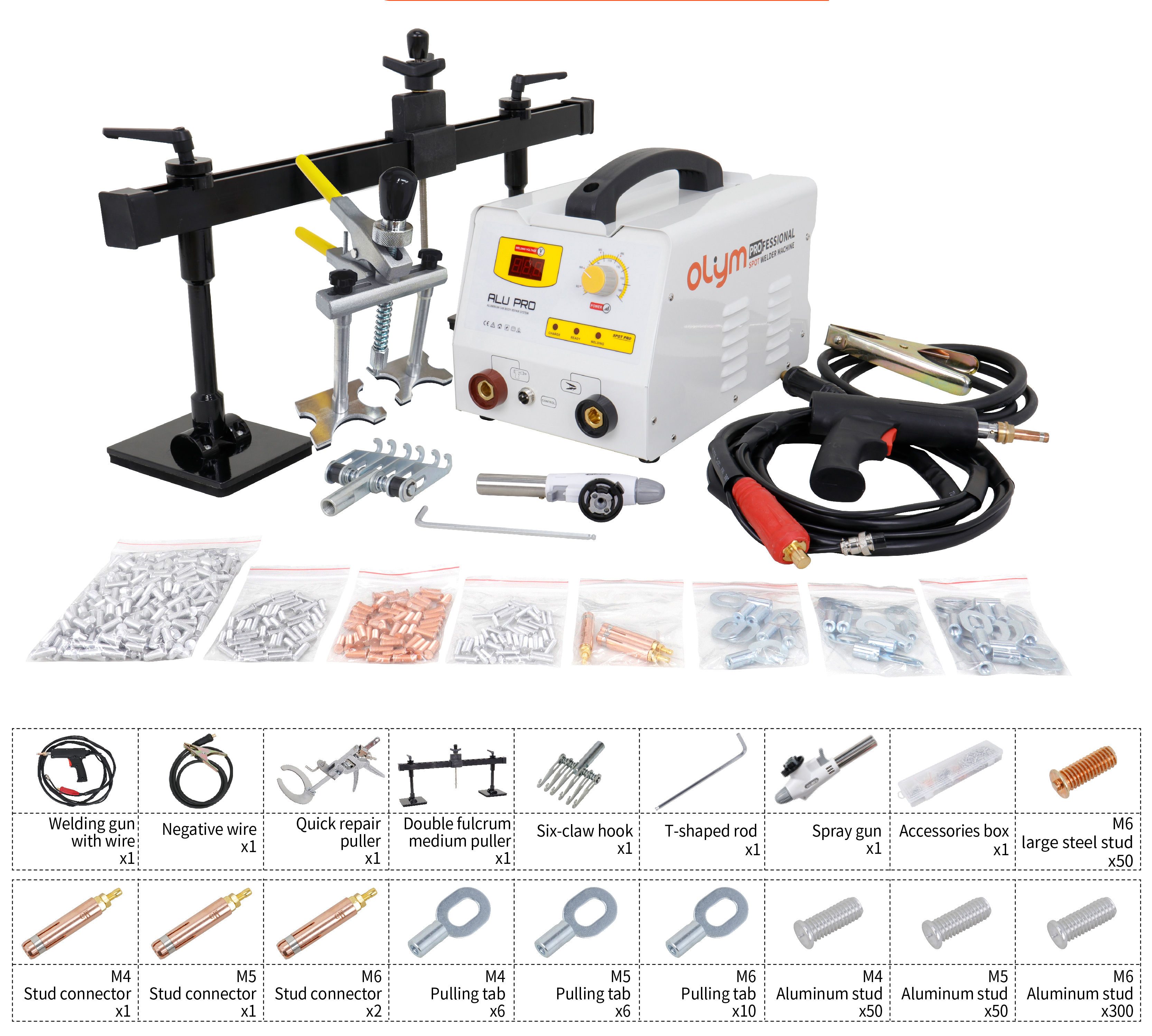

Item Number:
1*Aluminum dent pulling machine car
auto repair machine 220V
(238052) |
|
|
You can make order
with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
|
