188007:Air Wire Stripping Machine(110V)
C $335.00
Out Of Stock

Similar products

020194:Automatic can sealing machine 110V

230064:2.1mL*30cmW PVC Belt Conveyor with Double Guardrails

056622:Pneumatic Perfume Crimping Machine Capper Lid Cap Locking Machine

181021:12Inch Foot Pedal Sealing machine

188003:Fertilizer Injector

新建网页 1

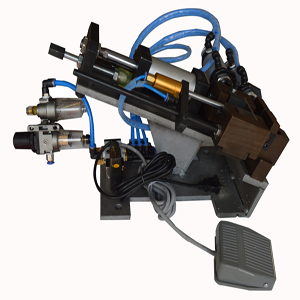

Air Wire Stripping Machine

1.Sliding design, easy for using.
2.Double cylinders, no need to worry about the spring broken.
3.Use oil & air auto feeding, oil the cylinder under regulate time. Reduce the wear and tear of cylinder inside, save using time.
4.Special sliding pad, stable forward & backward stroke, high precision
5.Air electric type controlling, easy to operate.
6.Adjustable, it can be adjustable according to the wire size.
7.It is fit for the wire with small size and short length, such as AC/DC power wire, computer wire, electric wire, and multi-core wire, etc.

       Overall sizeeeee


   Wire diameter

      Max. 6mm

      Stripping length


     Power Supply




  Air pressure


      Output power

      31-73 kg


      Around 30 pcs/min

Operating instructions:
1.This machine is by electric and air control, Please plug in the power supply and air compressor before use.
2.The wire is placed within the fixed knife before produce, then press Pedal switch then it will be formed.
3.The length of the wire rod processing can be a little front cylinder before moving by tools, then test it.
4.When produce, inside wire has wound, we can adjust the back of the cylinder.
5.Please note safety when you use the machine, please turn off the power supply when not in use.
6.When the Wire size is different, the cutting tool is not the same, Must change tool to use.

Notice:This machine is the air-operated, so you need buy a pump alone.


Item include:(188007)

Air Wire Stripping Machine(110V)
