Automatic Computer Wire Stripping Cutting Machine Automatic Wire
Stripper Machine 110V |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The full automatic computer wire stripping
and cutting machine is a professional device for stripping and cutting
various BVR wires with the wire core area of 0.1-10mm² and BV wires with
the wire core area of 0.1-6mm². The machine adopts the microcomputer
program control to conduct precise, efficient and repeatable stripping
and cutting operation instead of manual stripping operation, thereby
saving time and labor, improving the working efficiency and achieving
long-term continuous production. It is a good helper for various
commercial and industrial industries related to wires, such as the
electronic manufacturing industry, the communication industry, the
automobile industry, the electrical appliance industry, the power
industry and the scientific research industry. |
|
Product
Parameters |
|
Voltage |
110V |
|
Power |
500W |
|
Display mode |
Liquid crystal display |
|
Cutting length |
1-99999mm (0.04-3937 inches) |
|
Stripping length |
Wire head: 0-35mm (0-1.38 inches) |
|
Wire tail: 0-35mm (0-1.38 inches) |
|
Maximum middle stripping
quantity |
15 |
|
Applicable wires |
Single BVR wire:
0.1-10mm²
Single BV wire: 0.1-6mm² |
|
Length error of finished wires |
3‰ |
|
Blade |
3mm thickened hard alloy steel |
|
Stripping speed |
3000-8000 pcs/h |
|
Program |
No.0-99, save 100 sets of data |
| Packing dimension |
23.23*22.44*24.41
inches (59*57*62cm) |
| Net weight / Gross weight |
33kg (72.75LBs) /
47.5kg (104.72LBs) |
|
 |
|
Attention |
|
1. Keep hands, clothing and tools away from
moving parts while the machine is in operation. Do not put hands into
the machine during operation. |
|
2. Refuel once per shift. Keep the tool
clean. |
|
3. Please pay attention to the personal
safety when replacing tools. |
|
4. Non-professionals are not allowed to
disassemble the tool rest without authorization. |
|
Product
Features |
1. The machine achieves accurate stripping
and cutting operation, supports multiple stripping modes and is free of
the damage to the wire cores.
2. It adopts an advanced micro-stepping driver with high efficiency,
high speed, low noise and low temperature, thereby achieving long-term
continuous operation.
3. Microcomputer control and full automatic operation are adopted,
operation is easy and efficient, new hands can also easily master it,
and the human cost is reduced.
4. The novel universal wire inlet is adopted and is applicable to BVR
single wires with the wire core area of 0.1-10mm² and BV single
wires with the wire core area of 0.1-6mm². The fed wires can be
more straight and accurate through the straighter, and the wire jamming
can be well avoided.
5. The machine is equipped with a powerful stepping motor with the 500W
power, the driving force is effective and stable, and the quality is
stable and reliable.
|
|
|

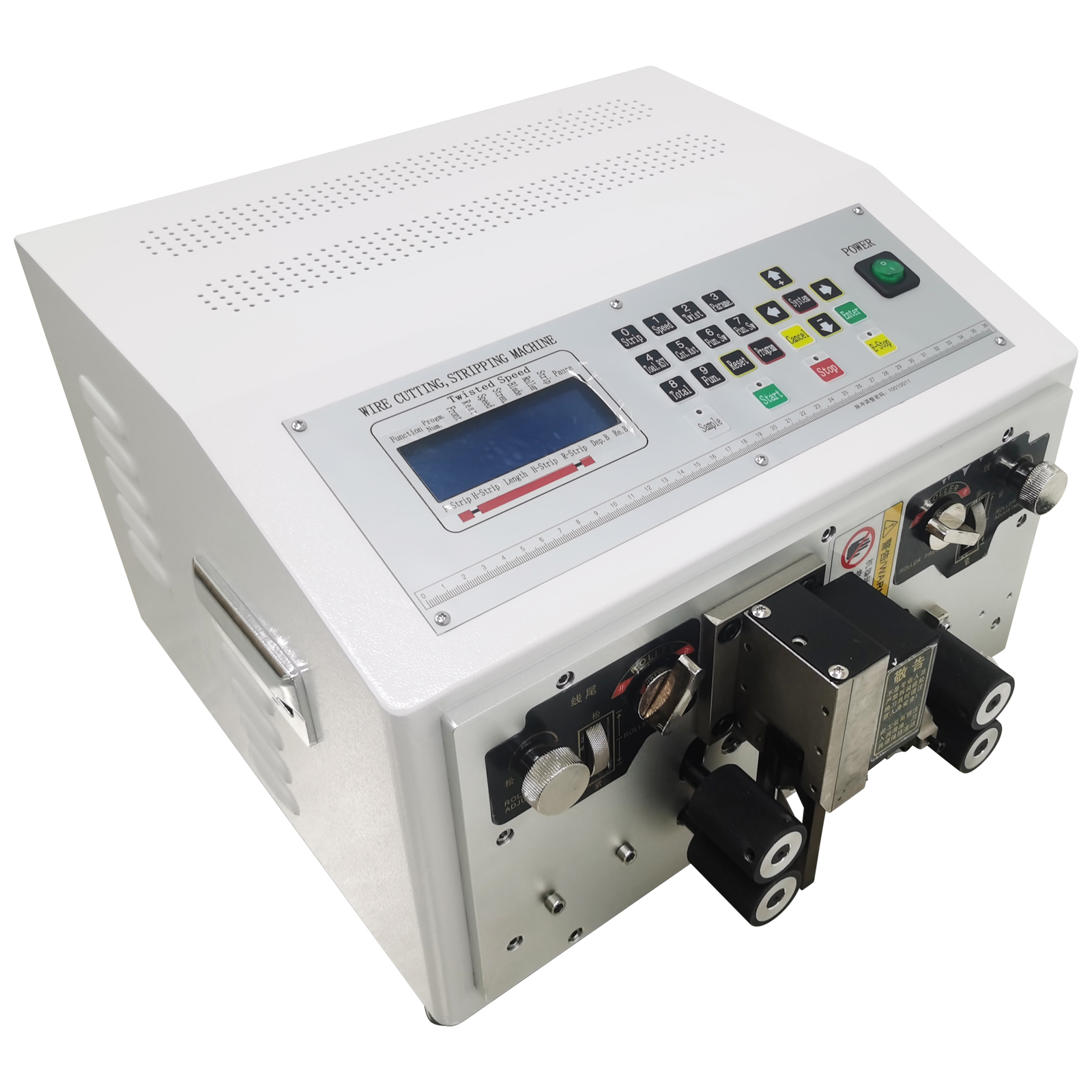

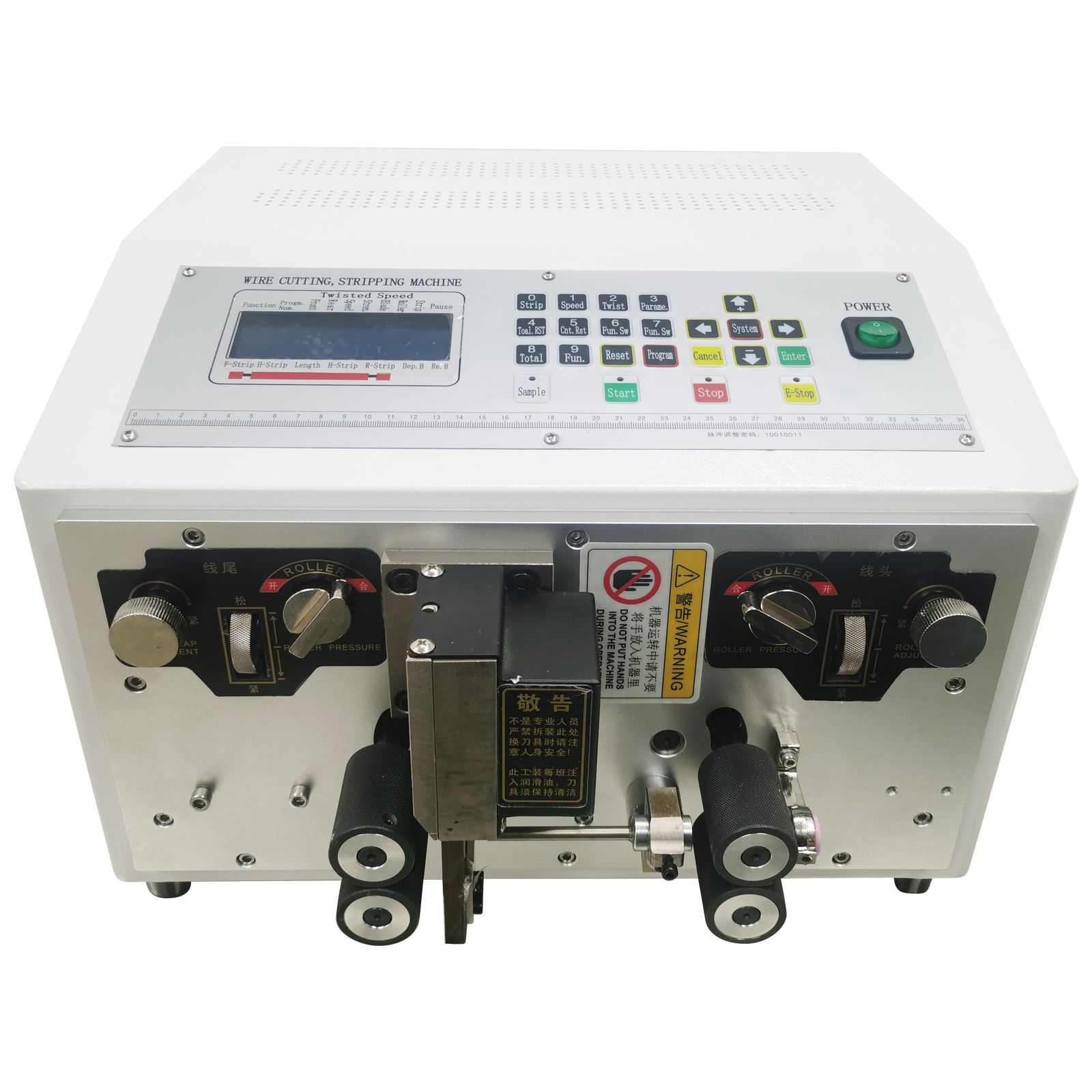

| Control
Panel The control panel
integrates a liquid crystal display screen and multiple control
buttons, achieving clear display and setting of various
parameters, improving the stripping and cutting precision and
efficiency and enhancing the user experience.
|
|

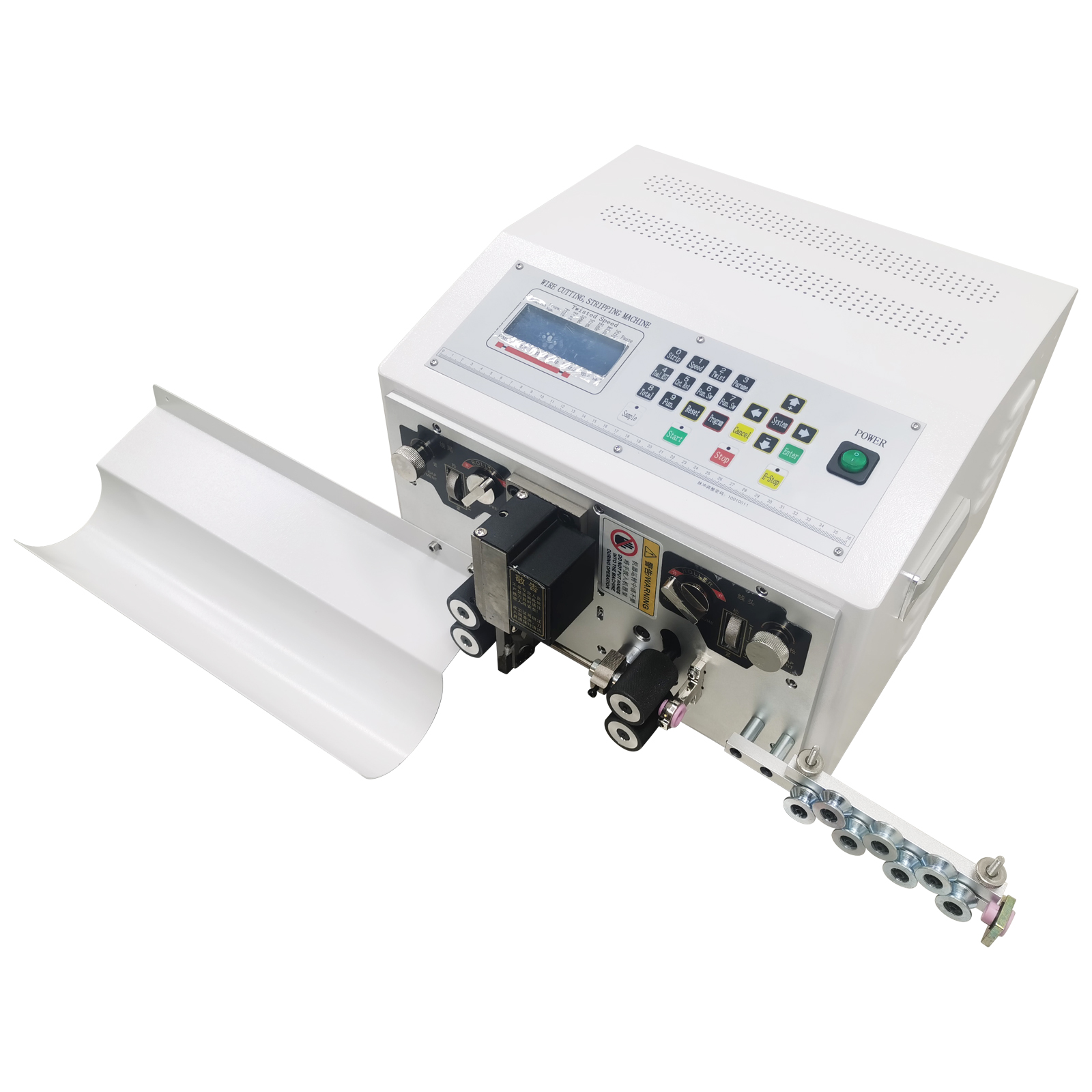

Wire Inlet and
Outlet The universal wire
inlet and outlet are applicable to multiple single BV and BVR
wires, the wires can be fed and discharged smoothly in the
working process and can also be well protected from wear and
damage in the moving process.
|
|
|
|
|
|

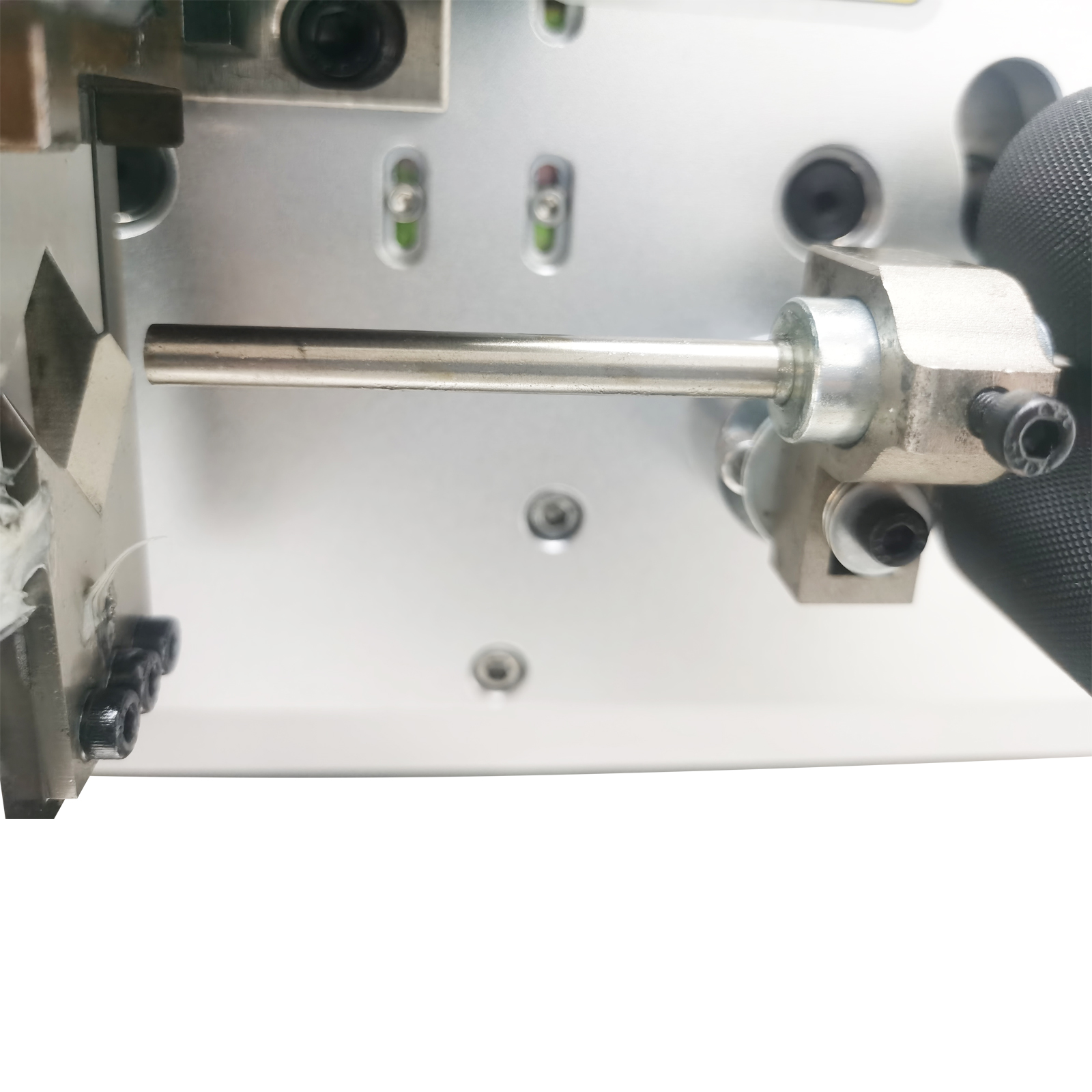

| Blade
The sharp blade set is made of 3mm
thickened hard alloy steel materials and can quickly cut off the
wires according to the actual demands. The blade set adopts the
modularized design, making disassembly and replacement easier
and more convenient.
|
|

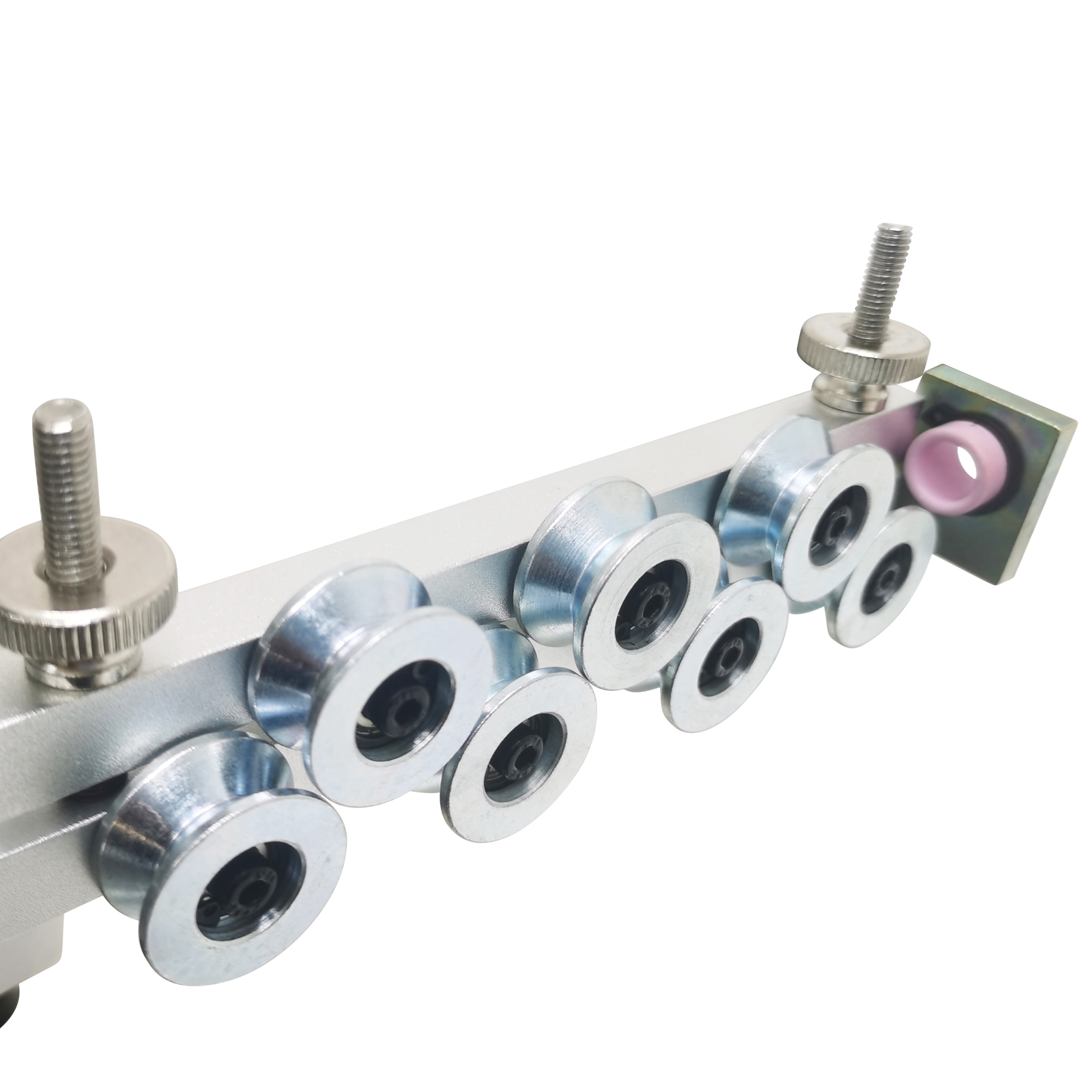

Straightener
The straightener has 7
straightening wheels, which can straighten the fed wires quickly
and precisely, ensuring the following stripping and cutting
operation is smoothly conducted, improving the working
efficiency, and avoiding the wire jamming trouble.
|
|
|
|
|
|
|

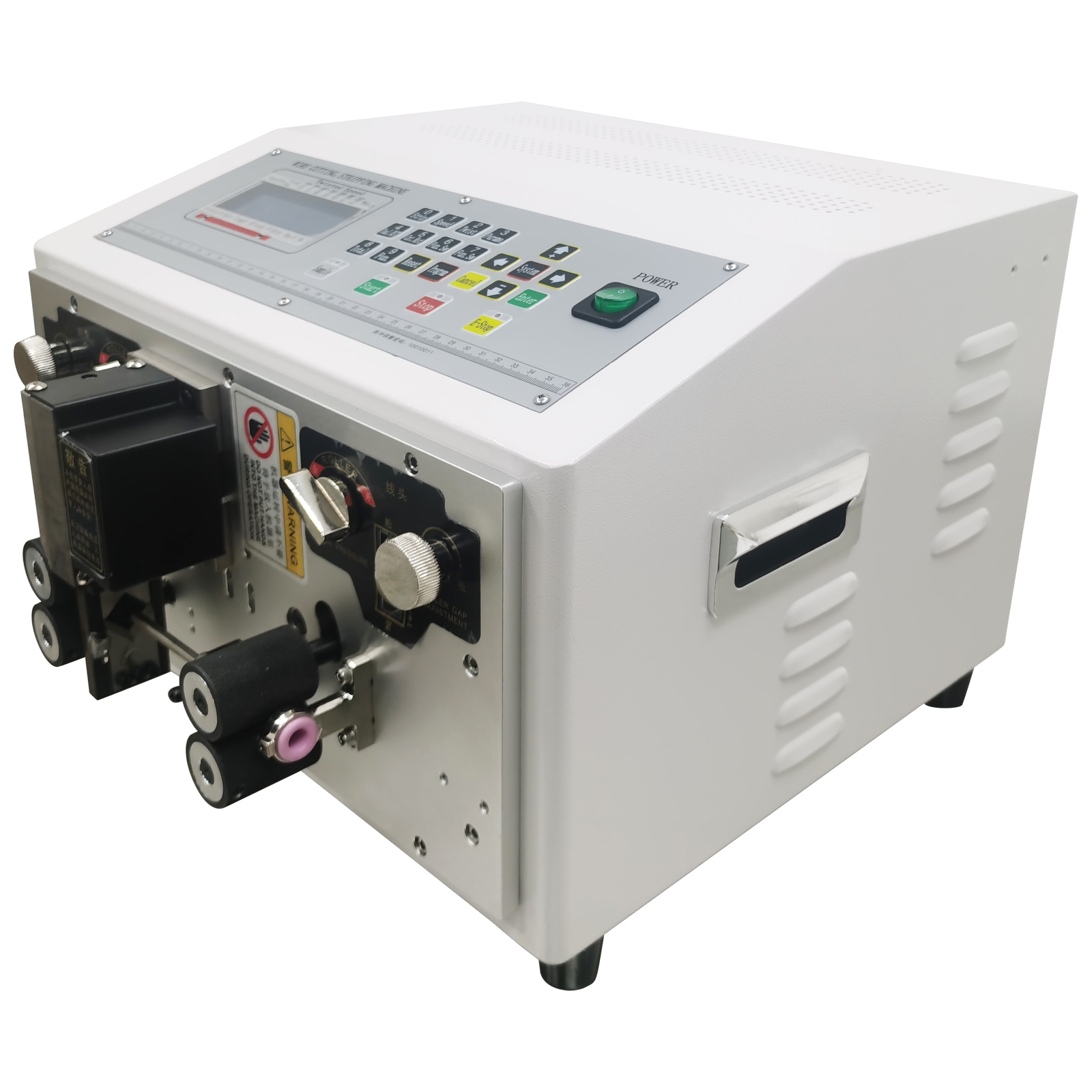

Pressure Regulators
Independent pressure regulators are designed for the wire head
and the wire tail, the pressure can be directly adjusted
manually as needed, and no tools are required. The knob design
meets the ergonomic standard and facilitates pressure
regulation.
|
|

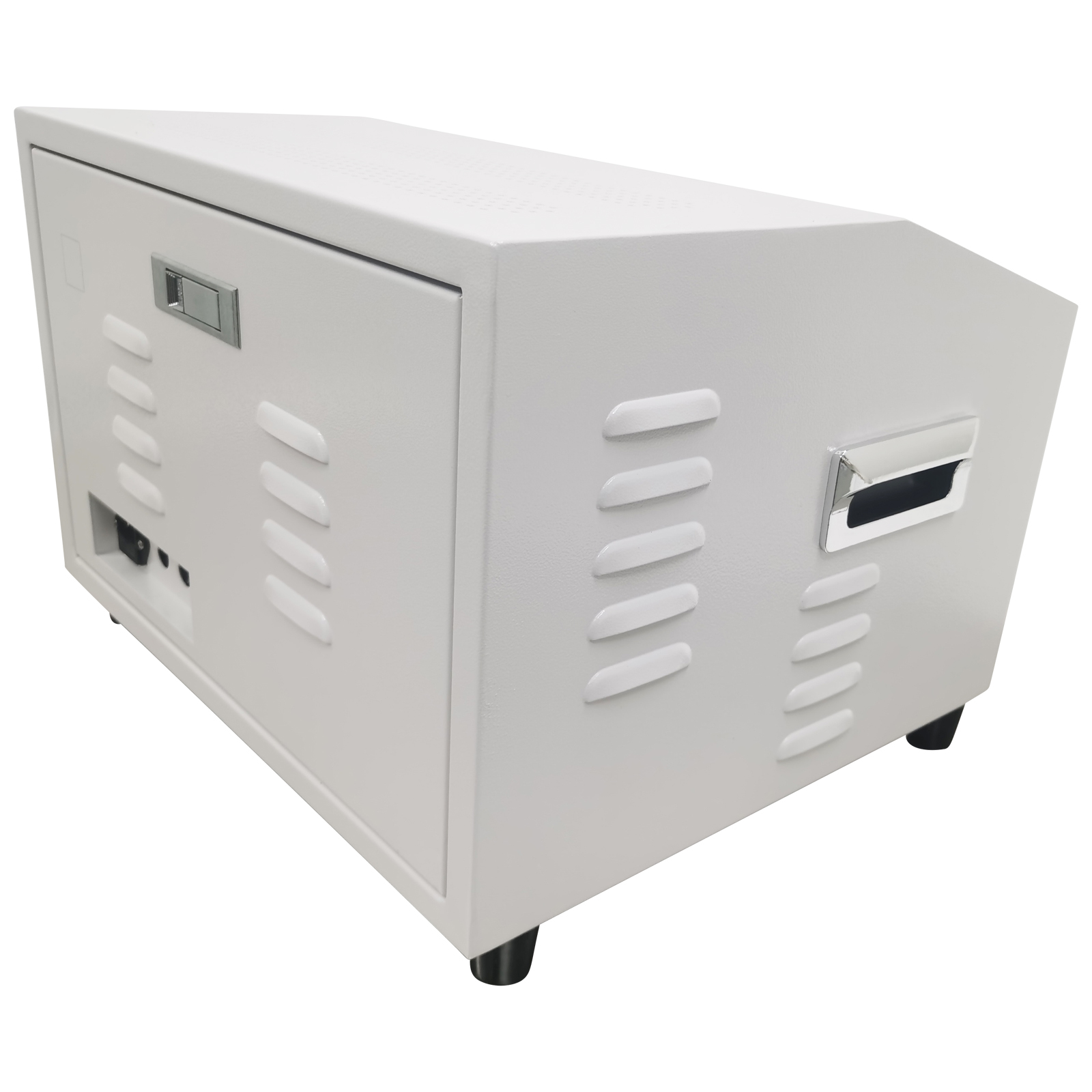

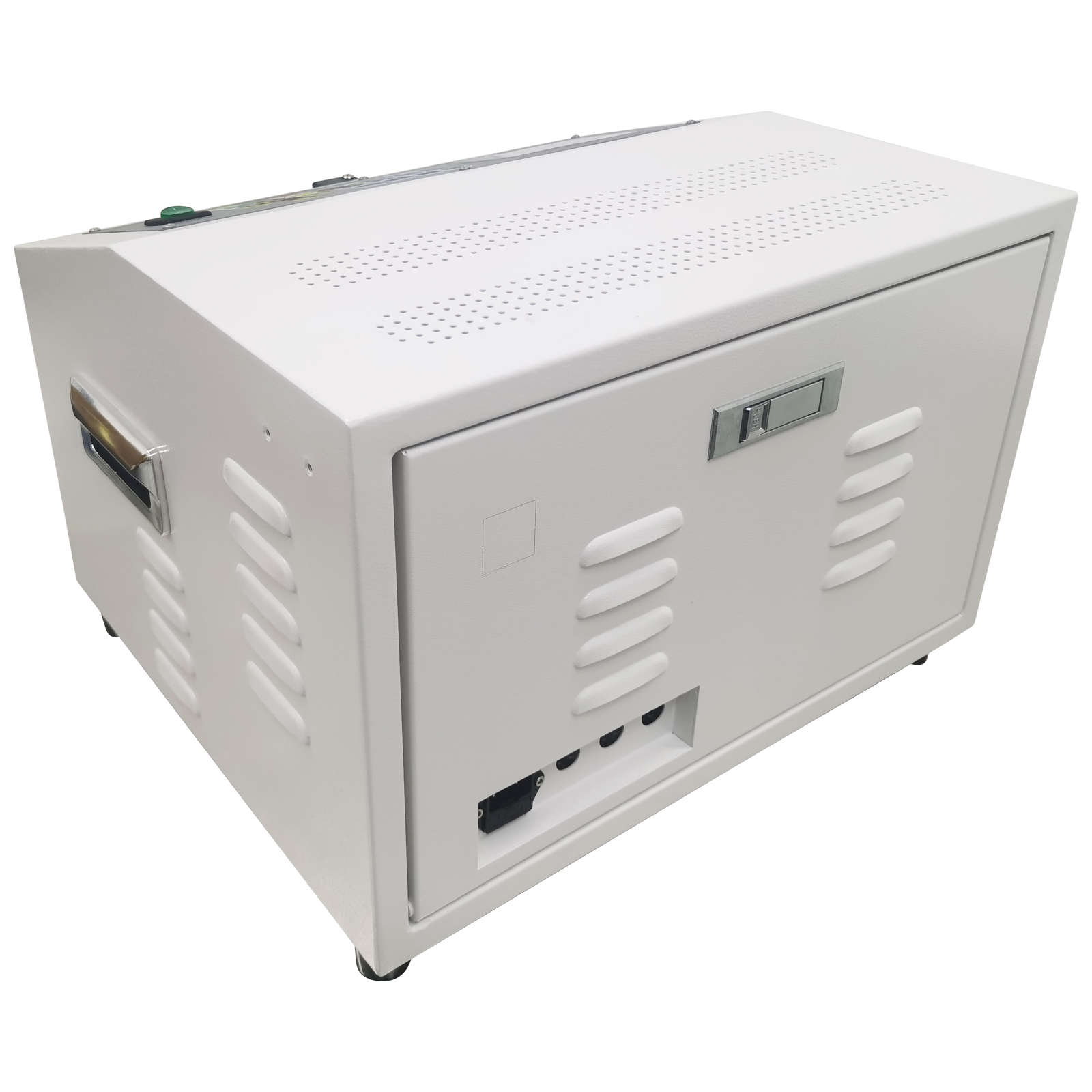

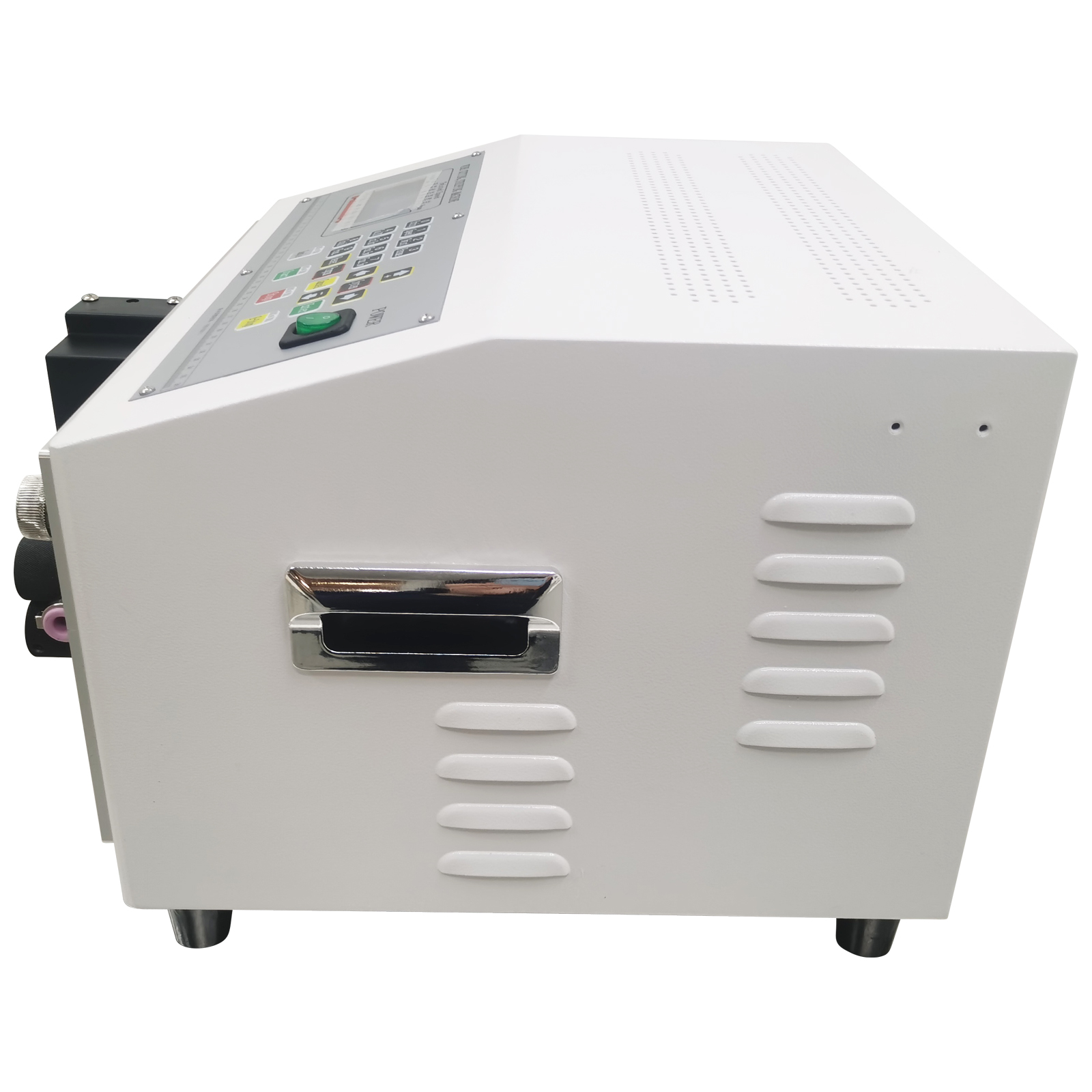

Handles
The handles are of a built-in
structure and are firm and durable, the operator can lift and
move the machine easily and effortlessly, and the machine can be
kept stable and balanced in the carrying process, and can be
well protected from damage.
|
|
|
Operation
Method |
|
1. Unpack the machine and check whether all
accessories are available. |
|
2. Install the wire receiving plate and the
straightener on the machine. |
|
3. Connect the machine to the 110V power
supply. |
|
4. Turn on the power switch, and set various
parameters on the control panel as required. Press the start button, feed the wires to be
processed, and start to strip and cut the wires. |
|
5. After finishing stripping and cutting
operation, press the stop button and disconnect the power supply. |
|

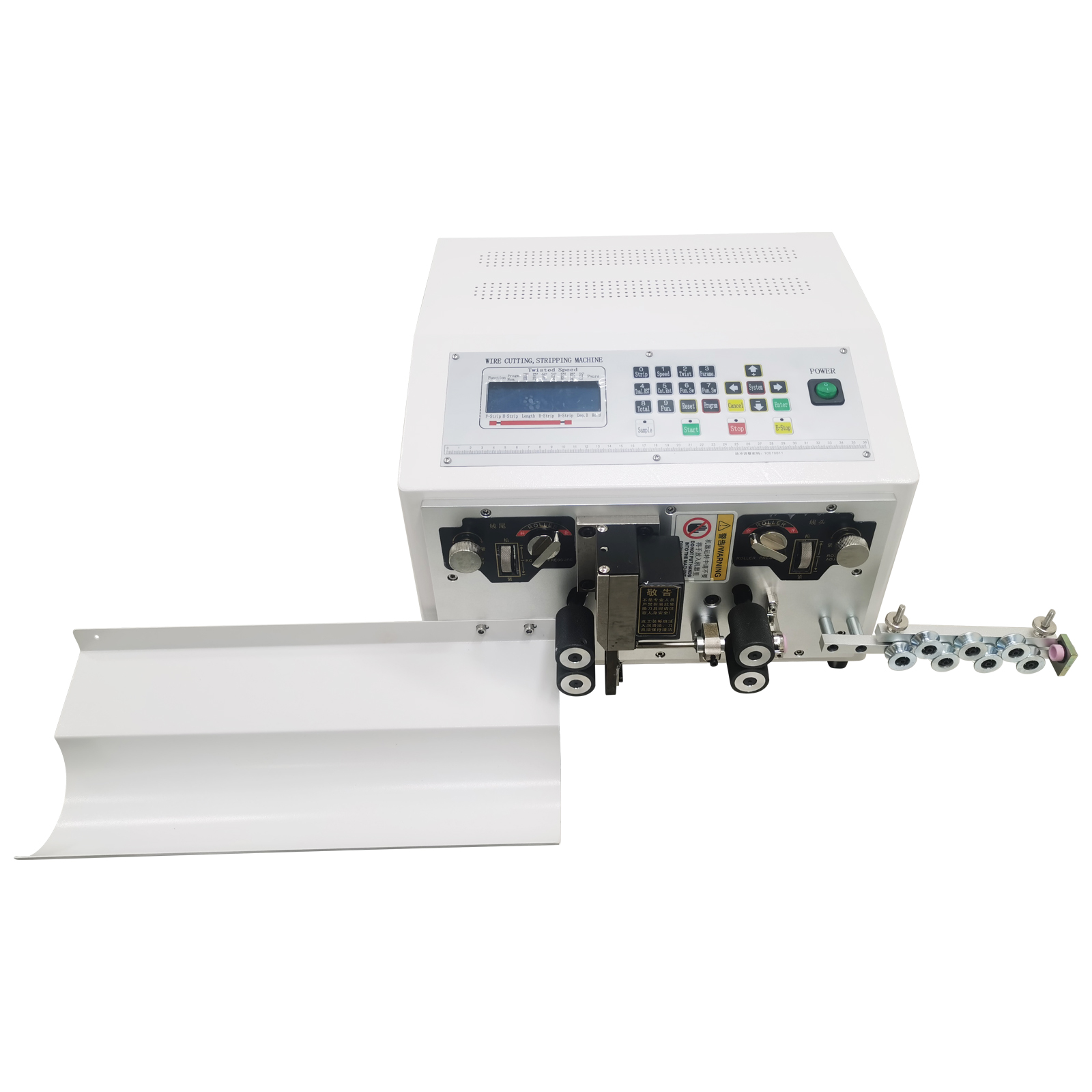

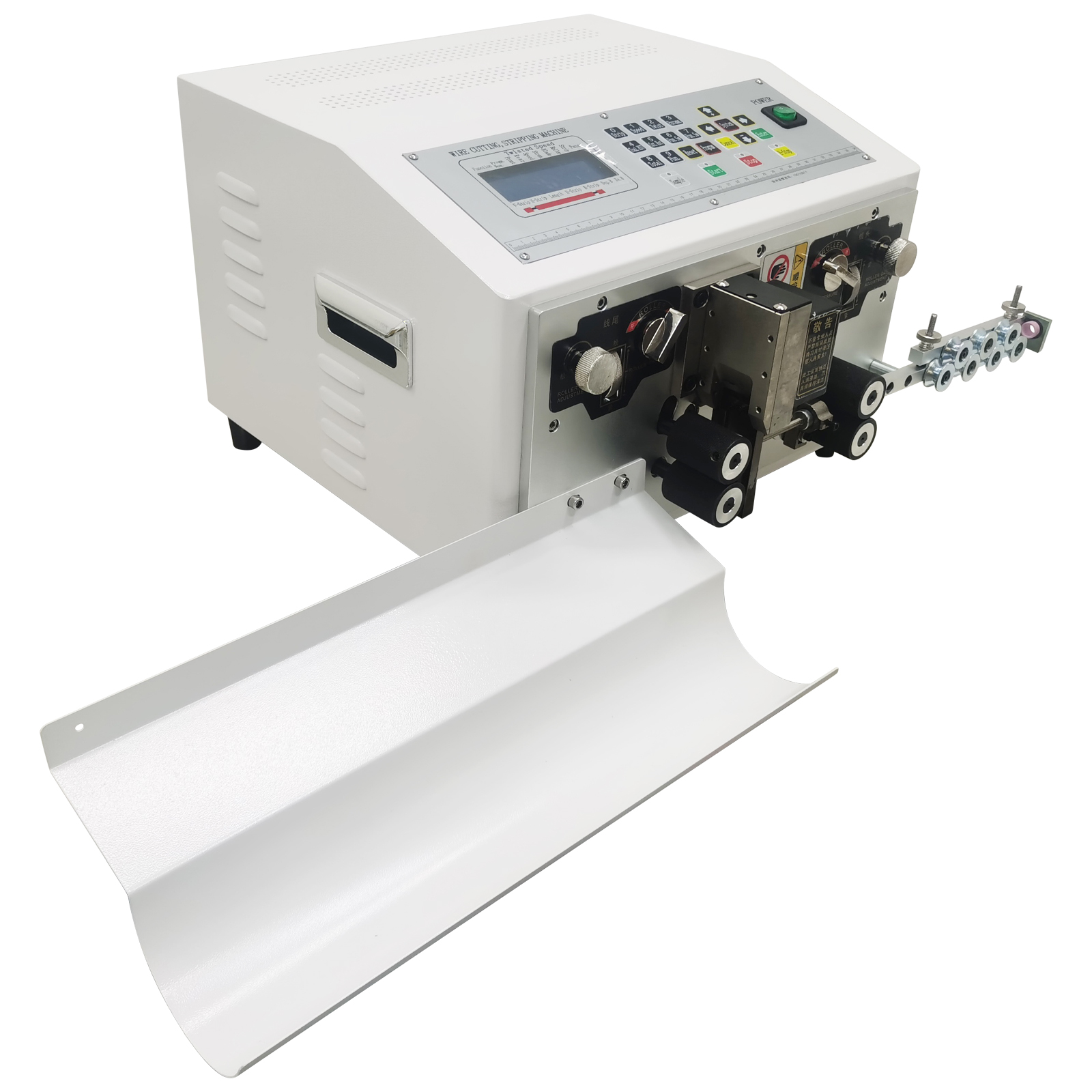

Product
Display |
 |
 |
 |
 |
|
Item Number (020501): 1 x Automatic Computer
Wire Stripping Cutting Machine 110V |
|
|
