Automatic Computer Wire Stripping and Bending Machine 110V |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The full automatic computer wire stripping
and bending machine is a professional device for stripping various wires with the wire core area of 1-16mm² and
bending the wires at different angles. The machine adopts the microcomputer
program control to conduct precise, efficient and repeatable stripping
and bending operation instead of manual stripping and bending operation, thereby
saving time and labor, improving the working efficiency and achieving
long-term continuous production. It is a good helper for various
commercial and industrial industries related to wires, such as the
electronic manufacturing industry, the communication industry, the
automobile industry, the electrical appliance industry, the power
industry and the scientific research industry. |
|
Product
Parameters |
|
Voltage |
110V |
|
Power |
750W |
|
Display mode |
Color touch screen |
|
Cutting length |
1mm-10m (0.04-393.7 inches) |
|
Stripping range |
1-16mm²
(The wire core is automatically
adjusted, and there is no need to replace the blades for wires
of different specifications.) |
|
Maximum diameter of guide hole |
12mm (0.47in)
(If you need larger guide holes,
please feel free to contact use.) |
|
Stripping quality |
Excellent |
|
Blade material |
ASSAB17 alloy high speed steel |
|
High precision with decimal
point |
Yes |
|
Driving mode adjustment |

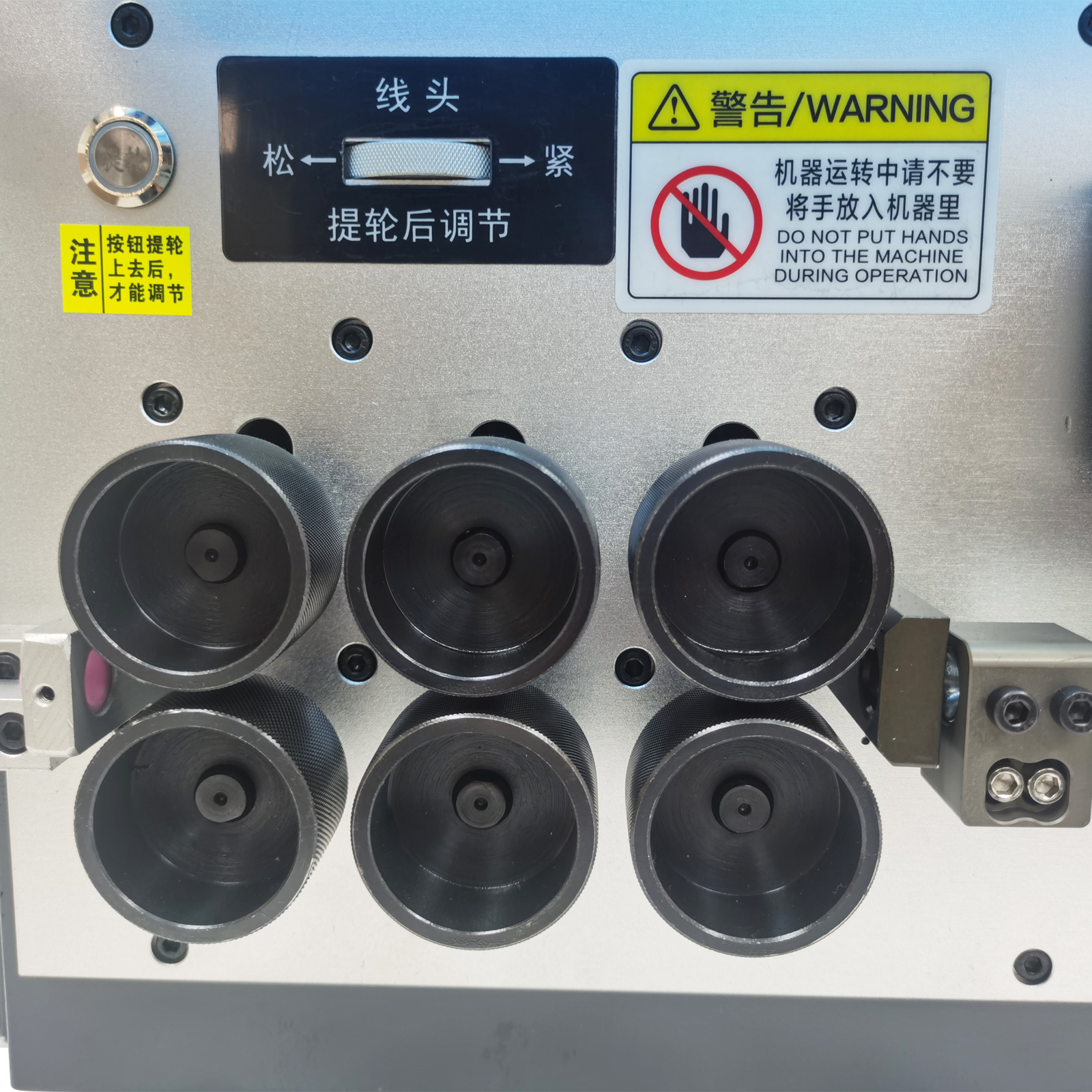

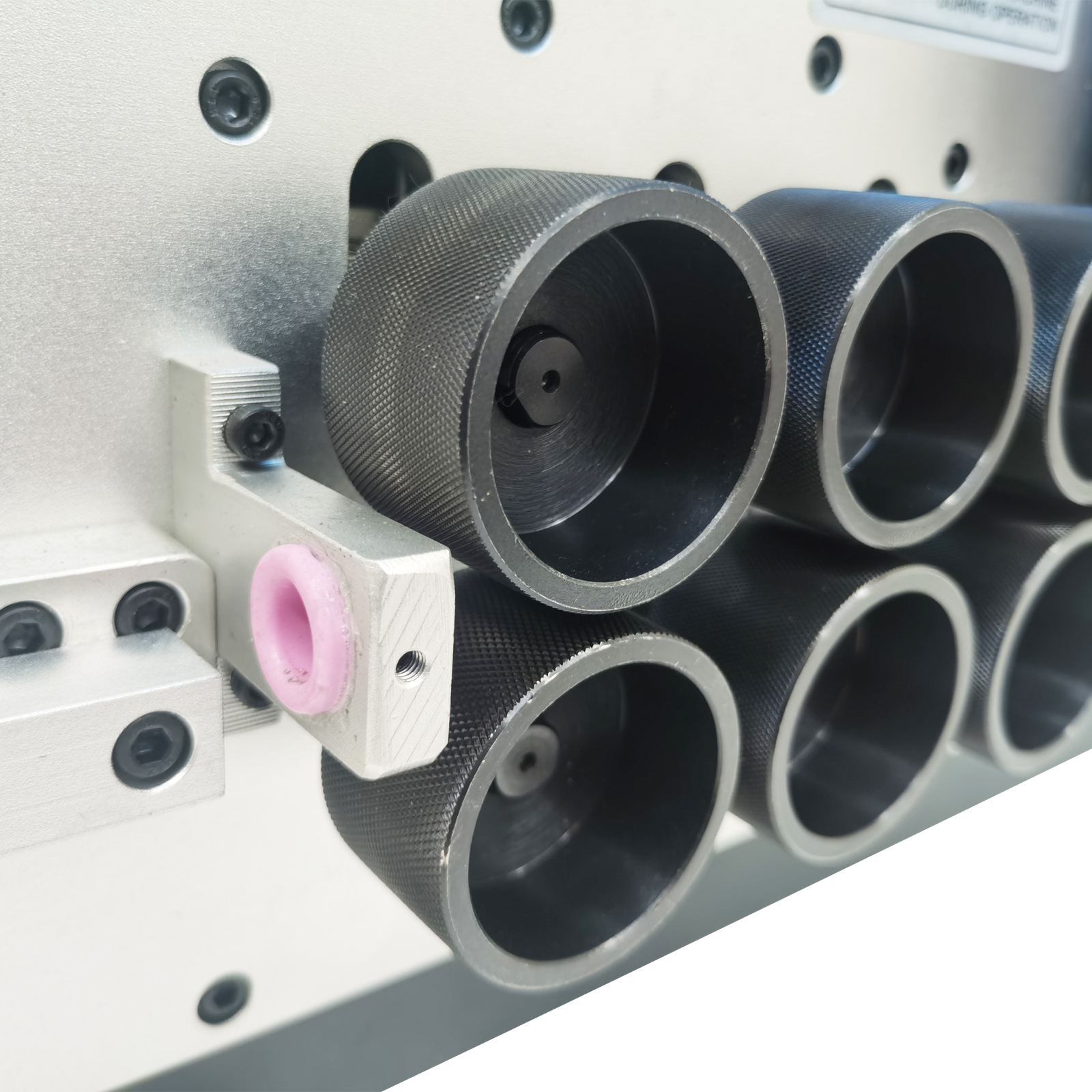

6-wheel synchronous drive,
precision stepping motor, 0.1mm per step |
|
Bending angle adjustment |
30˚, 45˚, 75˚, 90˚
Full digital type intelligent angle random adjustment |
|
Speed regulation |
1-10 |
| Packing dimension |
29.92*27.56*24.80
inches (76*70*63cm) |
| Net weight / Gross weight |
61.5kg (135.6LBS) /
82kg (180.8LBs) |
|
Note: There is no air compressor included in the packing list.
Customers should use their own air compressors. |
|
 |
|
Attention |
|
1. Keep hands, clothing and tools away from
moving parts while the machine is in operation. Do not put hands into
the machine during operation. |
|
2. Refuel once per shift. Keep the tool
clean. |
|
3. Please pay attention to the personal
safety when replacing tools. |
|
4. Non-professionals are not allowed to
disassemble the tool rest without authorization. |
|
Product
Features |
1. The machine achieves accurate stripping
and bending operation, supports multiple bending modes and is free of
the damage to the wire cores.
2. It adopts an advanced micro-stepping driver with high efficiency,
high speed, low noise and low temperature, thereby achieving long-term
continuous operation.
3. Microcomputer control and full automatic operation are adopted,
operation is easy and efficient, new hands can also easily master it,
and the human cost is reduced.
4. The novel universal wire inlet is adopted and is applicable to wires
with the wire core area of 1-16mm². The fed wires can be
more straight and accurate through the straighter, and the wire jamming
can be well avoided.
5. The machine is equipped with a powerful stepping motor with the 750W
power, the driving force is effective and stable, and the quality is
stable and reliable. |
|
|
|

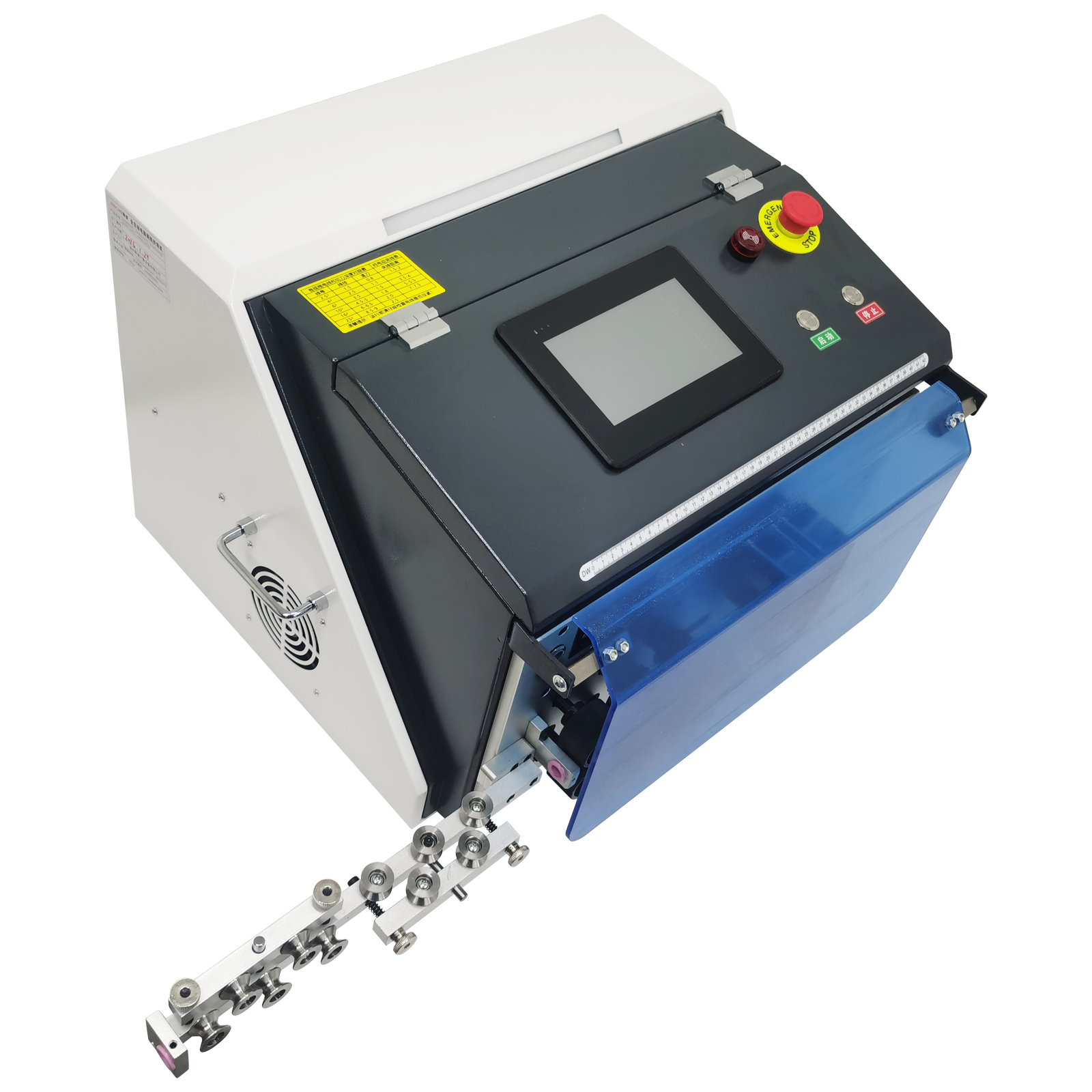

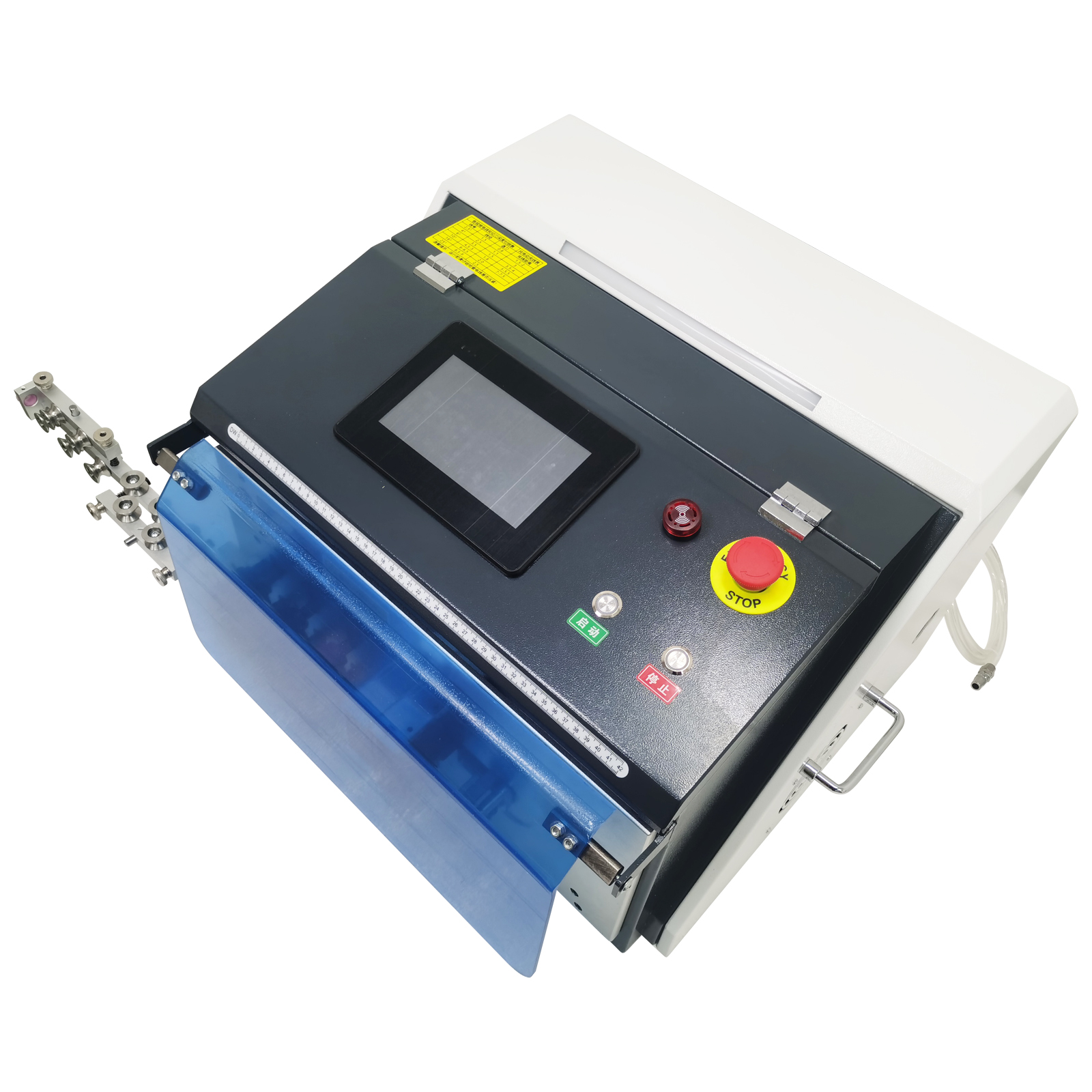

Control Panel
The control panel integrates a color
touch screen and multiple control buttons, achieving clear
display and setting of various parameters, improving the
stripping and bending precision and efficiency and enhancing the
user experience.
|
|
Wire Inlet The universal wire
inlet is resistant to wear and applicable to multiple wires with
the wire core area of 1-16mm², the wires can be fed smoothly in the
working process and can also be well protected from wear and
damage in the moving process.
|
|
|
|
|
|
|

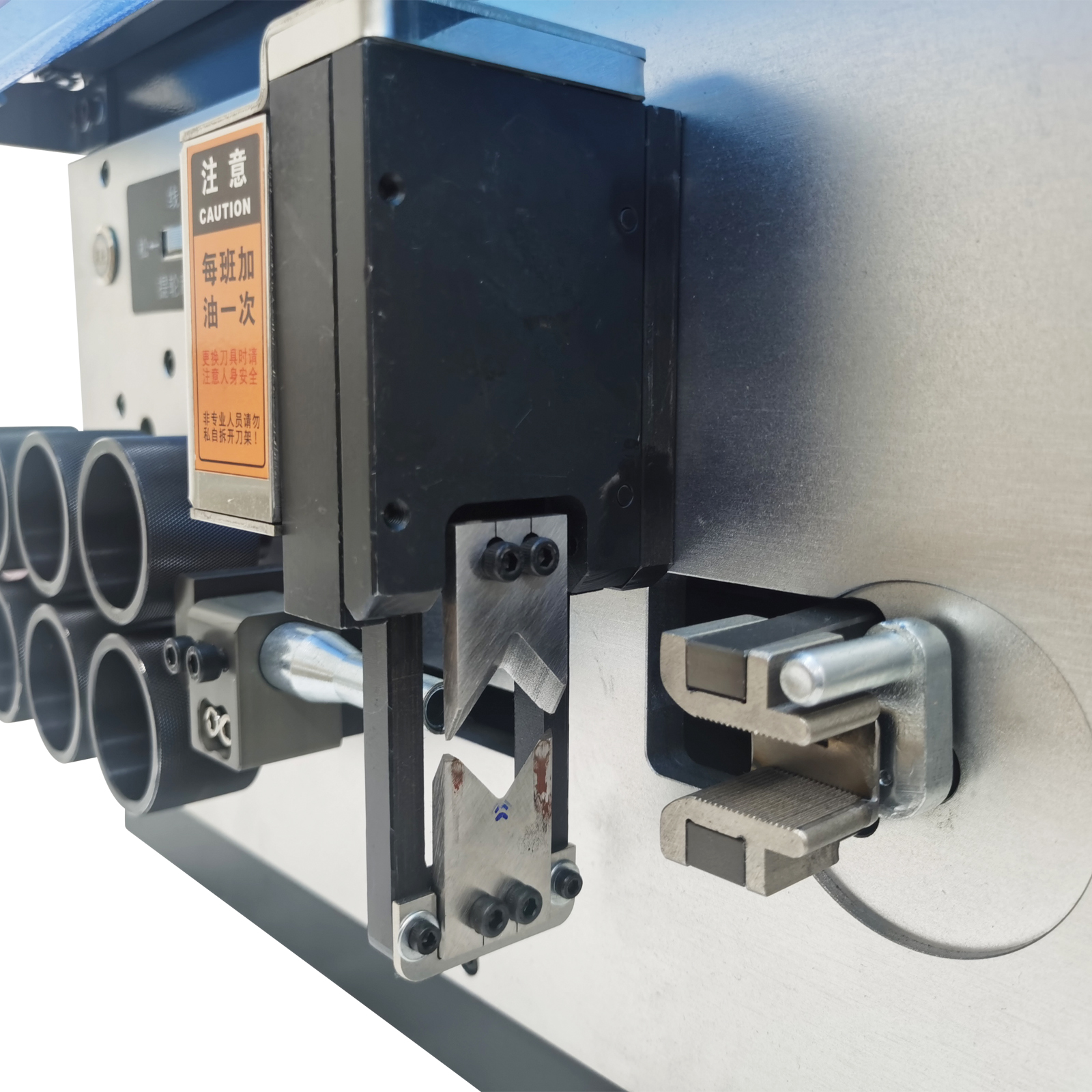

Cutting and Bending System
The sharp blade set is made of alloy
high speed steel and can quickly cut off the wires according to
the actual demands. The bending device can bend the wires at any
angle clockwise and counterclockwise after angle adjustment and
setting.
|
|
Straightener
The straightener has 10
straightening wheels, which can straighten the fed wires quickly
and precisely, ensuring the following stripping and bending
operation is smoothly conducted, improving the working
efficiency, and avoiding the wire jamming trouble.
|
|
|
|
|
|
|
Pressure Regulator
The independent pressure regulator is designed for the wire head, the pressure can be directly adjusted
manually as needed, and no tools are required. The wheel design
meets the ergonomic standard and facilitates pressure
regulation.
|
|

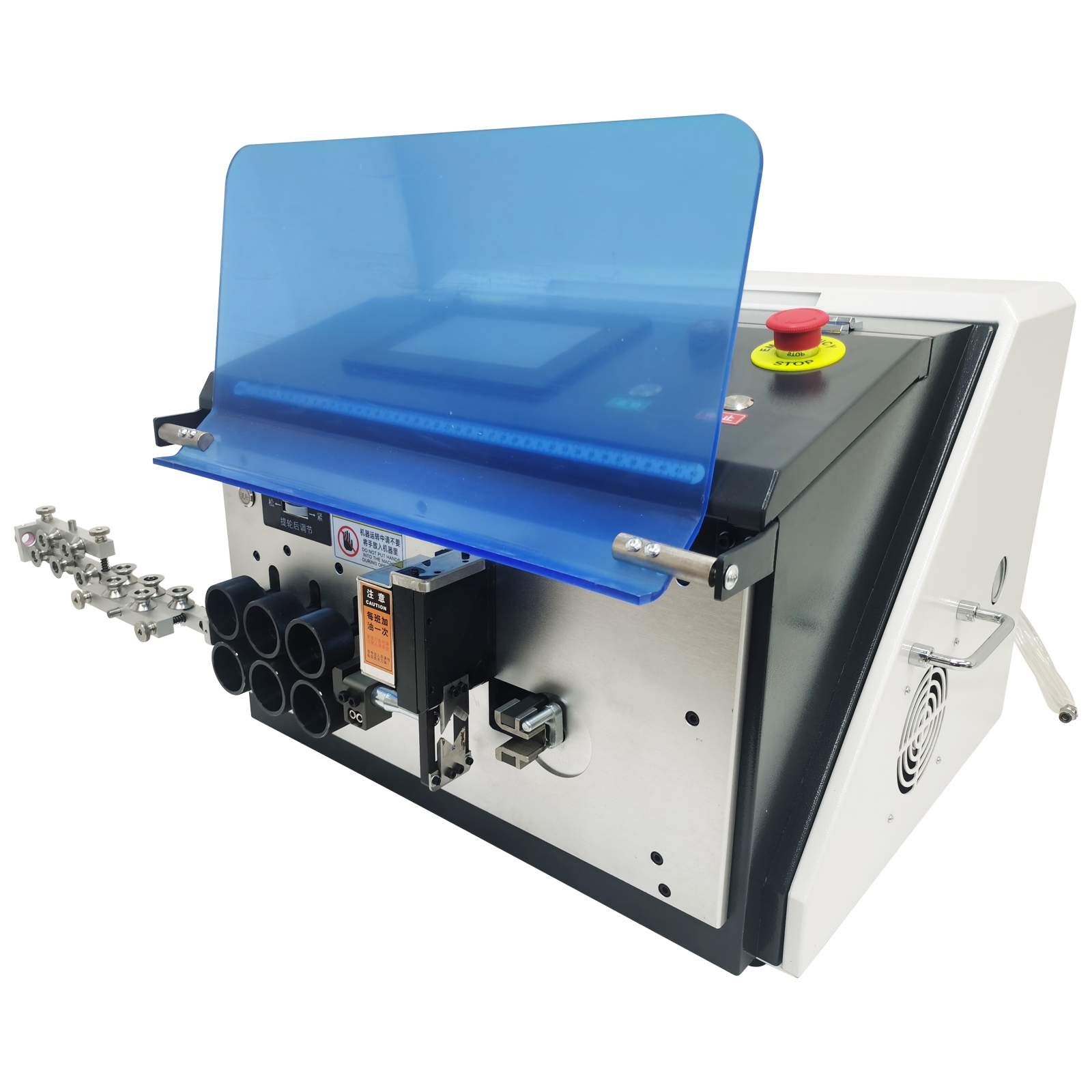

Protective Cover
The protective cover is of a
turnover structure, effectively protecting the stripping and
bending system from impact and damage, improving the operation
safety and reliability and ensuring the stripping and bending
operation is smoothly conducted.
|
|
|
Operation
Method |
|
1. Unpack the machine and check whether all
accessories are available. |
|
2. Install the straightener on the machine,
and close the protective cover. |
|
3. Connect the machine to the 110V power
supply and air compressor. |
|
4. Turn on the power, and set various
parameters on the touch screen as required. Press the start button, feed the wires to be
processed, and start to strip and bend the wires. |
|
5. After finishing stripping and bending
operation, press the stop button and disconnect the power supply. |
|

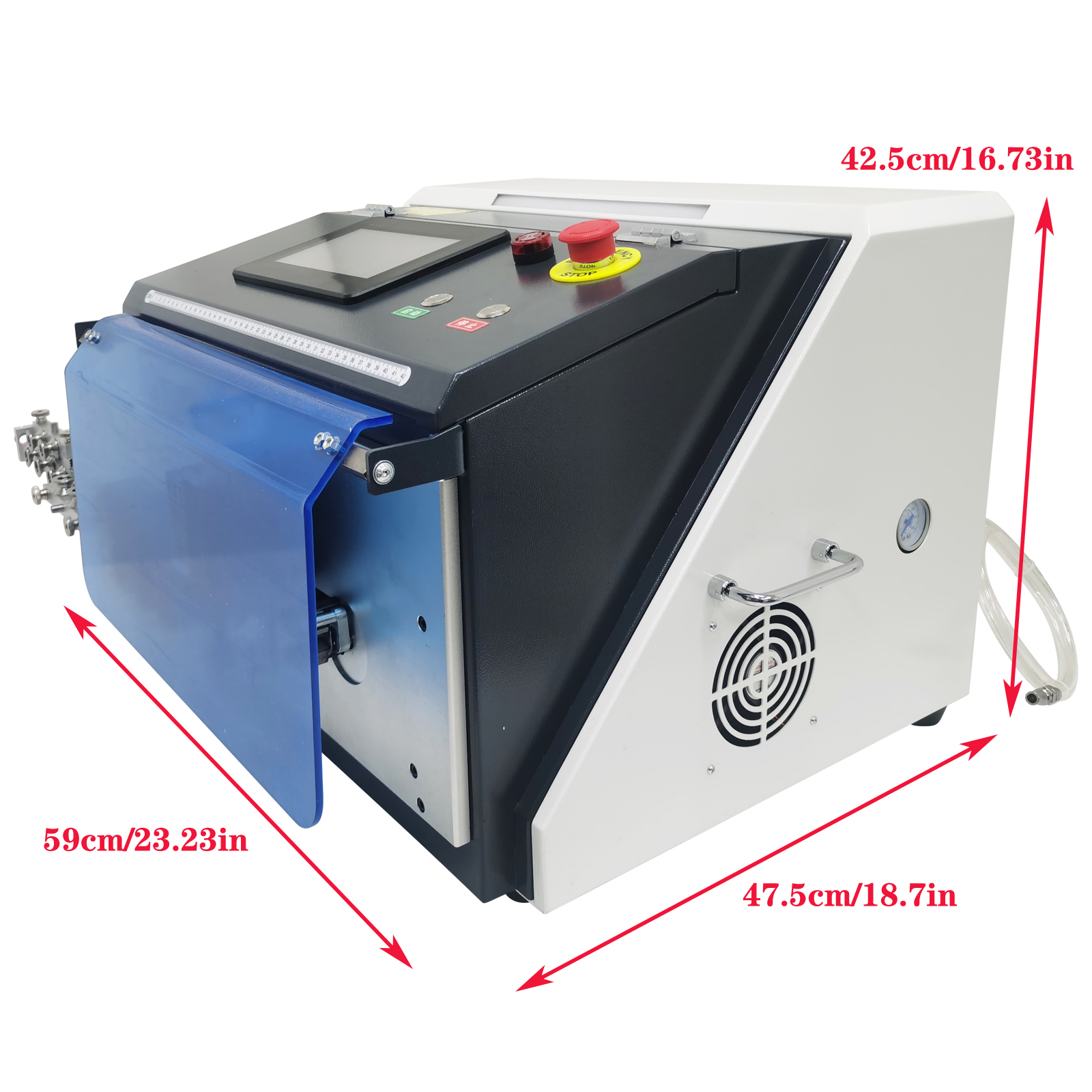

Product
Display |
 |
 |
 |
 |
|
Item Number (020506): 1 x Automatic Computer
Wire Stripping Bending Machine 110V |
|
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
