Disk Brush Cutter Mulcher Forestry Disc
Mower fit Skid Steer Loader Attachment |

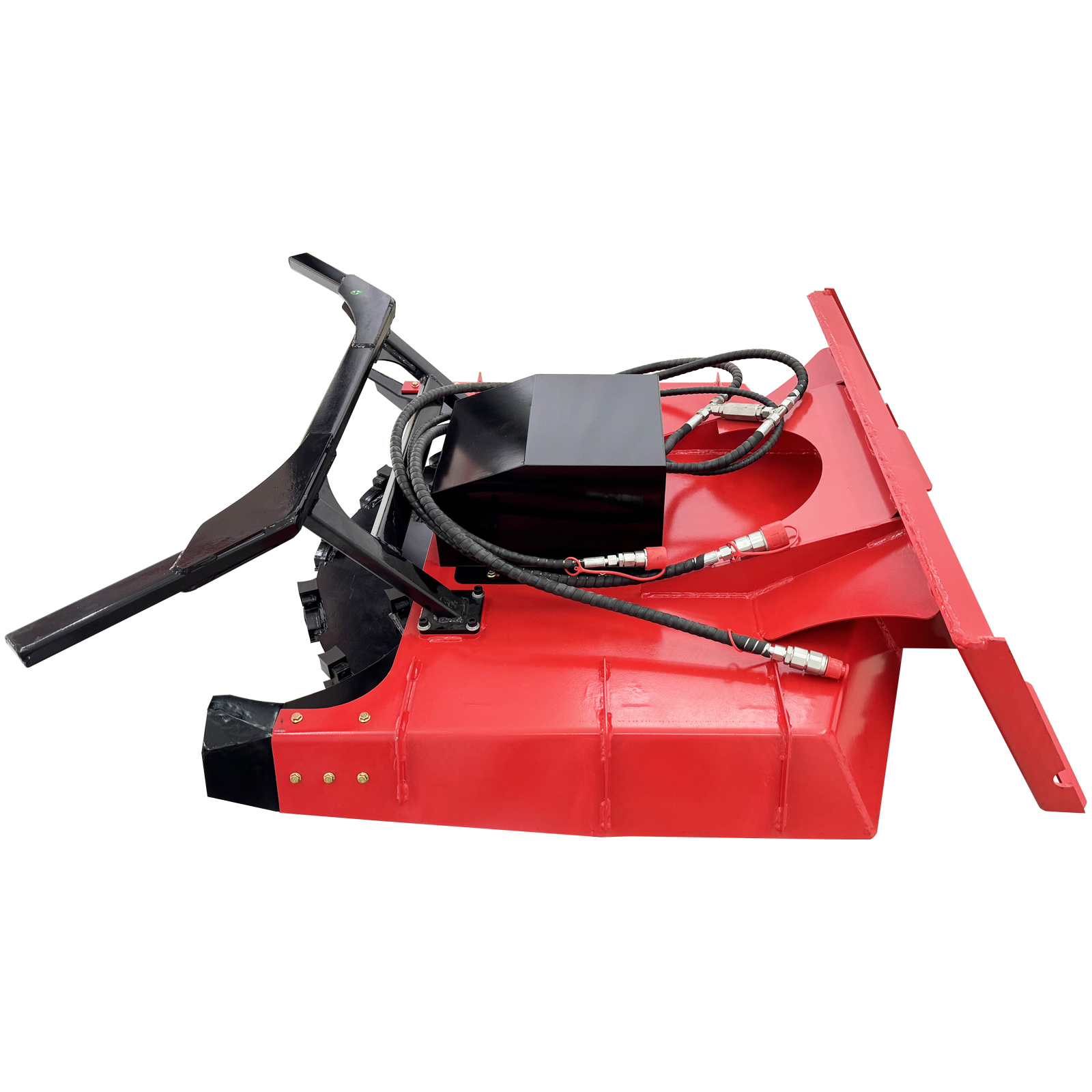

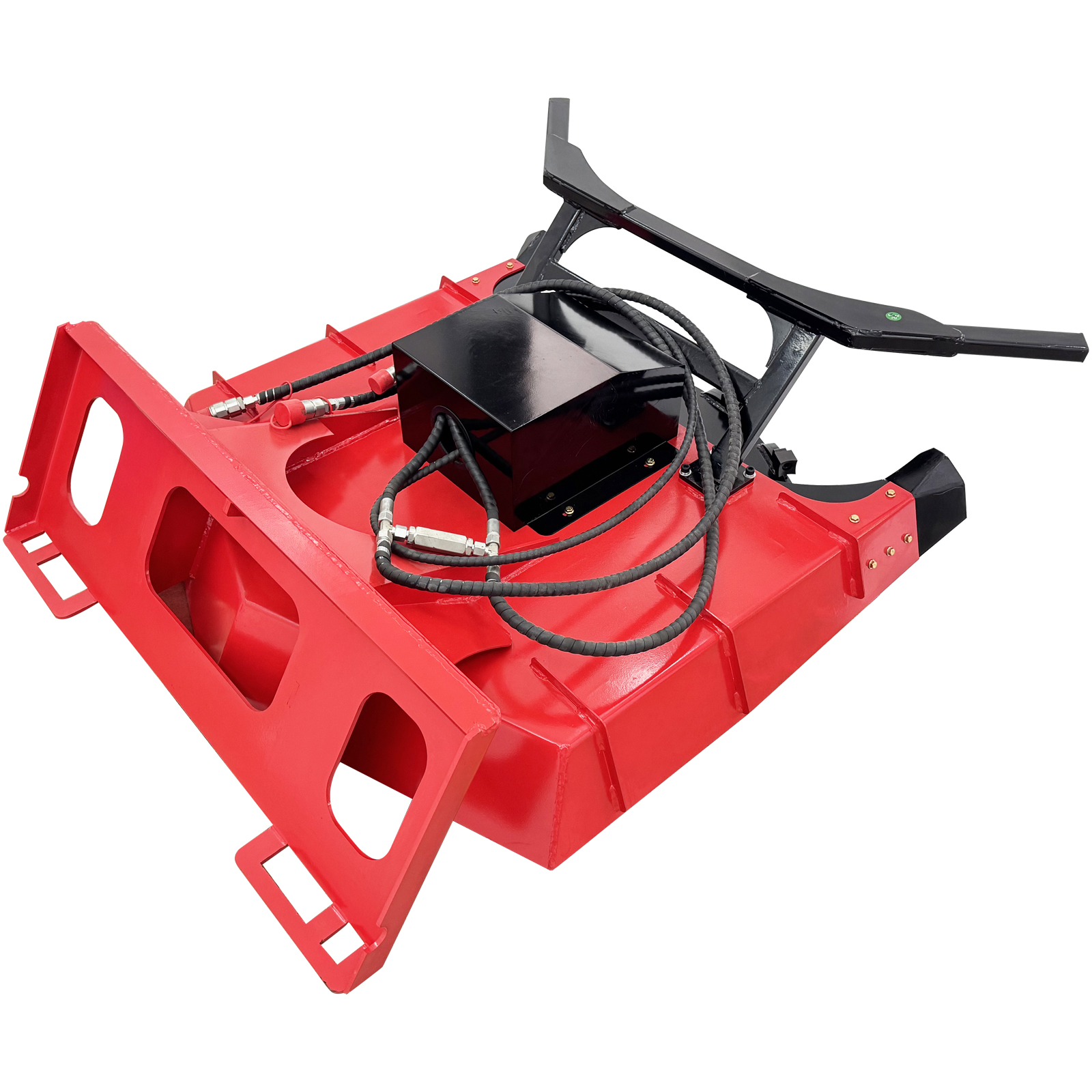

| The disk brush cutter is a
special high-performance attachment for skid steer loaders.
Powered by the loader's driving system, it features a high-speed
rotating disc with heavy-duty blades, delivering powerful
cutting performance to clear overgrown vegetation, brush, small
trees and roots, and making it an ideal tool for land
reclamation, forest clearing and site preparation. The disk
brush cutter can be perfectly matched with the skid steer loader
to achieve efficient reclamation in the narrow and complex
terrain. |
|
Number of teeth |
54 |
|
Diameter of cutterhead |
39.3in (1000mm) |
|
Working width |
43.3in (1100mm) |
|
Maximum opening |
48.2in (1225mm) |
|
Rotating speed |
100-300r/min |
|
Working pressure |
10-22MPa |
|

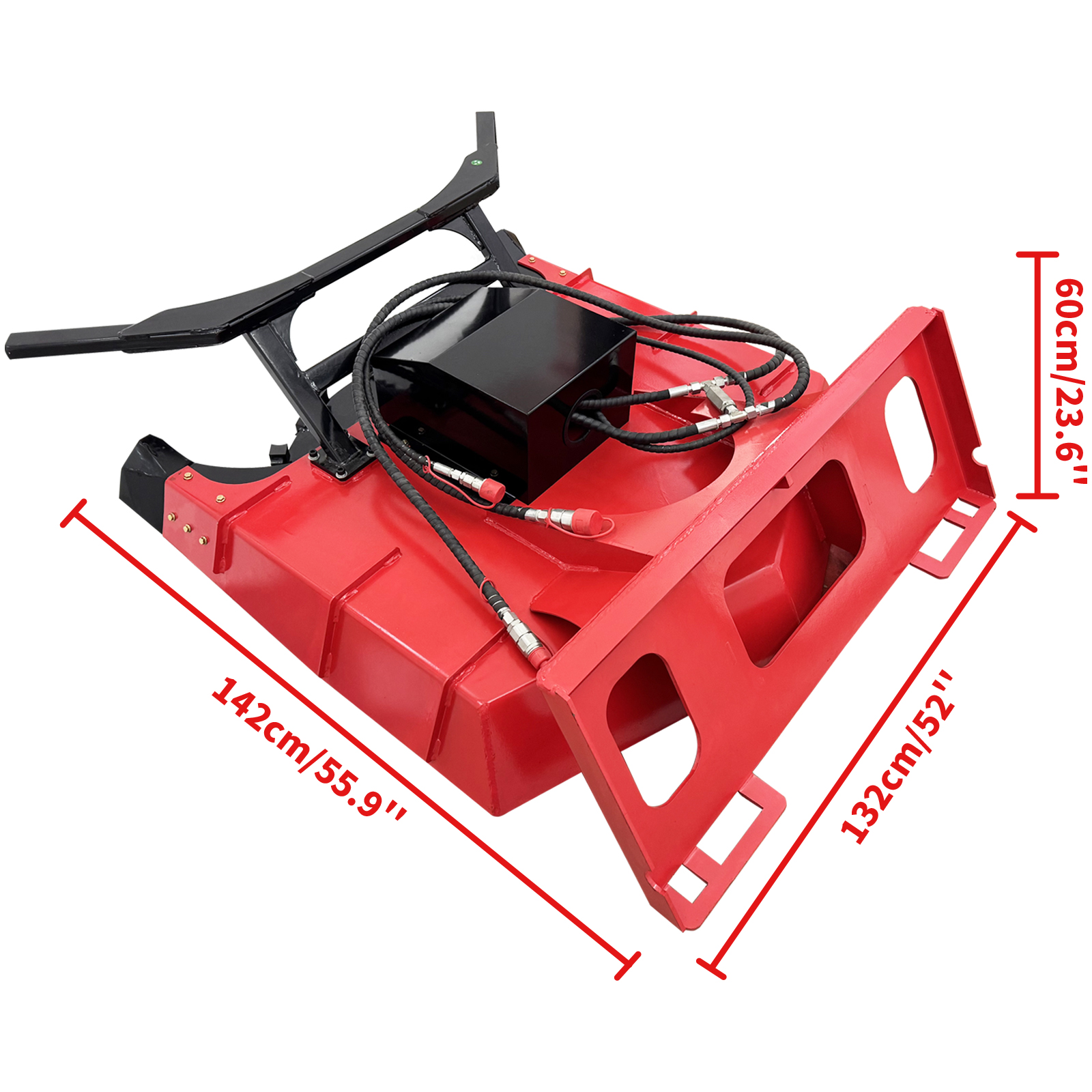

Packing dimension |
62.2*56.7*31.5 inches (158*144*80cm) |
|
Net weight / Gross weight |
739.6LBs (335.5kg) / 895.1LBs
(406kg) |
 |
 |
| Precaution |
| 1. Operators must be trained
and wear personal protective equipment.
2. Clear the work area of personnel
and obstacles before operation.
3. Do not operate on steep
slopes or near people and structures.
4. Perform maintenance only
after complete shutdown and hydraulic pressure release.
5. Do not touch the running
parts during operation. Keep people away from the machine during
operation. |
|
1. Powerful Cutting Performance:
Equipped with a thickened cutting disc and high-hardness blades,
it can easily cut through small trees, weeds, shrubs and roots,
with higher efficiency than manual work.

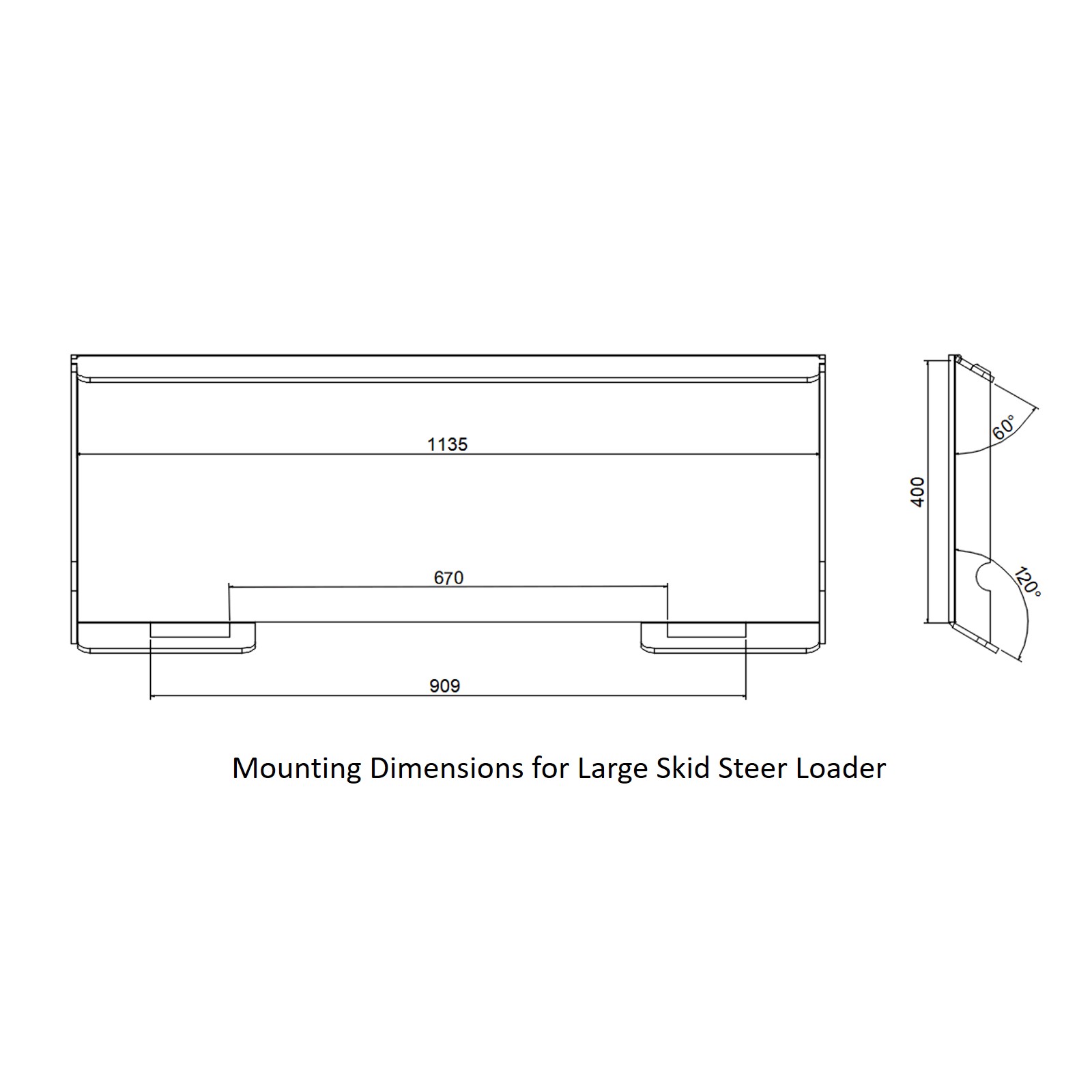

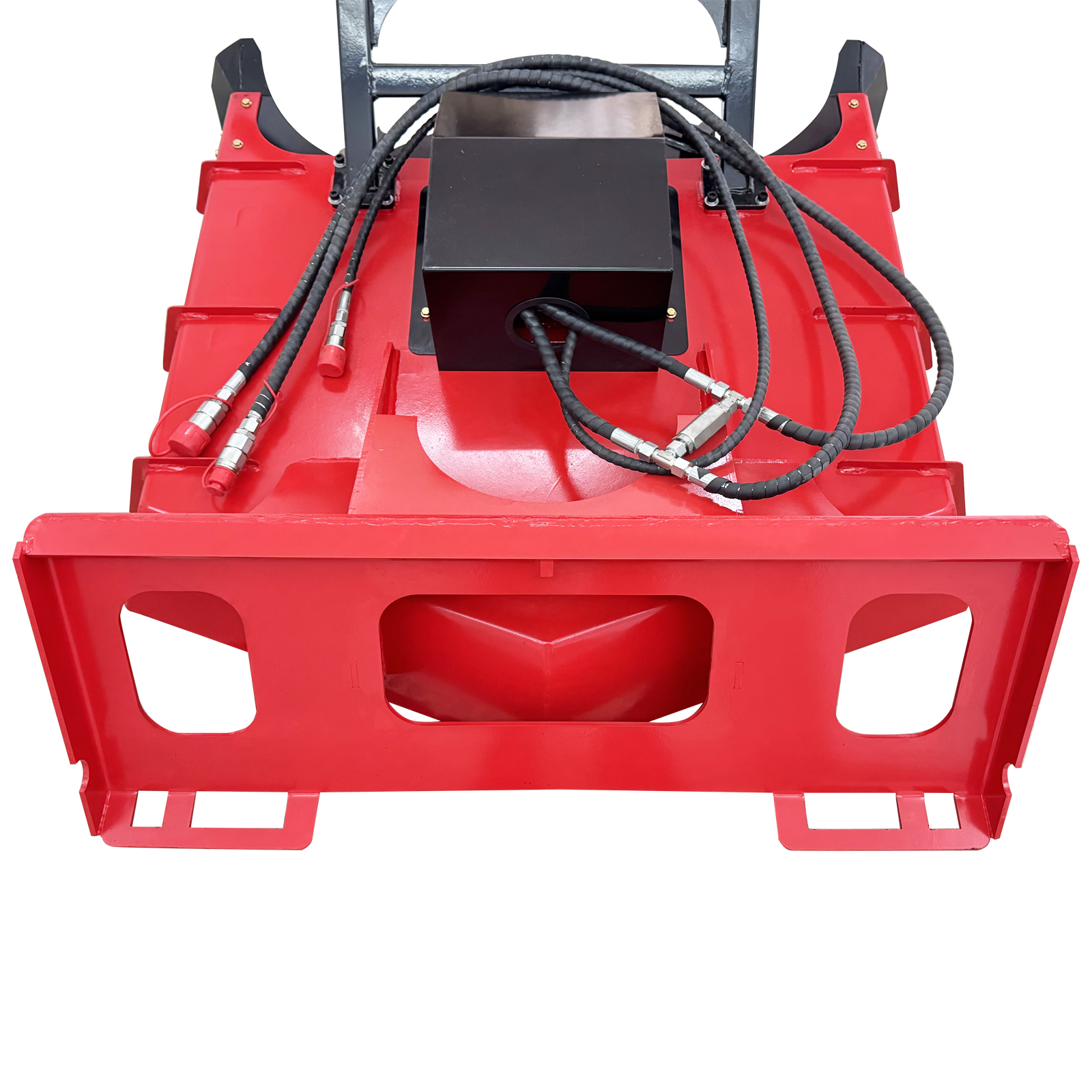

2. Wide Compatibility: Fits the skid
steer loaders with a quick-attach mounting system, enabling fast
installation and tool switching.
3. Robust & Durable Structure:
Made of high-strength materials with full welding and powder
coating, it resists impact, corrosion and harsh working
conditions, ensuring a long service life.
4. Safe & Efficient Operation:
The protective guard and baffle prevent debris splashing, and
protect the blades from damage.
5. Versatile Applications: Ideal
for land development, agricultural clearing, municipal
maintenance, forestry operations and disaster recovery. |
 |
|
 |
|

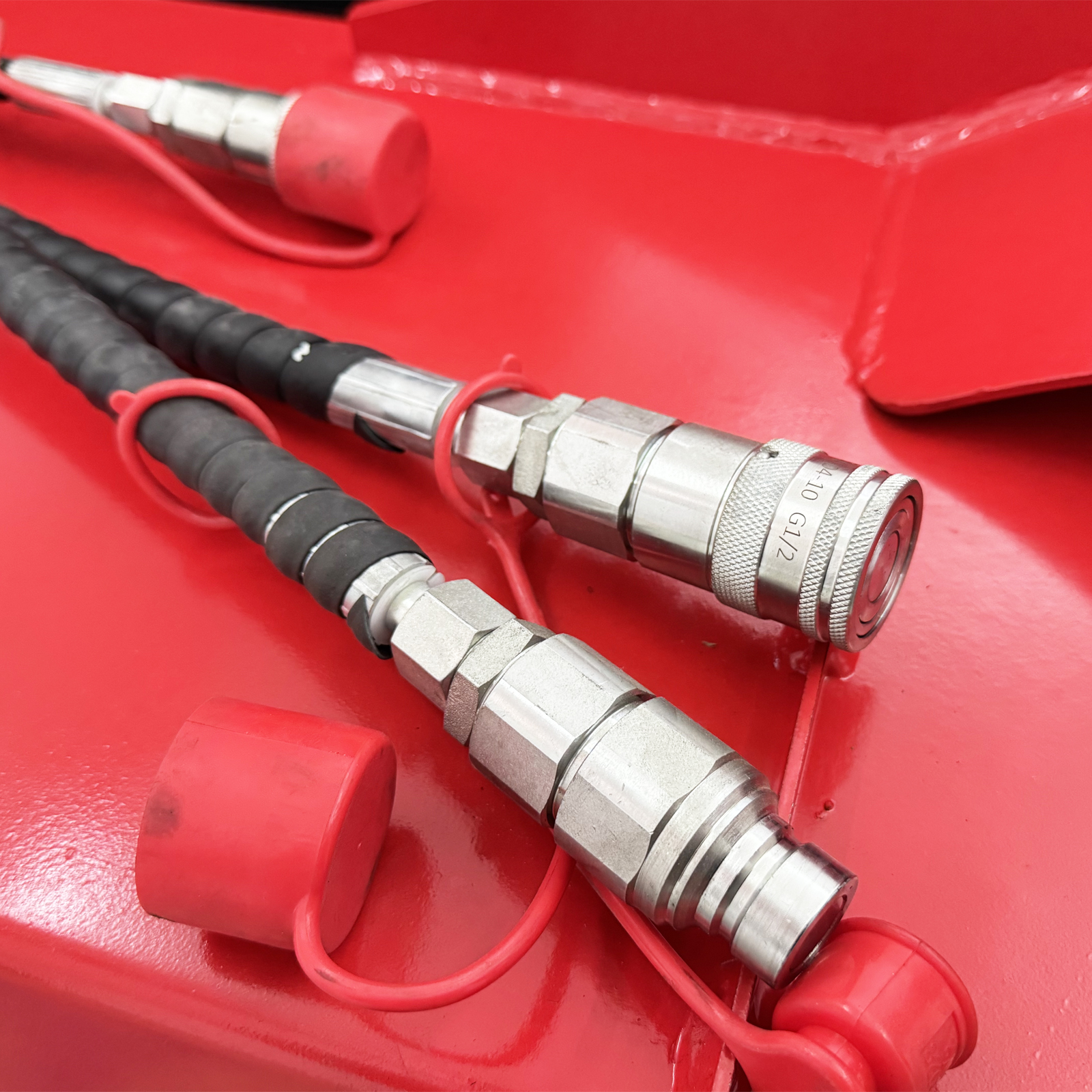

Quick-Connecting Pipes
The quick-connecting pipes can be quickly connected and
disconnected with the system of the skid steer loader, achieving
quick switching of attachments, and ensuring high-pressure
sealing and zero leakage. The pipes are resistant to wear,
impact and aging and have a long service life.
|
|

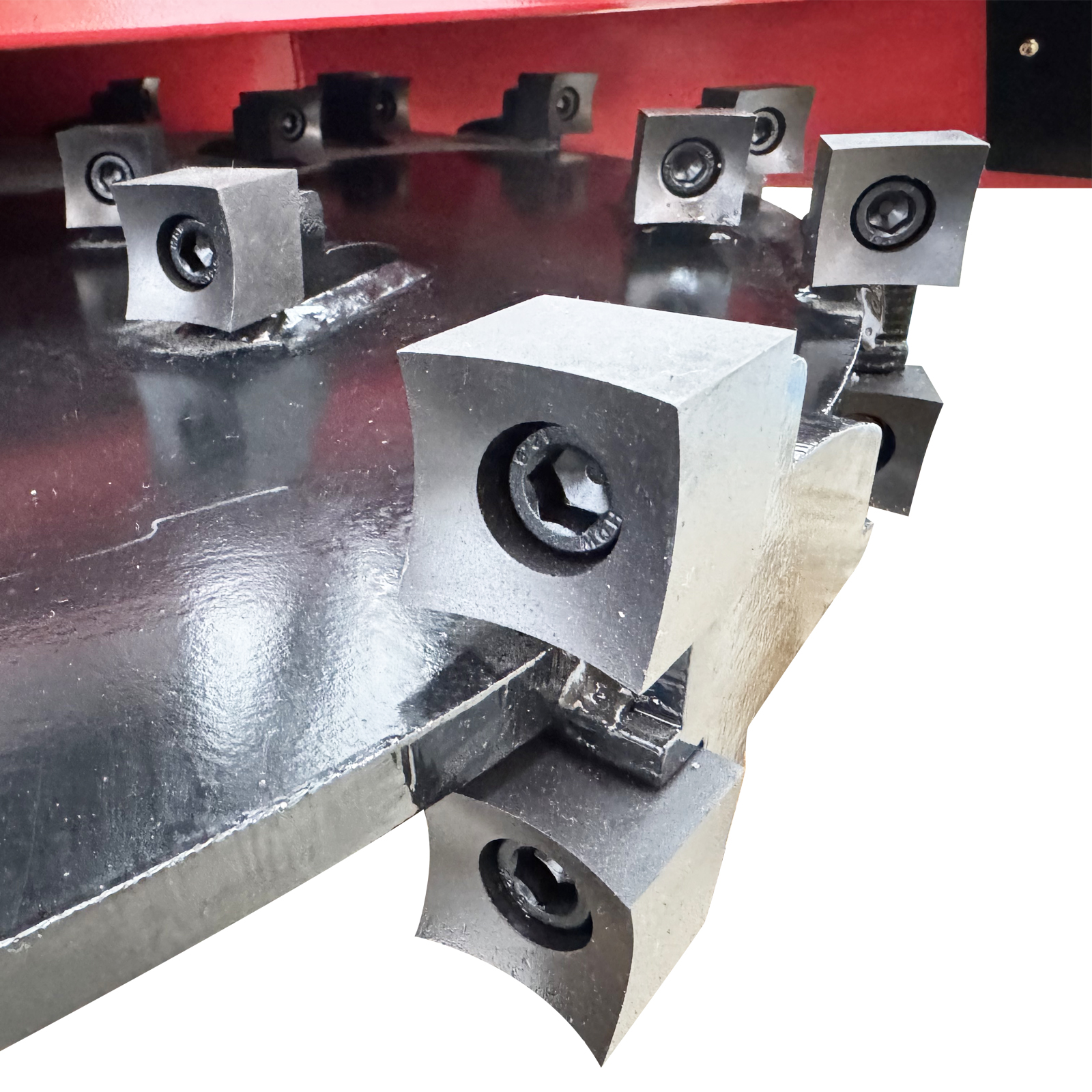

Cutter Teeth
The high-speed rotating disc is
equipped with 54 high-performance cutter teeth with high
hardness and impact resistance, the cutter teeth can cut and
smash brush, roots, weeds and straw easily and efficiently, and
adopt the modularized detachable design to greatly reduce the
cost.
|
 |
|
 |
|

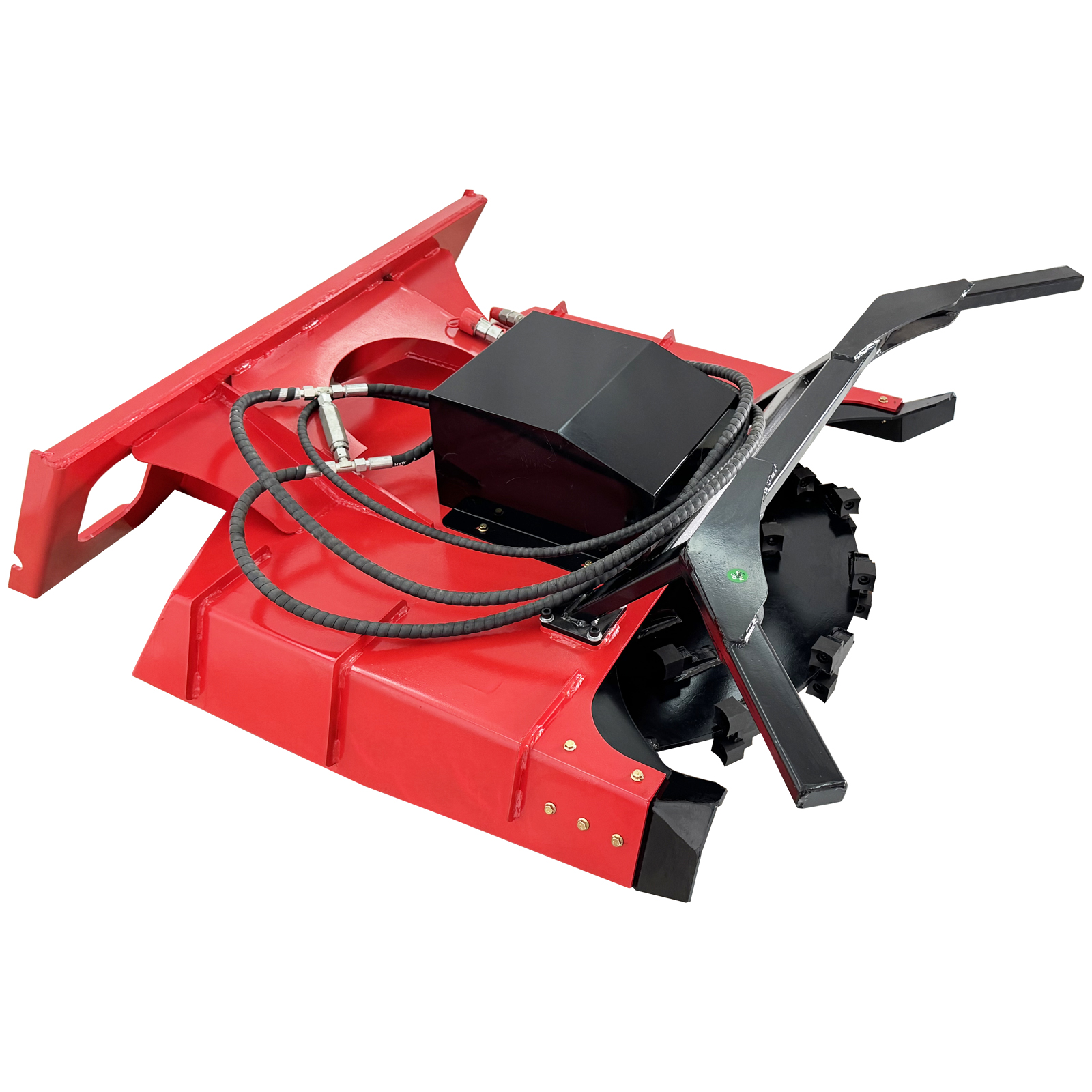

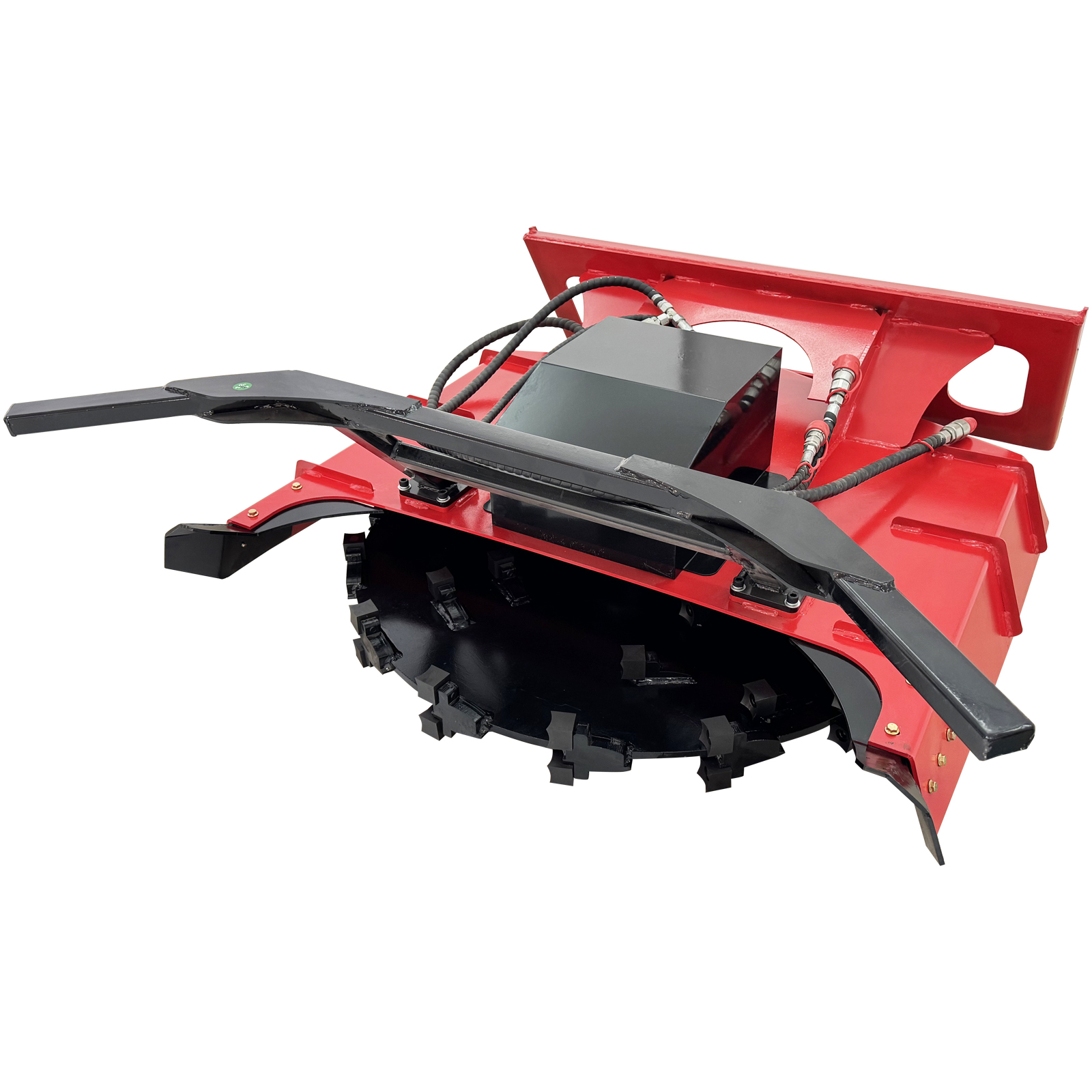

Protective Cover
The firm protective cover can
effectively protect the rotating disc and cutter teeth from
impact and damage and prevent the cut objects from splashing,
greatly reducing the safety risk and meeting the operation
safety standard.
|
|

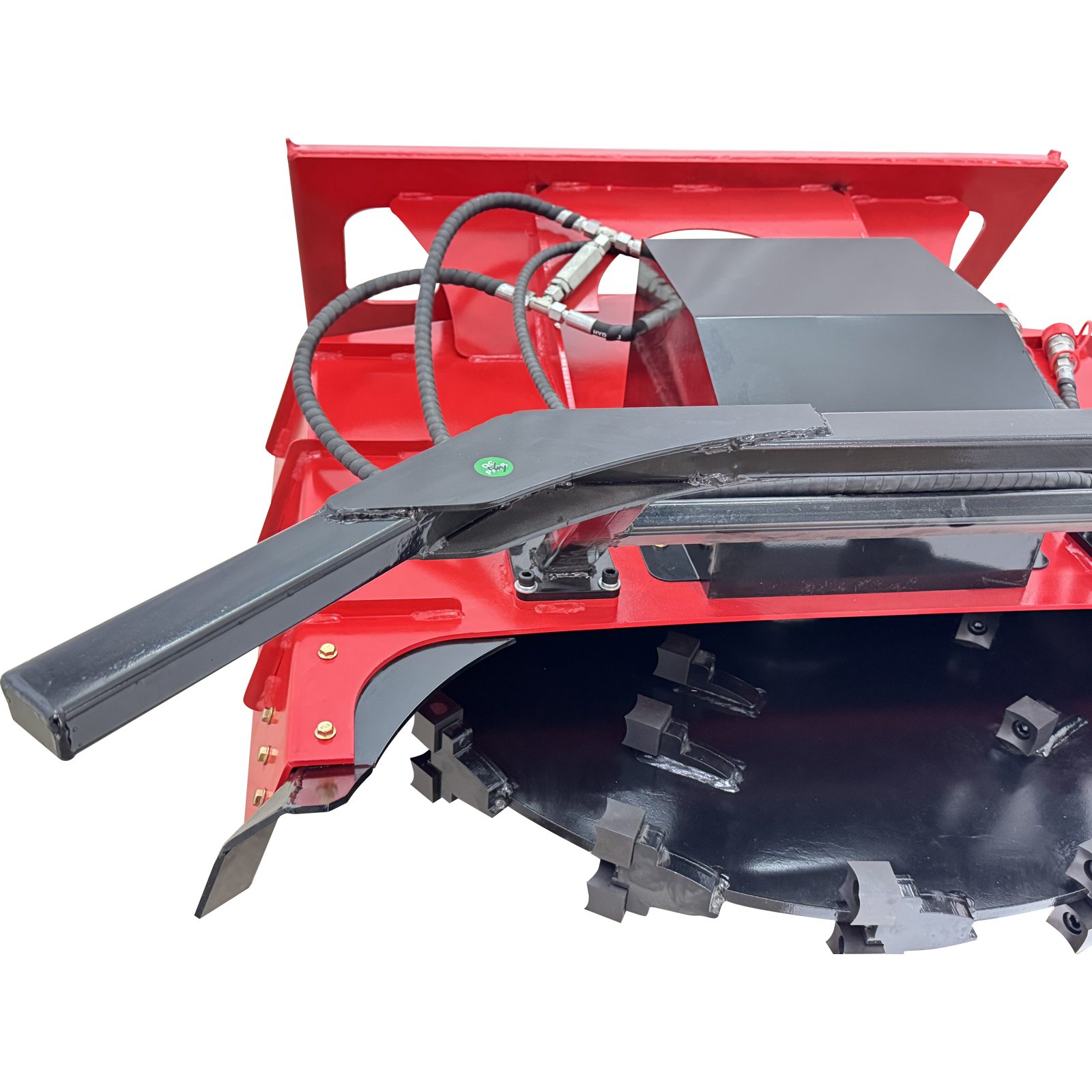

Protective Baffle
The arc-shaped baffle can accurately
guide the vegetation to the center of the cutterhead, improving
the cutting and smashing effect, preventing large things from
entering the cutterhead and prolonging the service life.
|
|
Item Included (053391):
1 x Disk Brush Cutter |
|
You can
make order with no worry.
Any concern just feel free to let us know, we'll reply in 24
hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days
after payments cleared. Orders are processed from Monday-Friday;
Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the
consumables.
We stand behind our products all the item, so even if your
warranty period has expired, you can still seek for service or
technical support from us with low cost. |
|
