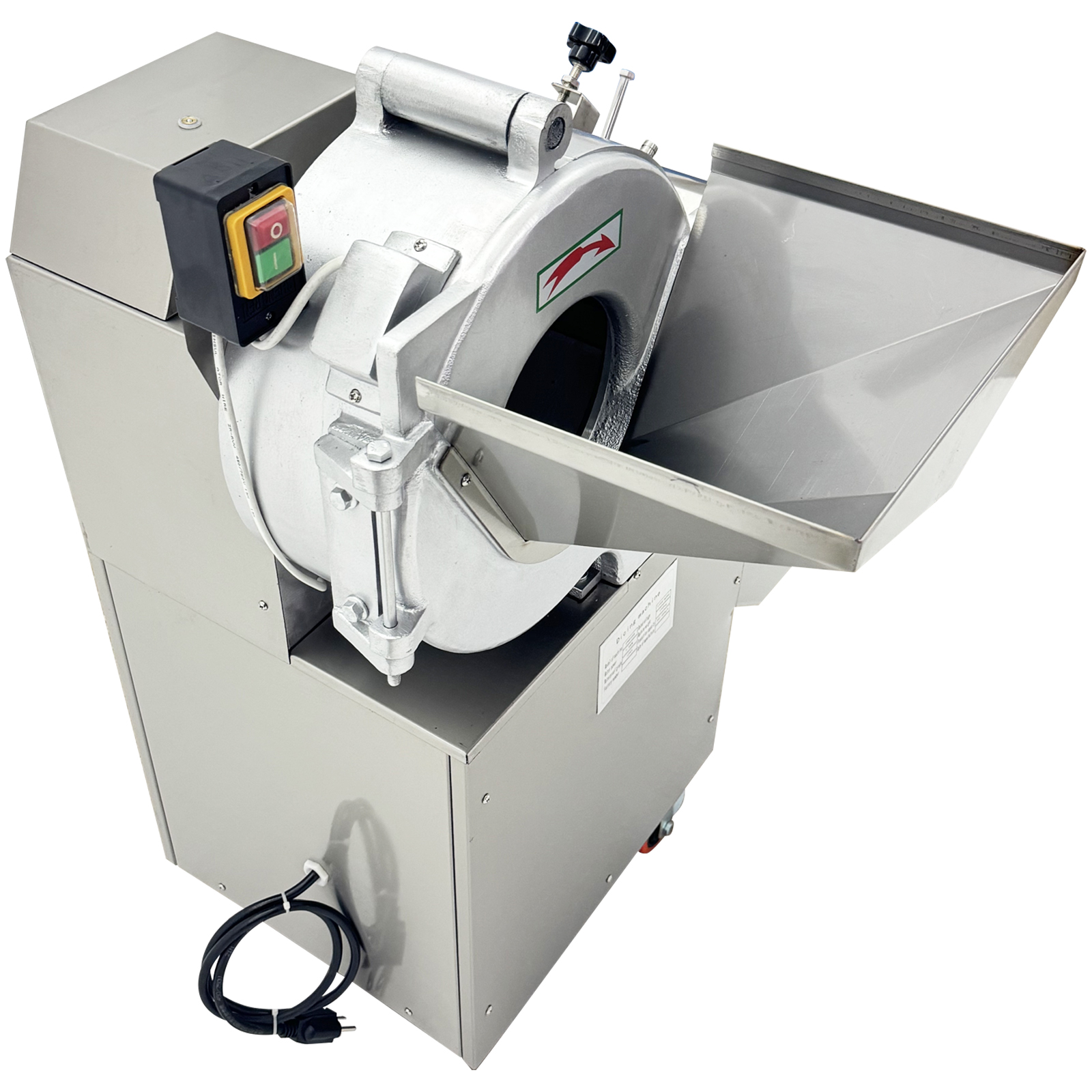

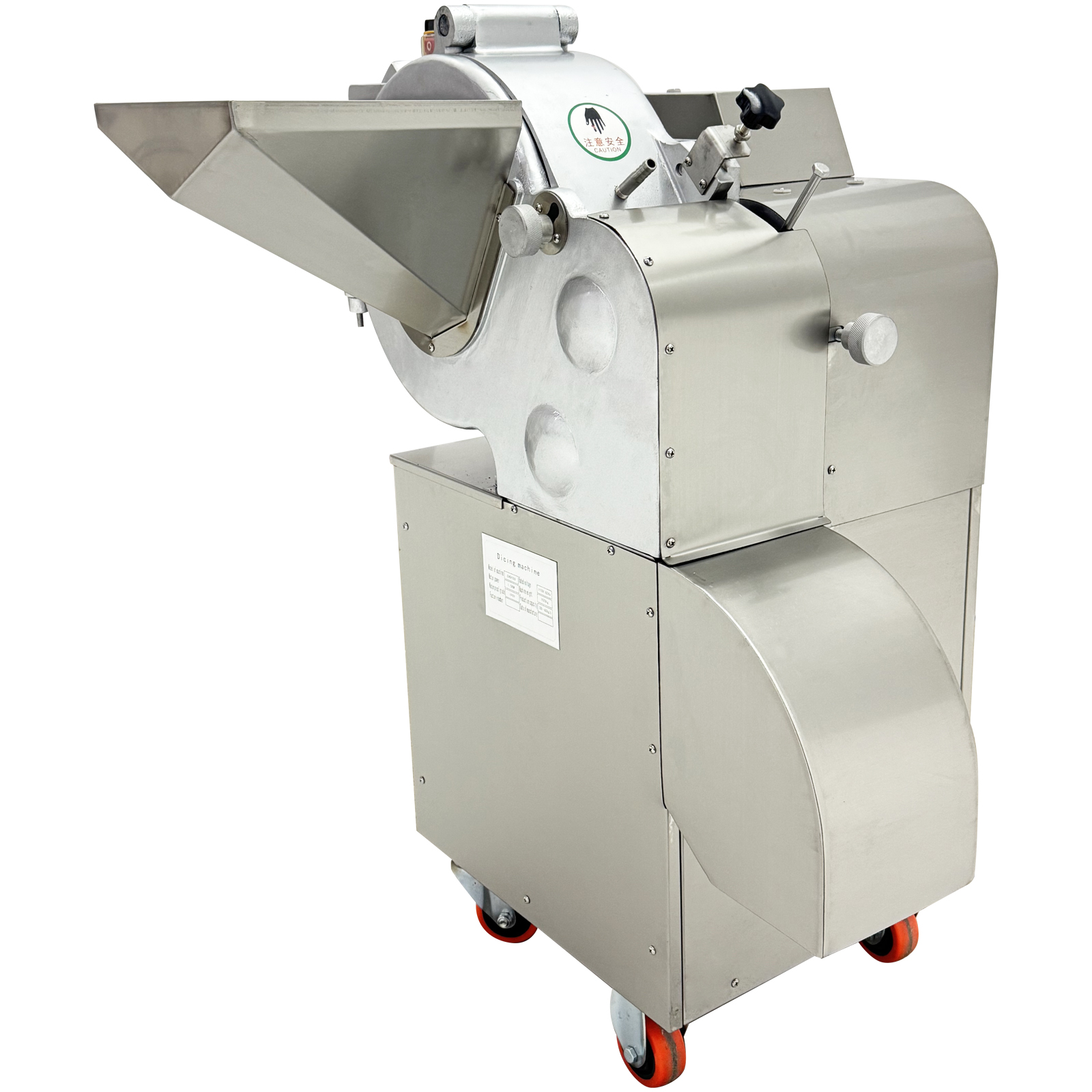

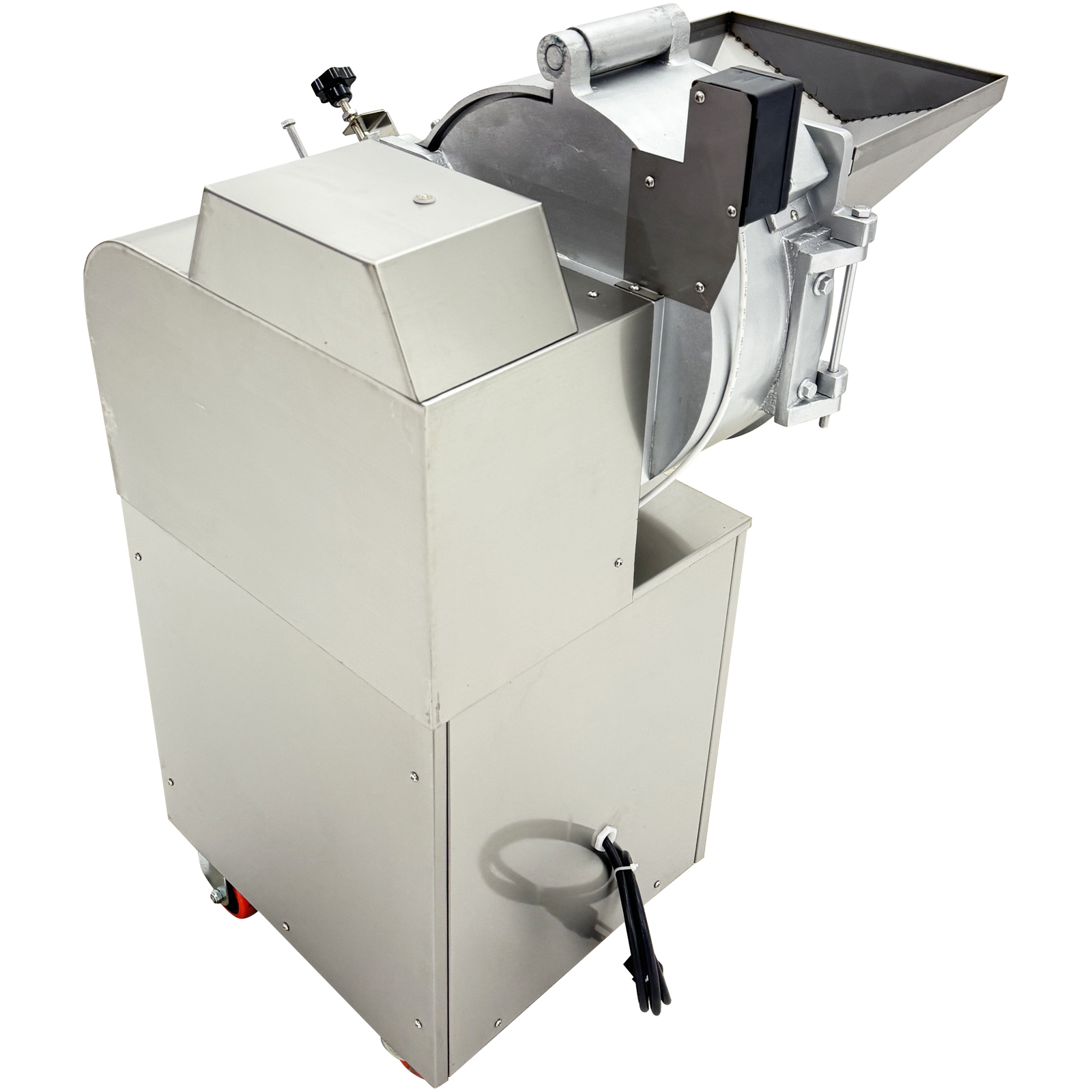

Commercial High-Speed Fully Automatic
Cutting Machine Food Processor Vegetable Dicing Machine 110V |

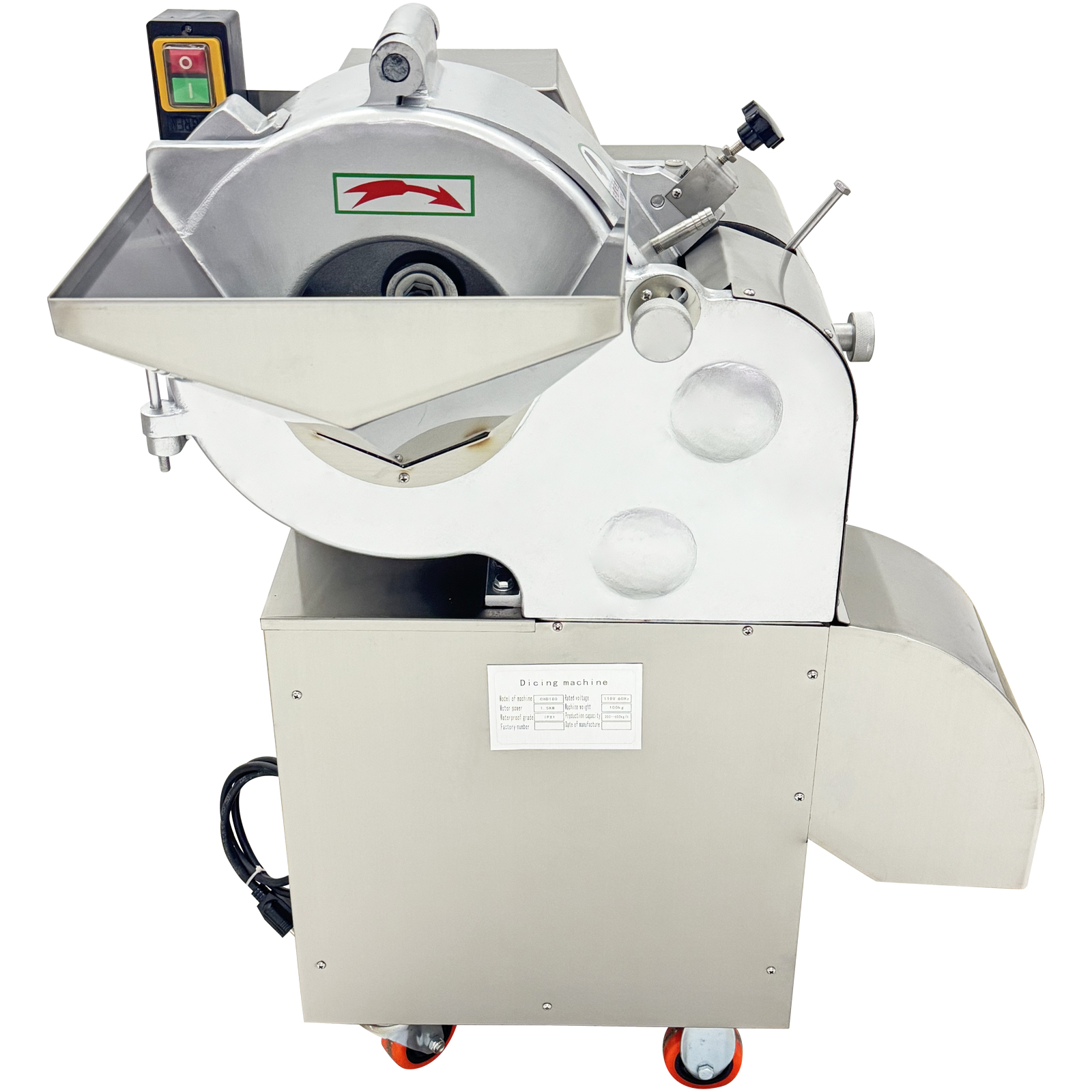

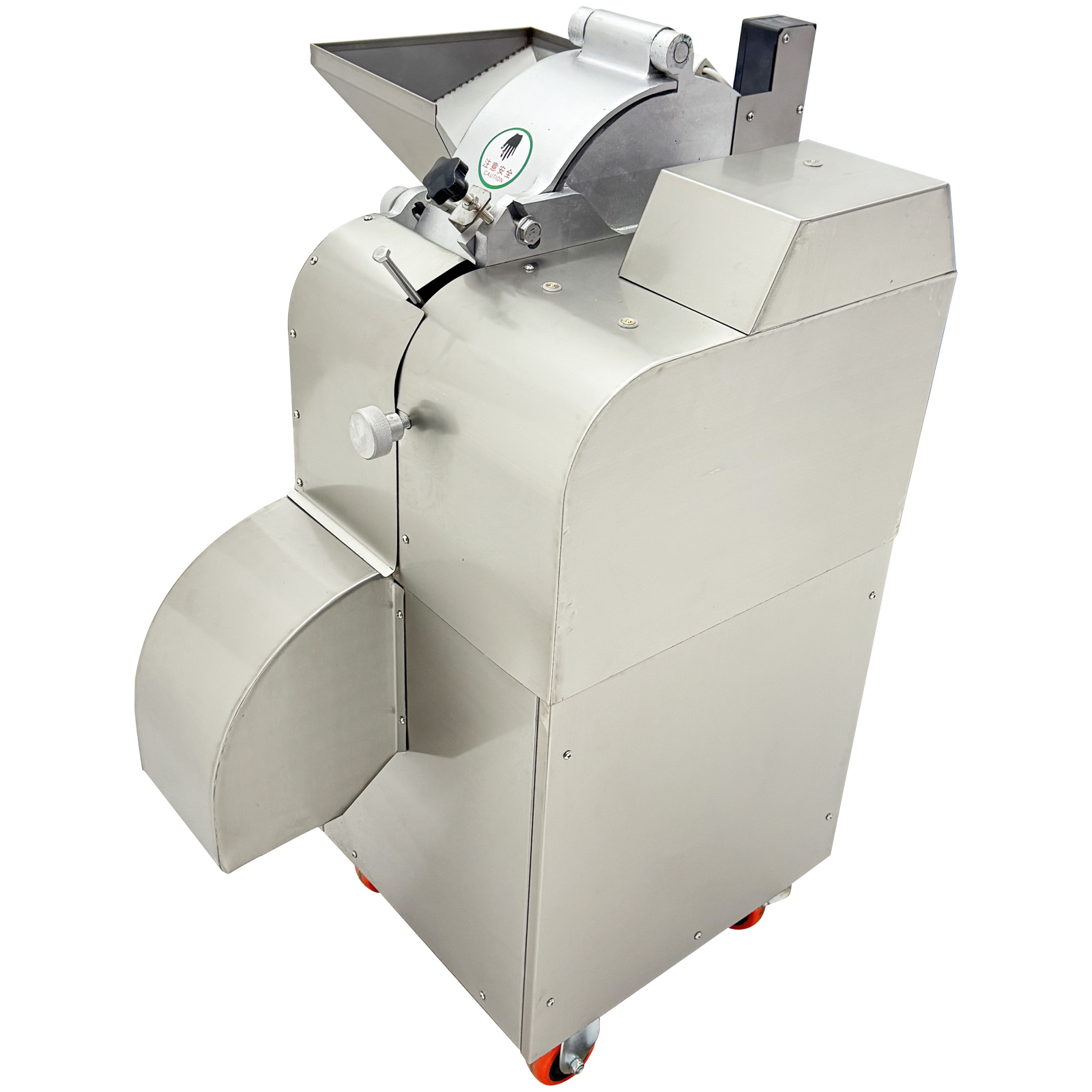

| The dicing machine is a
professional kitchen device for processing various root and stem
vegetables and slightly frozen meat into uniform cubes and
rectangles in a single pass. Thanks to its advanced composite
cutter system with smooth cuts, consistent shapes and a high
yield rate, the machine is a top choice for food manufacturers.
It features the intuitive design, convenient operation, low
energy consumption and high efficiency, and is crafted with
food-grade aluminum alloy and stainless steel for corrosion
resistance, durability and full compliance with the food hygiene
standards. The dicing machine is suitable for dehydrated
vegetable processing plants, frozen vegetable processing
centers, the food pickles industry and so on. |
|
Rated voltage |
110V 60Hz |
|
Motor power |
1.5KW |
|
Production capacity |
440.9-1322.7LBs/h (200-600kg/h) |
|
Machine material |
304 stainless steel |
|
Blade set |
0.4*0.4in (10*10mm) standard configuration |
|
Waterproof grade |
IPX1 |
|

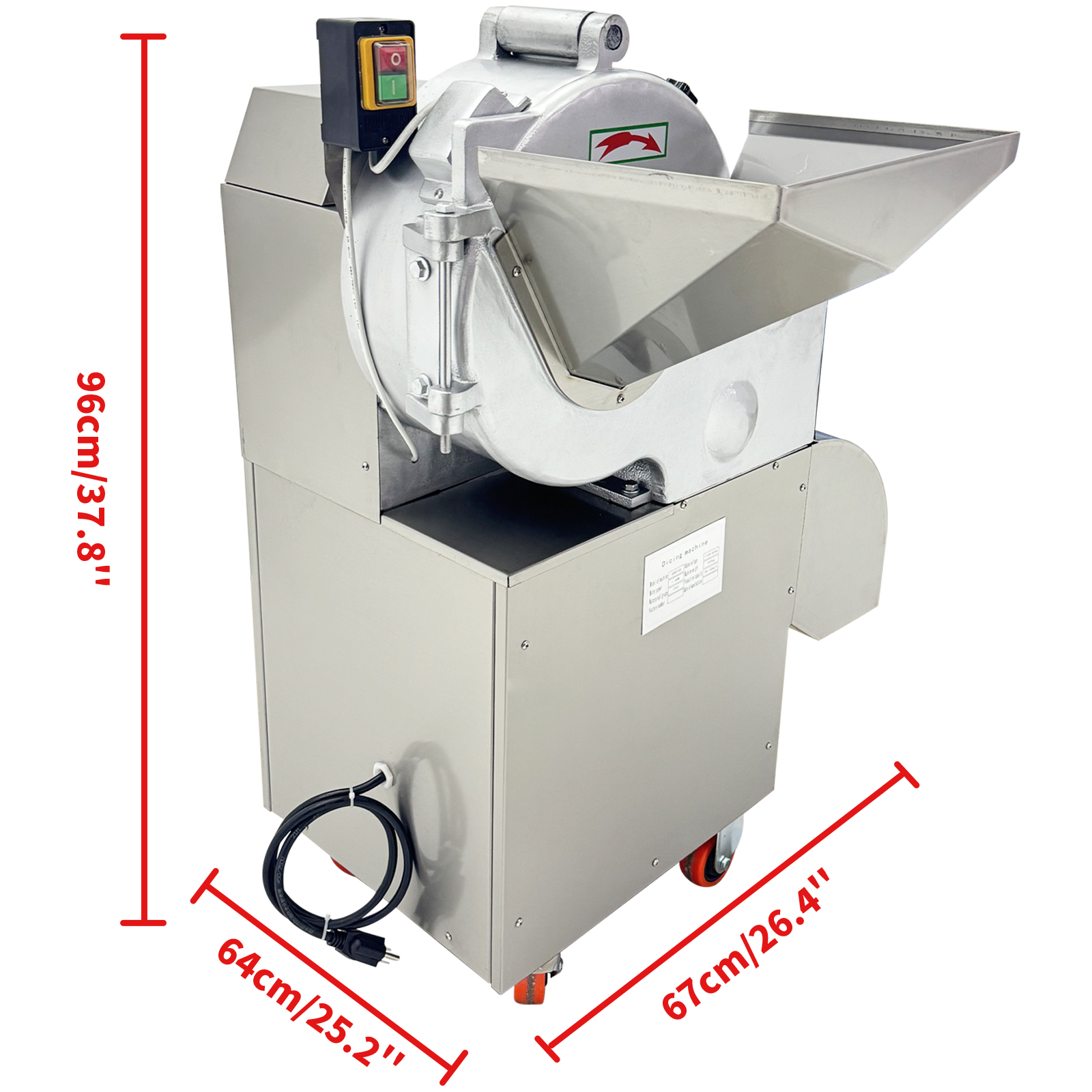

Packing dimension |
31.5*29.5*44.1 inches
(80*75*112cm) |
|
Net weight / Gross weight |
180.8LBs (82kg) / 251.3LBs
(114kg) |
| 1. Do not put hands or tools
into the machine during operation. Do not touch the running
parts during operation.
2. Do not open the protective
cover or disassemble parts during operation. Be sure to
disconnect the power supply before repair, maintenance and
cleaning.
3. The machine is suitable for
dicing the root and stem vegetables and slightly frozen meat,
and is not suitable for frozen meat and bones.
4. Before operation, remove
bones, stones, metal and other impurities in the foot
ingredients to avoid damage to the blades.
5. Do not conduct overloaded
and long-term continuous operation.
6. Do not keep the machine
unattended during operation.
7. Do not directly flush the
machine with clean after operation.
8. Ensure the power supply
conforms to the parameters on the nameplate of the machine.
Ensure reliable grounding is achieved. |
|
1. High efficiency: Equipped with a
combined cutter set, cutting the food ingredients in a single
pass, reaching the production capacity of 200-600kg/h, forming dices with the regular shape and smooth cuts,
improving the production efficiency and forming quality.
2. Wide application: Suitable for
dicing various root and stem vegetables and slightly frozen
meat, meeting the processing demands of various scenarios and
saving time and labor.
3. Good hygiene: Crafted with 304
stainless steel, ensuring high structural strength, rust and
corrosion resistance and easy cleaning, and meeting the food
hygiene standard.
4. Simple structure: Achieving
one-button start and stop, simplifying the operation process and
reducing the operating risks and accidents. |
 |
|
 |
|

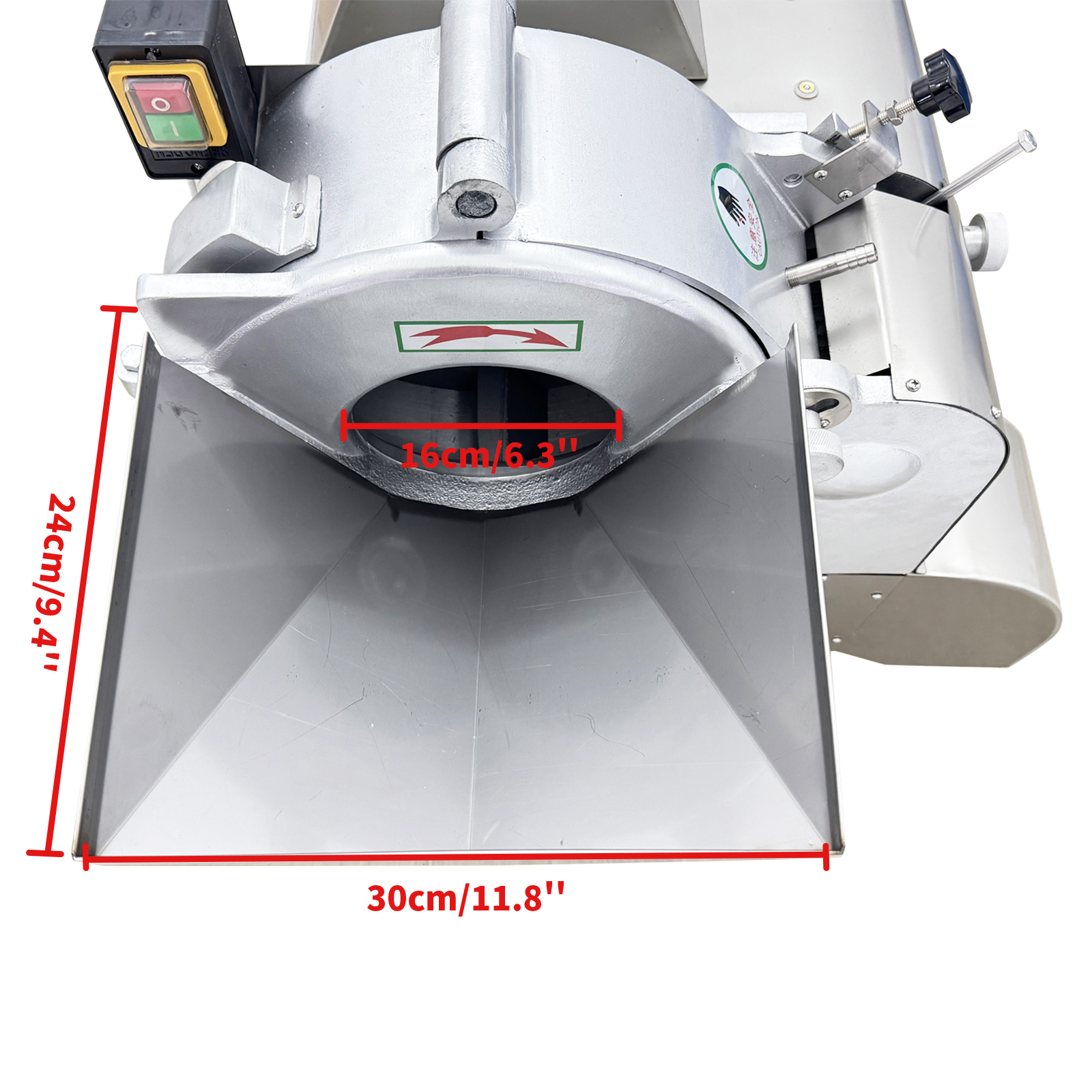

Feeding Inlet
The large-sized feeding inlet is of a slope structure, allowing
various food ingredients to be fed smoothly, and supporting
continuous batch production. It can also prevent the operator
from direct contact with the cutters, and improve the operation
safety.
|
|

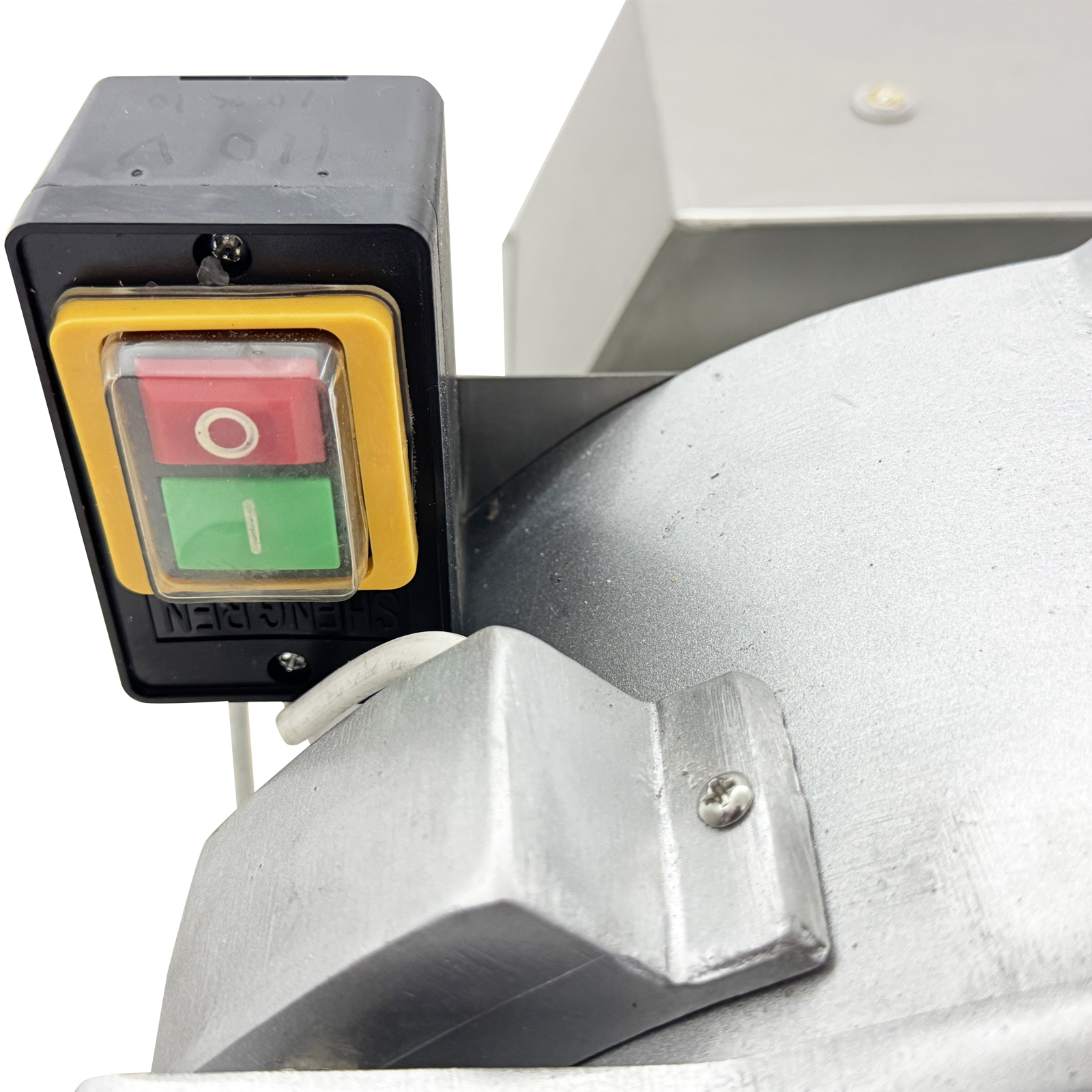

Control Switches
The start and stop switches are safe
and durable, achieving effective control over the machine and
ensuring stable and reliable operation. The protective cover is
adopted to effectively protecting the switches from misoperation
and electric leakage.
|
 |
|
 |
|

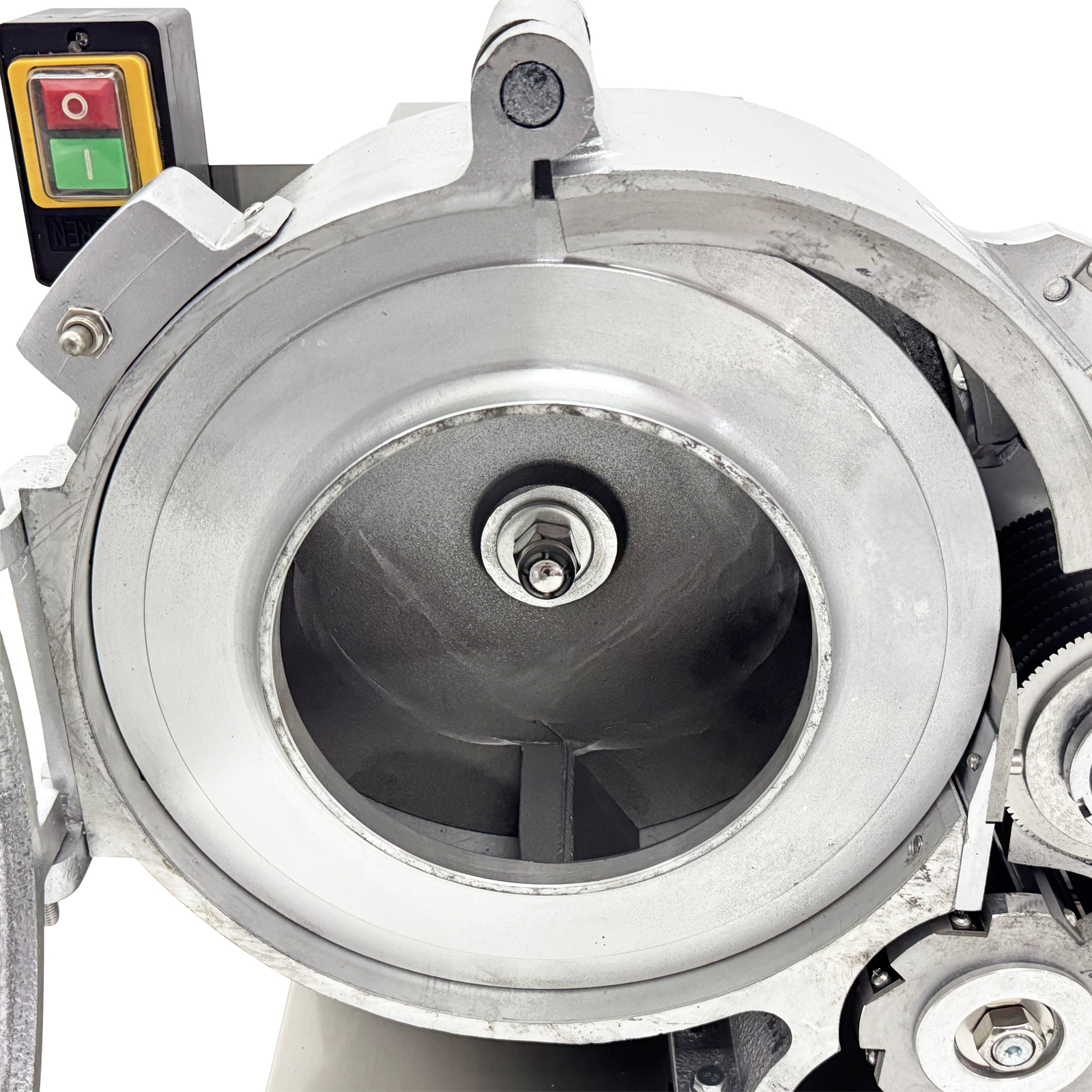

Feeding Chamber
The large-diameter circular feeding
chamber can smoothly hold more food ingredients, and the feeding
stability and continuity can be well ensured. It is firm and
durable, has good sealing performance and is free of food
leakage and abnormal noise.
|
|

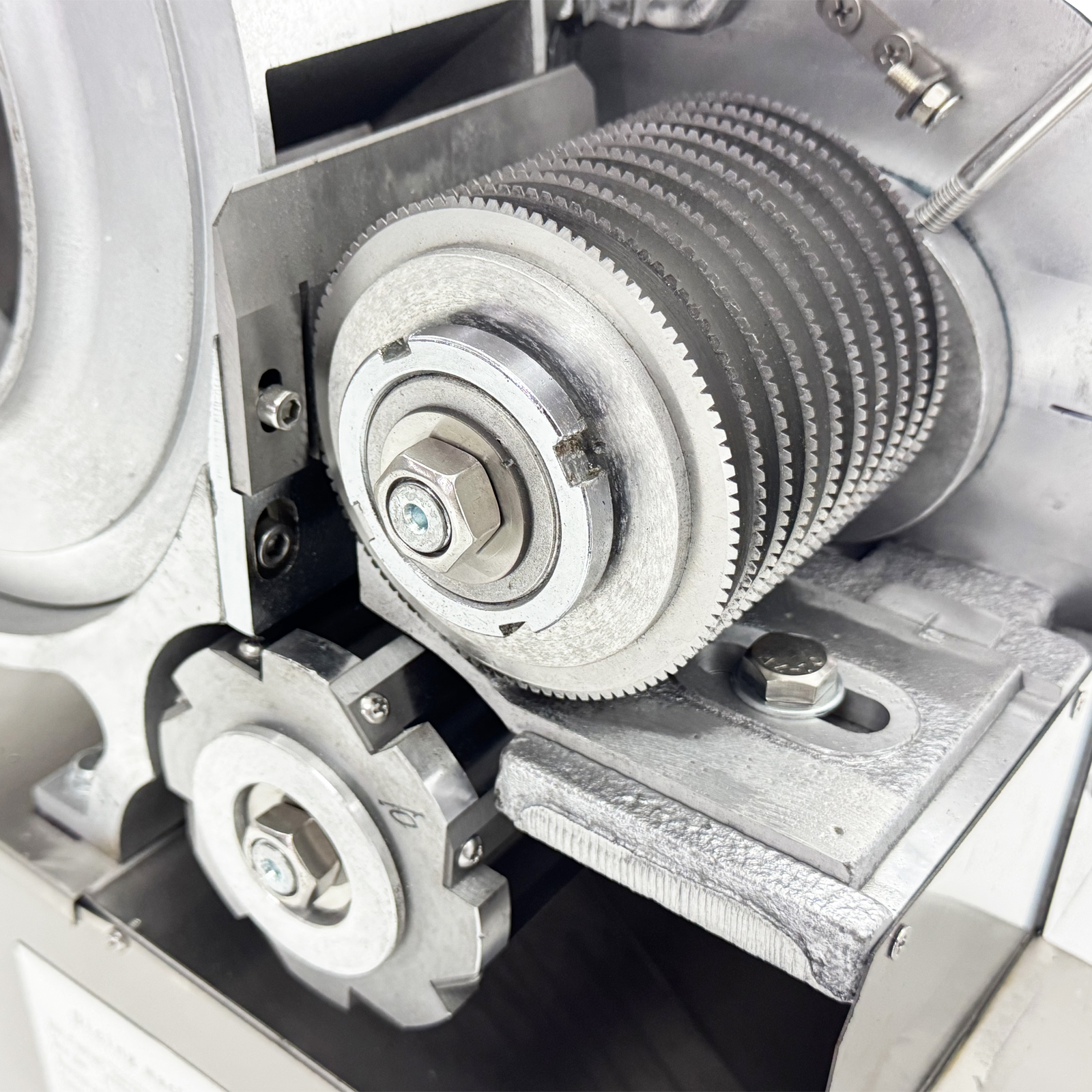

Blade Set
The multiple high-precision circular
blades with the specification of 10*10mm are combined to dice
the food ingredients regularly and evenly, well meeting the
standardized dicing requirements of the catering industry. The
blades are sharp, durable and hygienic.
|
 |
|
 |
|

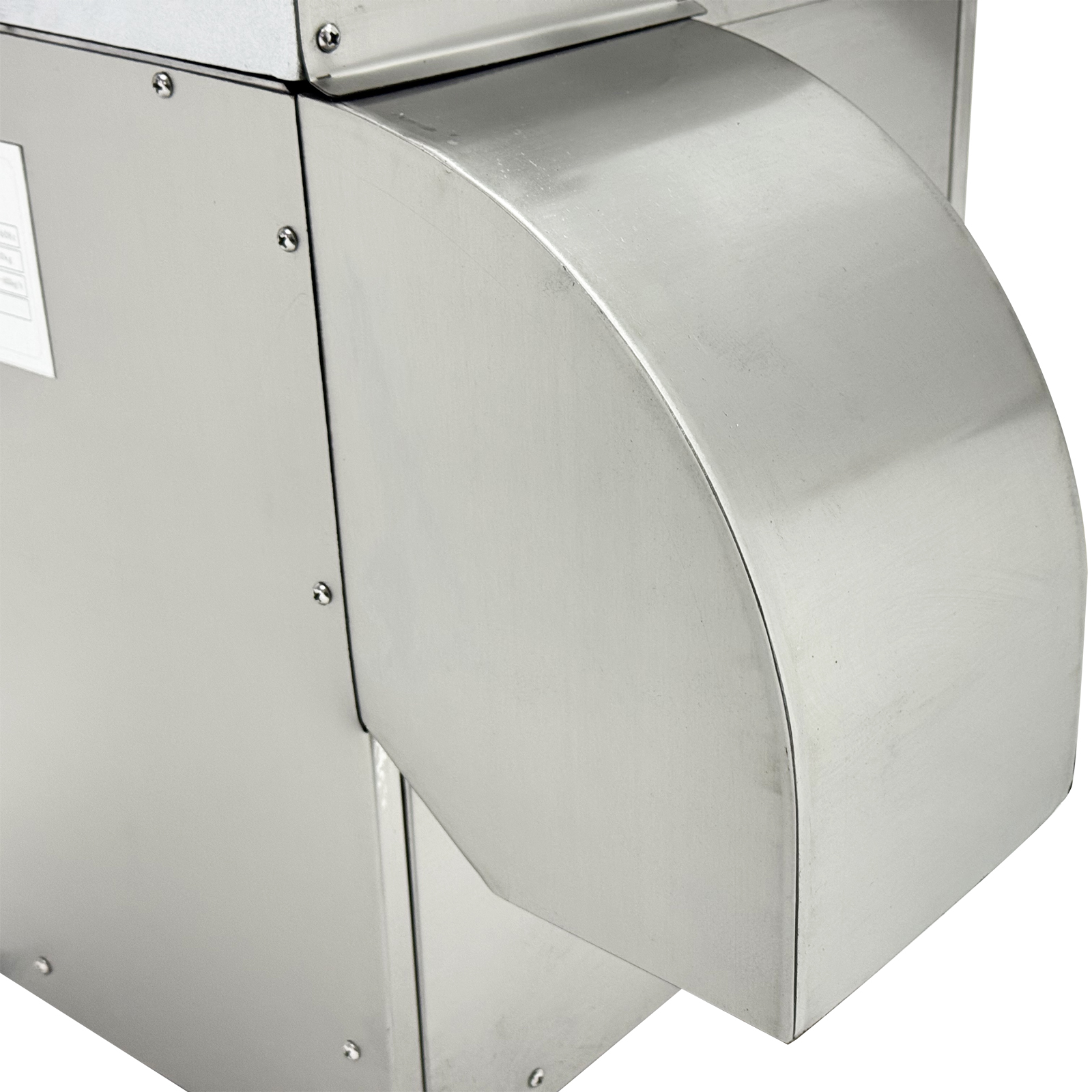

Discharging Outlet
The
discharging outlet adopts the arc-shaped flow guide structure,
can discharge the dices quickly and smoothly and effectively
avoids the food blockage. The protective cover can well prevent
the dices from splashing and scattering and is easy to clean and
disinfect.
|
|

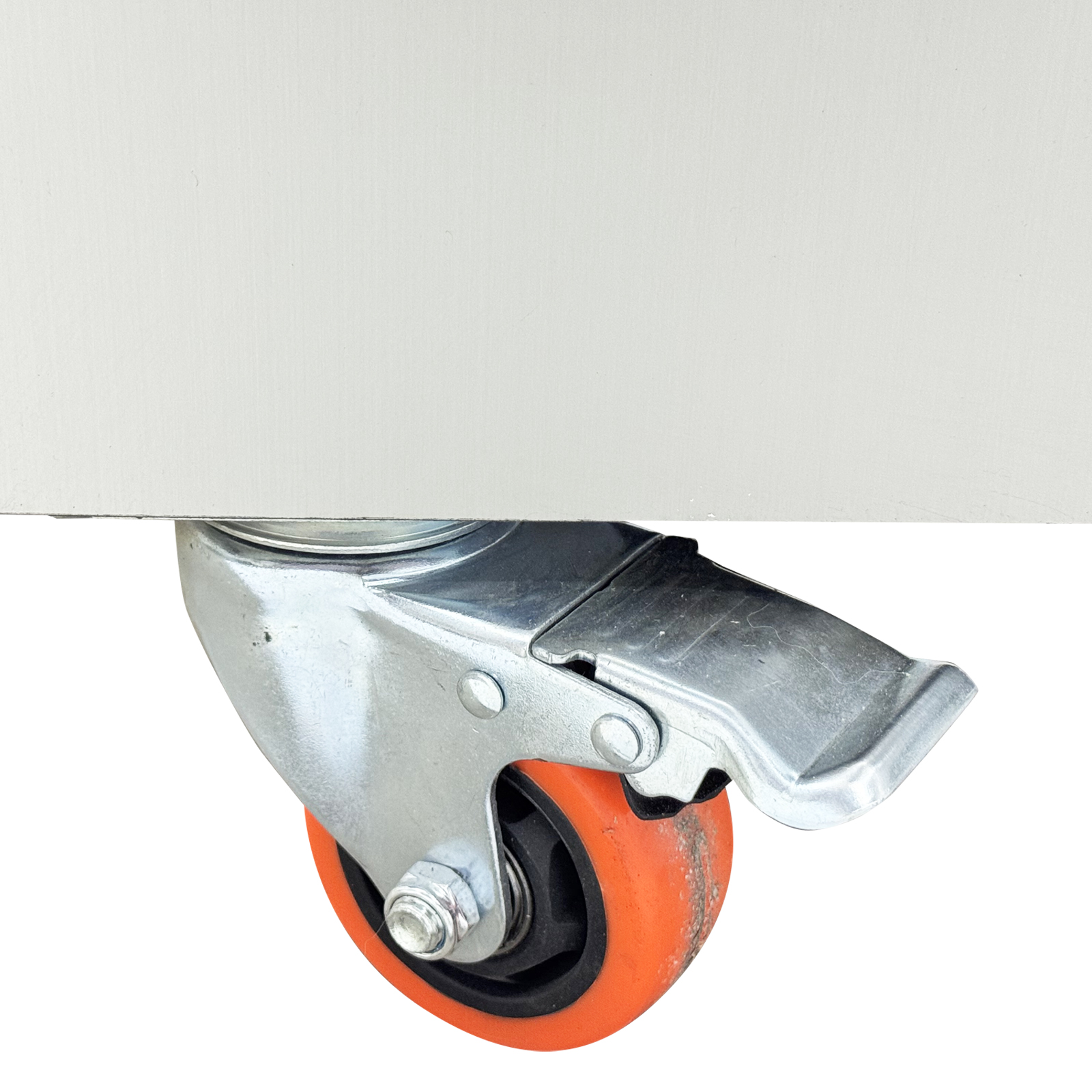

Universal Wheels
The
high-quality universal wheels make the machine move flexibly in
different working environments, substantially reducing the labor
intensity and improving the movement convenience. The ergonomic
brakes fix the machine stably and reliably.
|
| 1.
Check the machine and ensure all parts are intact and free of
looseness. 2. Connect the
machine to the 110V power supply with reliable grounding.
3. Press the start button, and
the machine starts operating.
4. Feed the clean food
ingredients without impurities into the feeding inlet
appropriately and continuously, and the machine conducts
automatic dicing operation.
5. After all the food ingredients
are processed and no dices are discharged from the discharging
outlet, press the stop button to stop the machine.
6. Disconnect the power supply,
open the feeding chamber, disassemble the parts and clean the
machine thoroughly. |
|
|
 |
 |
 |
 |
|
Item Included (056770):
1 x Commercial High-Speed Fully Automatic Cutting Machine |
|
