Geared
Multi-Spindle Tapping Machine Automatic Double-Head Tapping Machine 110V |
|
|
|
|
|
|
 |
|
Product
Overview |
| The geared multi-spindle tapping
machine is an automatic thread machining facility based on the
gear drive technology and is designed for high-precision
multi-hole workpieces. It can accomplish the task of tapping of
multiple threaded holes at a time through synchronous operation
of multiple spindles, and the processing efficiency is
remarkably improved. The machine has the advantages of stable
gear drive, flexible multi-spindle cooperation and efficient
automatic tapping, and is suitable for the fields of automobile
manufacturing, electronic equipment, hardware tools, etc. |
|
|
Product
Parameters |
|
Model |
SS4508 |
|
Voltage |
110V |
|
Processing range |
M2-M8 |
|
Size of workbench |
230*235mm (9*9.2 inches) |
|
External diameter of stand column |
Φ60mm
(2.3in) |
|
External diameter of spindle |
Φ42mm
(1.6in) |
|
Taper of spindle |
B16 |
|
Distance between the spindle end and the base |
100-480mm (3.9-18.9 inches) |
|
Spindle stroke |
45mm (1.8in) |
|
Rotating speed of spindle |
540/855/1445rpm |
|
Power of spindle |
0.75Kw |
|
Maximum tapping capacity of spindle |
(S45C) M8 |
|
Machine size |
65*48*92cm (25.6*18.9*36.2 inches) |
|
Net weight |
118.5kg (261.2Lbs) |
|
 |
|
Attention |
|
1. There is no plug on the power cord. Please
let a professional electrician conduct wiring operation.
2. Turn off the power before opening the
cover. Reinstall the cover after repair, otherwise the machine
cannot start.

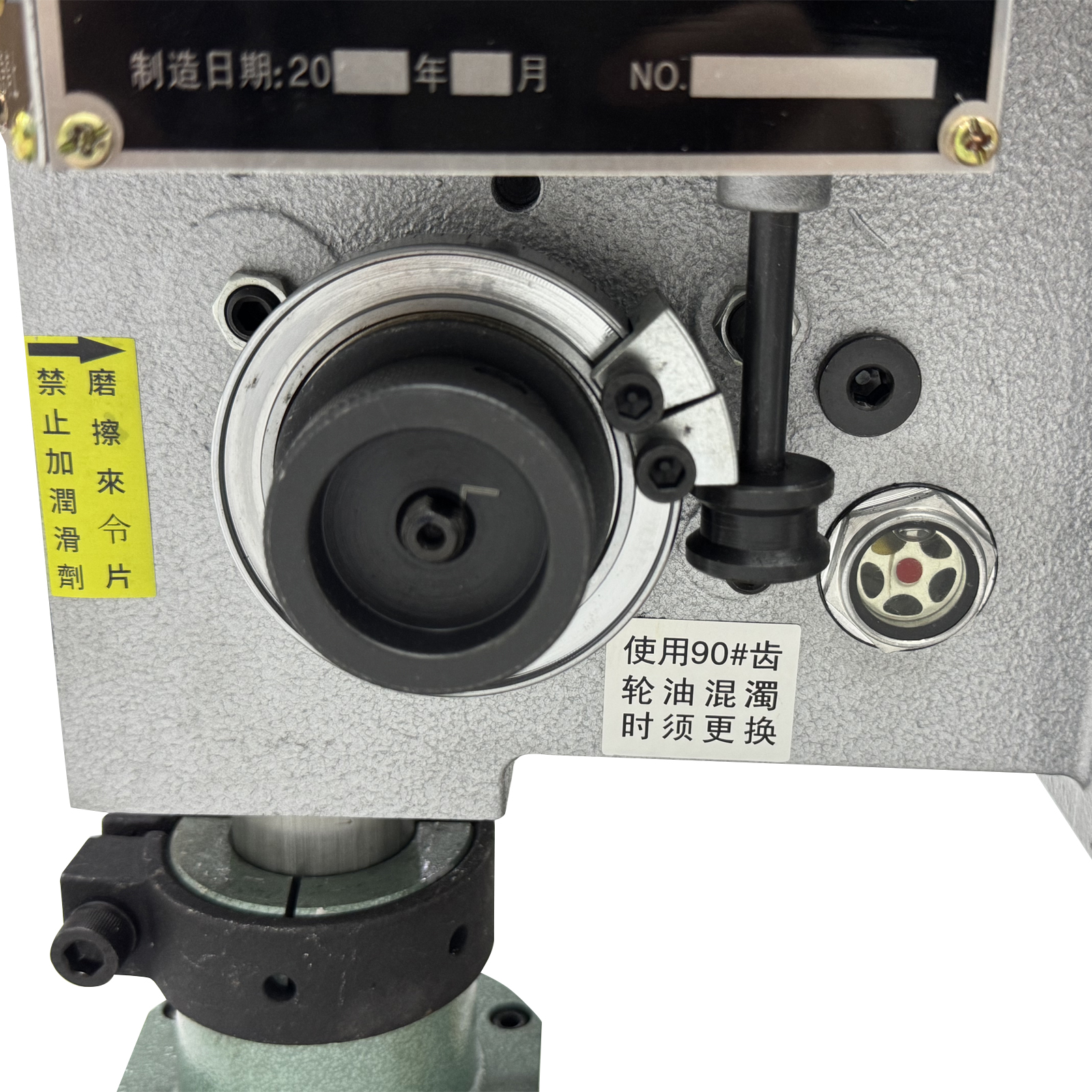

3. Do not add the lubricating agent to the
brake lining.
4. Use the 90# gear oil. Replace the gear oil
if it is cloudy.
5. Do not touch the running parts during
operation.
Do not put
the hands into the machine.
Do not
allow people or objects to be located next to the running parts
of the machine. |
|
 |
|
|
Product
Features |
|
|
|
Driving Motor
The
high-quality copper motor is used to provide stable driving
force continuously and reliably, has the high response speed and
stable output, can ensure the consistency of the rotating speeds
of the spindles and enhances the equipment reliability and
environmental adaptability. |
|
Control Box
The
control box integrates the main switch, the cycle switch, the
counter and other parts orderly, multi-spindle synchronous
control and multi-mode machining can be easily achieved, and the
operation convenience, system stability and application
flexibility are well improved. |
|
Emergency Stop Switch
The emergency stop switch can be pressed to
stop the machine immediately in case of emergency, achieving the
quick response, ensuring the personal safety, reducing the
repair cost and improving the production management efficiency.
|
|
|
|
|
Multi-spindle Device
As
a core function part, the multi-spindle device can allow
multiple spindles to work synchronously to achieve automatic
tapping, effectively achieving efficient production,
substantially improving the productivity, well ensuring the high
precision and consistency of tapping. |
|
Tapping Depth Adjuster
The
adjuster can achieve precise control over the thread depth to
perfectly meet different processing requirements, the tapping
efficiency and stability can be greatly improved, the rejection
rate and cost are effectively reduced, and adjustment is
effortless and convenient. |
|
Adjusting Handle
The
handle is used to adjust the height of the spindles to adapt to
various workpieces of different specifications, the processing
precision and consistency can be well improved, the convenient
operation and humanized design are achieved, and the
adaptability is higher. |
|
|
Operation
Method |
|
1. Single cycle:
(The machine stops automatically upon
completion of one-time operation).
When the switch is
turned to the Single Cycle position, the single cycle
sequence is: Forward Rotation
→
Reverse Rotation
→
Stop.
2. Repeat cycle:
(The machine does not stop and
continues operation after one cycle is completed).
When
the
switch is turned to the Repeat Cycle position,
the cyclic operation repeats automatically.
If needing to stop the machine, turn
the switch to the Single Cycle position, and the machine
will stop after completing one operation; or press the
Reset Button, and the machine will reversely rotate
immediately to reset and stop.
Note: After the change gear guard is
removed, the motor will not operate if performing the
operations in the 1 and 2 above. |
|
|
|
Product
Displayy |
 |
 |
 |
 |
|
Item Number (057258): 1 x Geared
Multi-Spindle Tapping Machine 110V |
|
|
