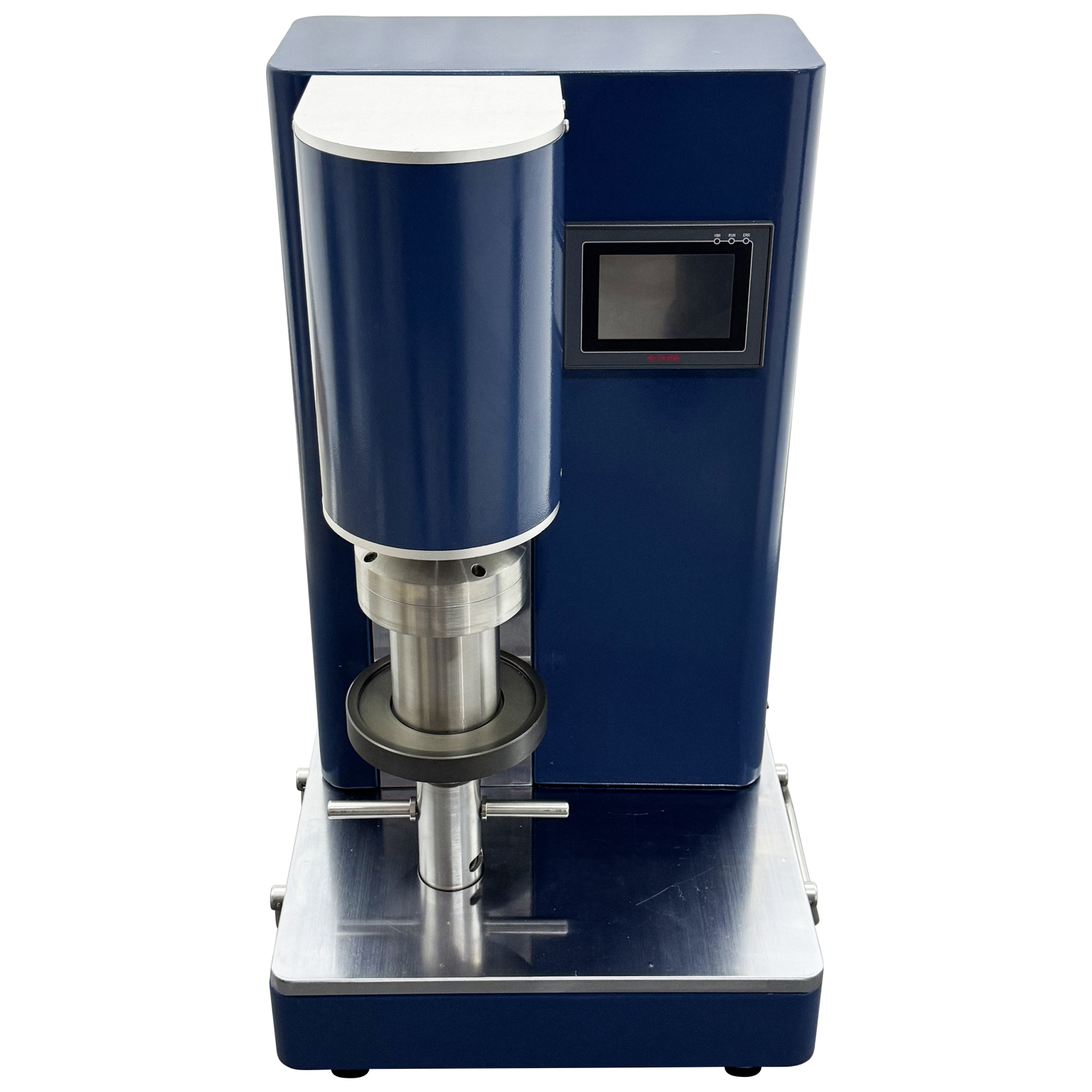

Double-shaft Planetary Vacuum Mixer 110V |
| The planetary vacuum mixer is a
professional stirring device specially designed for laboratory
research and development and pilot-scale slurry preparation. It
integrates vacuum degassing, dual-shaft planetary mixing and
high-speed dispersion to prepare high-quality and high-stability
slurries. It is equipped with a 150ml stainless steel mixing
tank and a planetary double-shaft mixing system, greatly
improving the mixing efficiency and quality. The vacuum mixer is
an ideal choice for the industries of scientific research,
battery production, new energy vehicles, consumer electronics,
energy storage systems, etc. |
|
Voltage |
110V 60Hz |
|
Mixing volume |
150ml (0.04 us gal) |
|
Material of mixing tank |
304 stainless steel |
|
Mixing paddle |
Double-shaft planetary ribbon paddle |
|
Vacuum degree |
≥-70KPA,
built-in vacuum pump |
|

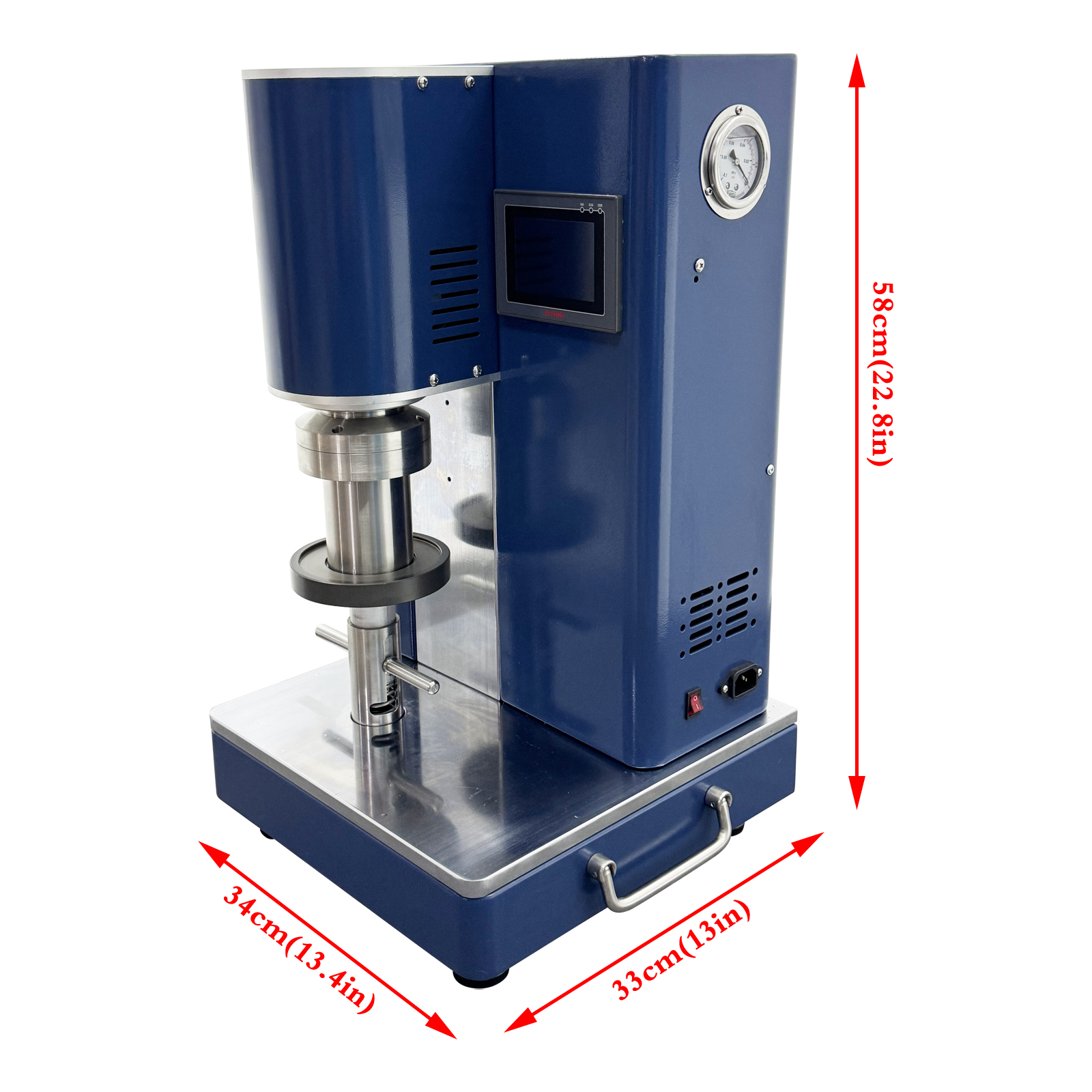

Packing dimension |
17.32*16.54*27.95 inches (44*42*71cm) |
|
Net weight / Gross weight |
84.2LBs (38.2kg) / 116.8LBs (53kg) |
| 1. Ensure the power supply
conforms to the power requirements of the machine, and reliable
grounding is achieved.
2. Ensure the vacuum degree is
stable within the specified range, and the mixing system is in
good condition.
3. Overload operation is
strictly prohibited. Do not mix flammable, explosive and highly
corrosive materials.
4. During operation, do not
touch the running parts, and do not put hands or tools into the
machine.
5. Do not forcibly open the
mixing tank in the vacuum state. Ensure the pressure is relieved
before opening the mixing tank.
6. During operation, wear
protective gloves, goggles and other protective equipment to
avoid accidents.
7. Non-professionals are
prohibited from disassembling or modifying the machine. |
|
1. Vacuum mixing: Mixing materials
in the vacuum environment, effectively eliminating bubbles
generated in the mixing process. Equipped with a built-in vacuum
system, and improving the material filling performance and model
compactness. 2. Planetary
mixing: Equipped with a dual-shaft planetary ribbon mixing
paddle with 150ML stainless steel mixing tank, improving the
mixing quality and stability.
3. Forward and reverse mixing:
Enabling high-speed mixing of high- viscosity slurries with
excellent mixing uniformity.
4. Multi-stage speed operation:
Allowing setting of the mixing speed and time of each stage, and
improving the mixing adaptability and practicability.
5. Good safety: Adopting the
bracket design, facilitating operation and ensuring safety in
the vacuum mixing process. |
 |
|
 |
|
Touch Screen
The PLC touch screen is designed for clearly displaying multiple
parameters, supporting multi-stage speed and time setting and
achieving real-time monitoring of the running state. It has
stable and reliable performance and interference resistance.
|
|
Mixing Tank
The 150ml stainless steel mixing
tank cooperates with the double-shaft planetary mixing paddle to
form the stable mixing flow field, maximizing the dispersion
efficiency, shortening the slurry mixing time and improving the
uniform mixing effect.
|
 |
|
 |
|
Bracket
The bracket can effectively secure
and quickly release the mixing tank through the manual spring
locking handle, operation is easy and convenient, the labor
intensity is greatly reduced, the sealing performance is stable
and reliable.
|
|
Vacuum Pressure Gauge
The vacuum pressure gauge is
resistant to shock and impact, provides stable and accurate
readings can accurately monitor the vacuum degree and ensure the
good degassing effect. It can still stable operate in the
complex working environment.
|
 |
|
 |
|
Heat Dissipation System
The
cooling fan and air vents are combined to achieve effective
ventilation and heat dissipation, effectively protect the
internal parts from burnout and damage and ensure the stability
of the machine during long-term operation.
|
|
Lifting Handles
The
U-shaped high-strength lifting handles are firm, durable,
wear-proof and foldable, are not prone to deformation, meet the
ergonomic standard and help the operator carry and move the
machine effortlessly and conveniently.
|
| 1.
Connect the machine to the 110V power supply with reliable
grounding.
2. Add appropriate materials into
the mixing tank, place the mixing tank onto the bracket and fix
it.
3. Turn on the power switch, set
the mixing speed and time on the touch screen as needed.
4. Click on the start key, and
the machine starts vacuumizing and mixing the materials.
5. After operation, click on the
stop key, and conduct pressure relief operation.
6. Turn off the power switch,
descend the bracket, and take down the mixing tank. |
|
|
 |
 |
 |
 |
|
