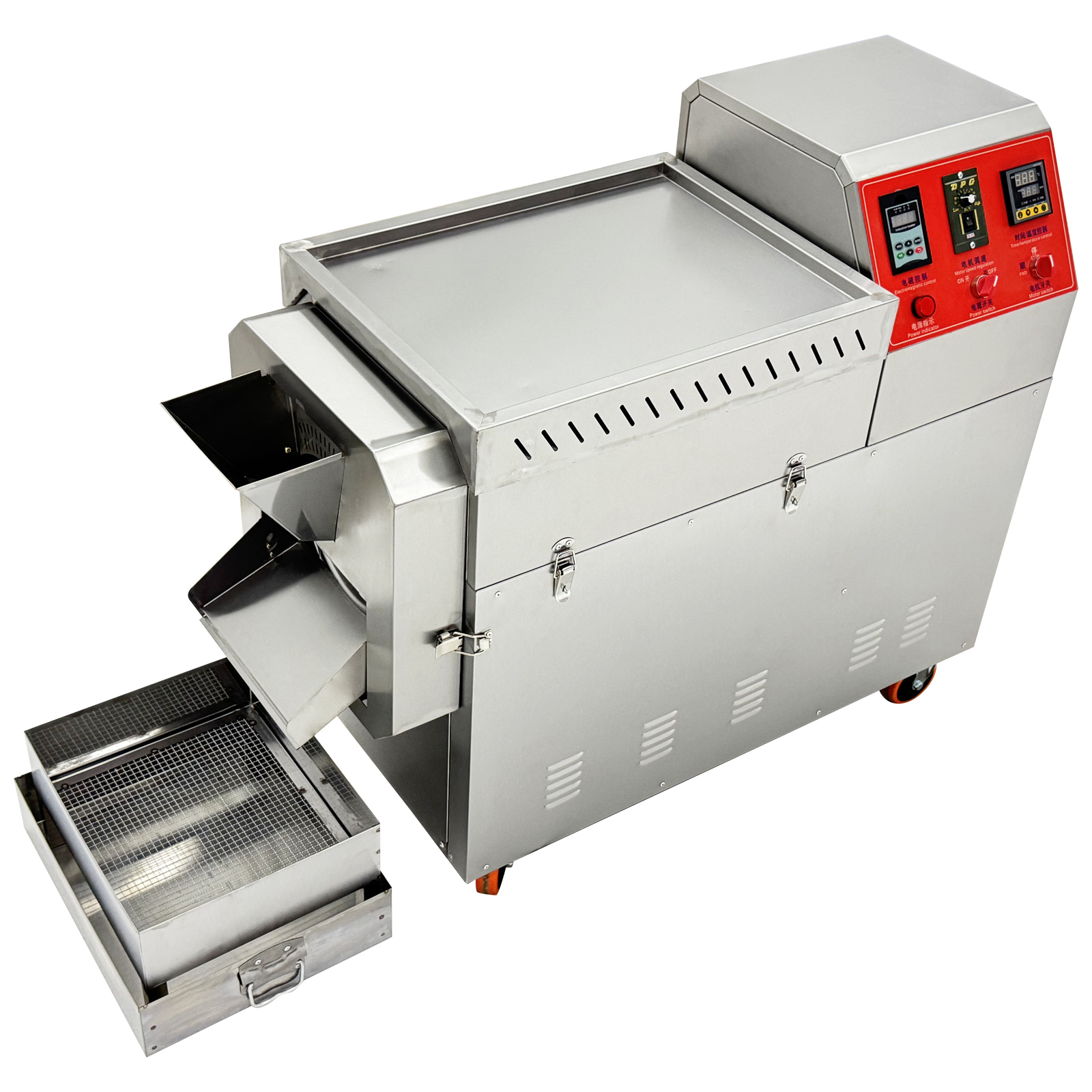

Full
Automatic Commercial Electric Coffee Bean Nut Roaster Roller Type
Roasting Machine Electromagnetic Heating 220V 1-Phase |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The roaster is a commercial multifunctional roasting machine
integrating the electromagnetic heating technology and the
stainless steel roller design. It can evenly roast coffee beans,
chestnuts, peanuts, seeds, walnuts and other food products, and
has the functions of timing, speed regulation and temperature
adjustment, and the advantages of temperature controllability,
even and quick heating, high roasting capacity, high heat
efficiency, time and labor saving and simple operation. The
automatic electric roasting machine is an ideal choice for
supermarkets, shops, food courts, convenience stores and other
commercial places. |
|
|
Product
Parameters |
|
Model |
25 |
|
Voltage |
220V 60Hz 1-phase |
|
Power |
5kW |
|
Max operating temperature |
356℉(180℃) |
|
Capacity |
12.5kg (27.5Lbs) |
|
Heating mode |
Electromagnetic induction heating |
|
Machine shell |
Stainless steel |
|
Inner Container Material |
430 Stainless steel |
|

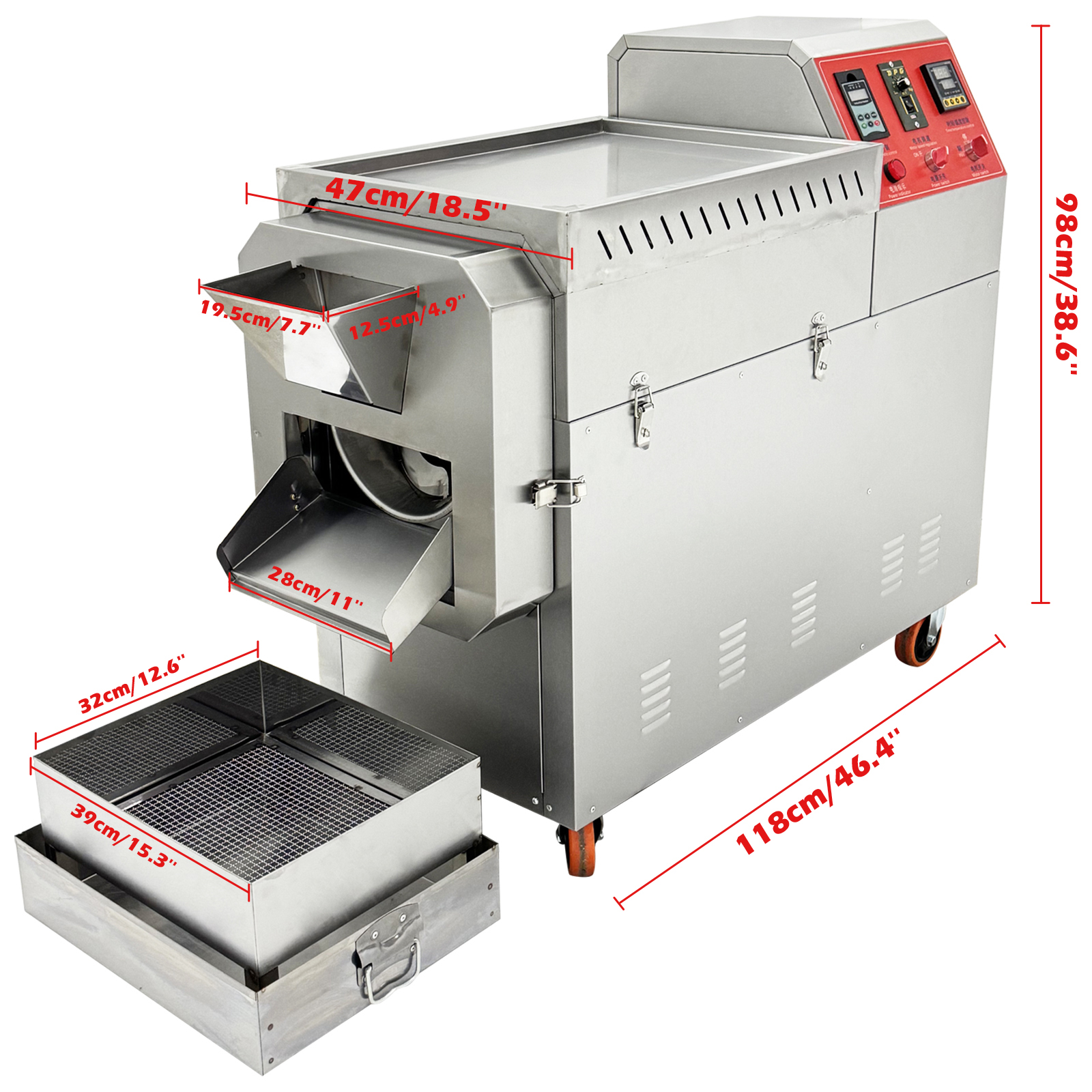

Machine size |
118*47*98cm (46.4*18.5*38.6 inches) |
|
Net weight |
81.5kg (179.7Lbs) |
|
 |
|
Attention |
 |
|

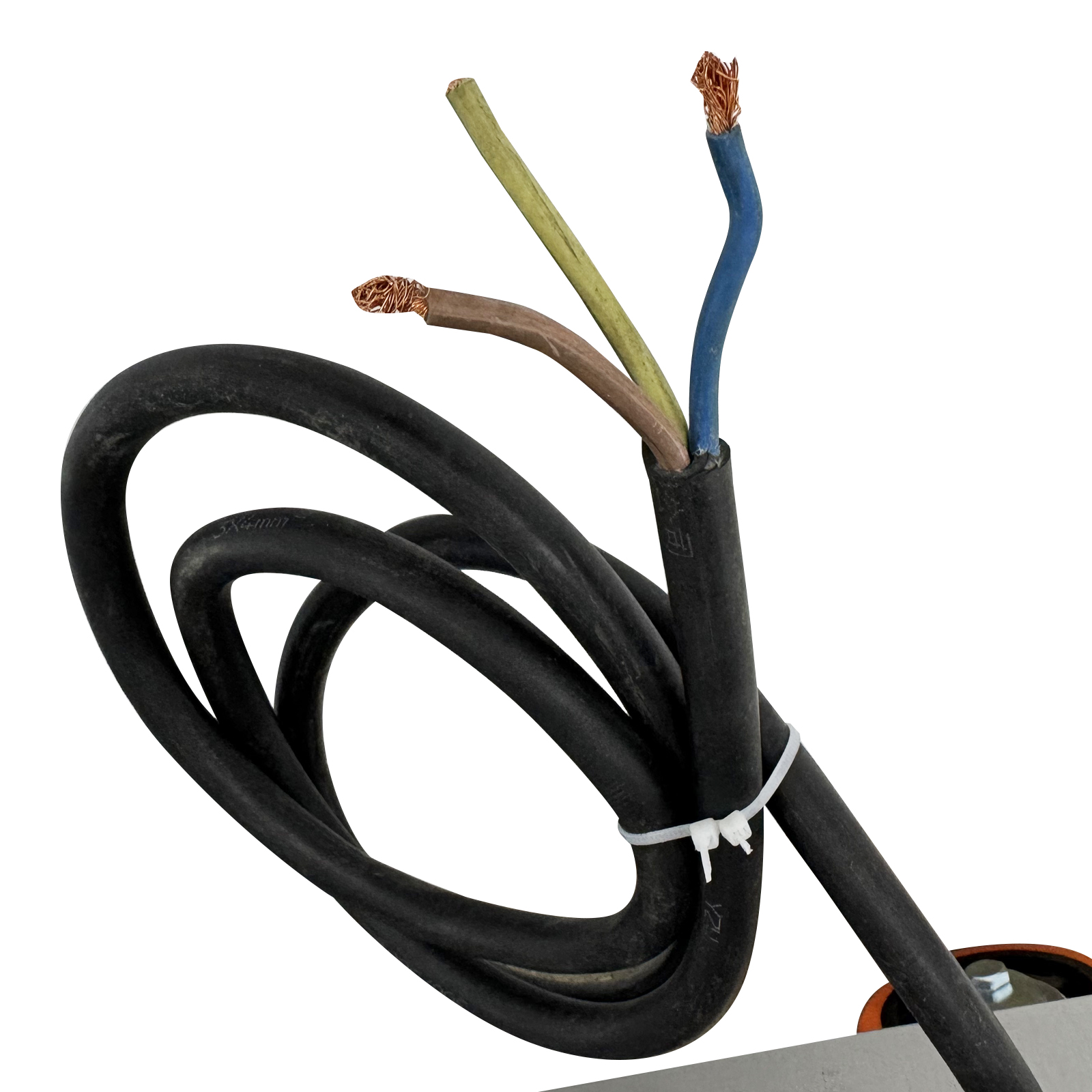

1. There is no plug on the power cord. Please let a professional
electrician conduct wiring operation. Ensure the power supply
meets the power requirements of the machine. Ensure the reliable
grounding before operation.
2. Do not touch the running parts during operation.
Do not put the hands into the machine.
Do not allow people or objects to be located next to the running
parts of the machine.
3. The heated roller is very hot after use. Be sure to cool it
down naturally before cleaning, repair or maintenance.
4. Disconnect the power supply before cleaning, repair or
maintenance.
5. Do not exceed the rated capacity of the machine.
6.
Do not dry burn an empty pot! Dry burning an empty pot will
rapidly increase the temperature of the pot, which may cause
deformation, damage or fire.
7.
The machine is designed for stir-frying dry materials. Do not
use it for wet operations such as stir-frying or boiling soup. |
|
|
Product
Features |
|
1. High Heat Efficiency: The heat is directly generated inside
the roller through the electromagnetic induction, more energy is
saved, the energy consumption is lower, and the heat efficiency
is higher.
2. Precise Temperature Control: By means of the electromagnetic
heating technology, the internal temperature is controlled more
precisely, and the set temperature can be achieved accurately.
3. Multiple Functions: Timing, speed regulation, temperature
setting, electromagnetic control and motor rotation direction
control are integrated into a whole, the operation efficiency is
higher and the control effect is better.
4. High Roasting Quality: The roller and electromagnetic heating
are combined to avoid local overheating and ensure the roasted
nuts are consistent in color and taste.
5. Safety and
Environmental Protection: there is no open flame and no exhaust
gas emission during work. The roller itself heats up and the
machine body keeps low temperature, which effectively improves
the working environment and eliminates the risk of fire.
6. Wide Application: The machine can roast coffee beans, various
nuts, cocoa beans and other food ingredients and is suitable for
the food processing industry, the catering industry, the coffee
industry, etc. |
|
|
|
|

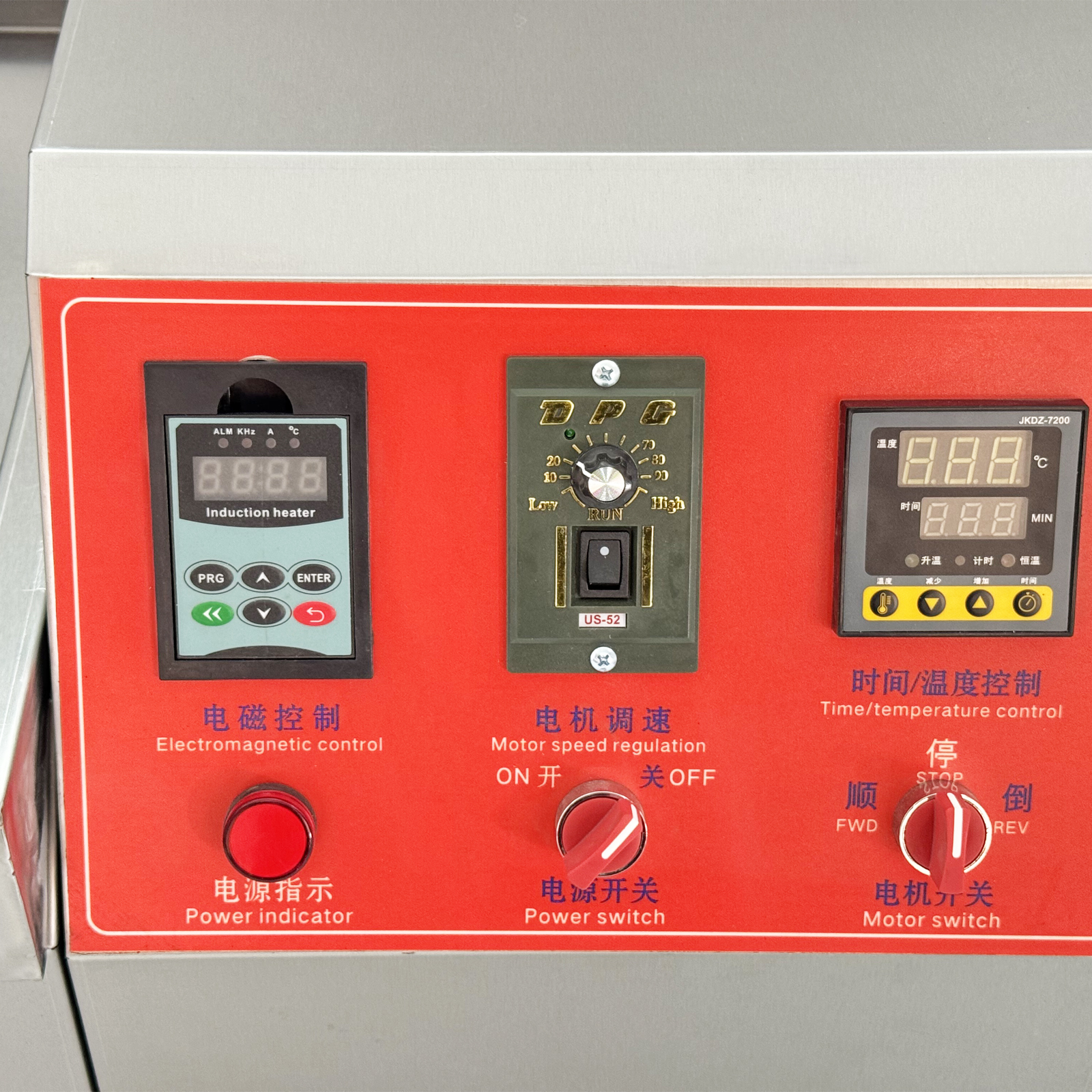

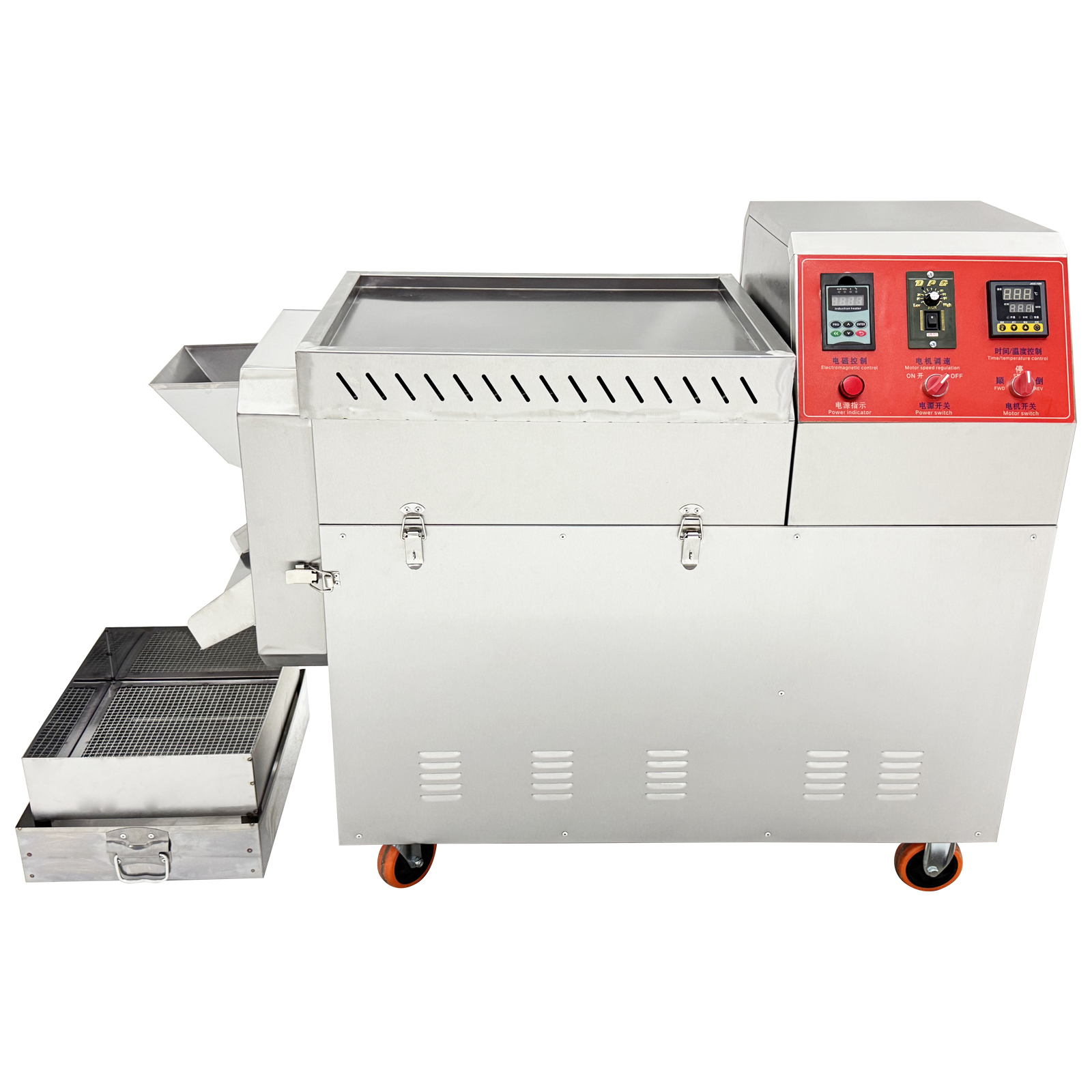

Control Panel
The control panel integrates the electromagnetic controller,
motor speed regulator, time/temperature controller, control
switches and power indicator, effectively achieving precise
control over the electromagnetic heating, motor speed and
direction, heating time and temperature and greatly improving
the operation efficiency. |
|

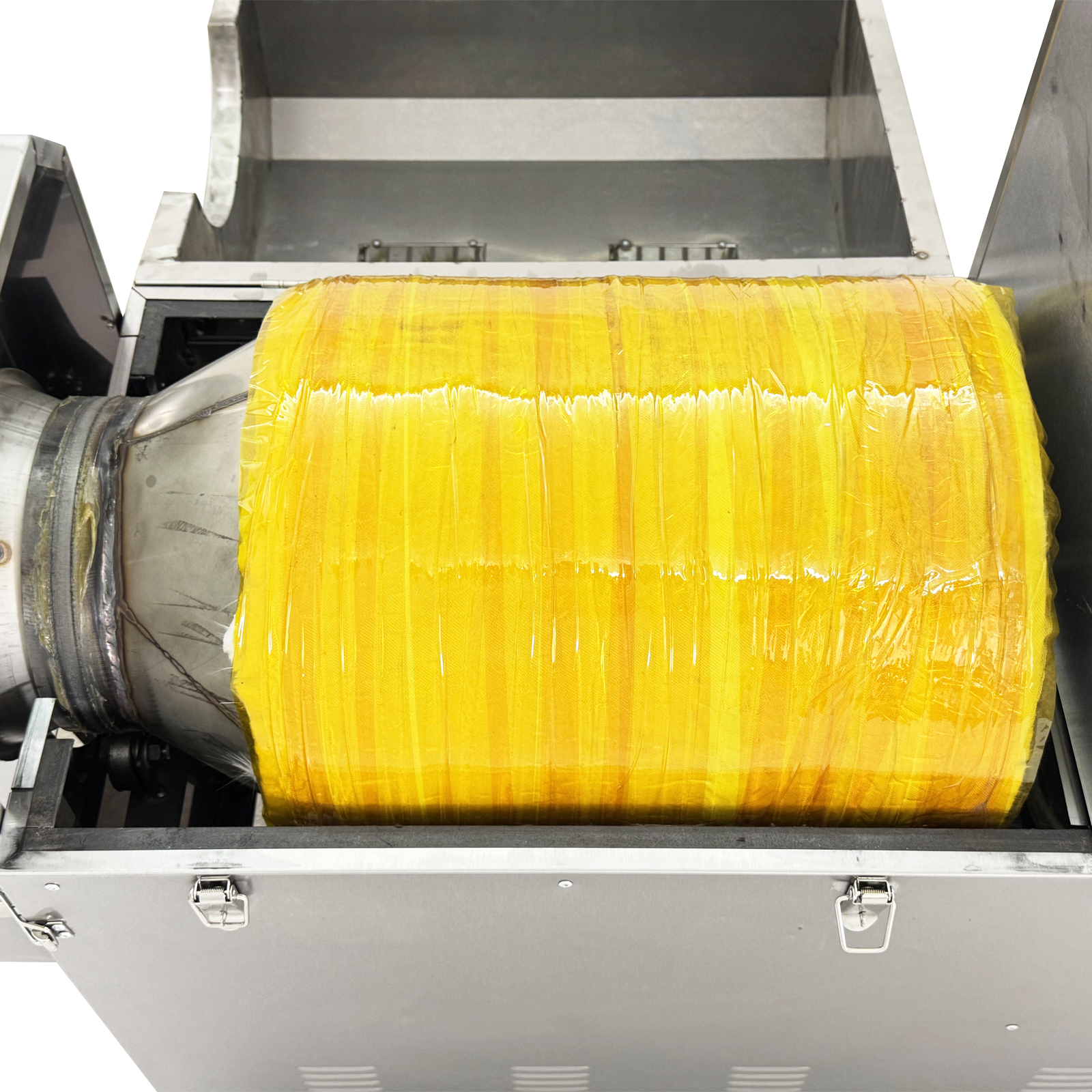

Roasting Roller
The inner container of the horizontal roasting roller is made of 430 stainless
steel materials, ensuring high structural strength, high
temperature resistance and long service life. It can generate
heat through the electromagnetic induction, greatly improving
the heat efficiency and roasting uniformity and ensuring the
high roasting quality. |
|
|
|
|

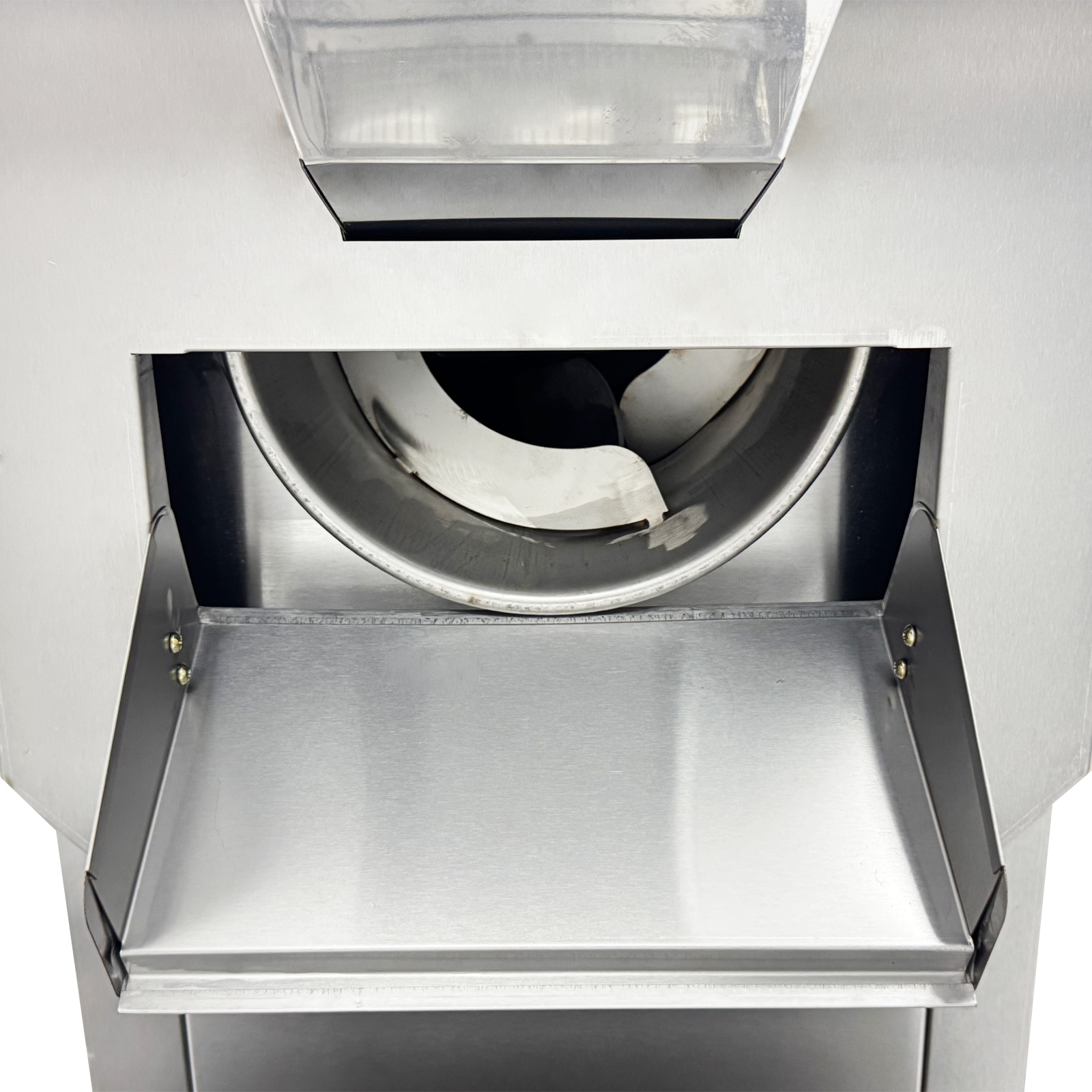

Feeding & Discharging Assembly
The feeding hopper and discharging outlet are integrated on the
inner container cover, greatly improving the production
efficiency. The cover can be closed in the roasting process, the
sealing performance is better, the heat preservation effect is
well enhanced, and food ingredients are effectively prevented
from falling off. |
|

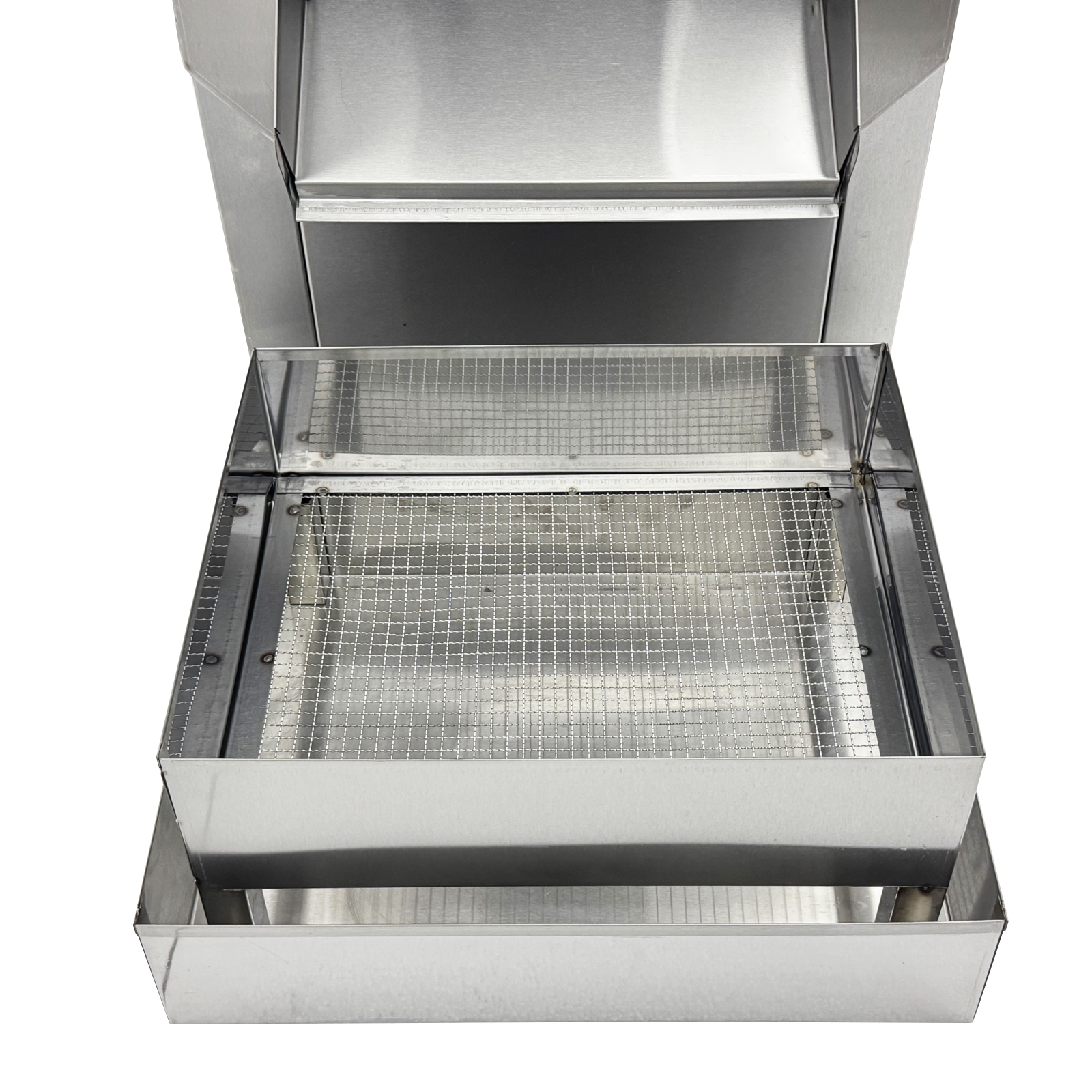

Material Receiving Box
The material receiving box is of a two-layer structure. The
upper layer is equipped with a mesh screen which can effectively
separate roasted nuts from nut shells or other impurities, and
also facilitates heat dissipation and collection. The box can be
conveniently stored on the top of the machine when not in use. |
|
|
|
|

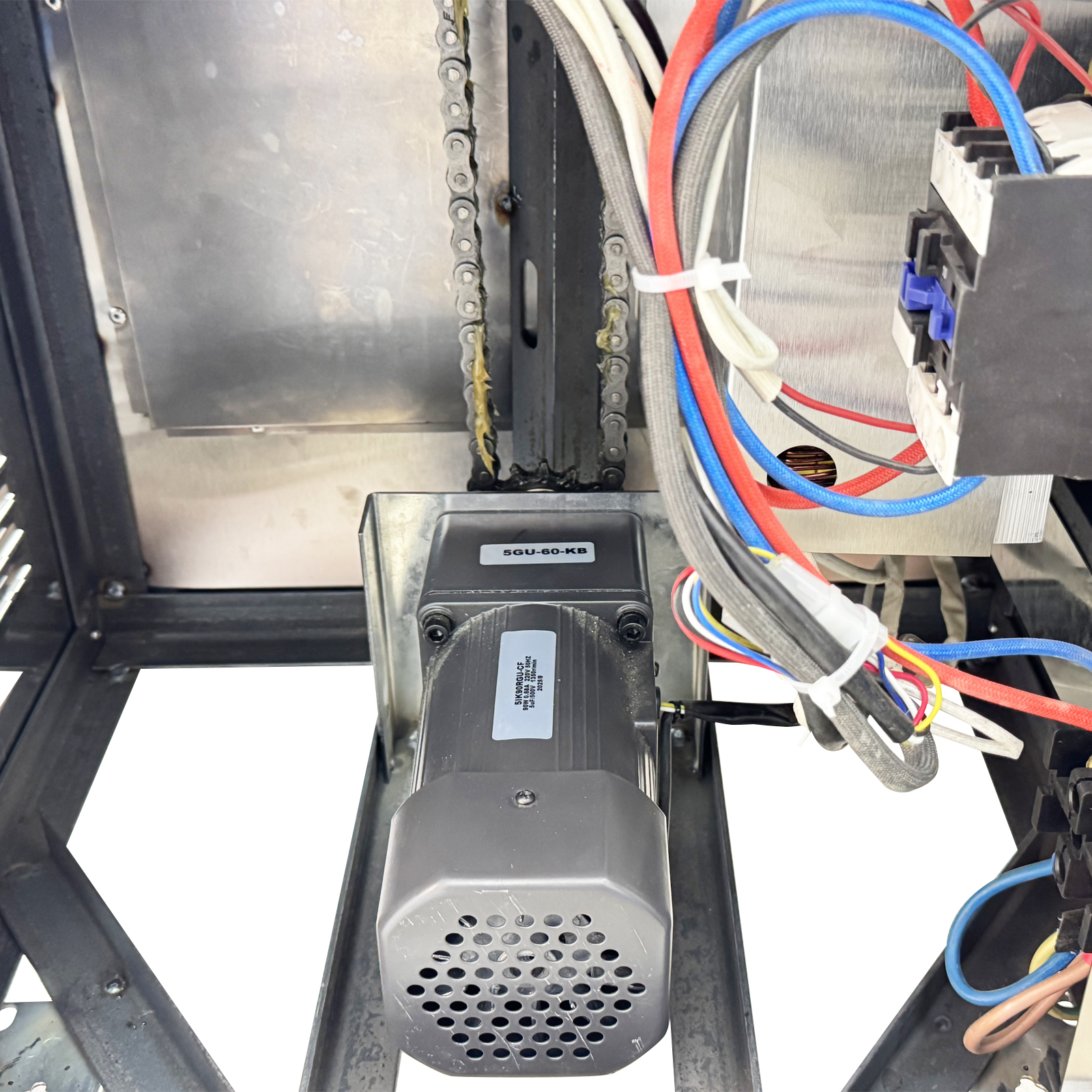

Driving System
The driving motor has high quality and stability, can provide
the driving force for the roller stably and continuously during
use and ensures the roasting operation is smooth and perfect.
The chain transmission system cooperates with the
high-performance bearing to achieve effective and stable
transmission.
|
|

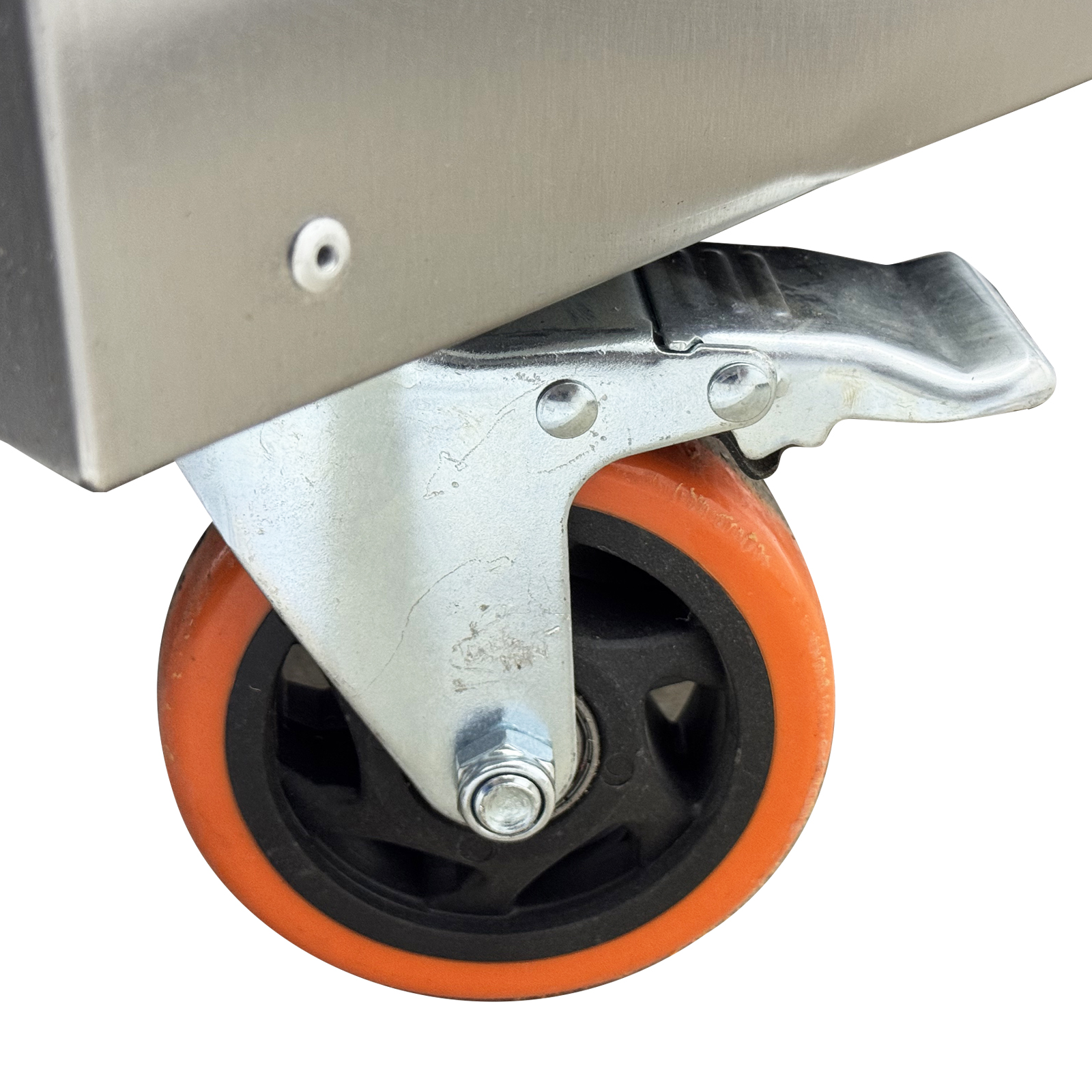

Universal Wheels
The universal wheels are adopted to allow the machine to move
easily and effortlessly, effectively improving the movement
convenience and environmental adaptability of the machine and
greatly reducing the vibration during movement. The brakes are
designed to stably fix the machine in the working environment. |
|
|
Operation
Method |
|
1. Connect the machine to the 220V 3-phase power supply
with reliable grounding.
Feed the raw materials into the roasting roller through
the feeding inlet.
2.
Turn on the power switch, set the electromagnetic
program, the heating time and the heating temperature as
needed, and the machine starts heating.
3. Turn the motor switch to the FWD
position, and the machine starts roasting the raw
materials. Adjust the motor speed as required.
4. After the time is up, the machine stops roasting.
Turn the motor switch to the REV position, and discharge
the roasted materials to the material receiving box.
5. After discharging all the materials, turn the motor
switch to the STOP position, turn off the power switch
and disconnect the power supply.
6. Wait for the machine to cool down naturally, and then
clean the machine thoroughly. |
|
|
|
Product
Display |
 |
 |
 |
 |
|
Item Number (057319): 1 x Commercial
Electric Coffee Bean Nut Roaster 220V |
|
|
