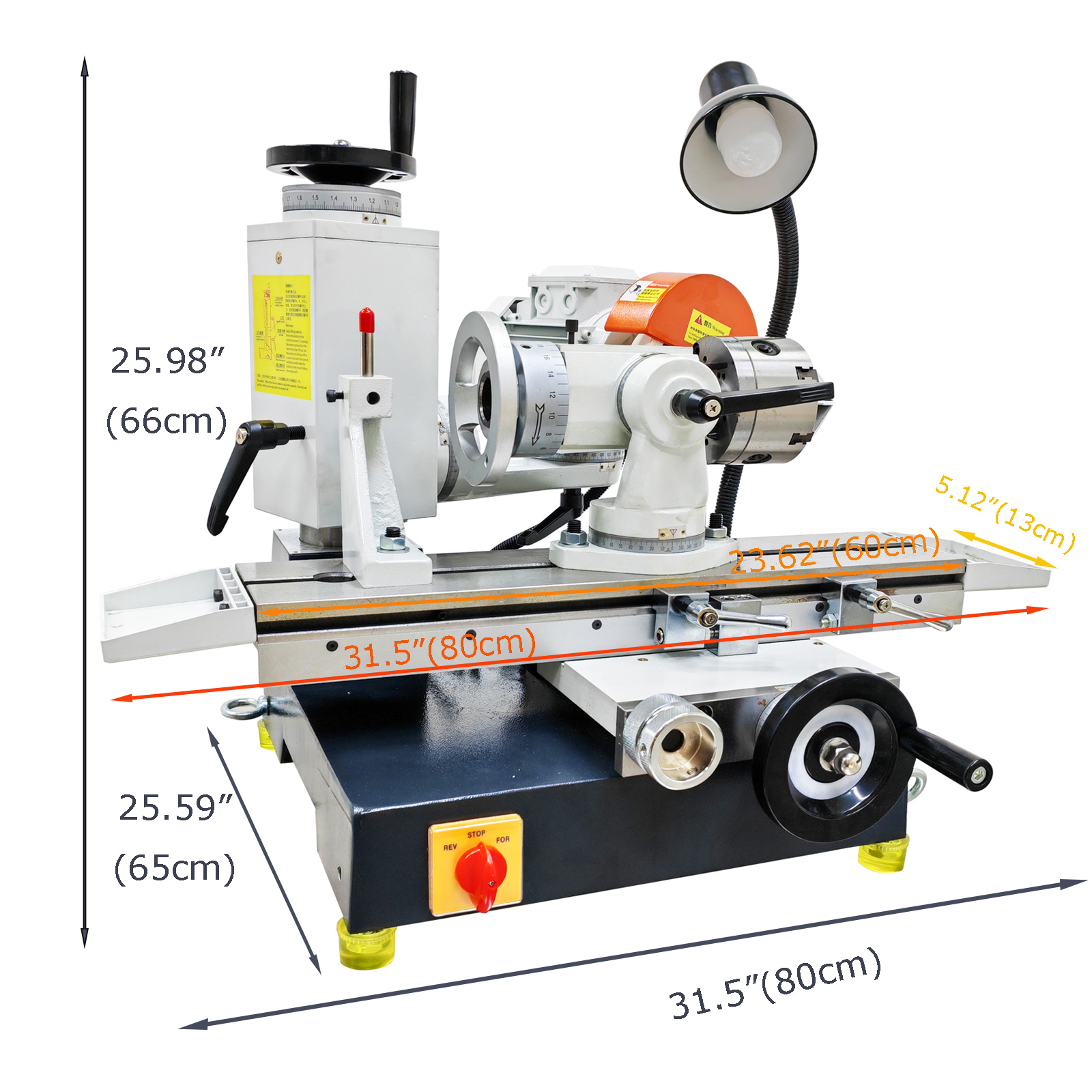

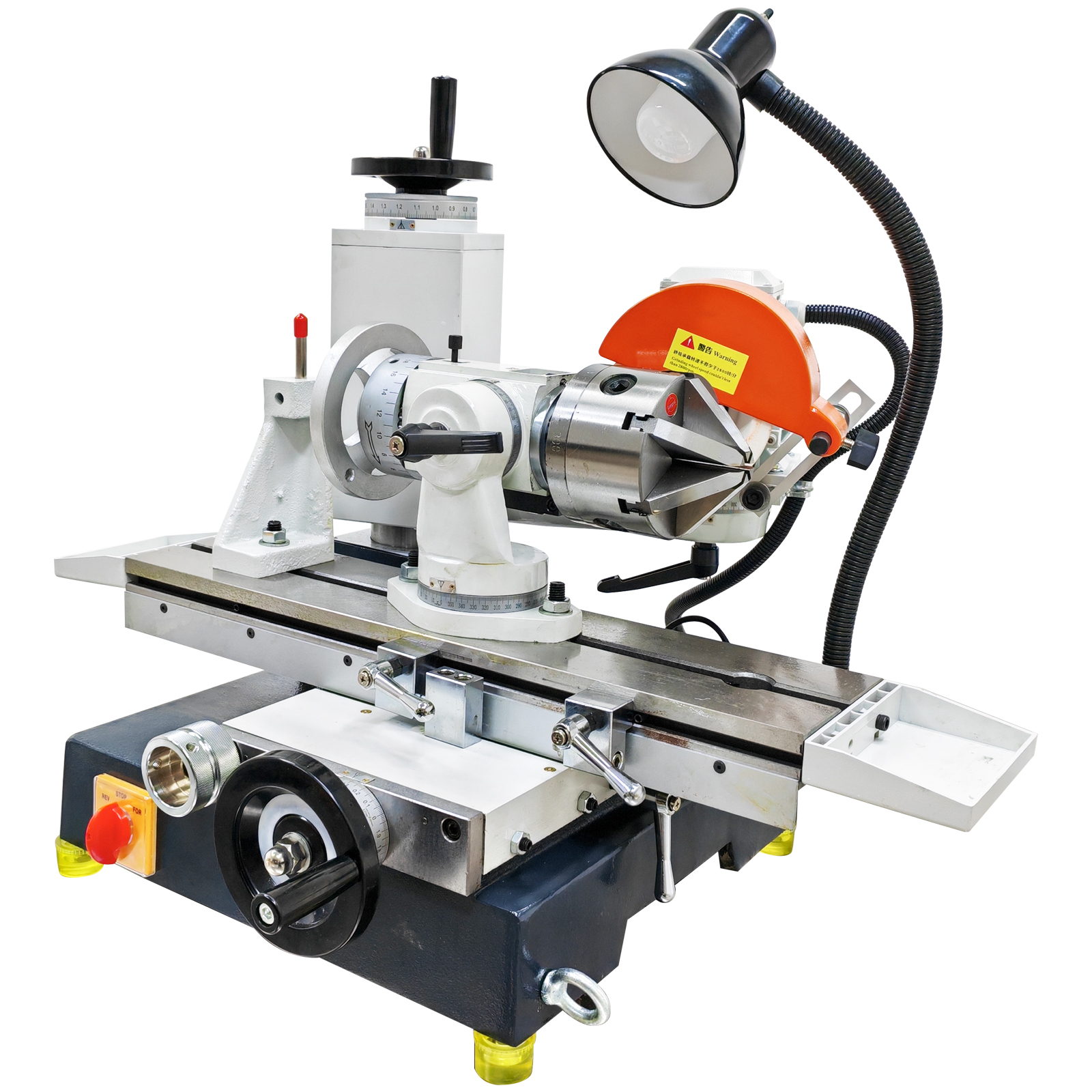

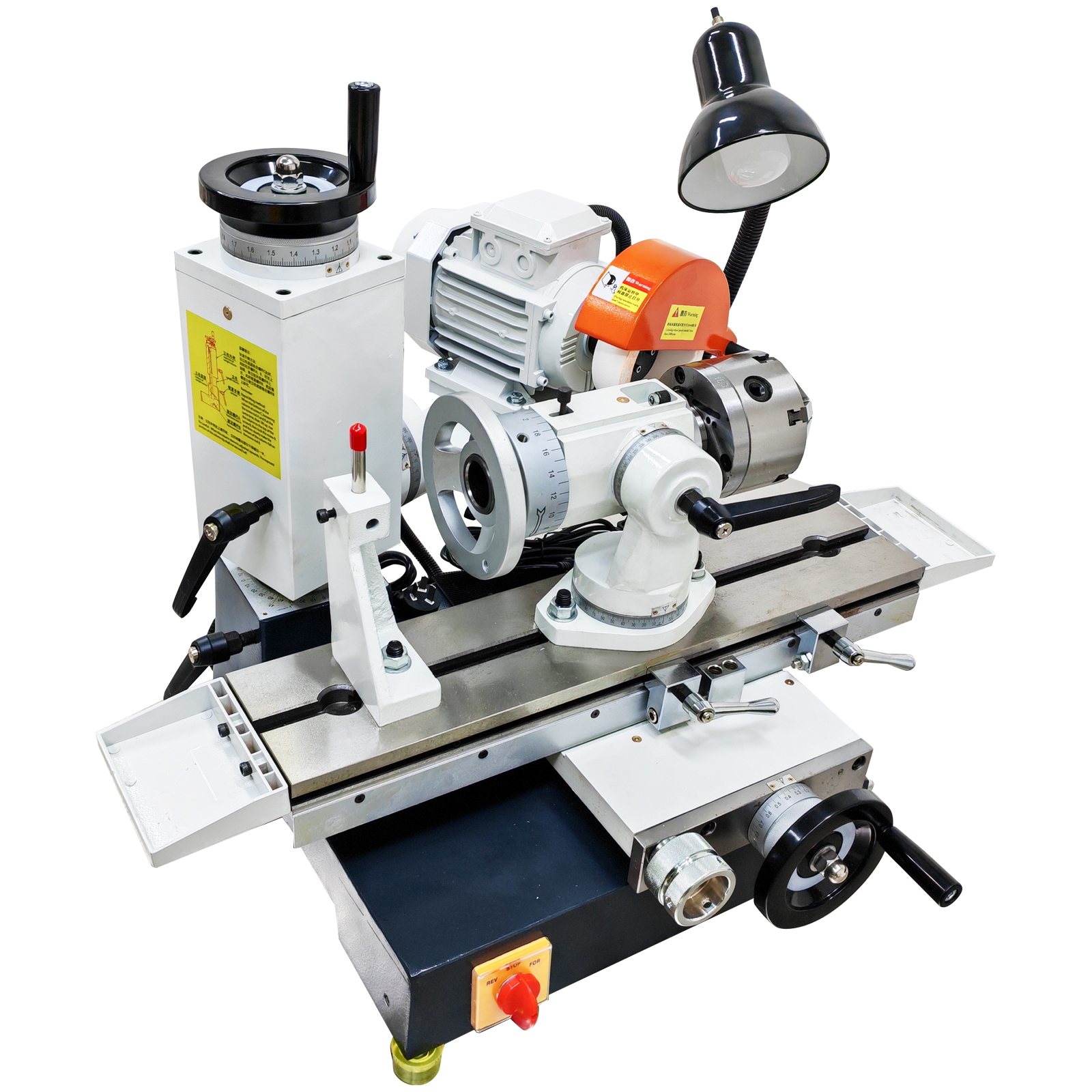

220V Universal Tool Grinding Machine

auxiliary equipment for metal cutting processing, used to sharpen a variety of metal cutting tools, mostly

used in tool factories and machine tool workshops.

Power: 0.55KW

Speed: 2800 RPM

Main material: cast iron

Left and right stroke of workbench: 270mm(10.63")

Front and rear travel of workbench: 150mm (5.91")

Workbench area: 130 x 550mm (5.12"x21.65")

Grinding wheel head lifting distance: 250mm (9.84")

Grinding wheel head rotation angle: 360 °

Grinding wheel size: 125 x 50 x 32mm

(4.92"x1.97"x1.26")

operate.

2. Adopting high strength and toughness FC300 cast iron to maintain mechanical accuracy for a long time

3. This machine is equipped with a 50K universal multifunctional tool grinder accessory, which can grind 2-50

drill bits, wire taps, chamfering cutters, side milling cutters, and round bars.

4. The motor can rotate 360°with grinding wheels on both sides. When grinding tools of different materials,

simply rotate the grinding wheel head to start grinding again without replacing the grinding wheel, which can

increase safety and reduce the exchange and repair of grinding wheels, and increase the controllability of tool

grinding.

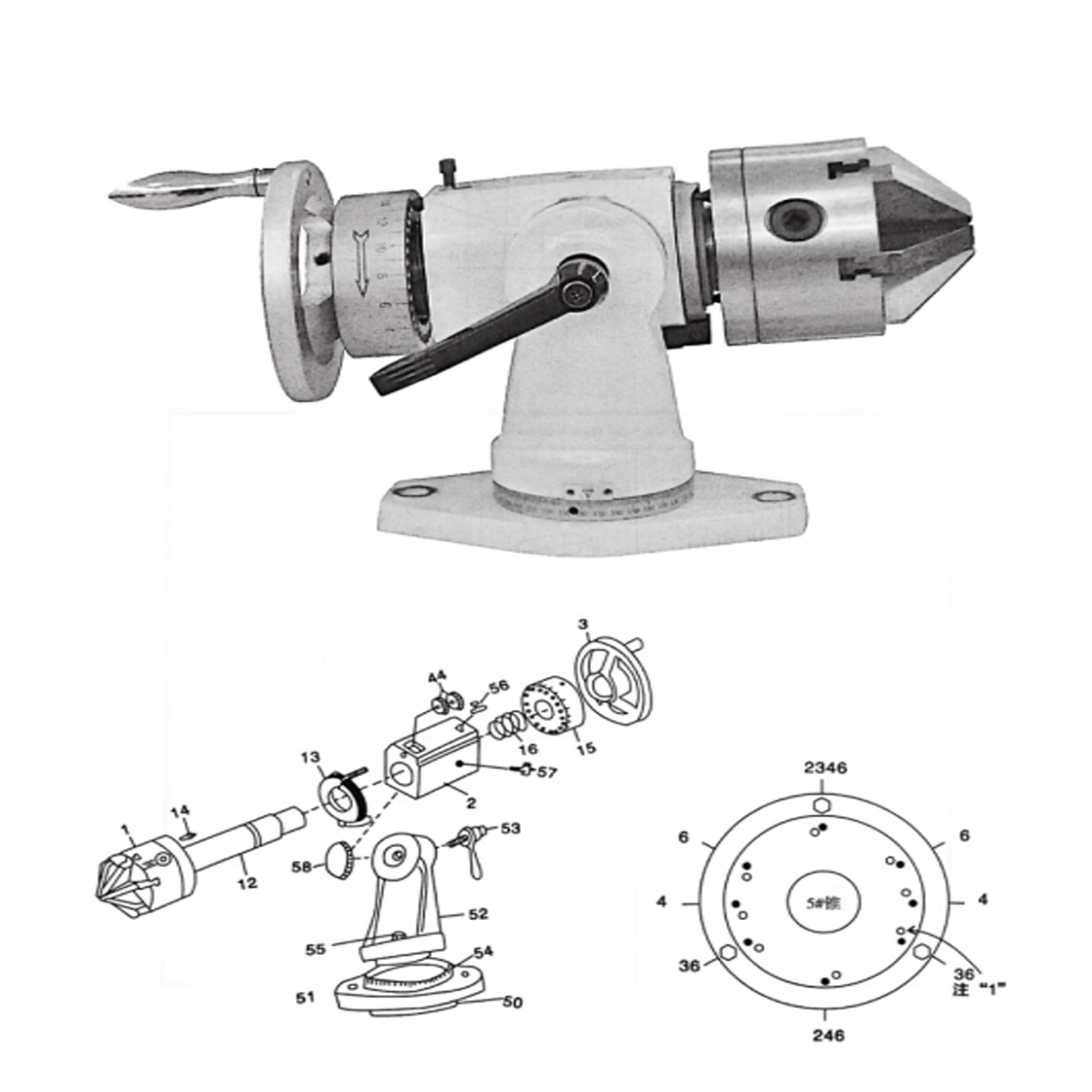

According to the position of the above photo of chuck (14) to decide the locking position of the center

For example :

1.When grinding the two blade drill bit ,locking the center (14) TO the number two.

2. The mark of ● screw hole is for the center location when grinding drill bit .stepped drill .tap.

3. The mark of O screw hole is the center location when grinding the chamfering knife.

4. The note ONE is the center location when grinding the single chamfering blade.

headstock is securely locked to the column and whether the column is securely locked to the base. Verify that

the electrical system is functioning normally.

2. When adjusting the grinding wheel vertically, first loosen the locking handle on the headstock. Turn the

handle.

3. The grinding machine's electrical system consists of one motor, one switch, and connecting cables. The

switch controls reverse, forward, and stop functions. With only one motor as the load, the user's power

supply must match the motor's specifications.

4. After operation, please remove fixtures, promptly clean metal chips and debris from the worktable surface,

and apply machine oil to unpainted surfaces to prevent rust.
