Dough hook*1

Wire whip*1

1. Do not put hands or tools into the machine during operation. Do not touch the running parts during operation.

2. The feeding quantity of food ingredients cannot exceed the rated quantity. Do not overload the machine.

3. Be sure to close the protective net during operation.

4. Ensure the power supply conforms to the parameters on the nameplate of the machine. Reliable grounding must be achieved.

5. Firmly lock the mixing bowl in the ascending process.

6. Ensure the mixing tools are installed in place and cannot loosen.

7. Do not push or move the trolley during operation.

8. Be sure to disconnect the power supply before cleaning. Do not directly flush the machine with clean.

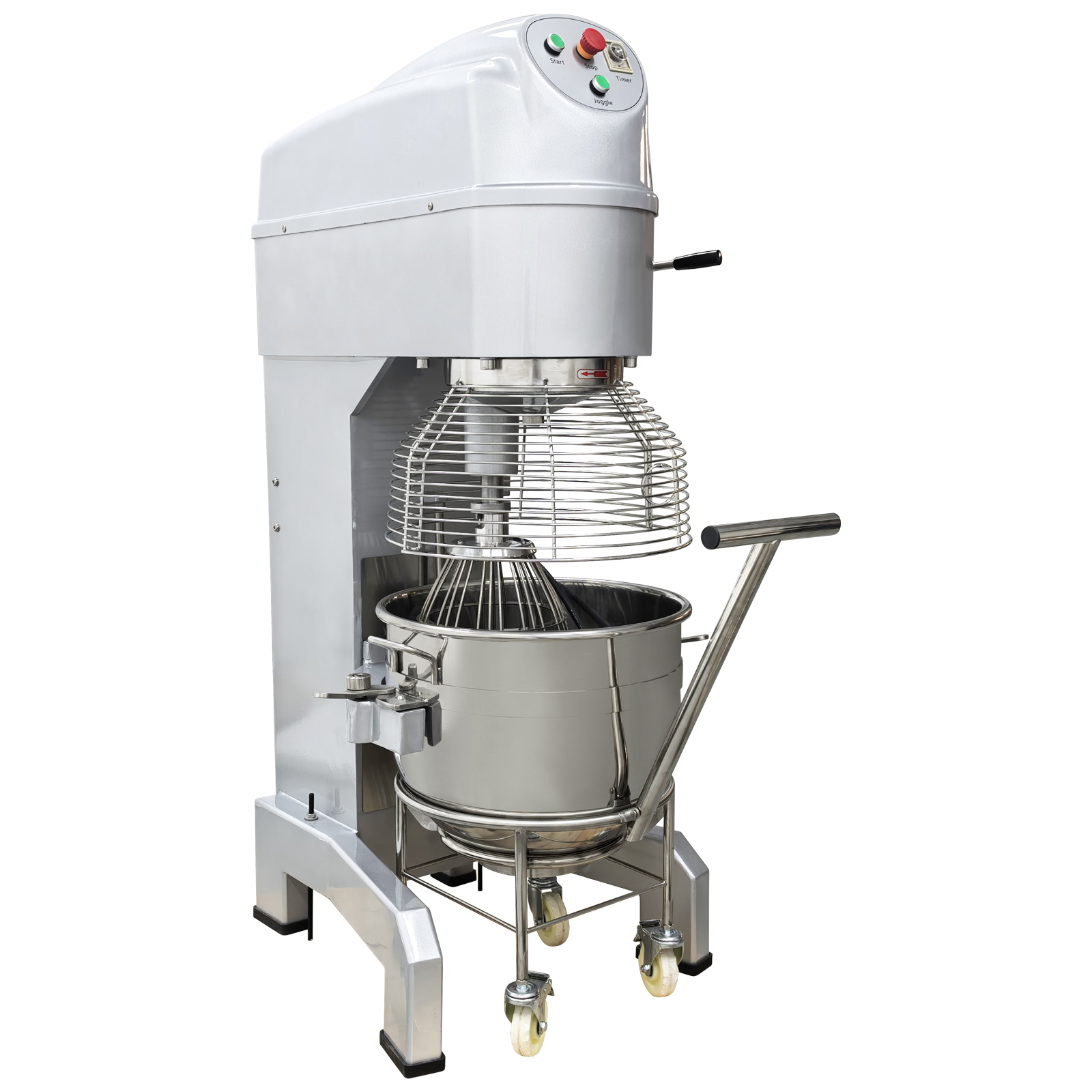

2. Space saving: Fulfilling multiple functions including flour mixing, egg whipping and stuffing blending, no need to purchasing different equipment, and saving the kitchen space.

3. Convenient operation: Achieving trolley transfer, one-button operation and quick disassembly of the bowl, and reducing the labor intensity and operation complexity. Using the handle to conduct 3-gear speed regulation, and meeting different mixing requirements.

4. Safety protection: Equipped with a protective net and E-stop switch, ensuring the safety of operators and equipment and effectively avoiding accidents.

5. Good hygiene: Made of high-quality stainless steel materials, easy to clean and disinfect, and meeting the food hygiene standards.

6. Wide application: Suitable for various shops and factories, such as restaurants, central kitchens and food processing plants.

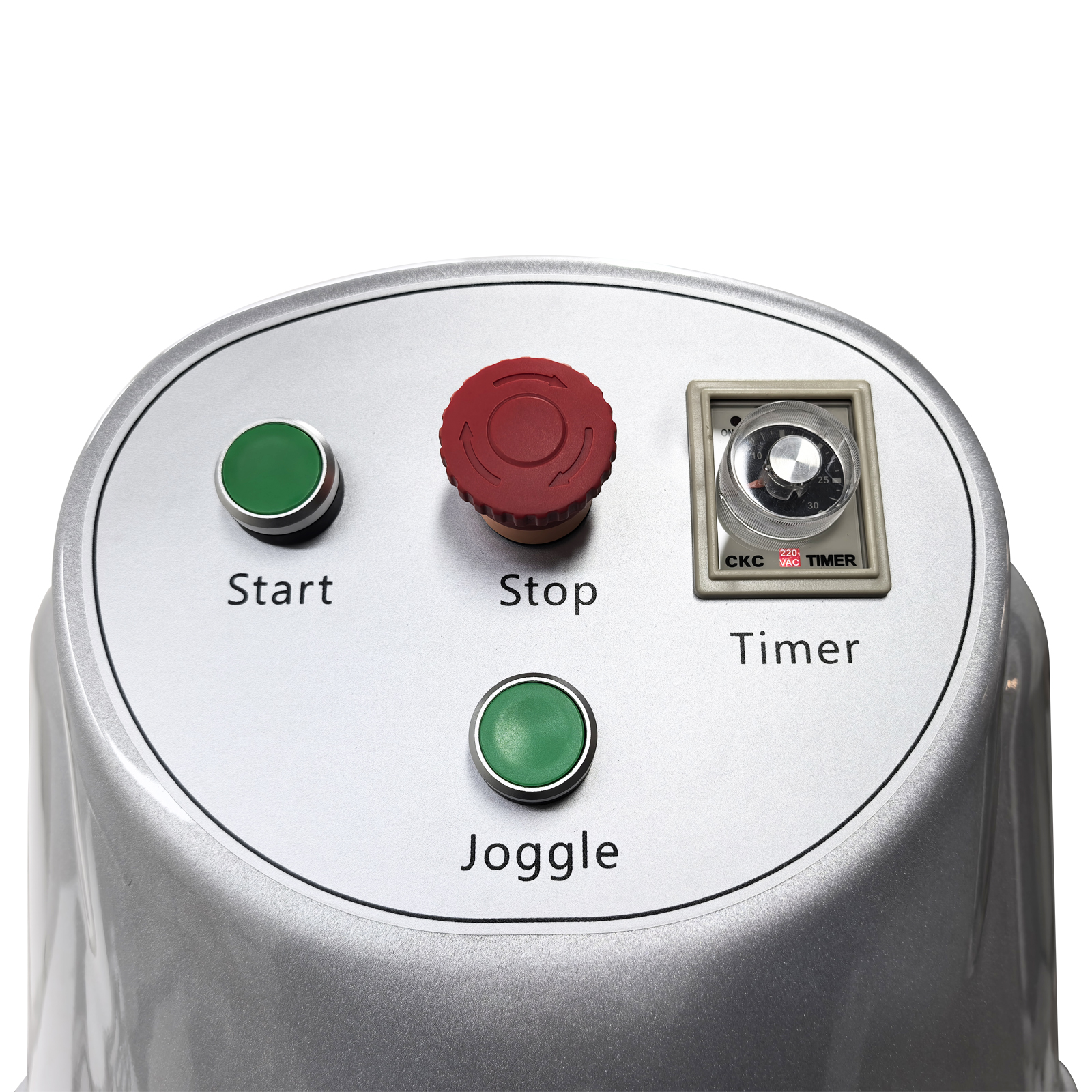

Control Panel

The control panel integrates the functions of start, stop, timing and joggle, achieving the manual and automatic modes, taking the efficiency and flexibility into account, improving the operation safety and reliability and well adapting to different working demands.
　

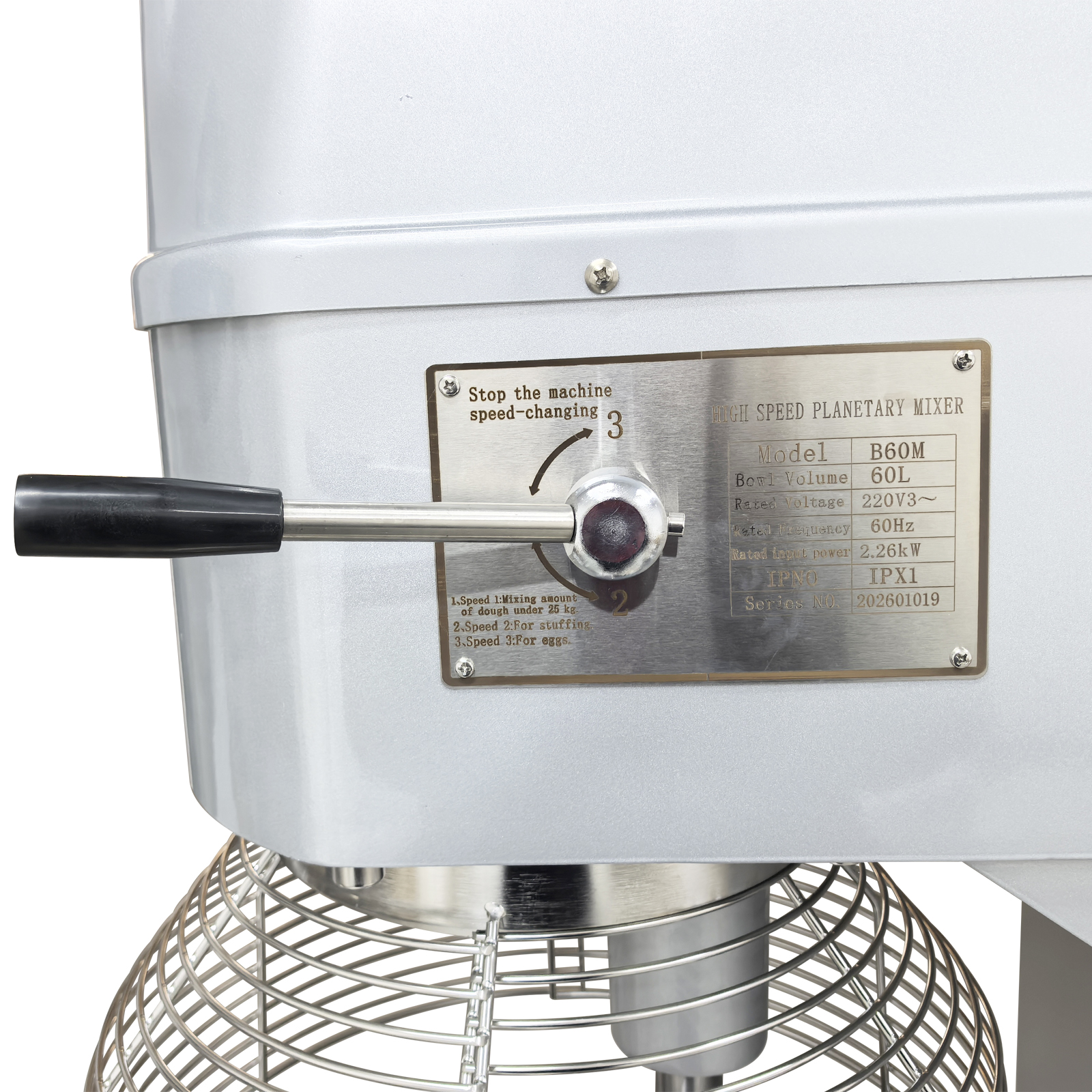

Speed Regulator

The machine adopts the multi-gear speed change design, different gears correspond to different mixing speeds so as to perfectly meet various processing requirements, and the ergonomic handle is simple and reliable and has low fault rate and long service life.
　

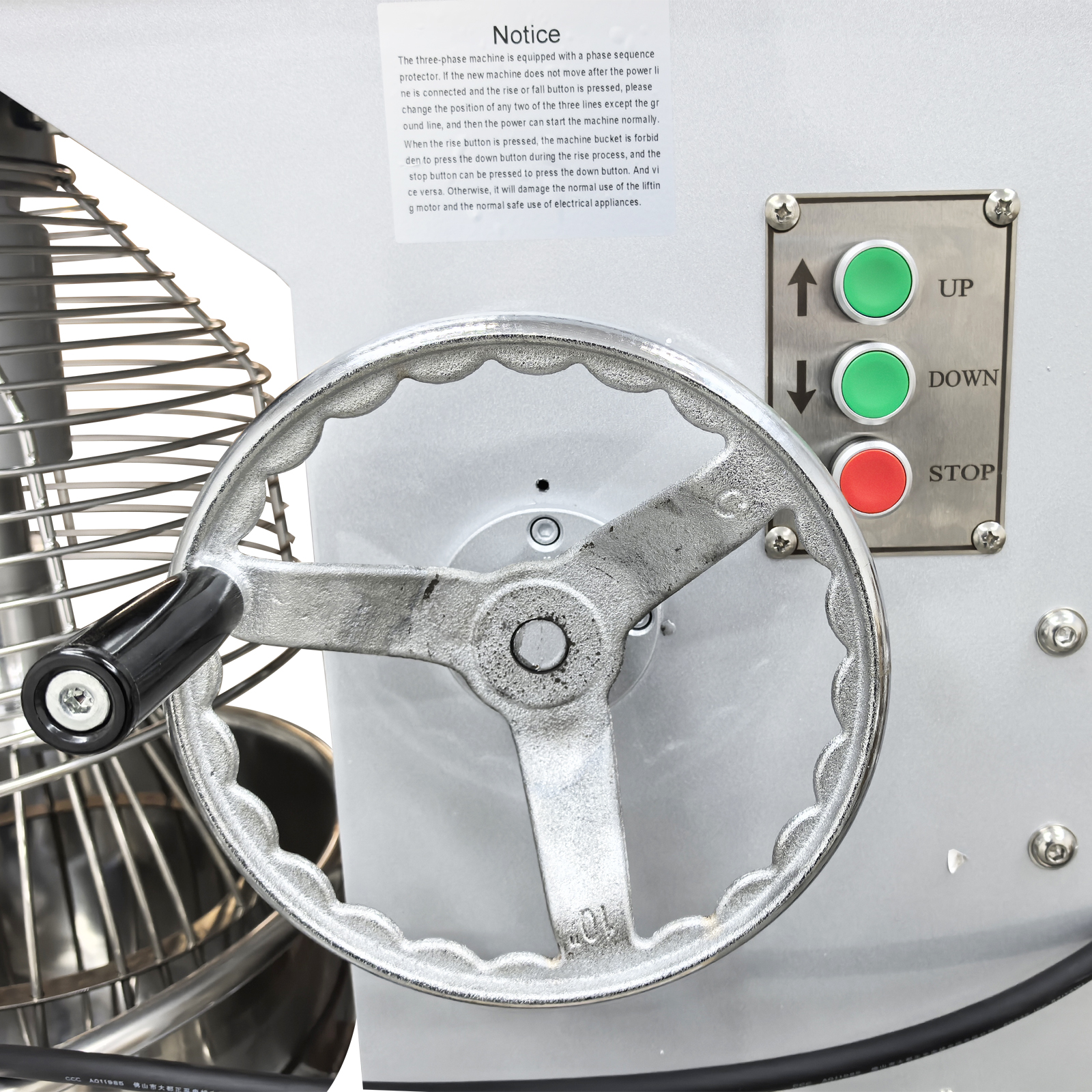

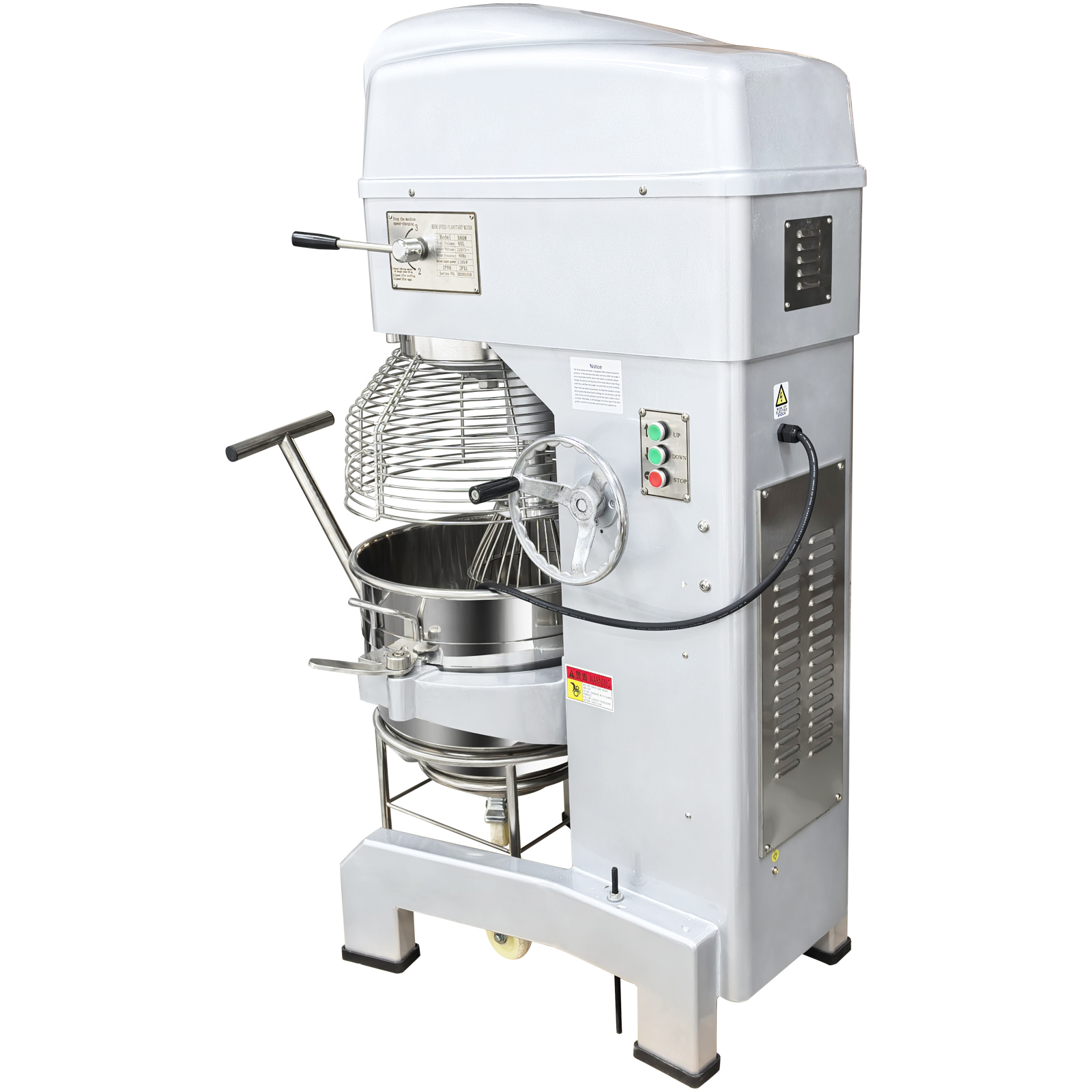

Lifting Mechanism

The handwheel and control buttons are combined to achieve the manual and electric lifting operation of the mixing bowl, and the reliable mechanical structure and efficient electric operation can ensure safe and stable lifting and guarantee the production continuity.
　

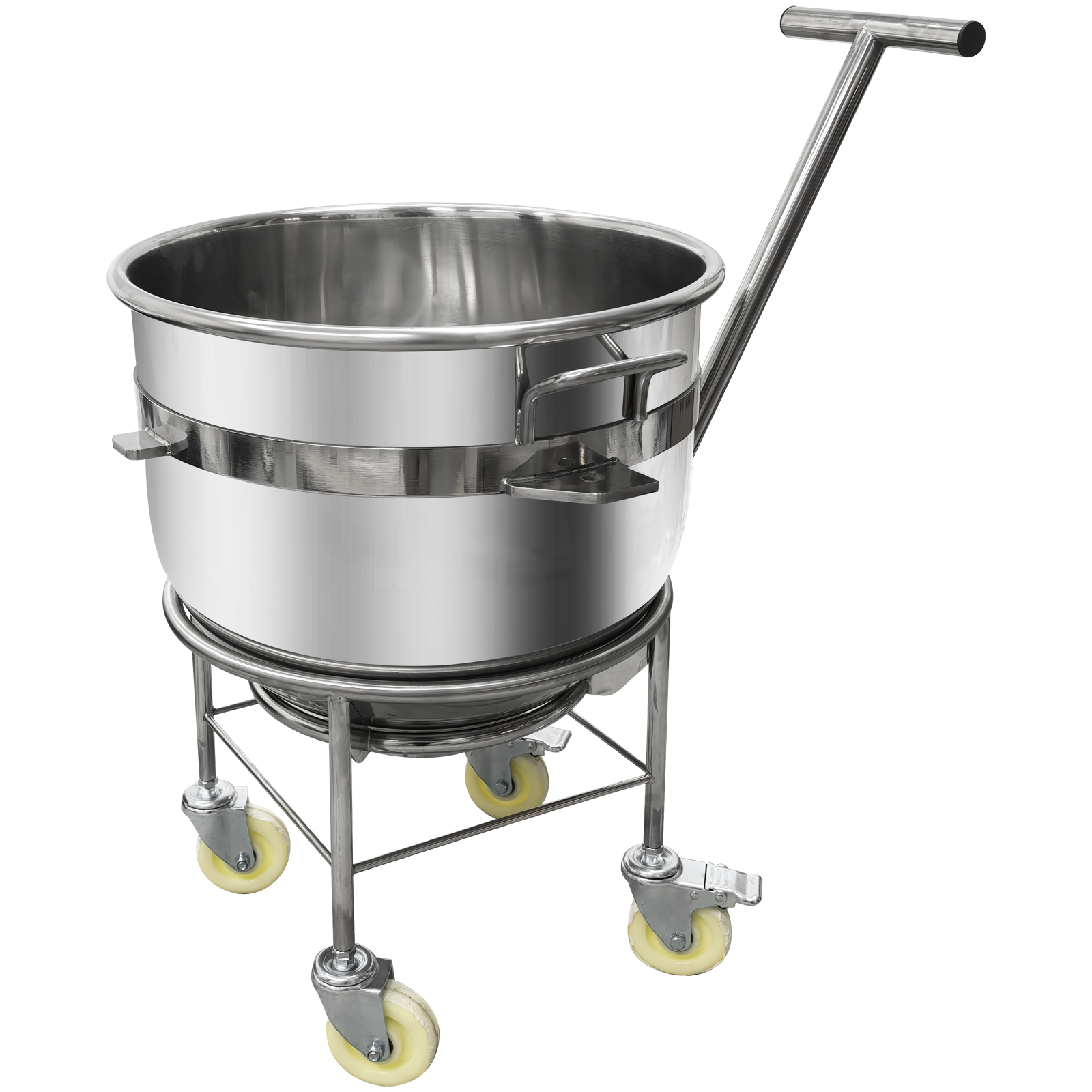

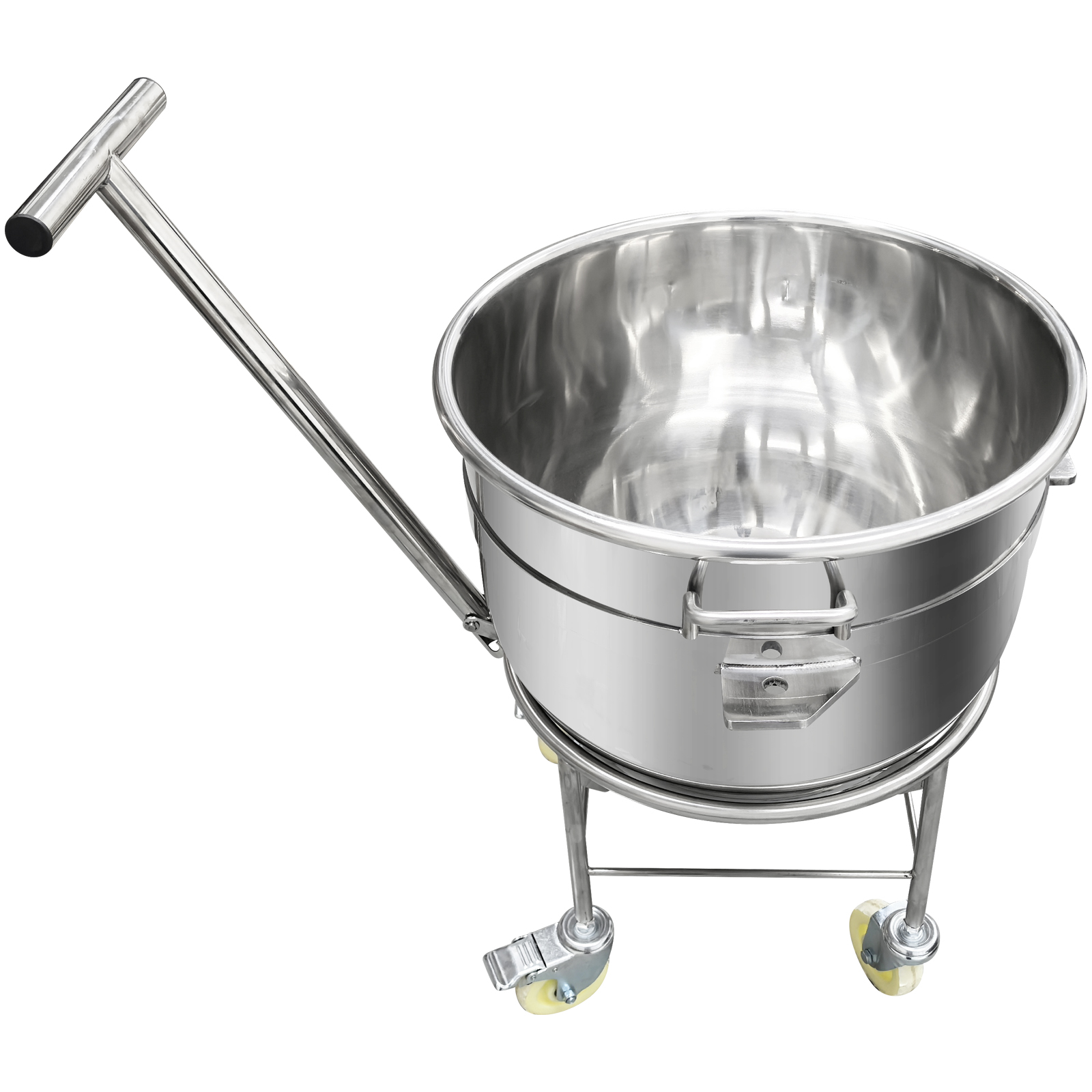

Mixing Bowl + Trolley

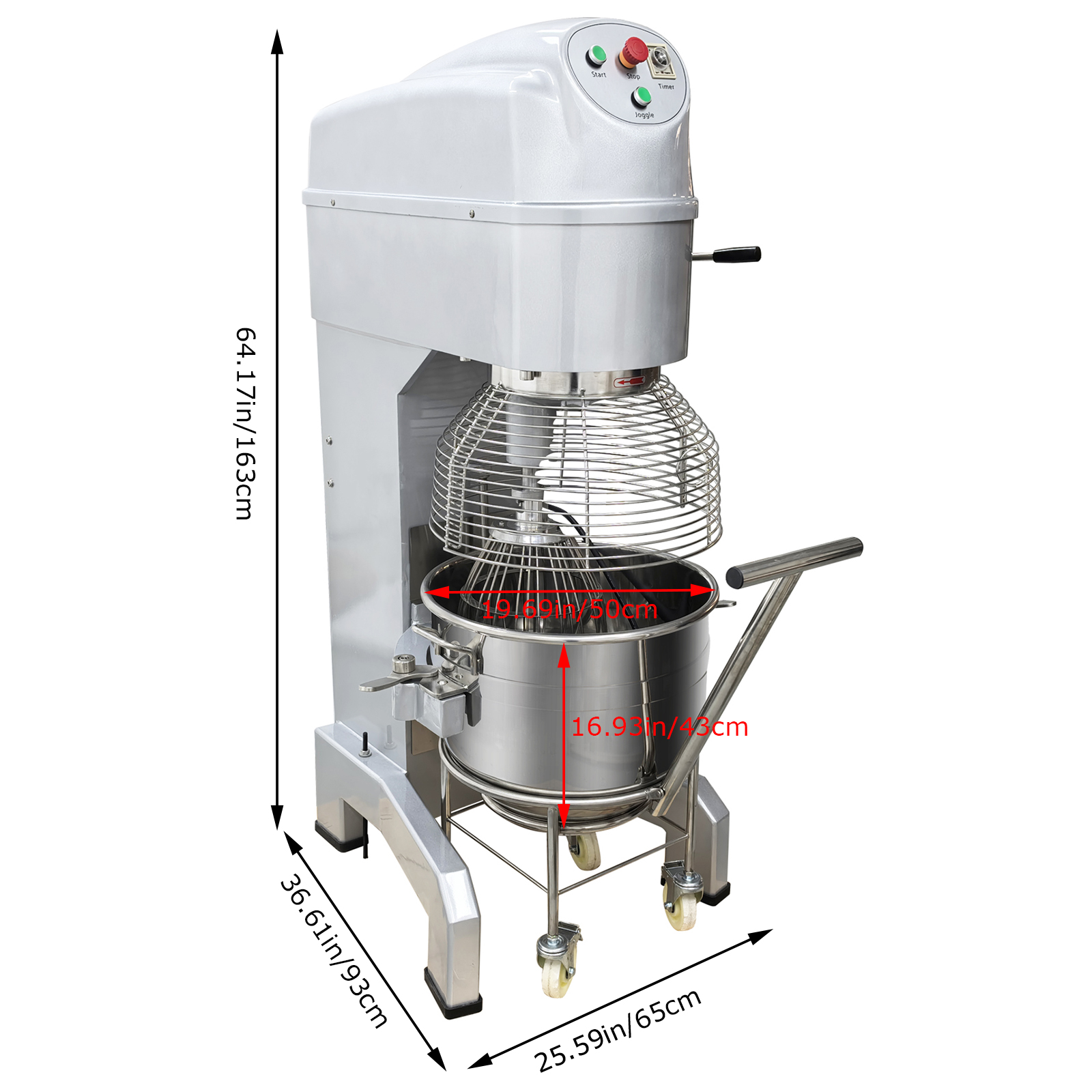

The 60L large-capacity mixing bowl is made of high-quality stainless steel, ensuring high structural strength, corrosion and rust corrosion and easy cleaning. The trolley is additionally designed for flexible transfer and stable fixing of the mixing bowl, and improves the user experience.
　

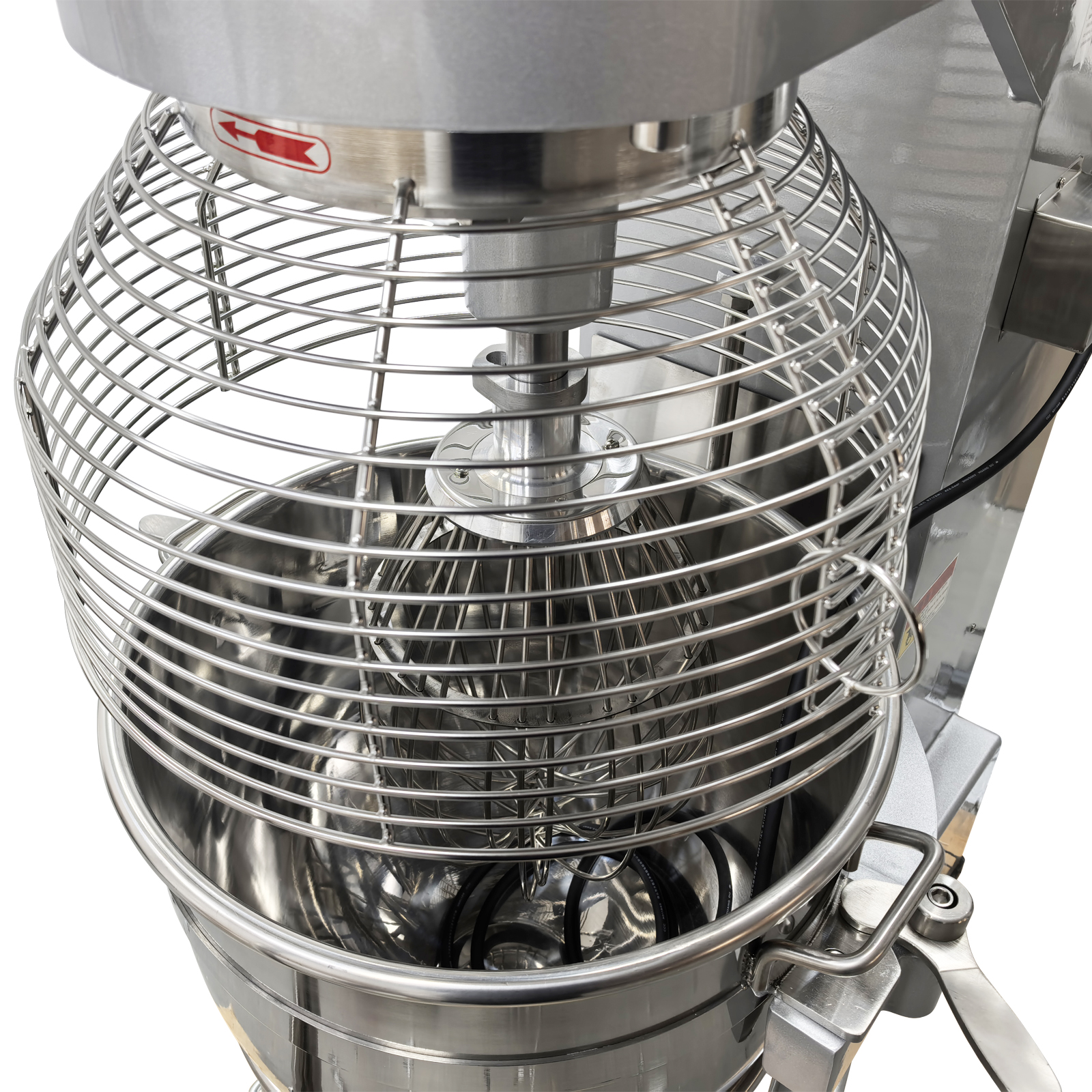

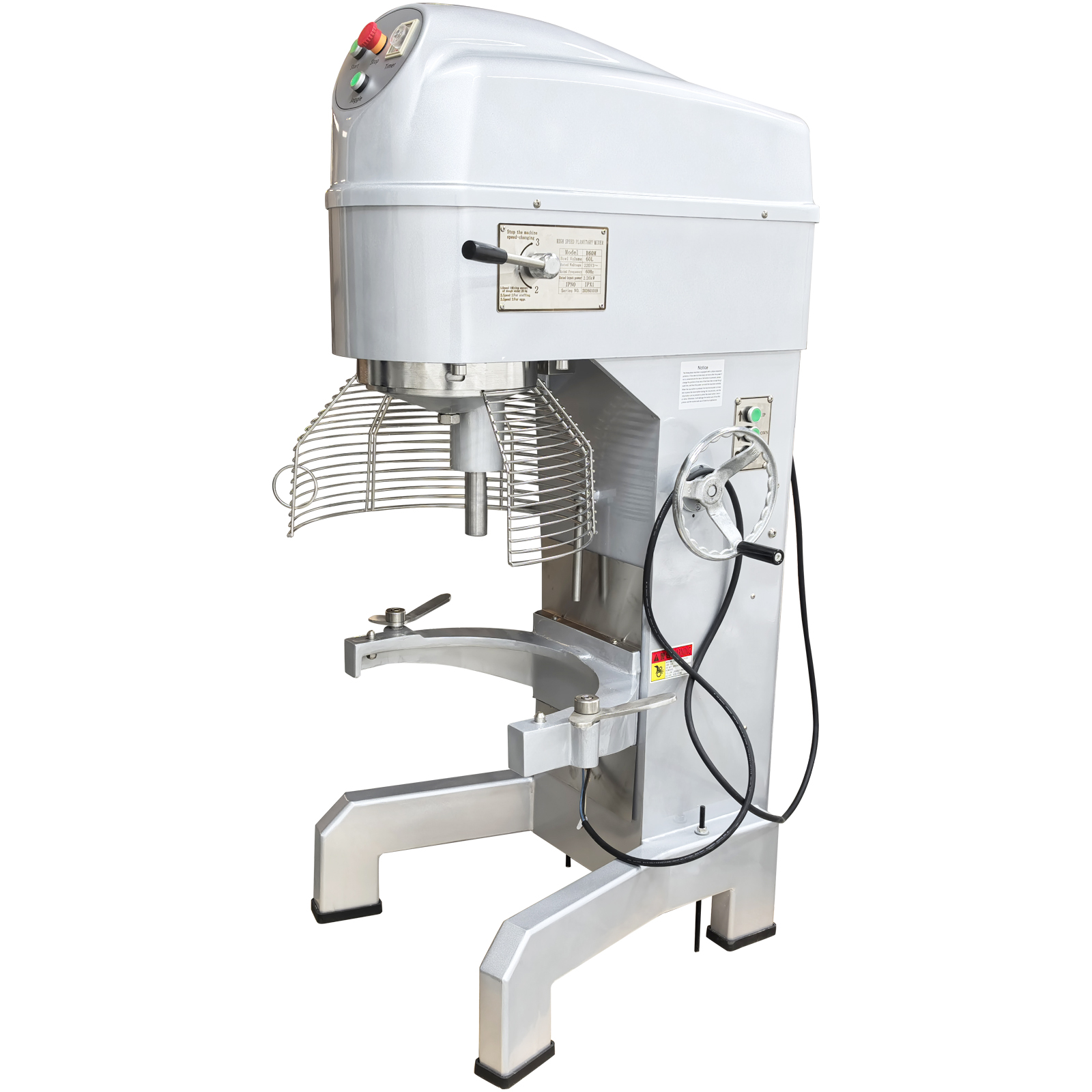

Protective Net

The stainless steel protective net is firm and durable, resistant to impact and deformation and easy to clean and disinfect. It can effectively protect the operator from scratches and injuries, allows the operator to clearly observe the mixing state in real time and ensures the safety and practicability.
　

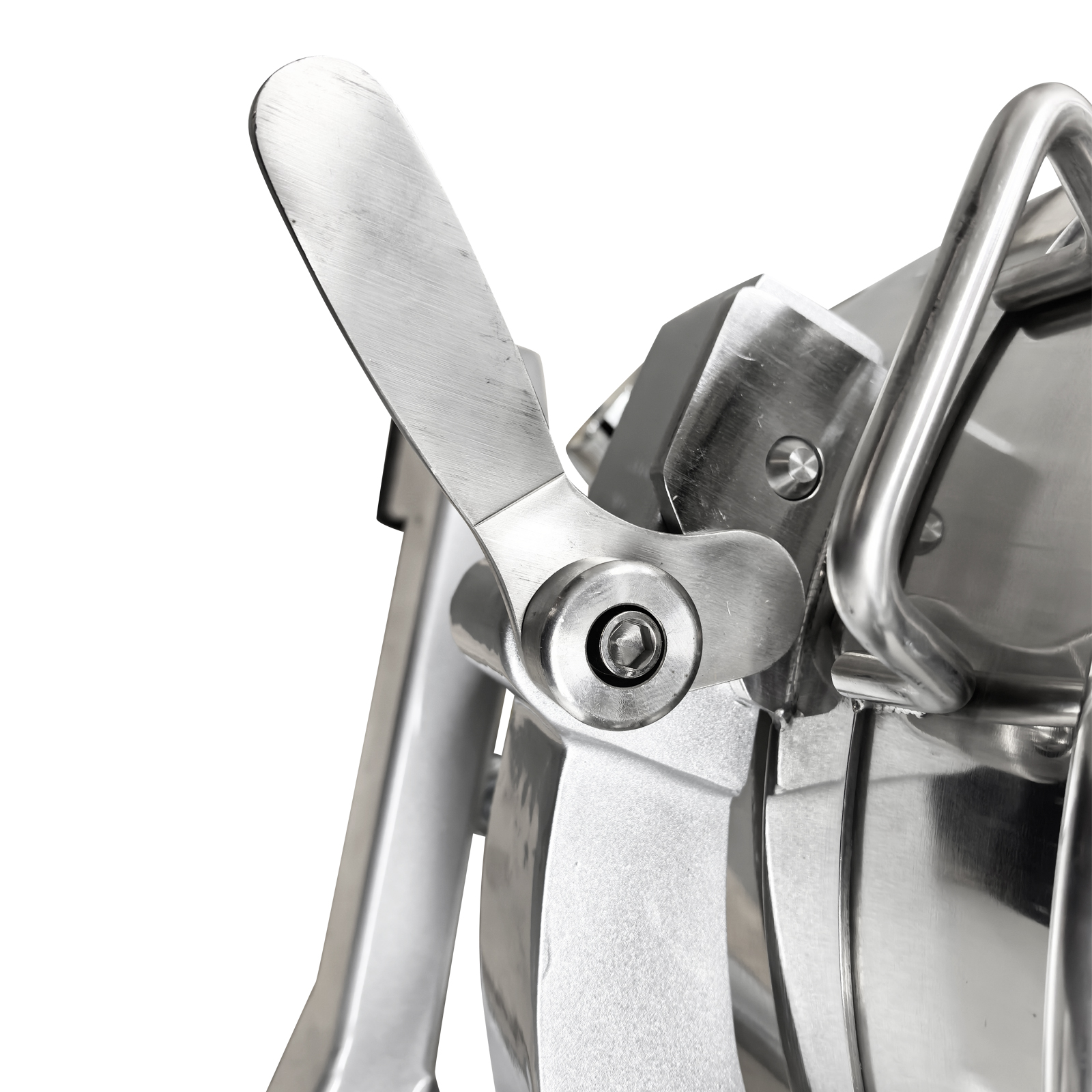

Locking Handle

The ergonomic handle is designed to effectively fix and release the mixing bowl as needed, prevents the mixing bowl from falling off during lifting, and improves the mixing stability. It is simple in structure and easy to operate, and effectively reduces the labor intensity.
　

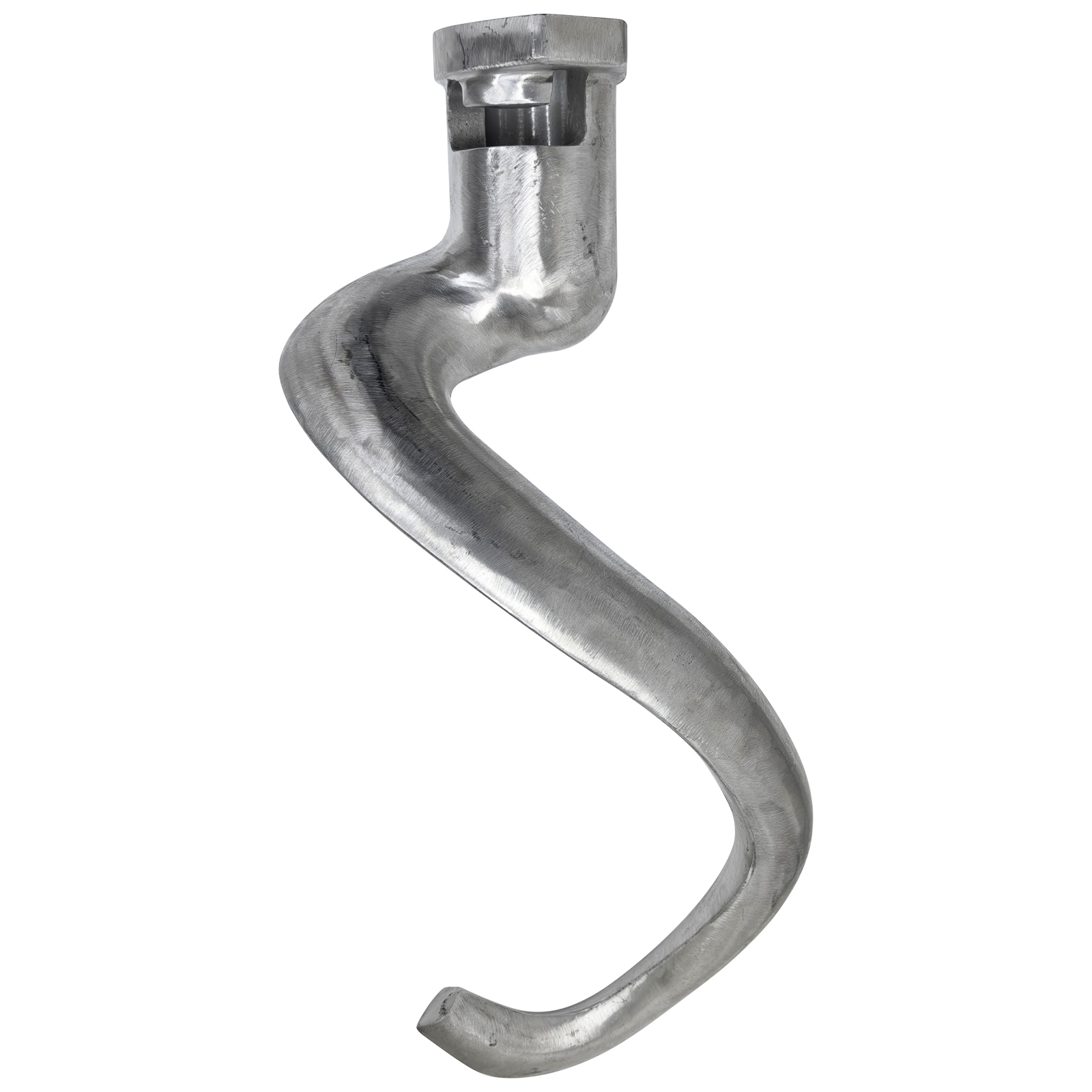

Dough Hook

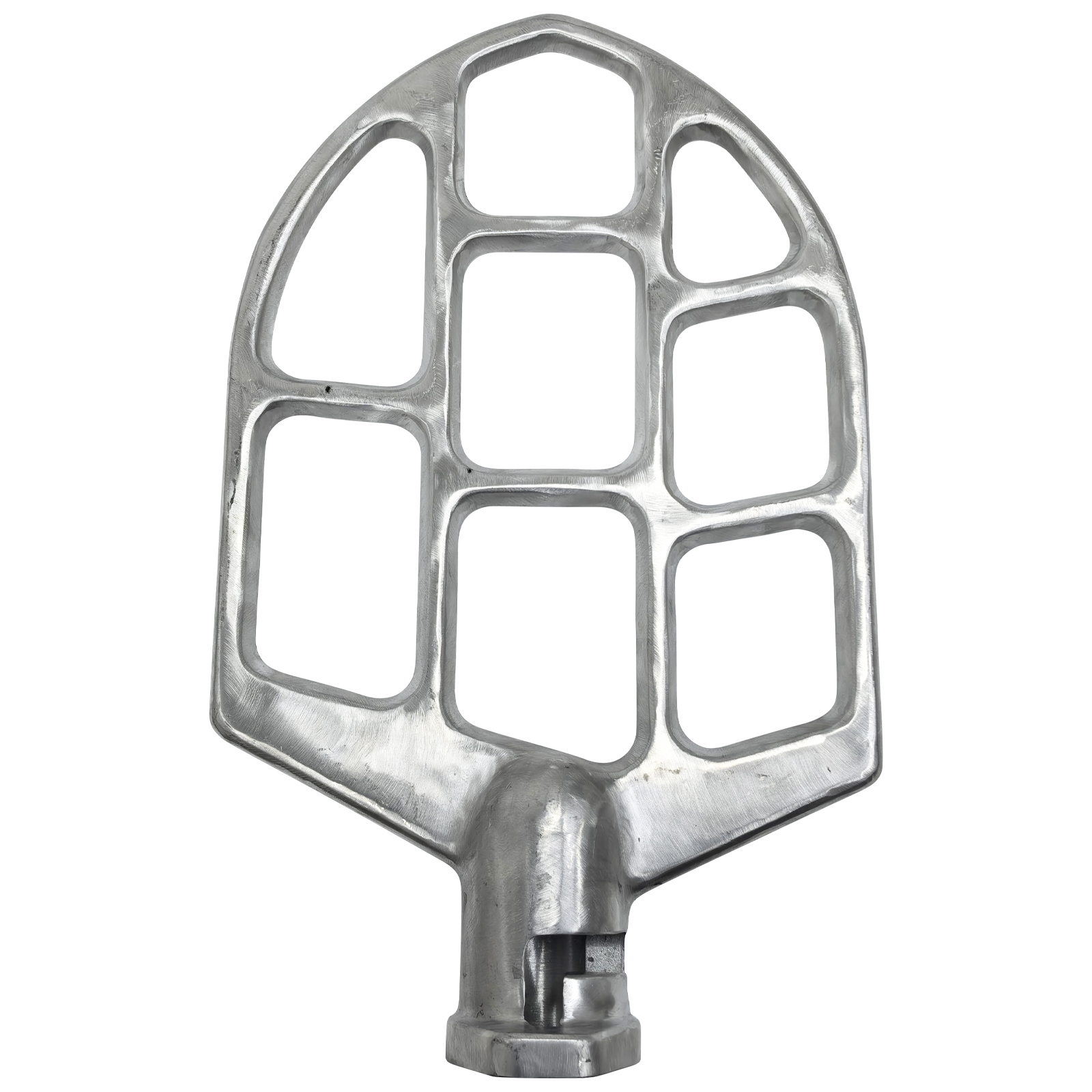

Flat Beater

Wire Whip

-- Flat Beater: Used to mix the filling and ingredients at medium speed. The working time should not exceed 20 minutes.

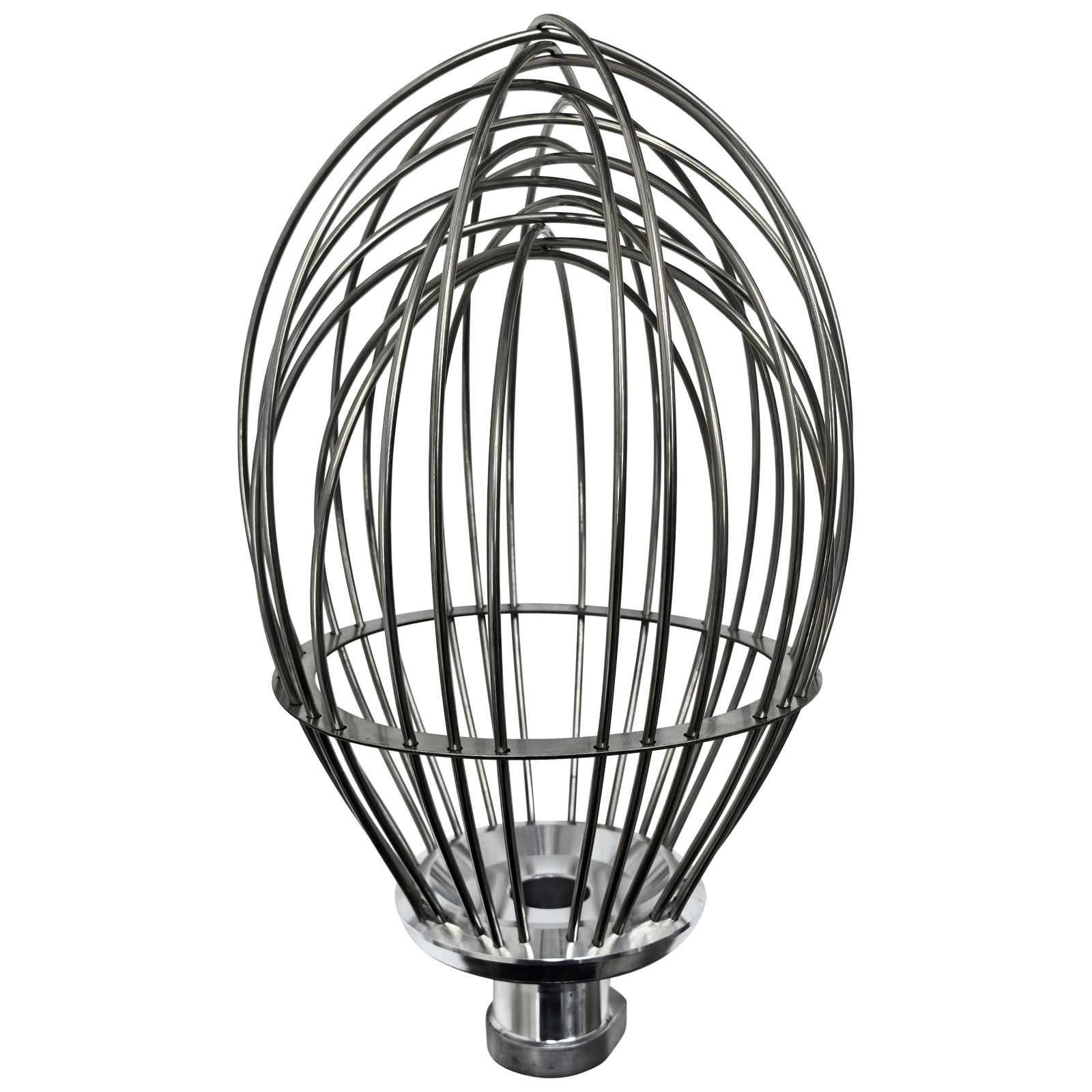

-- Wire Whip: Used to mix cream and eggs at high speed. The working time should not exceed 15 minutes.

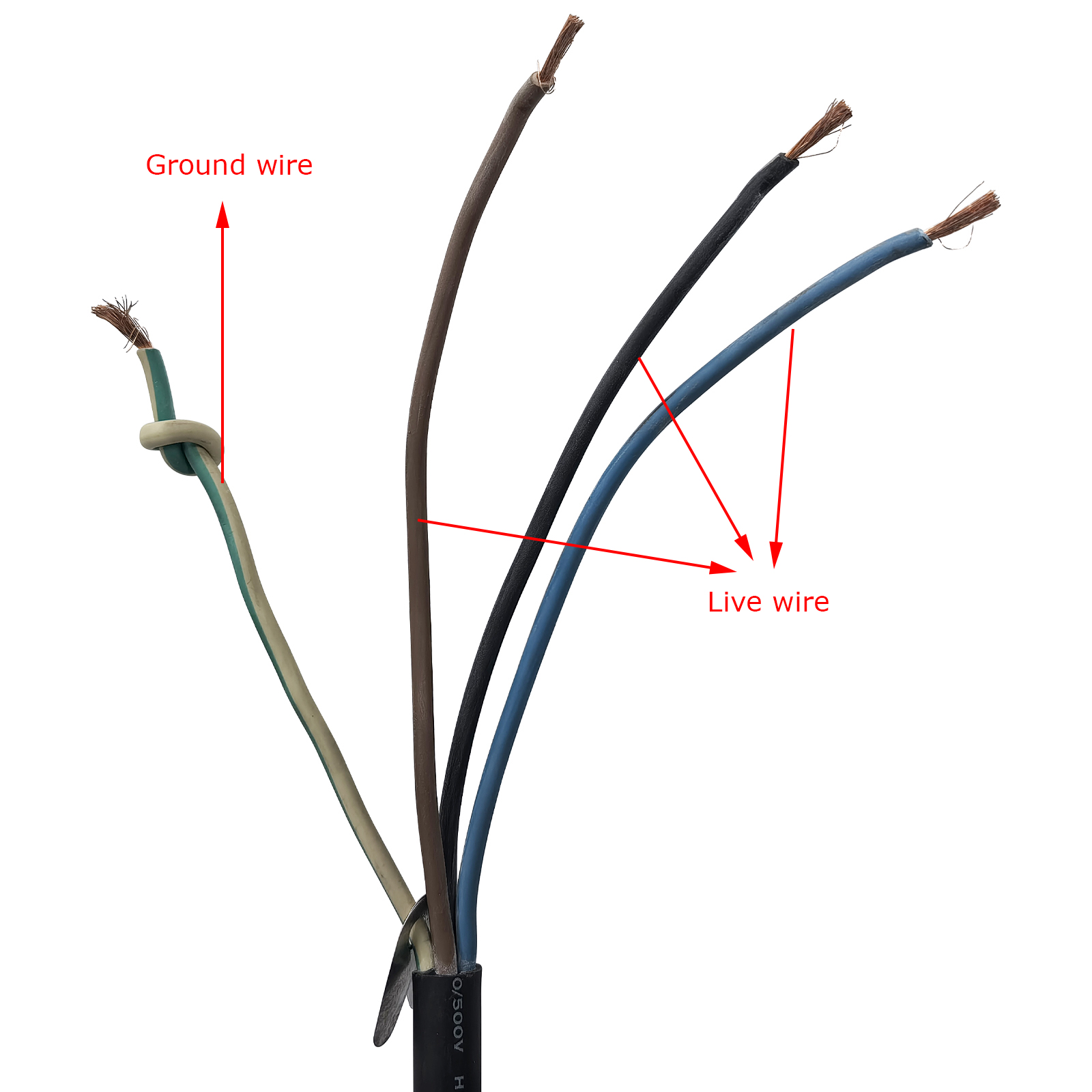

1. Connect the machine to the 220V 3-phase power supply with reliable grounding.

2. Place the trolley below the mixing bowl, pull the fixing handles on the two sides to loosen the mixing bowl, rotate the handwheel or press the DOWN button, and the mixing bowl descends to the trolley.

3. Open the protective net, pour the appropriate food ingredients into the mixing bowl, install the appropriate mixing tool and close the protective net.

4. Align the mixing bowl with the cantilever, rotate the handwheel or press the UP button, and pull the fixing handles to fix the mixing bowl after the cantilever lifts the mixing bowl.

5. After lifting the mixing bowl in place, set the mixing time through the timer, turn the Stop switch to bounce it up, press the Start button, and the mixing tool begins mixing at the low speed. Pull the speed handle to adjust the mixing speed as needed.

6. After mixing, pull the speed handle to the gear 1, press the Stop switch, and the machine stops mixing.

7. Repeat the step 2, and the mixing bowl can descend to the trolley.

8. Open the protective net, disassemble the mixing tool, transfer the mixing bowl through the trolley, and take out the mixture.

9. Disconnect the power supply, clean the mixing tool and mixing bowl thoroughly and wipe the machine clean.
