Fully
Automatic Pneumatic Hamburger Patty Forming Machine 30L 110V |
|
|
|
|
|
|
 |
|
Product
Overview |
| The fully automatic meat patty
forming machine can automatically complete the working processes
of stuffing filling, forming, paper adhesion, output and so on.
It can produce popular products in the market, such as hamburger
patties, McNuggets, fish flavored burger patties, potato cakes,
pumpkin cakes and meat skewers. It is an ideal meat (vegetable)
forming device for fast food restaurants, distribution centers
and food factories. |
|
|
Product
Parameters |
|
Power supply |
110V 60Hz American standard |
|
Power |
550W |
|
Air pressure |
6Bar |
|
Productivity |
35pcs/min |
|
Capacity of meat bucket |
30L |
|
Diameter of meat patty |
120mm (4.72in) |
|
Thickness of meat patty |
8-20mm (0.31-0.79 inch), adjustable
|
|
Width of mesh belt |
130mm (5.12in) |
|
Noise |
≤85dB |
|
Working temperature |
0-30˚C |
|
 |
|
Attention |
|
1. Please prepare an air compressor by yourself.
2. During the operation of the equipment, it is
prohibited to put hands into the transmission device. Prevent
danger from occurring.
3. The temperature of food and meat: ≥0˚C.
4. Place the device at the desired working
position, keep it ≥500mm away from the wall and lock the casters
for easy maintenance and repair.
5. Regularly check the transmission, bearings and
chains, and replenish oil in a timely manner. The regular
schedule can be every two months. |
|
|
Product
Features |
|
1. The machine is multipurpose, suitable for a
wide range of raw materials, and rich in products. The machine
is suitable for processing chicken, beef, lamb, fish, shrimp,
potatoes, pumpkin, carrots, green beans, soft vegetable mixture,
etc.
2. Adjustable thickness: 8-20mm. The default
diameter of the mold is 12cm. If you need other diameters,
please feel free to consult.
3. It can be used in conjunction with devices
such as powder (paste) feeding machines and deep fryers.
4. Operation is convenient, and you only need to
put the raw materials into the material bucket. The 30L
large-capacity material bucket is adopted, and there is no need
for frequent feeding. The machine has a high degree of
automation.
5. Changing the product shape is quick, and you
only need to replace the mold (the default mold is circular, if
you need other shapes, please feel free to consult).
6. The machine is made of 304 stainless steel, so
it is easy to clean and maintain. |
|
|
|
|

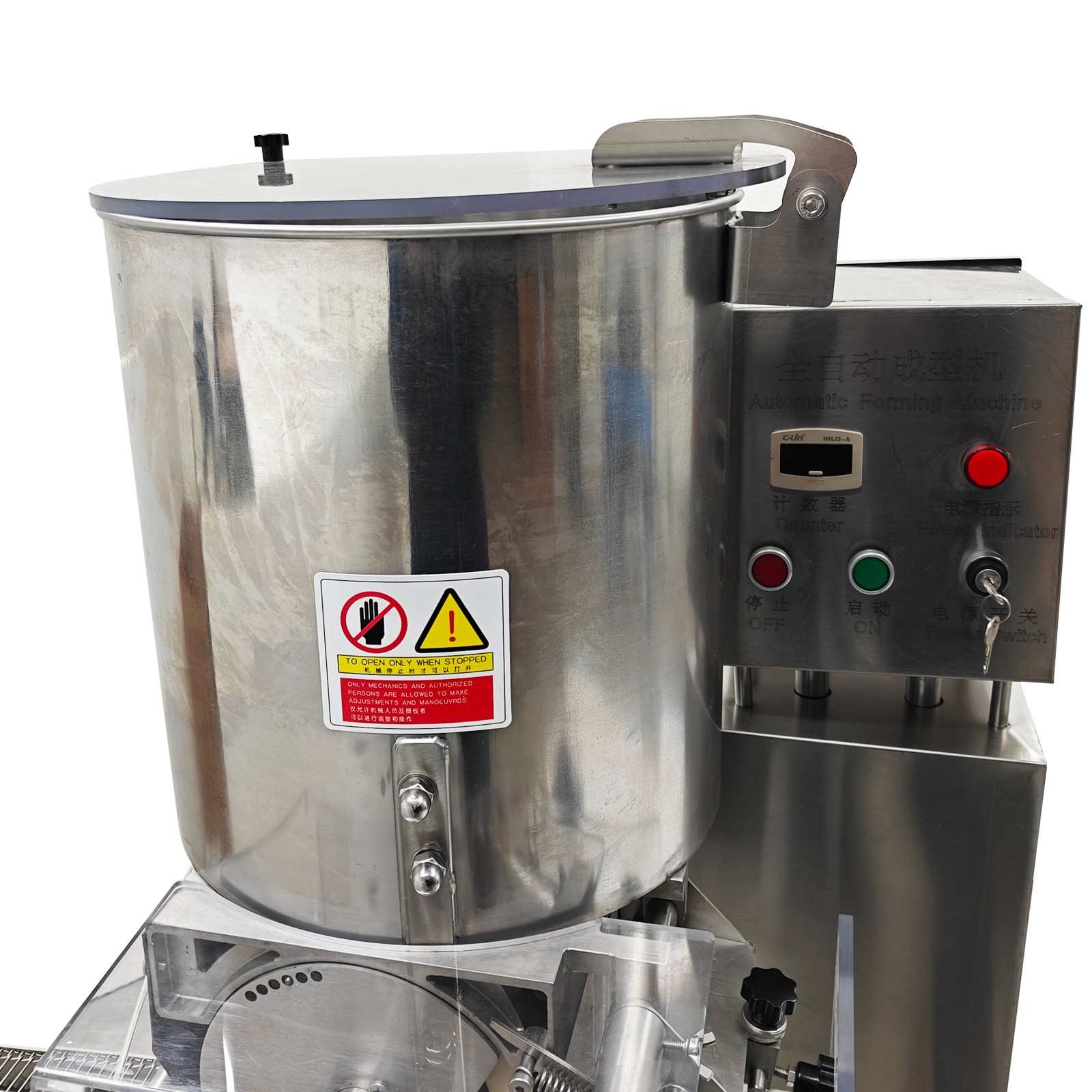

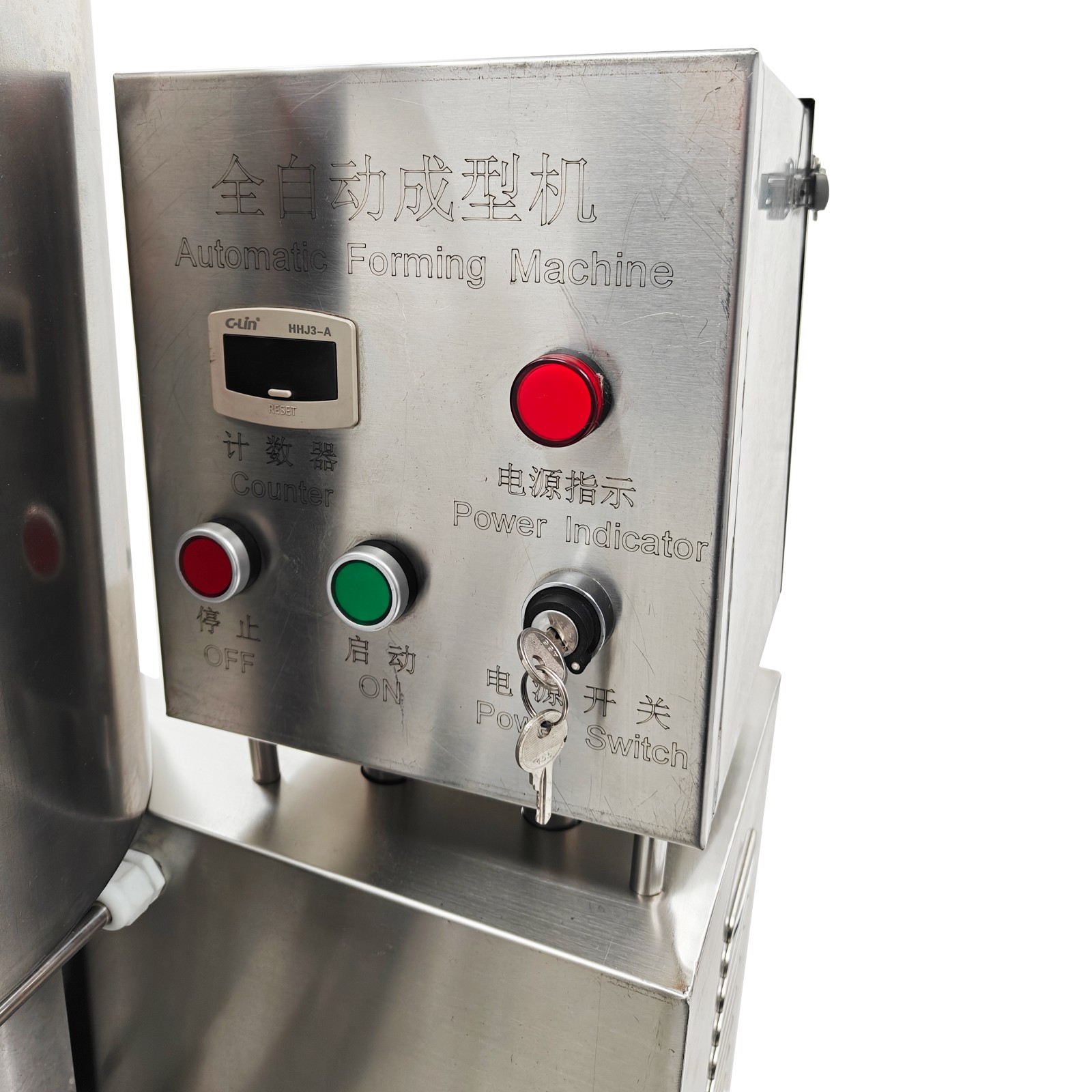

Control Box
The control box integrates control switches
and the counter, has the advantages of simple operation,
one-button start and stop, convenient counting, high safety,
fast starting and high working efficiency.
|
|
Mixing Bucket
The
stainless steel bucket has a large capacity of 30L, and is high
in structural strength and stability, and easy to clean and
maintain. The transparent cover is matched with the mixing
bucket to avoid pollution and facilitate observation. |
|
|
|
|

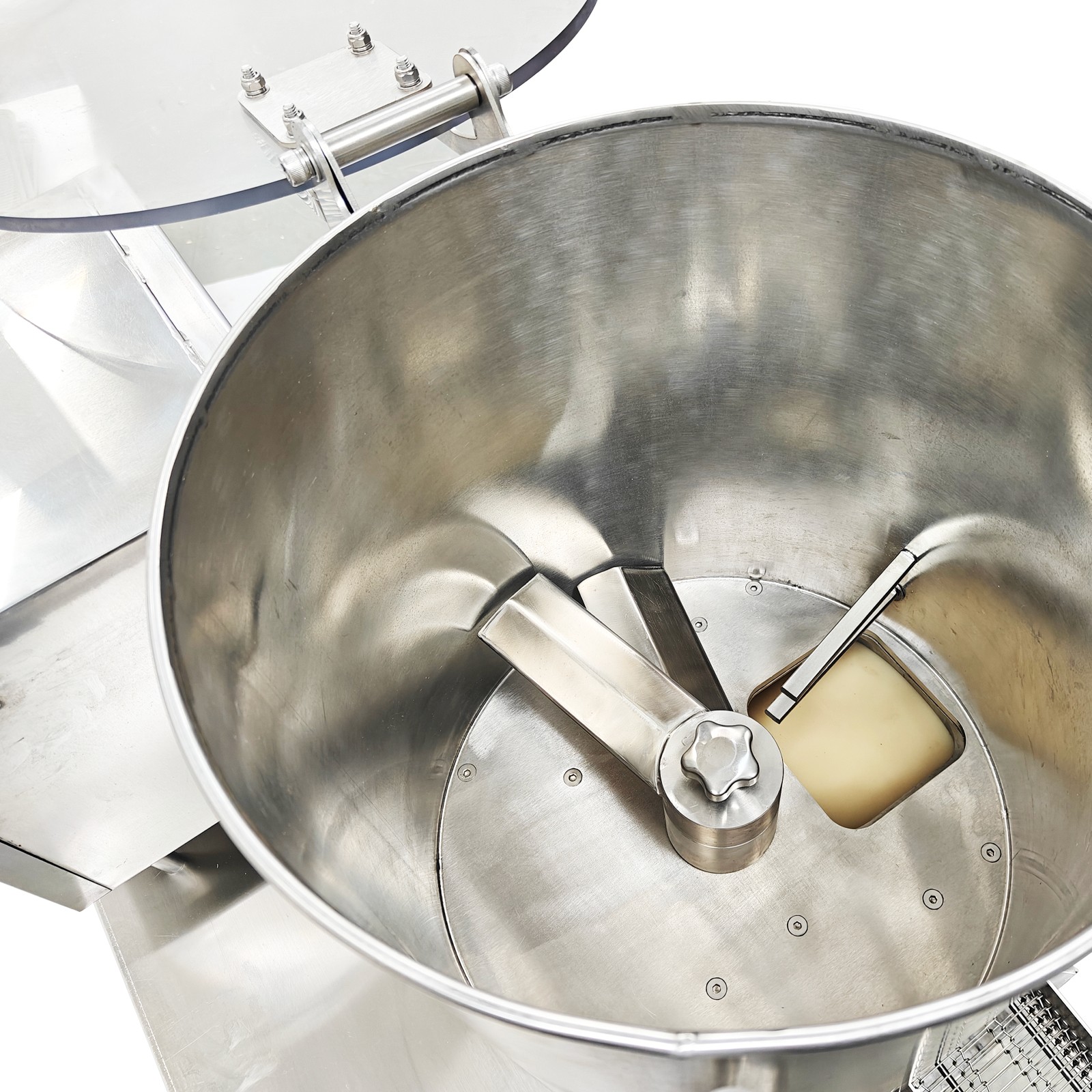

Mixing Assembly
The
stainless steel mixing blades can mix raw materials evenly and
effortlessly, facilitating better forming of meat patties and
improving the mixing efficiency and forming quality. The mixing
blades are easy to clean and replace. |
|

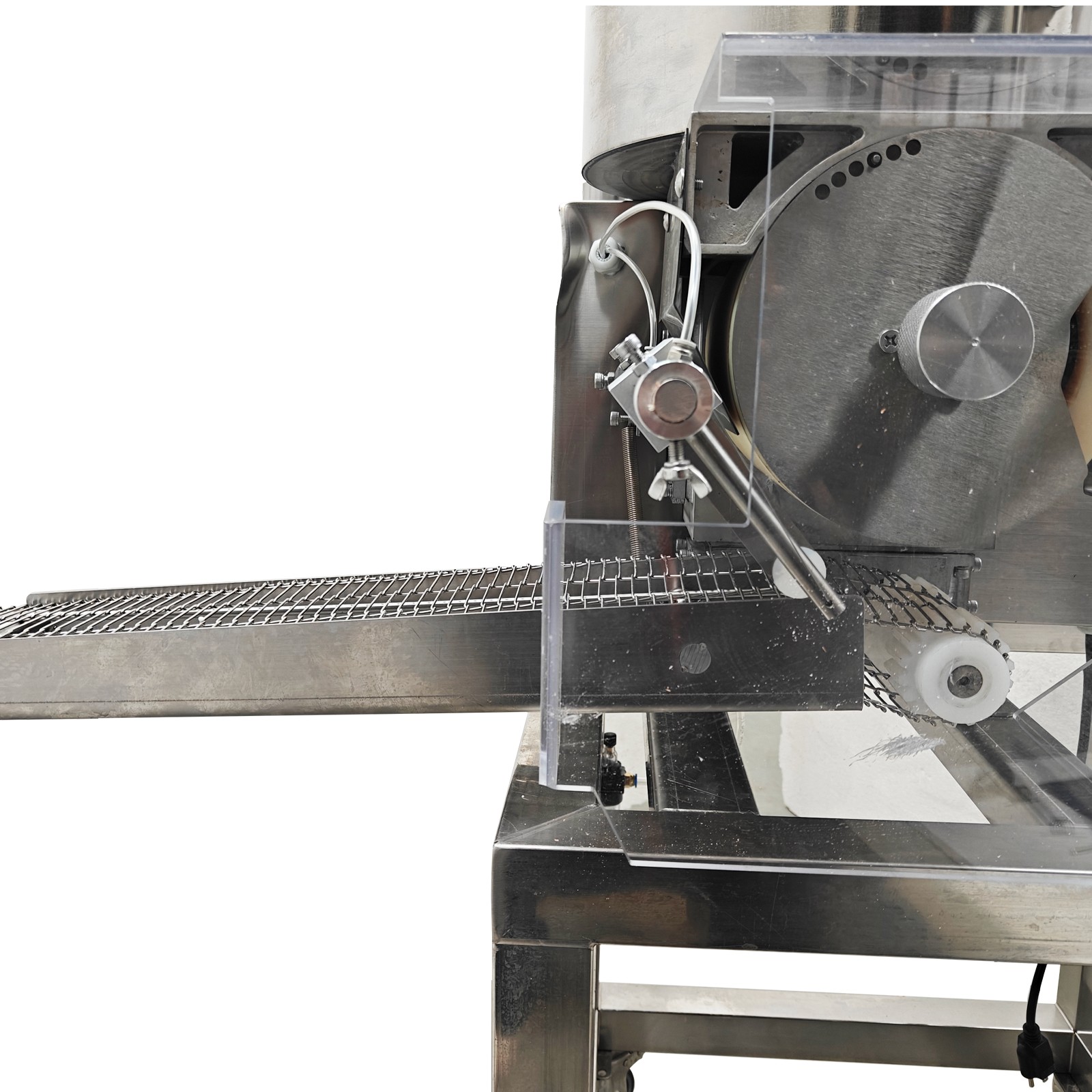

Forming Roller
The
forming roller is adopted to achieve quick forming and is high
in working efficiency and wide in application range. The forming
roller is protected by a transparent protective cover, and the
safety and food hygiene are well kept. |
|
|
|
|

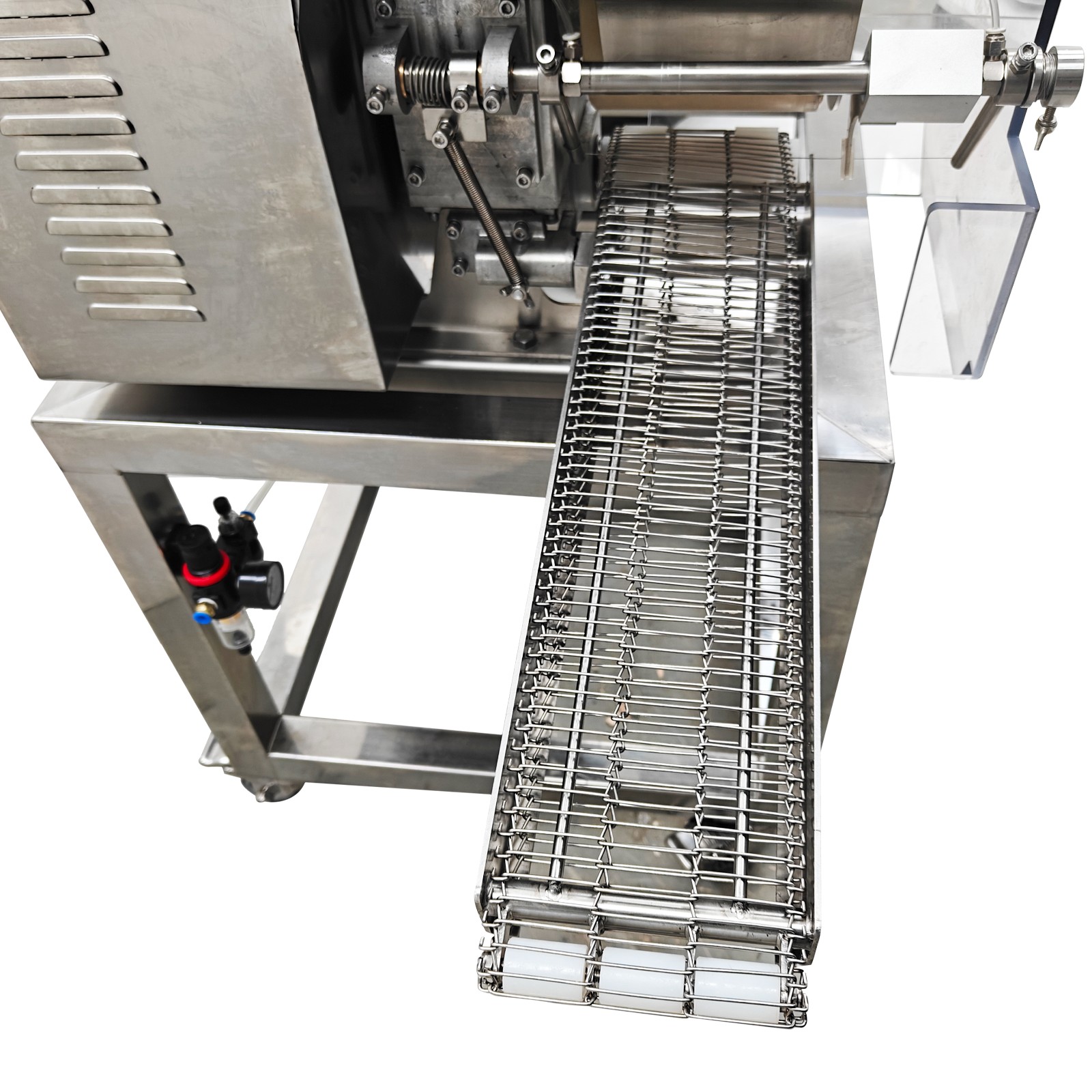

Mesh Belt Conveyor
The
mesh belt conveyor is convenient to convey, easy to disassemble
and clean, stable and durable. The finished products can be
conveyed stably and quickly and are not prone to being attached
to the conveyor belt. |
|

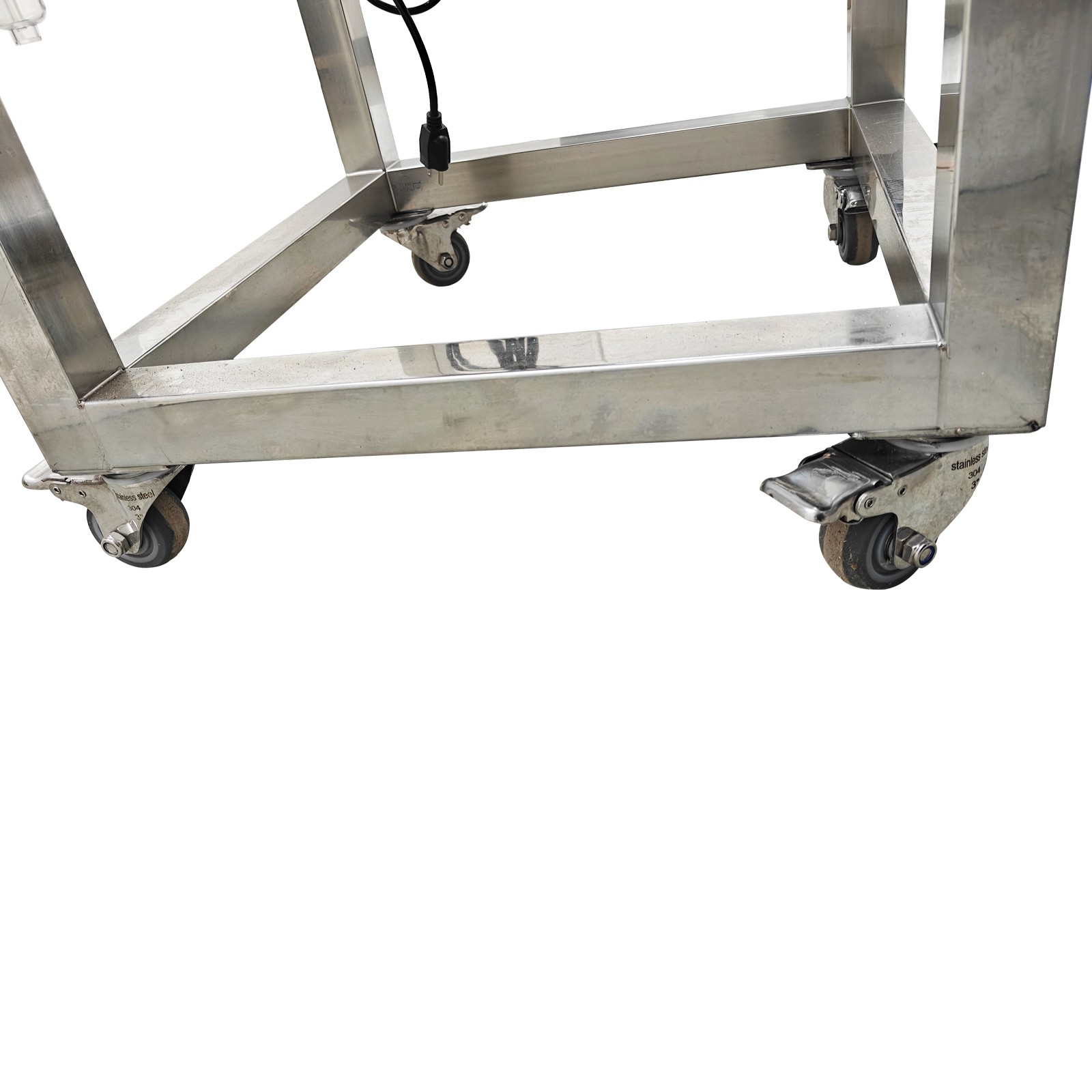

Universal Wheels
The
universal wheels are adopted to allow the machine to move easily
and effortlessly, effectively improving the movement convenience
and environmental adaptability. The brakes can stably stop the
machine. |
|
|
Operation
Method |
|
1. Insert the key into the power key
hole, rotate the key clockwise to turn on the POWER
supply.
2. Press the ON button, and the device
starts.
3. Press the OFF button, and the device
stops.
4. After starting the device, begin
counting, and press the reset key to reset.
5. Pour raw material into the material
box, start the device, and patties are produced
continuously. |
|
|
|

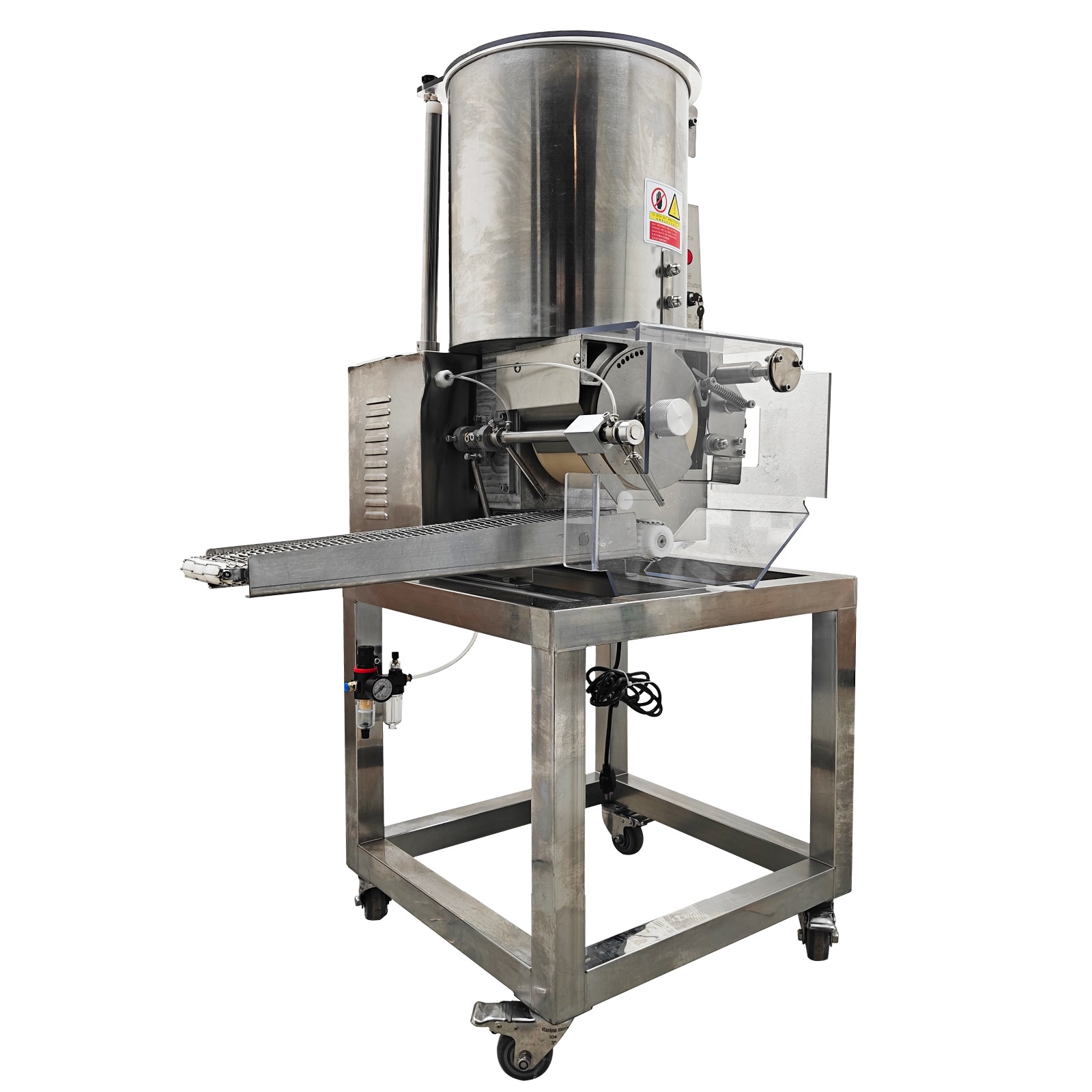

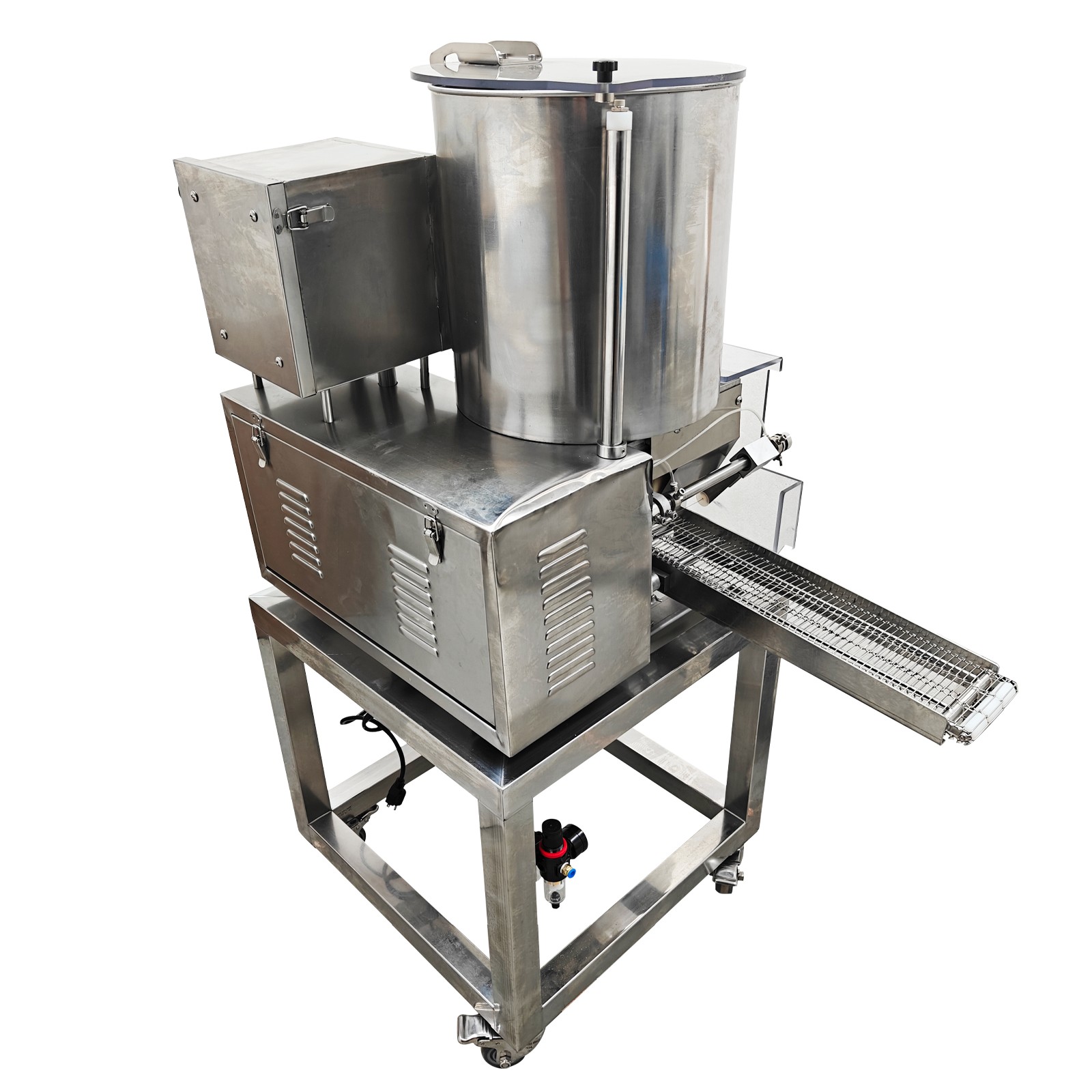

Product
Display |
 |
 |
 |
 |
|
Item Number (220599): 1 x Automatic
Pneumatic Patty Forming Machine 30L 110V |
|
|
