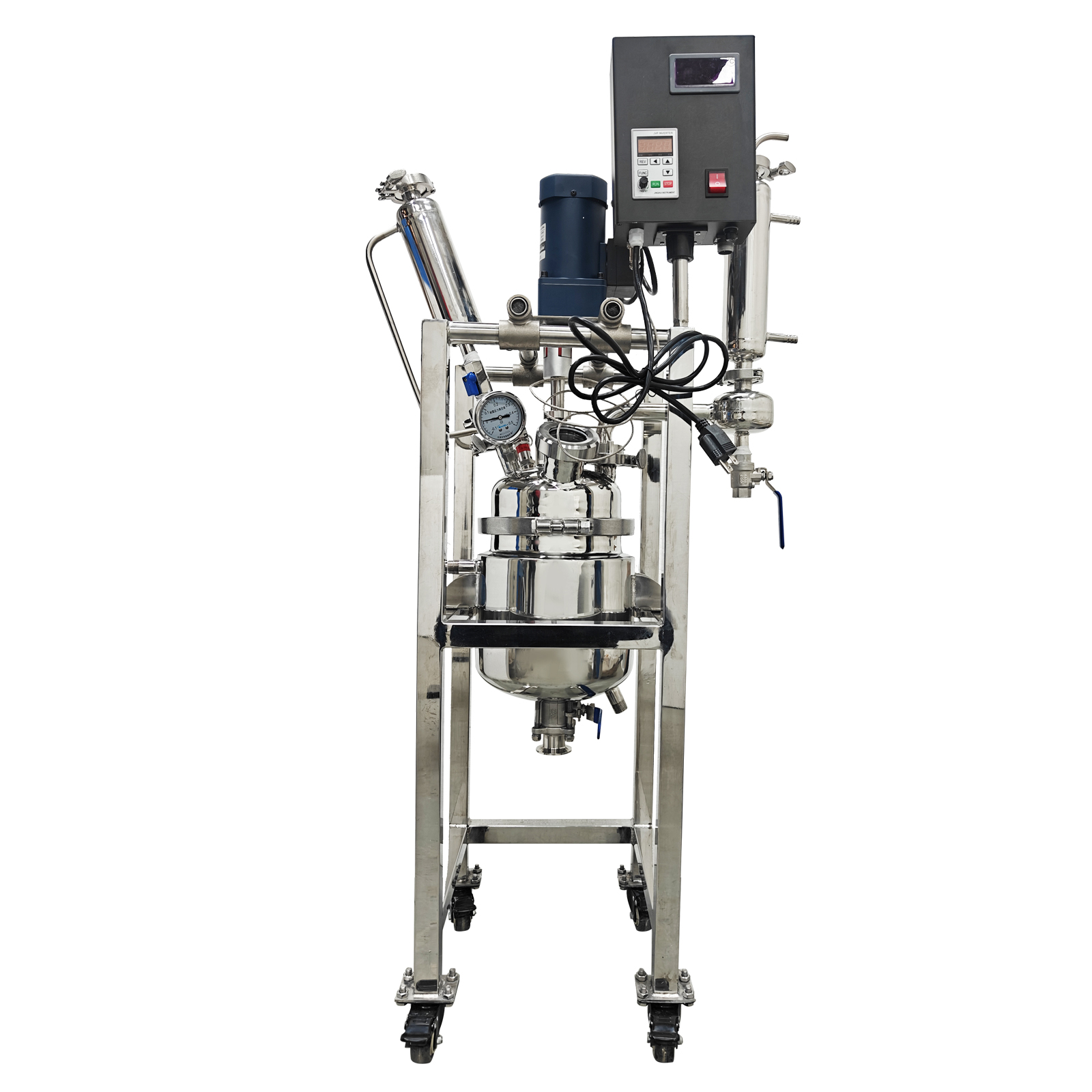

110V Double-layer 316
Stainless Steel Reaction Kettle Reactor 3L |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The interlayer of the stainless steel reaction
kettle can be filled with different cold and hot circulating
solutions, and the reactants can be stirred and react with each
other under the normal or negative pressure conditions in the
sealed container. It is an ideal experimental pilot device for
modern biological pharmacy and fine chemical synthesis. The
reaction kettle is made of 316 stainless steel and adopts the
advanced variable-frequency speed regulation. The internal
components have vacuum coating protection, and are resistant to
corrosion. The mechanical sealing is achieved, and the discharge
valve can discharge concentrated liquid and trace solid
materials. The reaction kettle can be used in conjunction with
multi-purpose circulating water vacuum pumps, circulating
coolers, constant temperature circulators, low-temperature
coolant circulation pumps and closed refrigeration and heating
circulation devices (also known as high and low temperature
circulation devices). |
|
|
Product
Parameters |
|
Voltage |
110V/60Hz |
|
Power |
120W |
|
Material of kettle body |
316 stainless steel |
|
Reaction capacity |
3L |
|
Interlayer capacity |
1.5L |
|
Thickness |
4mm |
|
Rotating speed |
0-600rpm |
|

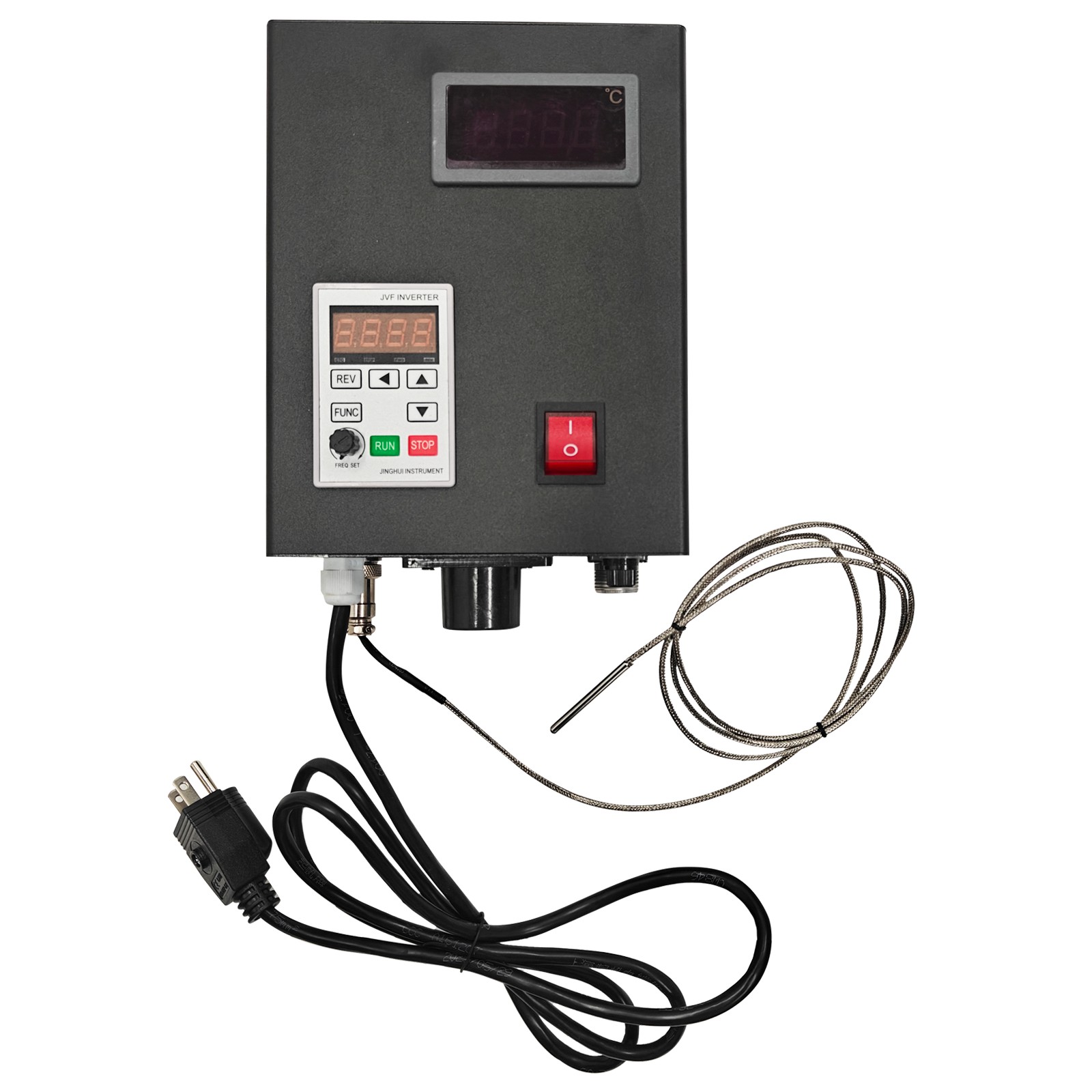

Controller |
Dual digital display for temperature and speed
regulation |
|
Working pressure |
-1~0.49Mpa |
|
Working temperature |
-20˚C~250˚C |
|
Vacuum sealing |
0.098Mpa |
|
Constant pressure hopper |
500ml, stainless steel |
|
Condenser |
S-shaped, stainless steel |
|
 |
|
Attention |
|
1. When the device is powered on, it is
prohibited to touch the transmission device to prevent danger.
2. When materials are added, it is strictly
prohibited to make metal or hard materials fall into the kettle
so as to avoid damaging the equipment.
3. Do not exceed the using pressure range and
temperature range, and the temperature difference should not be
too large.
4. After the installation of the reaction kettle
is completed, it must pass the operation qualification before it
is put into use. |
|
|
Product
Features |
|
|
|

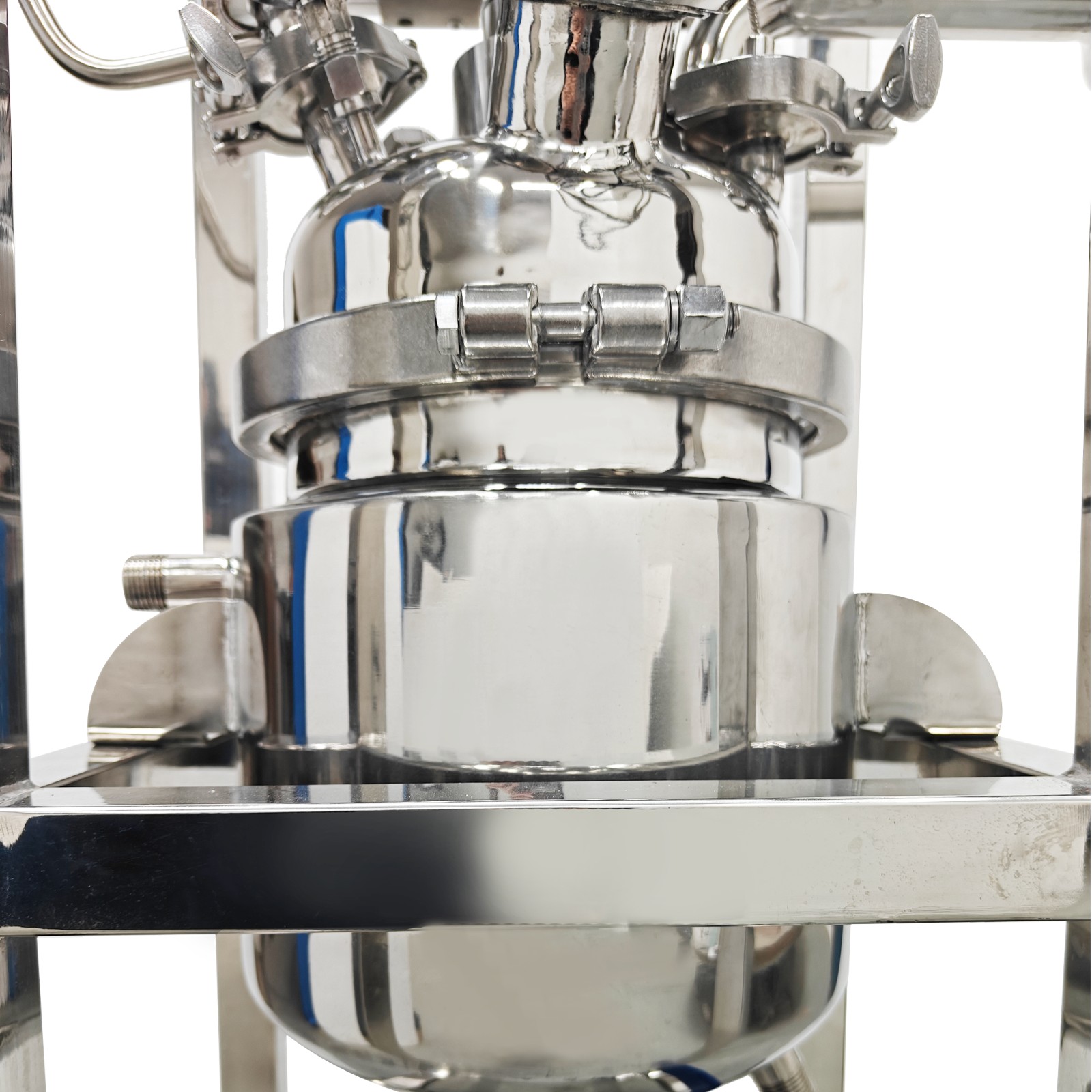

The 316 stainless steel kettle body is high in
structural strength, resistant
to corrosion and high and low temperature, and easy to clean. |
|
The
variable-frequency speed regulator achieves linear energy saving
at the low rotating speed and high torque and can stably output
the speed. |
|

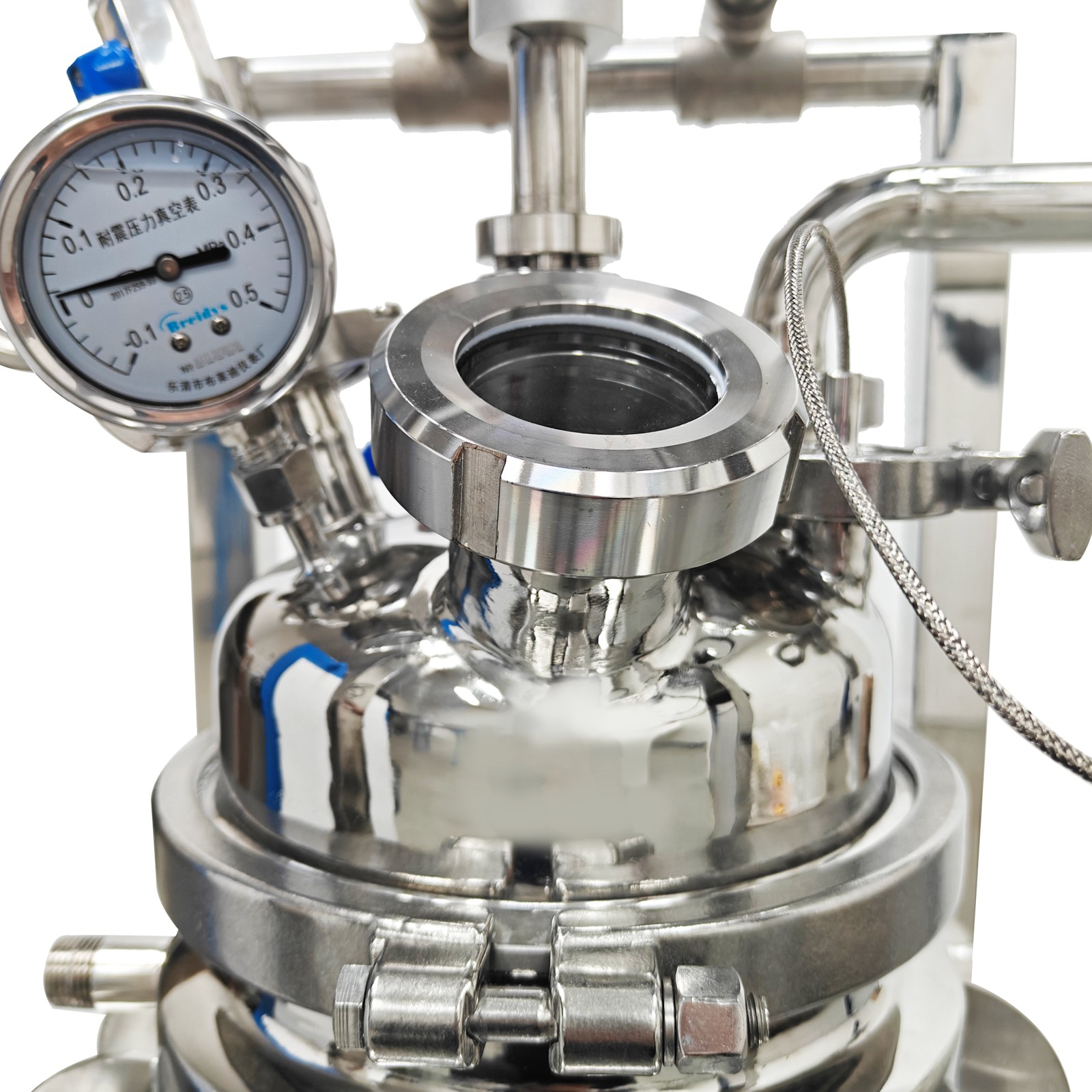

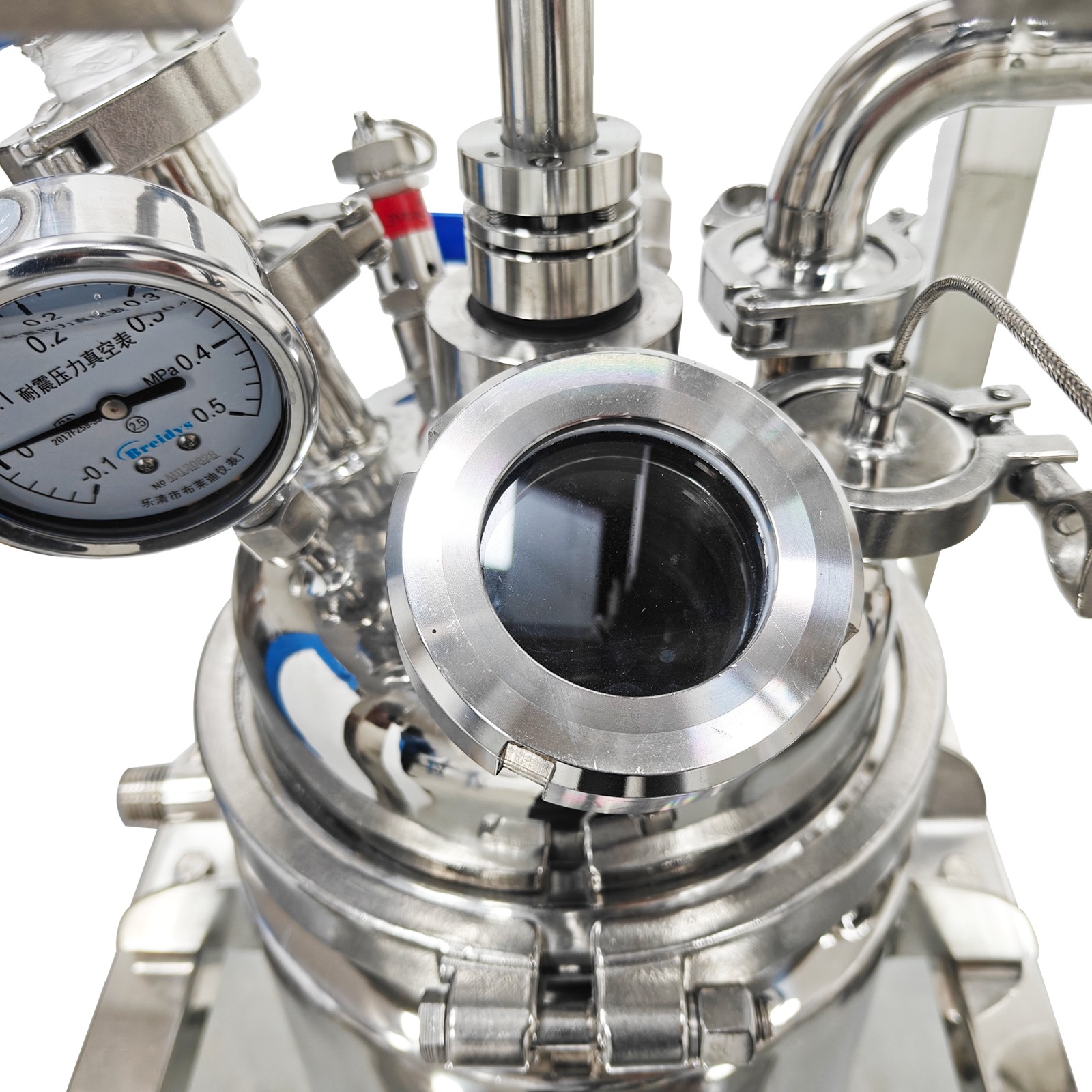

The visual glass window allows the operator to
observe the reaction conditions inside the kettle body in real
time and effectively improving the practicability.
|
|
|
|
|
The pressure gauge can display the vacuum pressure in real time
in real time and facilitates monitoring of the pressure state
during operation.
|
|

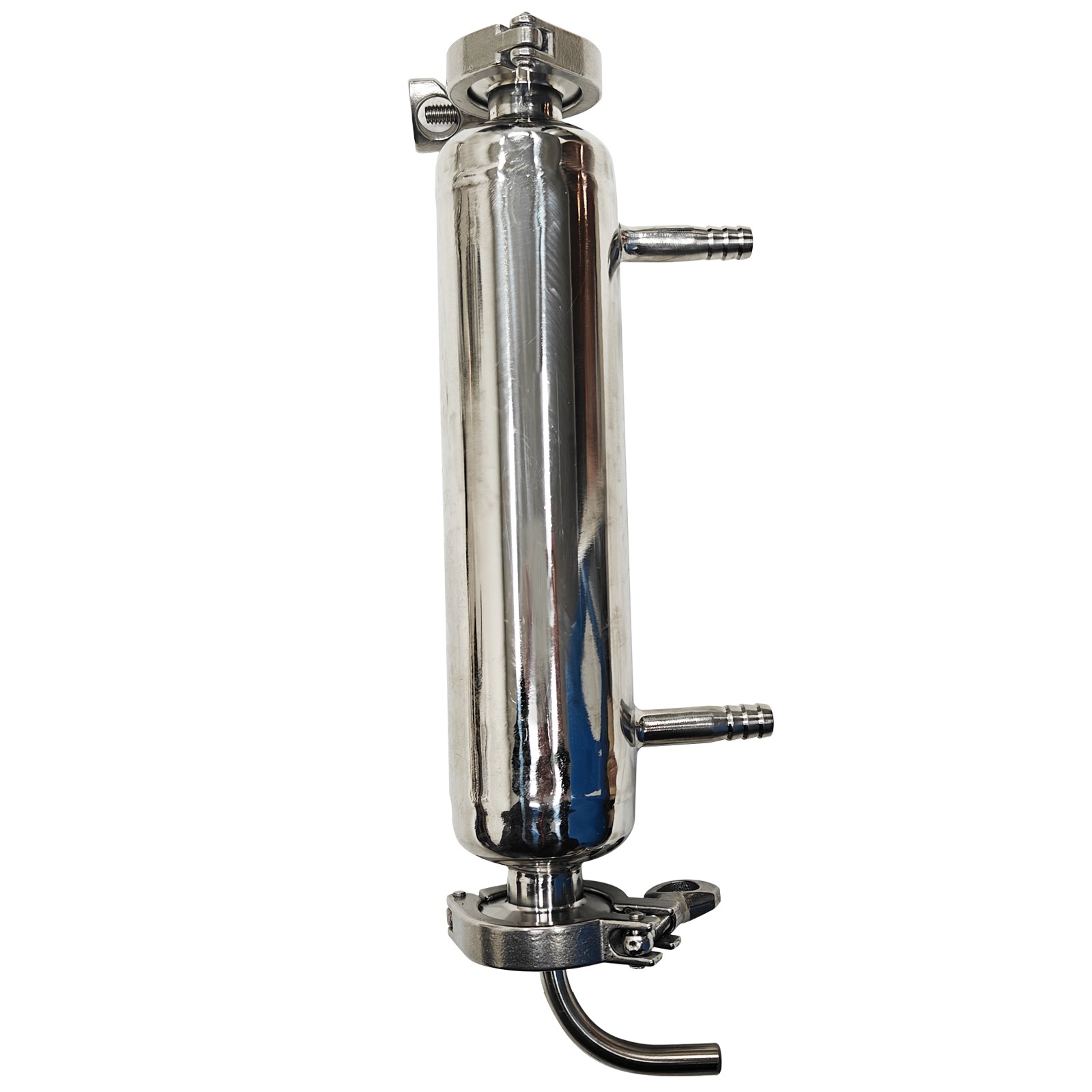

The S-shaped stainless steel condenser has high structural
strength and achieves efficient heat exchange and precise
temperature control. |
|

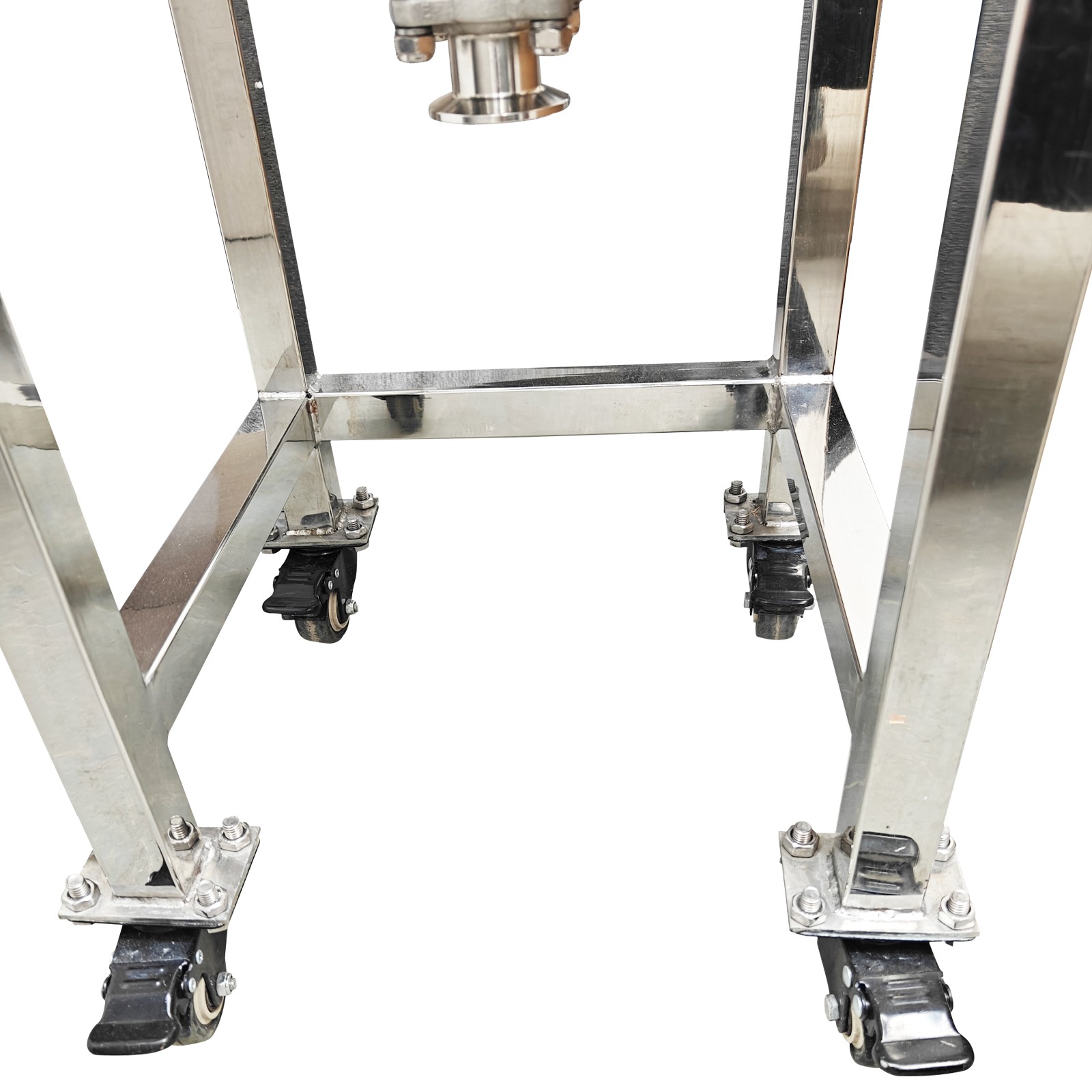

The four wheels are equipped with brakes so the
reaction kettle can be moved and fixed freely, and the movement
convenience is greatly improved.
|
|
|
Operation
Method |
|
1. Before installing the equipment, be
sure to check whether the components are complete and
intact.
2. Insert the speed regulator into the
bracket and install the aviation plug of the motor and
the speed regulator in place.
3. Install the constant pressure hopper,
the cross flask, the condenser and the temperature probe
in sequence, and ensure that the bolts of all the parts
are tightened in place.
4. Connect the vacuum pump or high/low
temperature circulation device as needed.
5. Ensure that the discharge valve is
located in a closed state.
6. Power on the machine, ensure that the
stirring blade can work normally, and then put the
equipment into use. |
|
|
|
Product
Display |
 |
 |
 |
 |
|

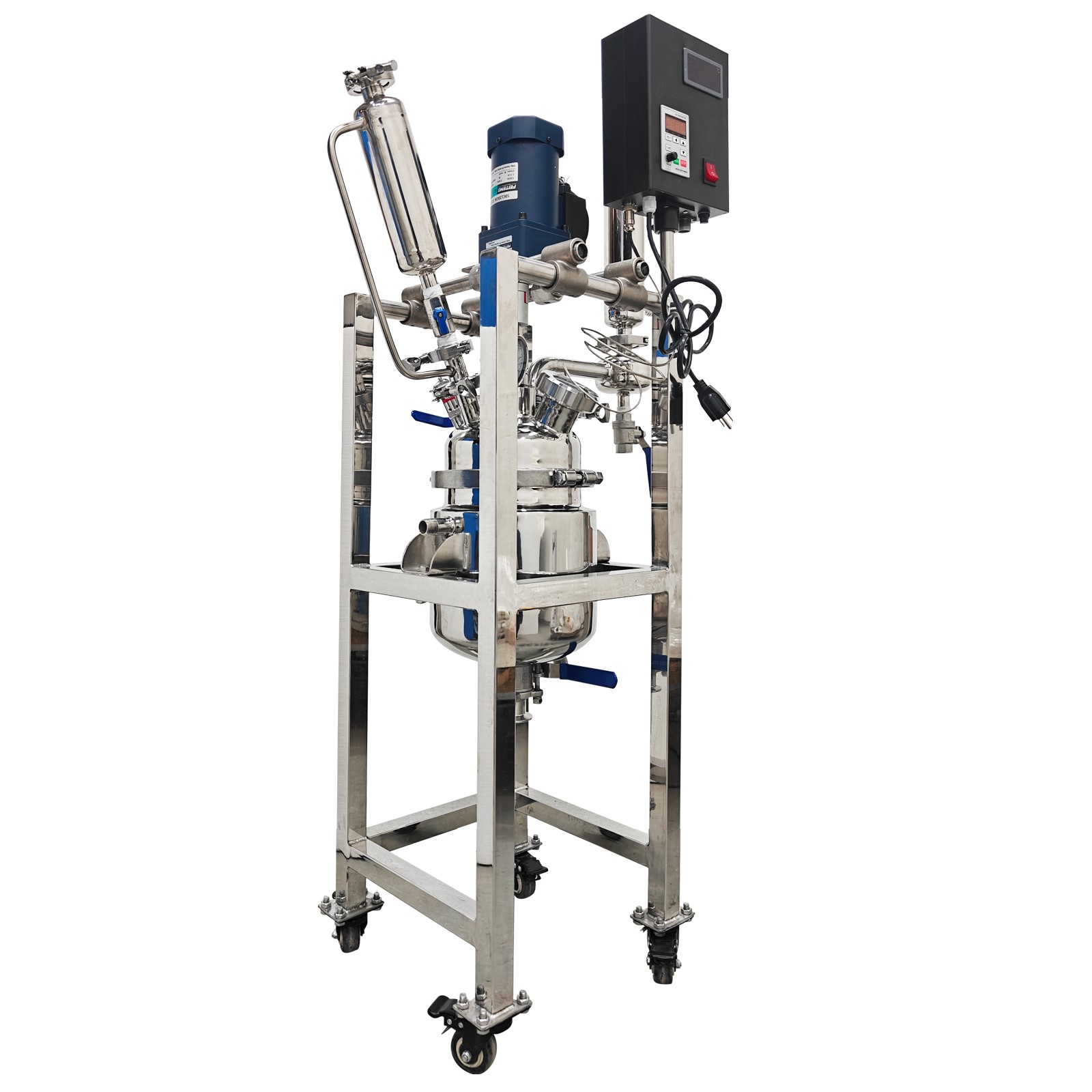

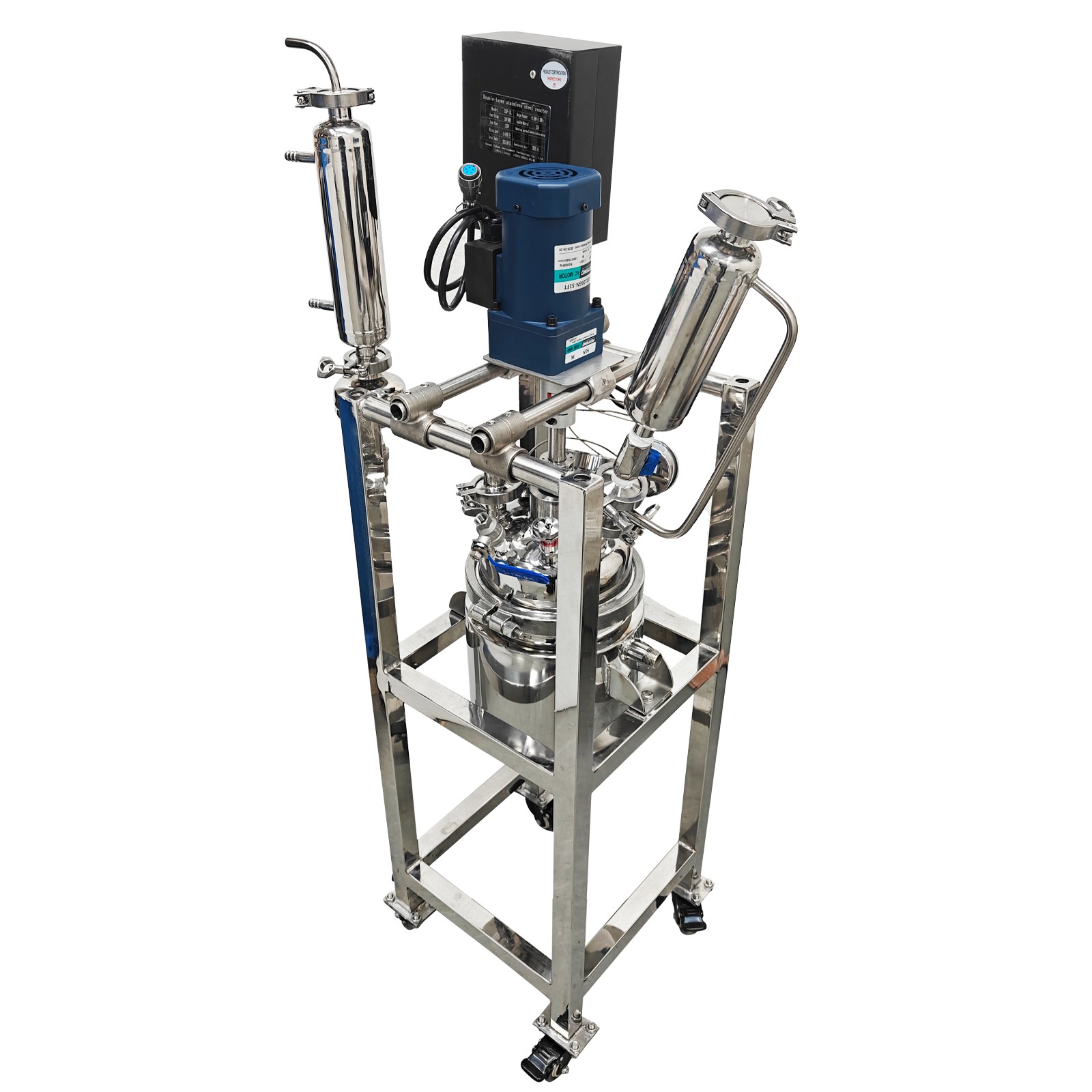

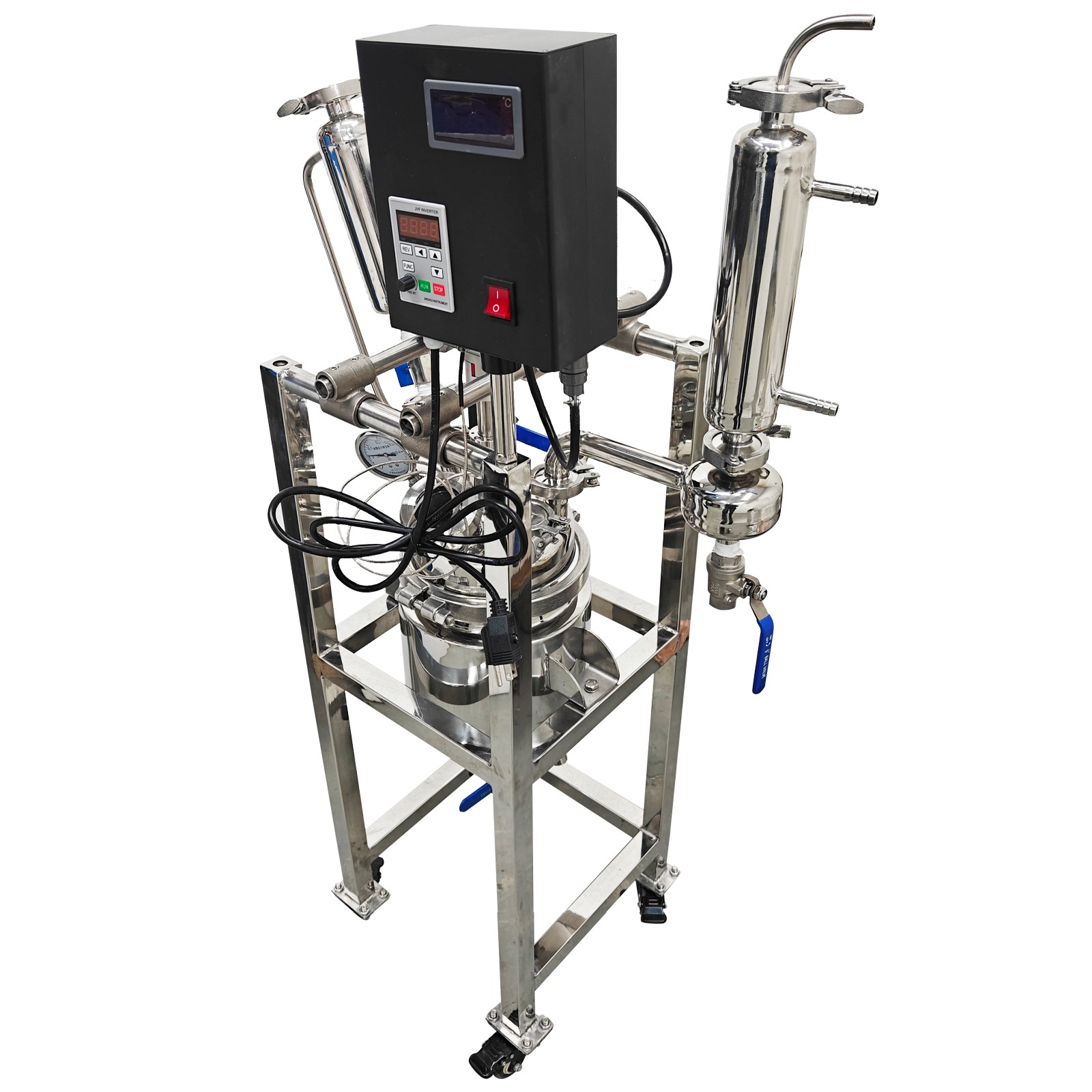

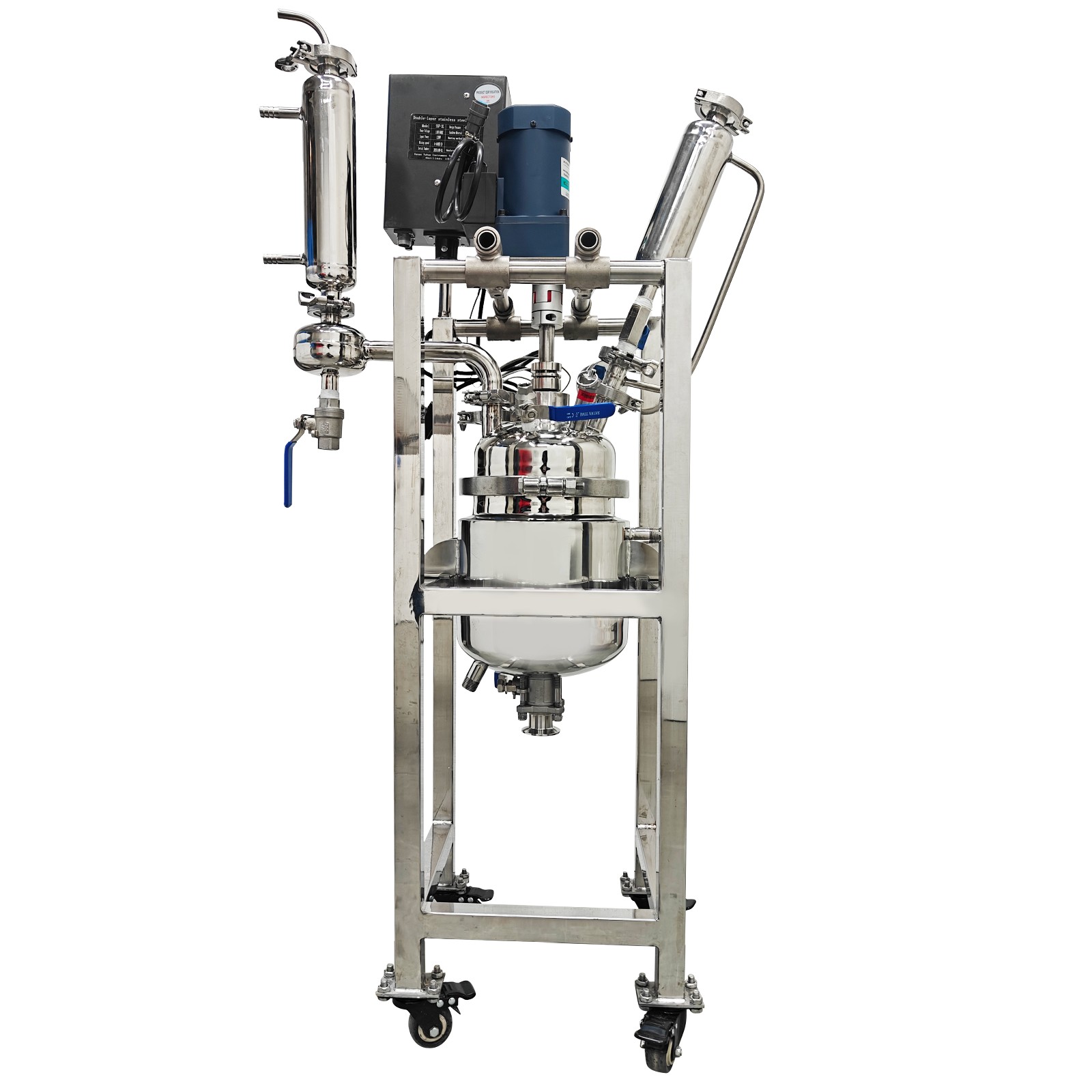

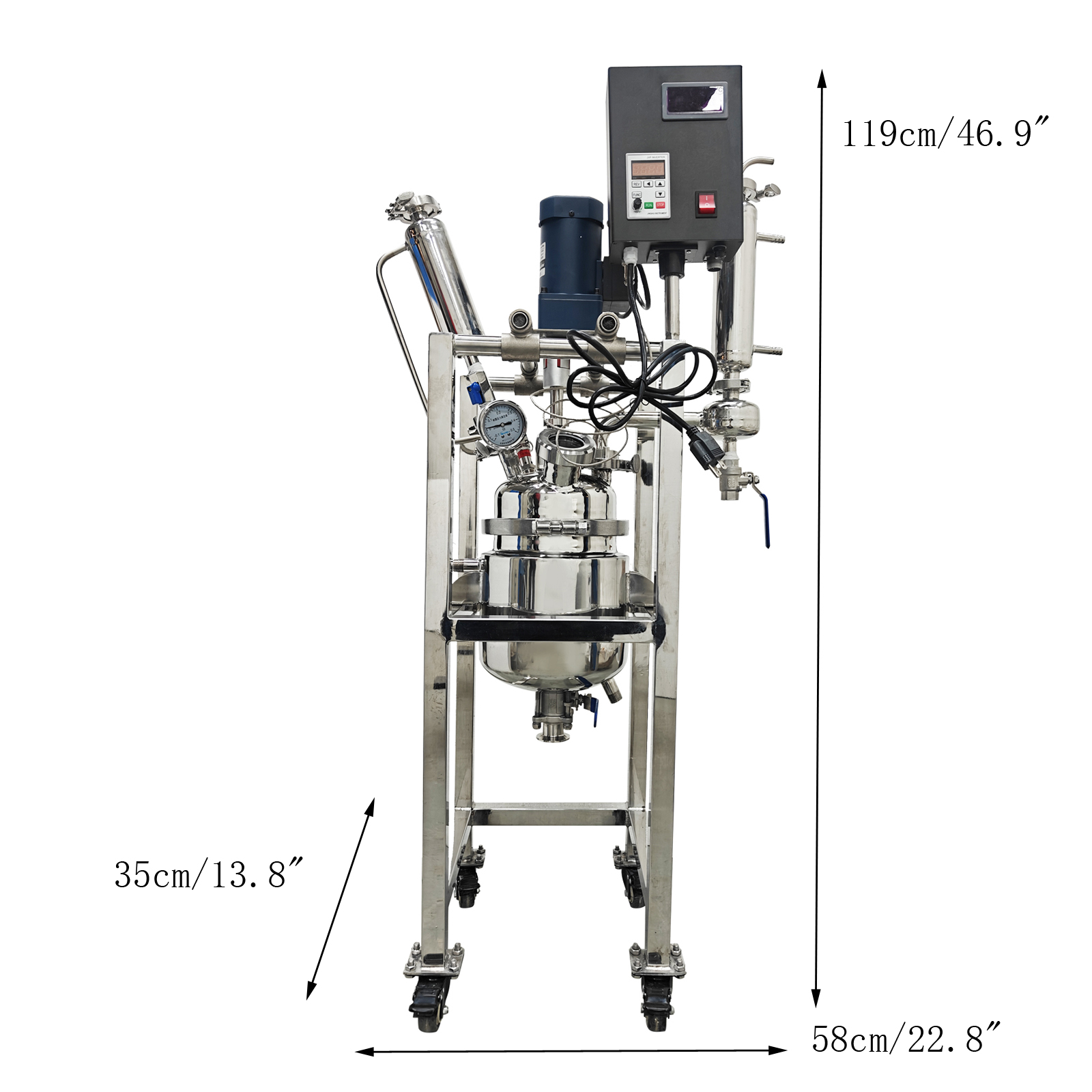

Item Number (220656): 1 x Double-layer
Stainless Steel Reaction Kettle Reactor 3L 110V |
|
|
